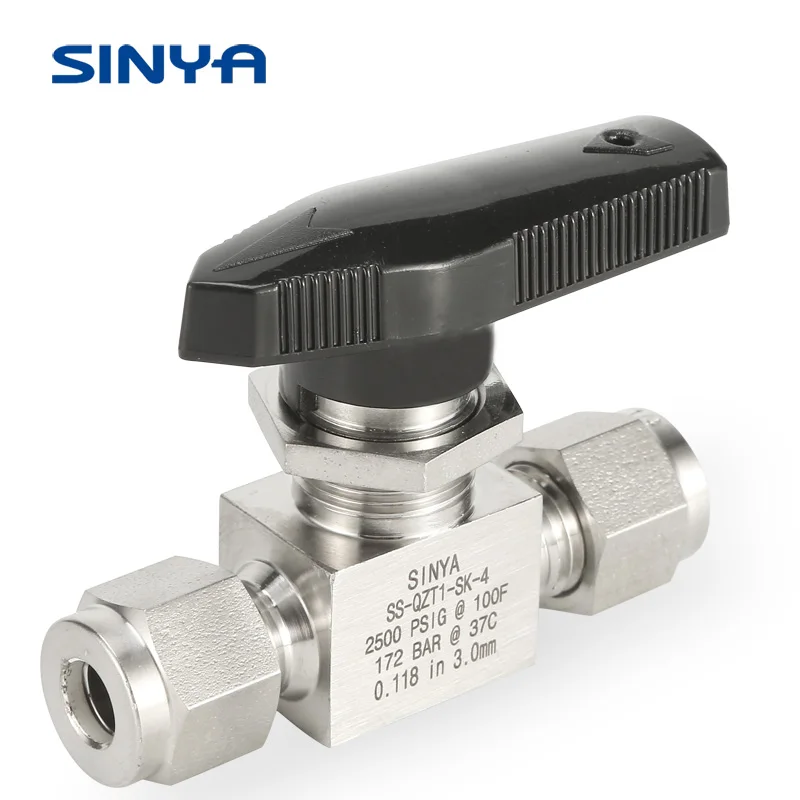

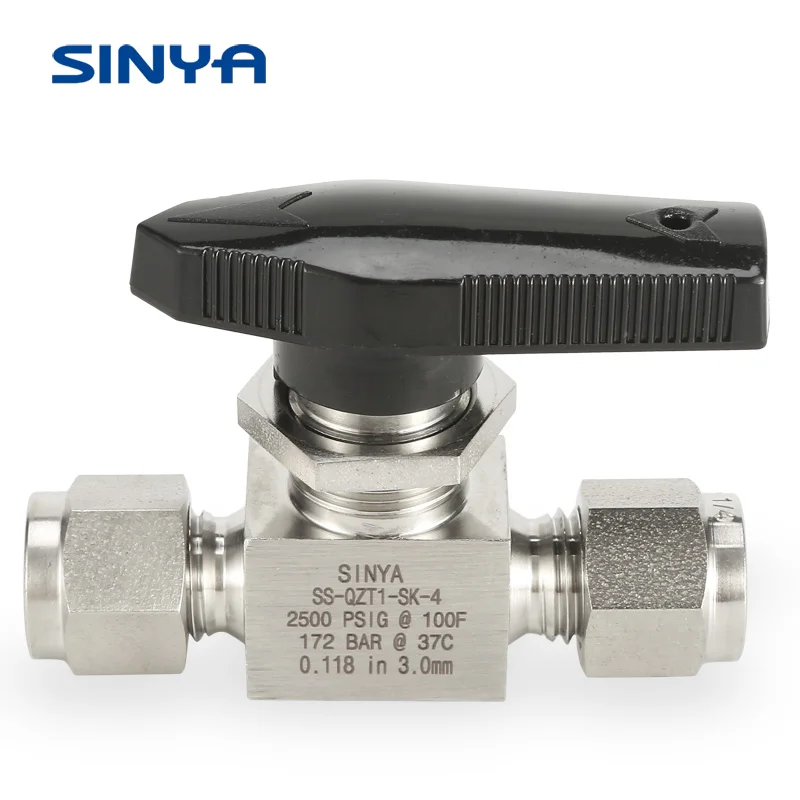

Прибор с двойным наконечником шаровой кран прямого типа высокое давление ПТФЭ PFA PEEK сжатие 3000 316 psi нержавеющая
- Категории: Valves >>>
- Поставщик: Yangzhong,Xinya,Automatic,Control,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

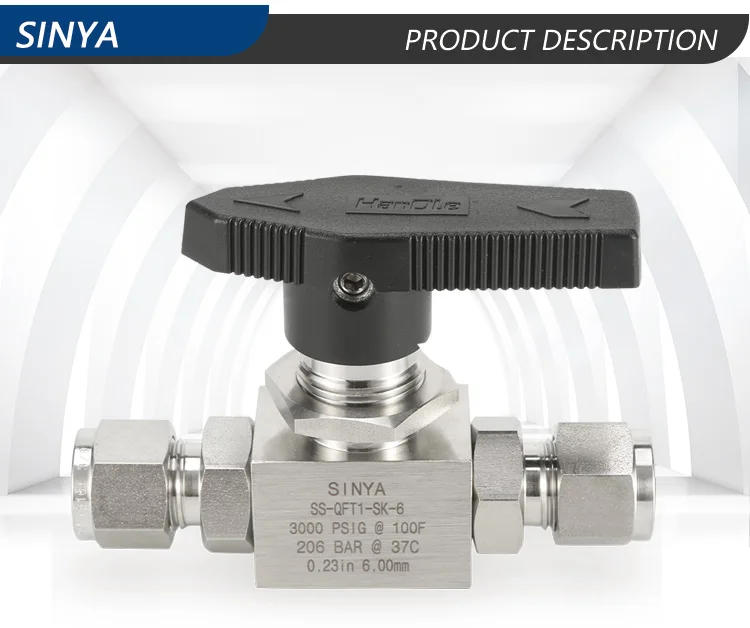

Product Description
1.Size 1/8~1" and 3~25mm end connection | ||||||||
2.Working temperature:-17℃ to 232℃ | ||||||||
3.Material grades: SS 304/304L ,SS 316/316L,Alloy. | ||||||||
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve. | ||||||||
5.Zero leakage even under tough working conditions. | ||||||||
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online. | ||||||||
7.The medium is of bidirectional flow and can be installed on plates or pads. | ||||||||
8.Available in wide variety of configurations. | ||||||||

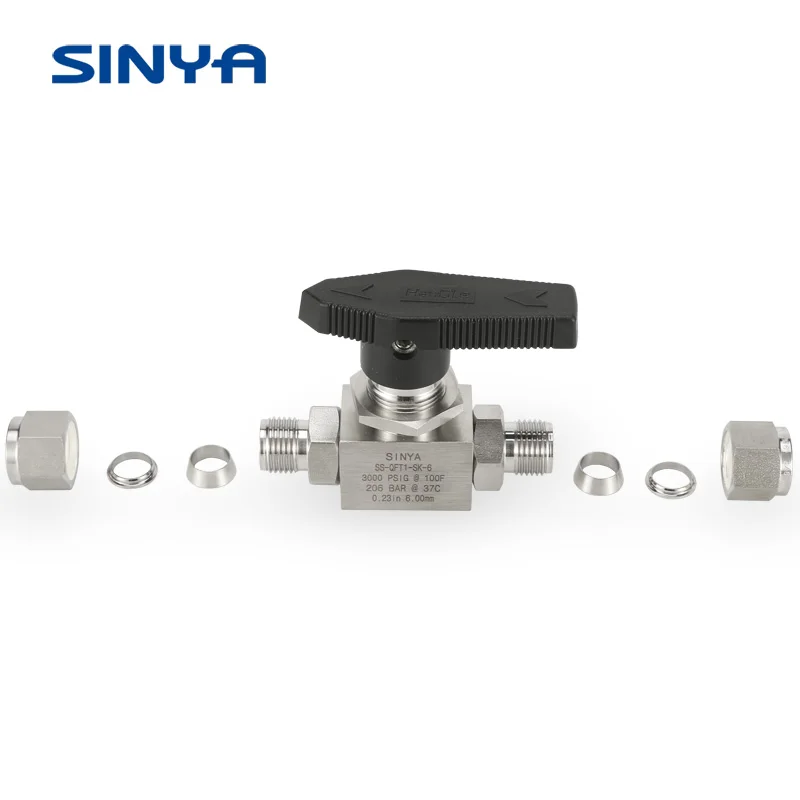

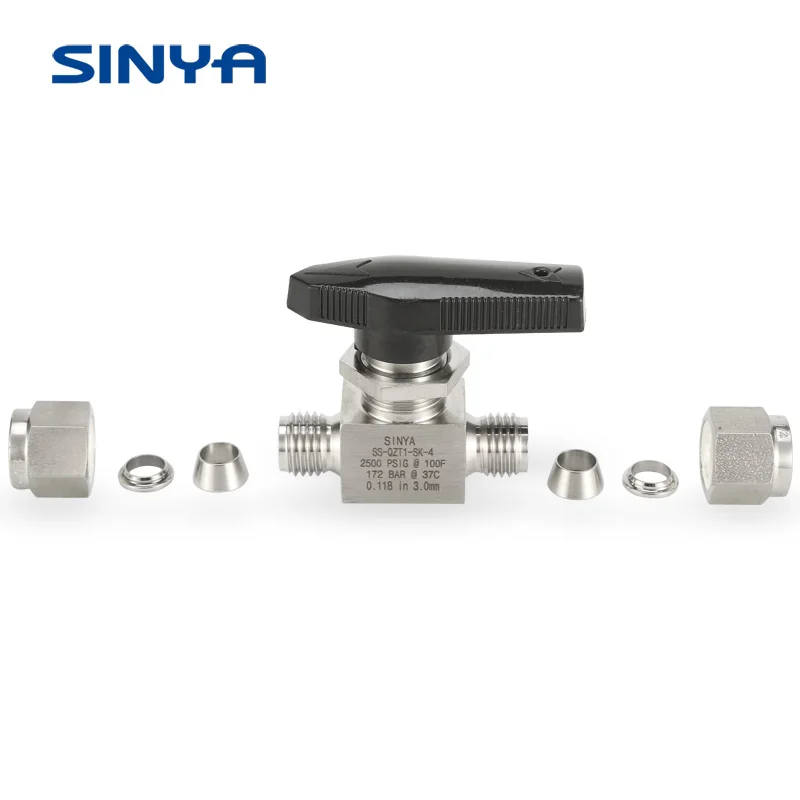

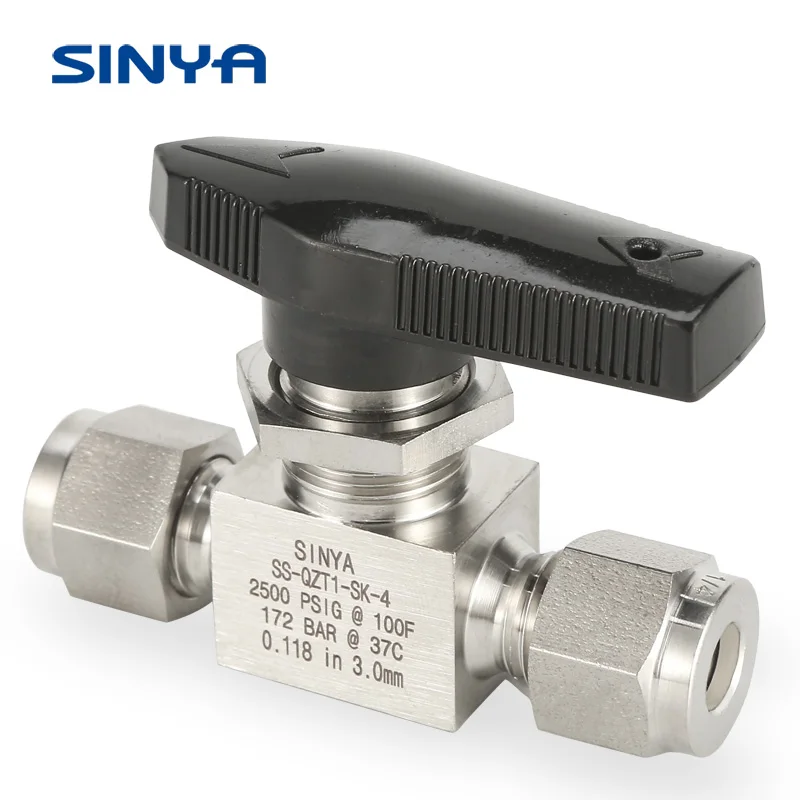

-QFT1-SK Straight type valve with ferrules | ||||||||||||

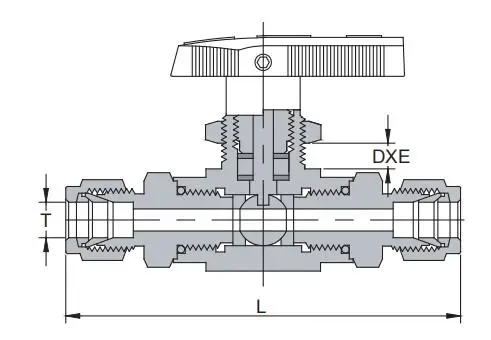

Order information | T | L | D×E | Orifice | ||||||||
OD | (in) | (mm) | (mm) | (in) | (mm) | |||||||
-QFT1-SK-2 | 1/8in | 2.83 | 72 | 16×6.4 | 0.093 | 2.4 | ||||||
-QFT1-SK-4 | 1/4in | 3.31 | 84 | 16×6.4 | 0.1 70 | 4.2 | ||||||
-QFT1-SK-6 | 3/8in | 3.78 | 96 | 20×6.4 | 0.2 50 | 6.4 | ||||||
-QFT1-SK-8 | 1/2in | 4.09 | 104 | 23×9.7 | 0.4 10 | 10.3 | ||||||
-QFT1-SK-12 | 3/4in | 4.41 | 112 | 23×9.7 | 0.4 10 | 10.3 | ||||||
-QFT1-SK-3mm | 3mm | 2.83 | 72 | 16×6.4 | 0.0 93 | 2.4 | ||||||
-QFT1-SK-4mm | 4mm | 2.83 | 72 | 16×6.4 | 0.0 93 | 2.4 | ||||||
-QFT1-SK-6mm | 6mm | 3.31 | 84 | 16×6.4 | 0.1 70 | 4.2 | ||||||
-QFT1-SK-8mm | 8mm | 3.78 | 96 | 16×6.4 | 0.1 70 | 4.2 | ||||||
-QFT1-SK-10mm | 10mm | 3.78 | 96 | 20×6.4 | 0.2 50 | 6.4 | ||||||
-QFT1-SK-12mm | 12mm | 4.09 | 104 | 20×6.4 | 0.2 50 | 6.4 | ||||||
-QFT1-SK-14mm | 14mm | 4.09 | 104 | 23×9.7 | 0.4 10 | 10.3 | ||||||
-QFT1-SK-16mm | 16mm | 4.09 | 104 | 23×9.7 | 0.4 10 | 10.3 | ||||||
-QFT1-SK-18mm | 18mm | 4.41 | 112 | 23×9.7 | 0.4 10 | 10.3 | ||||||
-QFT1-SK-20mm | 20mm | 4.41 | 112 | 23×9.7 | 0.4 10 | 10.3 | ||||||

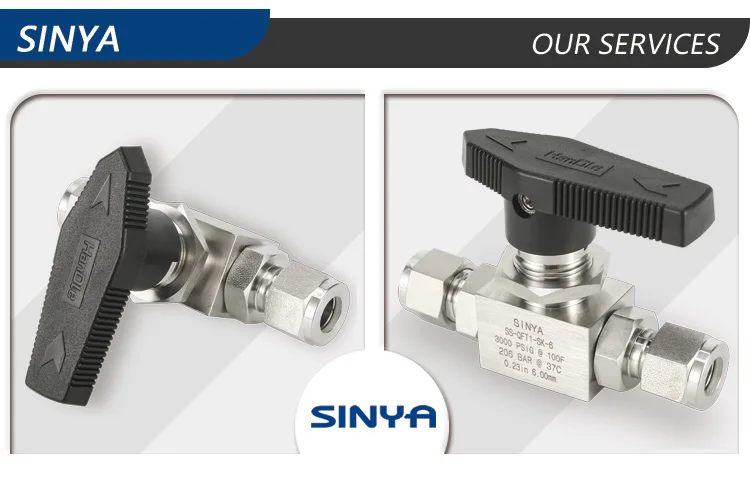

Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||||
1.Custom design, CAD drawing | ||||||||
2.P&ID | ||||||||
3.Component selection | ||||||||
4.Bill of material | ||||||||
5.Professional services such as bending and welding | ||||||||
6.Testing to guarantee the system | ||||||||
7.Professional packaging and delivery | ||||||||
Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packaging & Delivery
Mode of packing: | Export standard package or as your detail request. | ||||||||
Delivery time: | 2 weeks after receipt of payment | ||||||||
Mode of shipment: | By Express like DHL,Fedex,TNT Ups. | ||||||||
Our Company
1.Established in 1995. | ||||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||||
8.We have obtained ISO9001 certificate, CE Certificate. | ||||||||
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries. | ||||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||||
Certifications
Instrumentation Double Ferrule Straight Type Ball Valve High Pressure PTFE PFA PEEK Compression3000 6000psi Stainless Steel 316 Instrument Ball valve Gas Valve Switch Ferrule Ball Valve 8mm Supplier Hydraulic Stainless Steel Ball Valve 316 Double Ferrule Threaded
