Универсальный контроллер pH meter/ORP/DO сенсорные входы Modbus RS232/RS485 и 4-20 мА
- Категории: Измерители PH >>>
- Поставщик: Eit,Solutions,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

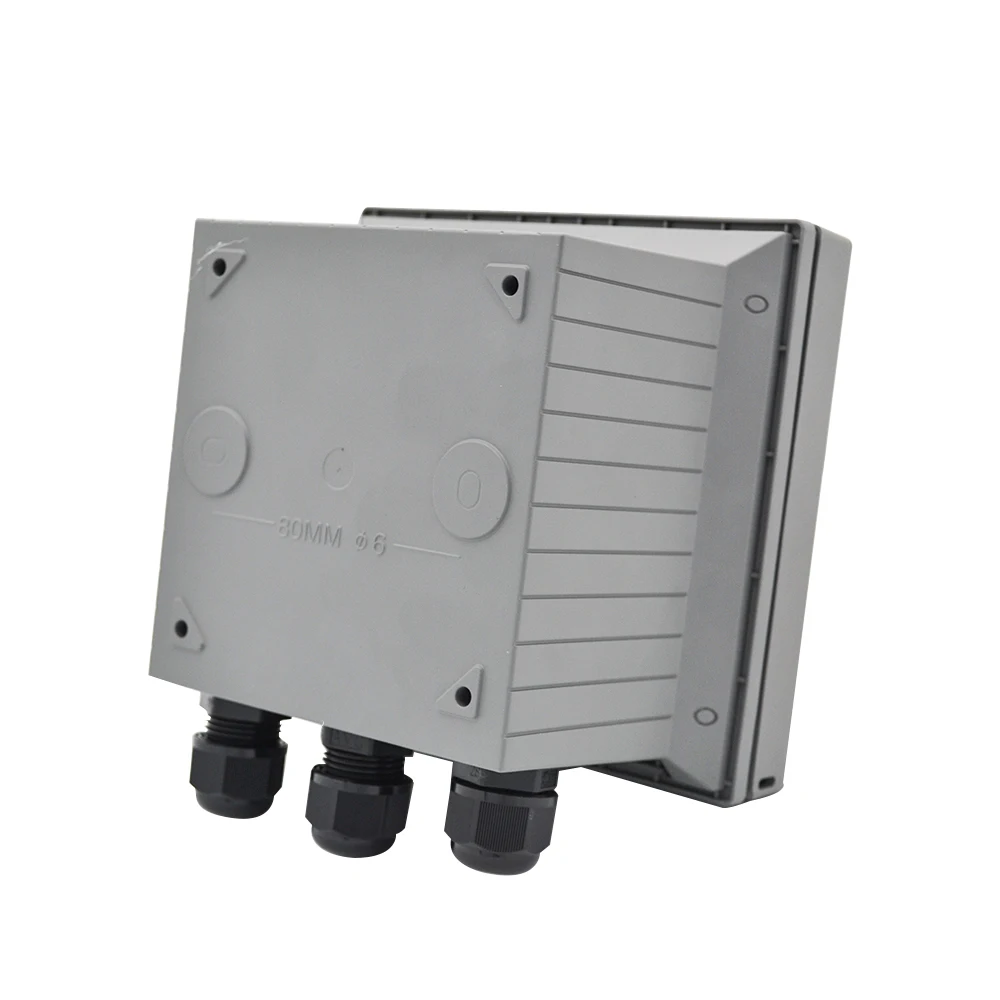

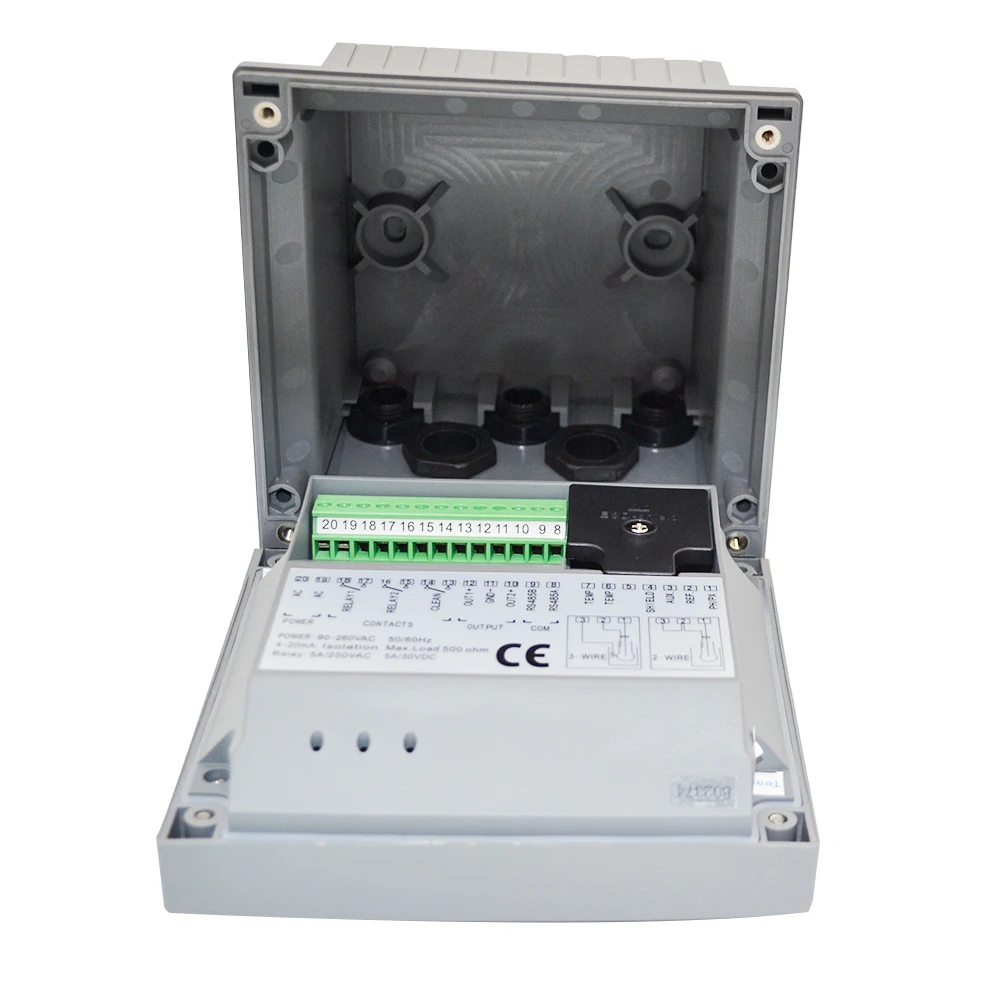

pHG-1911X
Instruments are used in industrial measuring of the temperature and PH/ORP, such as waste water treatment, environmental monitoring, fermentation, pharmacy, food process agriculture production, etc.
Technical specifications
Functions | pH | ORP |
Measuring range | -2.00pH to +16.00 pH | -2000mV to +2000mV |
Resolution | 0.01pH | 1mV |
Accuracy | ±0.01pH | ±1mV |
Temp. compensation | Pt 1000/NTC10K | |
Temp. range | -10.0 to +130.0℃ | |
Temp. compensation range | -10.0 to +130.0℃ | |
Temp. resolution | 0.1℃ | |
Temp. accuracy | ±0.2℃ | |
Ambient temperature range | 0 to +70℃ | |
Storage temp. | -20 to +70℃ | |
Input impedance | >1012Ω | |
Display | Back light, dot matrix | |
pH/ORP current output1 | Isolated, 4 to 20mA output , max. load 500Ω | |
Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500Ω | |
Current output accuracy | ±0.05 mA | |
RS485 | Mod bus RTU protocol | |
Baud rate | 9600/19200/38400 | |
Maximum relay contacts capacity | 5A/250VAC,5A/30VDC | |
Cleaning setting | ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours | |
One multi function relay | clean/period alarm/error alarm | |
Relay delay | 0-120 seconds | |
Data logging capacity | 500,000 | |
Language selection | English/traditional Chinese/simplified Chinese | |
Waterproof grade | IP65 | |
Power supply | From 90 to 260 VAC, power consumption < 5 watts | |
Installation | panel/wall/pipe installation | |
Weight | 0.85Kg | |
Recommend Products
manufacturers digital RS485 ph orp meter controller
Main controller parameters of wastewater pool spa digital electronic ph orp meter| Model | pHG-2081X | pHG-1912BT | pHG-1901 |
| Measuring Range | 0.00~14.00pH | ||
| Temperation compensation | 0-150 ℃ | 0-99 ℃ | |
| Accuracy | 1% FS | ||
| Resolution | 0.01pHm0.1C,0.1mV | 0.05pH,0.3 ℃ | |
| Communication | RS485(optional) | ||
| Output | 0~10mA,4-20mA(double output for option) | 0~10mA,4-20mA | 4-20mA |
| Alarm relay | two relay output | ||
| Power | 220V,24V(85~265V) | 220V | 220V(110V) |
| Protection grade | IP65 | IP65 | IP54 |
| Dimension | 146*146*150mm | 220*190*130mm | 96*96*135mm |
| Hole size | 138*138mm | / | 92*92mm |
| Installation | wall/panel mounted | wall mounted | panel mounted |
| Working condition | ambient:0~60C,relative humidity<90% | ||
Pricision and long working life,it's special used for high temperature resistant gel and high temperature solid dielectric dual sensor, it's suitable for demanding online measurement. it's widely used for fermentation tank, biotechnology,pharmaceutical industry,food and beverage technology,starch paste etc.
| Model | HPH1920/S8 | HPH1920/K8S | HPH1920/VP | HPH1920/5M | HPH1930 |
| Range | 0.00-14.00 pH | ||||
| Temp | 0-130 ℃ | ||||
| Cable connection | AS9 | AK9 | VP | With Cable | S7/VP |
| Demiension | 12*120/150/225/325mm | 12mm*120/150/ 200/250/450mm | |||
| Tempensation | No | No | Yes | Yes | Yes/No |
Application
Package
To better ensure the safety of pH TDS ORP salinity water analysis equipment multi-parameter water quality analyzer, professional,environmentally friendly, convenient and efficient packaging services will be provided.
EIT Company Profile
Shanghai Boqu Environmental Technology Co.,Ltd (EIT) is the biggest factory for Water Analyzer Instrument in Shanghai City China. We build the first High Temp Laboratory in China.we produce more 600 000 sensors and instruments every years. EIT mainly products includes Online PH Meter/ORP/pH sensor Industrial Conductivity meter/sensor Online Acid/Alkali meter/sensor Online Dissolved oxygen meter/sensor Online Turbidity meter/sensor Online Residual/totalchlorine meter/sensor Online Ion meter/sensor Online COD/BOD/Heavy metals meter Sodium/Silica Analyzer Flow Meter/Level meter/pressure sensor
