KAISHAN Brand KW400 300 метровая глубина дешевая буровая установка для водяных скважин
- Категории: Горное оборудование >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
KAISHAN Brand KW400 300meter depth cheap water well drilling rig used for water well
1. Application of KAISHAN Brand KW400 300meter depth cheap water well drilling rig used for water well
KW400 Multi-function type geothermal well drilling machines for rigs is a lightweight, high efficiency, multifunctional drilling hole equipment.KW400 has the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling Wells, agricultural irrigation and air hole and other USES of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering.The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
a.multi function geothermal water well drilling machines for rigs is a lightweight, high efficiency, multifunctional drilling rig
b.has the characteristics of advanced structure, easy to use, high efficiency, reliable, durable etc.
c.Usage:It is widely used in drilling water wells, agricultural irrigation well and Geothermal air conditioning hole and other usages of geothermal well hole.KW400 is particularly applicable to mountain area and rock formation water engineering.
d.The drilling machines for rigs adopts the latest hydraulic technology, assorting with the high torque rotary hydraulic motor and the large diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
Product advantages:
1.Dual motor rotating mechanism

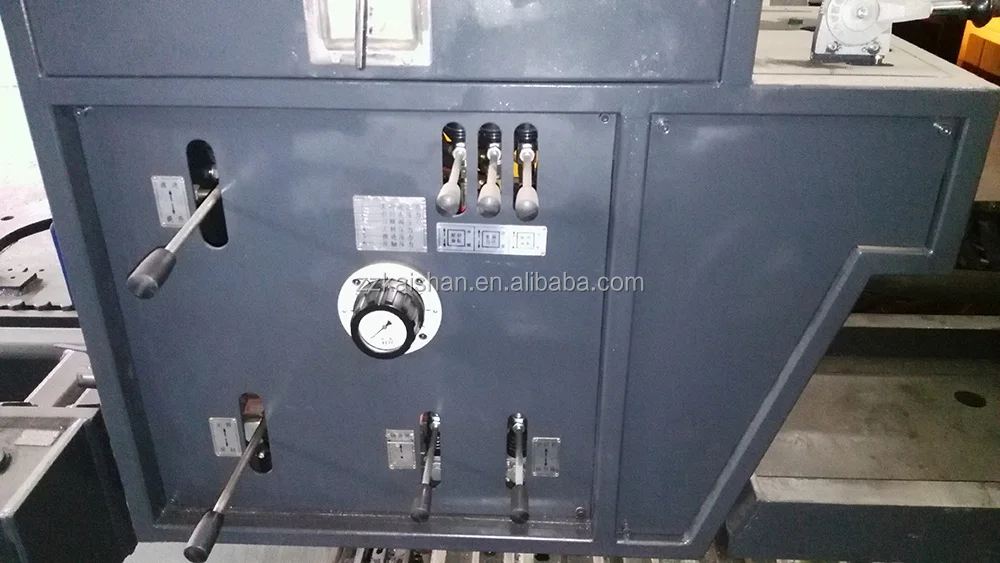

2.Centralized operating system
3.Double cylinder propulsion system
4..Latest hydraulic technology, assorting with the high torque rotary hydraulic motor and the large diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.Safe and 5.stable traveling system
6.Triple pump assemble
2. Specification of KAISHAN Brand KW400 300meter depth cheap water well drilling rig used for water well
Drilling Hole Diameter | 110-273mm |
Drilling Depth | 250m |
Working pressure | 1.05-2.46bar |
Air consumption | 16-54m³/min |
Propeller Shaft Stress | 0-4.4T |
Lifting power | 9.5T |
Pulling Force of Landing Leg Cylinder | 60T (4 legs) |
Stroke of Landing Leg Oil Cylinder | 1.4m |
Sliding Plate Stroke | 4440mm |
Slow Lifting Speed | 4.2m/min |
Slow Pushing Speed | 0-8.9m/min |
Fast Lifting Speed | 37.8m/min |
Fast Pushing Speed | 80.4m/min |
Rotation torque | 5700N.m |
Rotation Speed | 57-94r/min |
Lifting Power of Hoist | 1T |

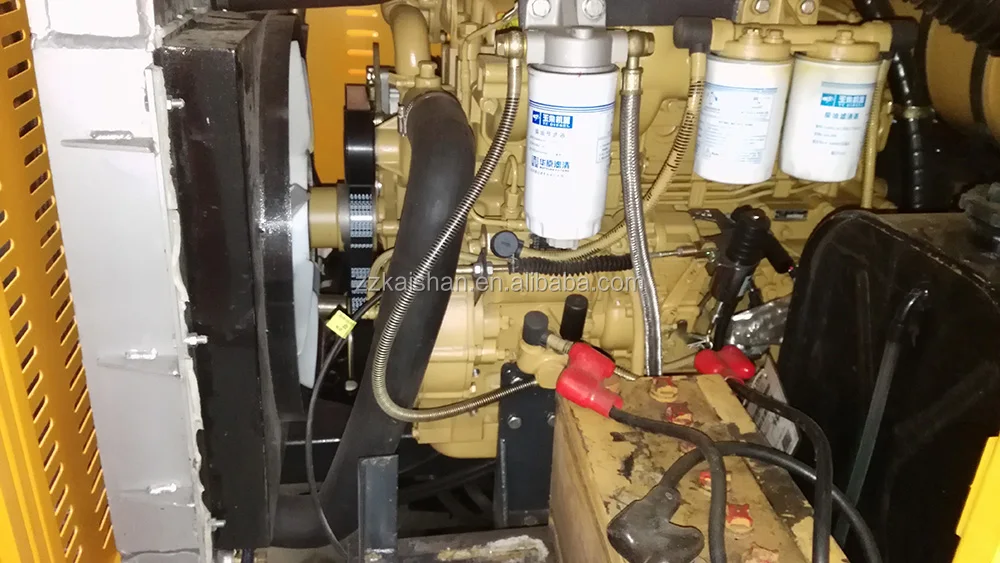

Diesel Engine model | YC6B125-K10 |
Engine Power | 92kw |
Travelling speed | 0-2 km/h |
Climb capacity | 20° |
Weight | 9800kg |
Dimension | 7300*2250*2750mm |
Matching Drilling components |
|
Hammer | DHD350/DHD360/DHD380 |
Rod | Φ76/89/102×3000mm |
Bit | Φ110-Φ273 |

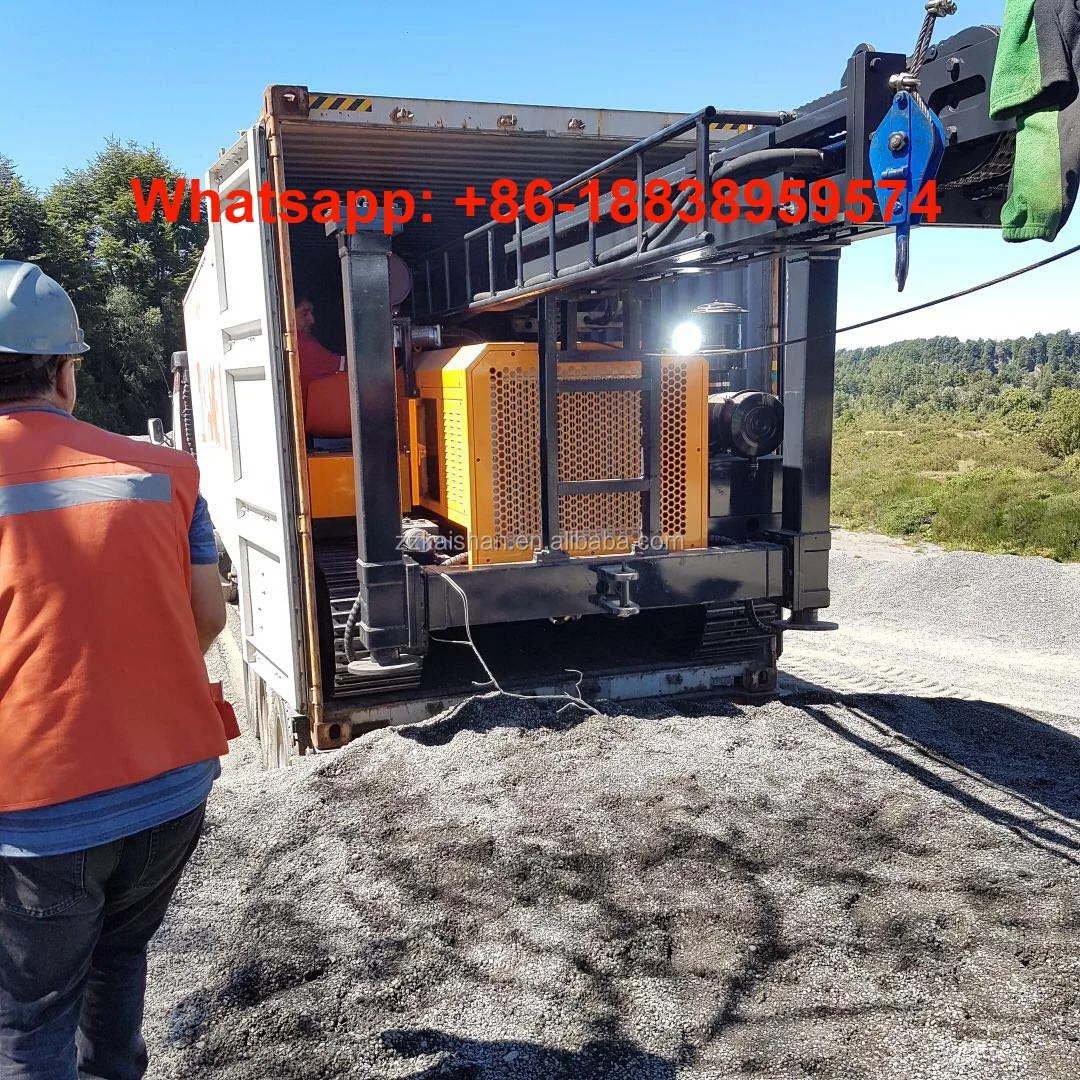

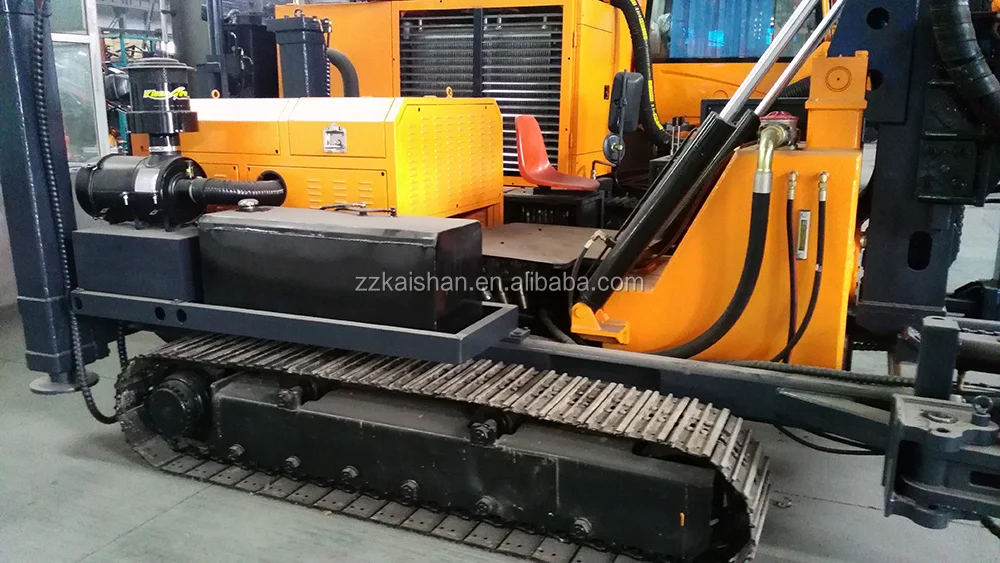

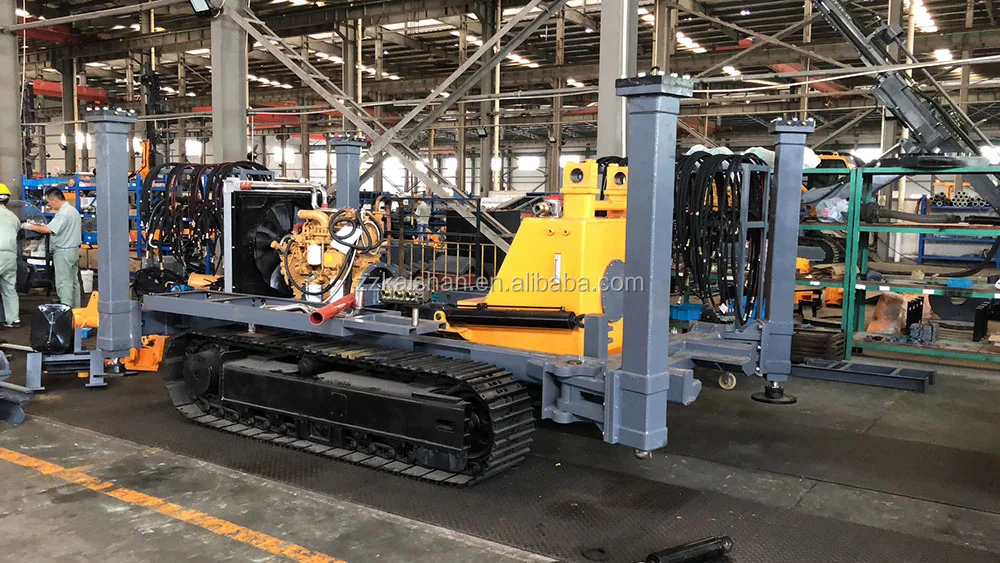

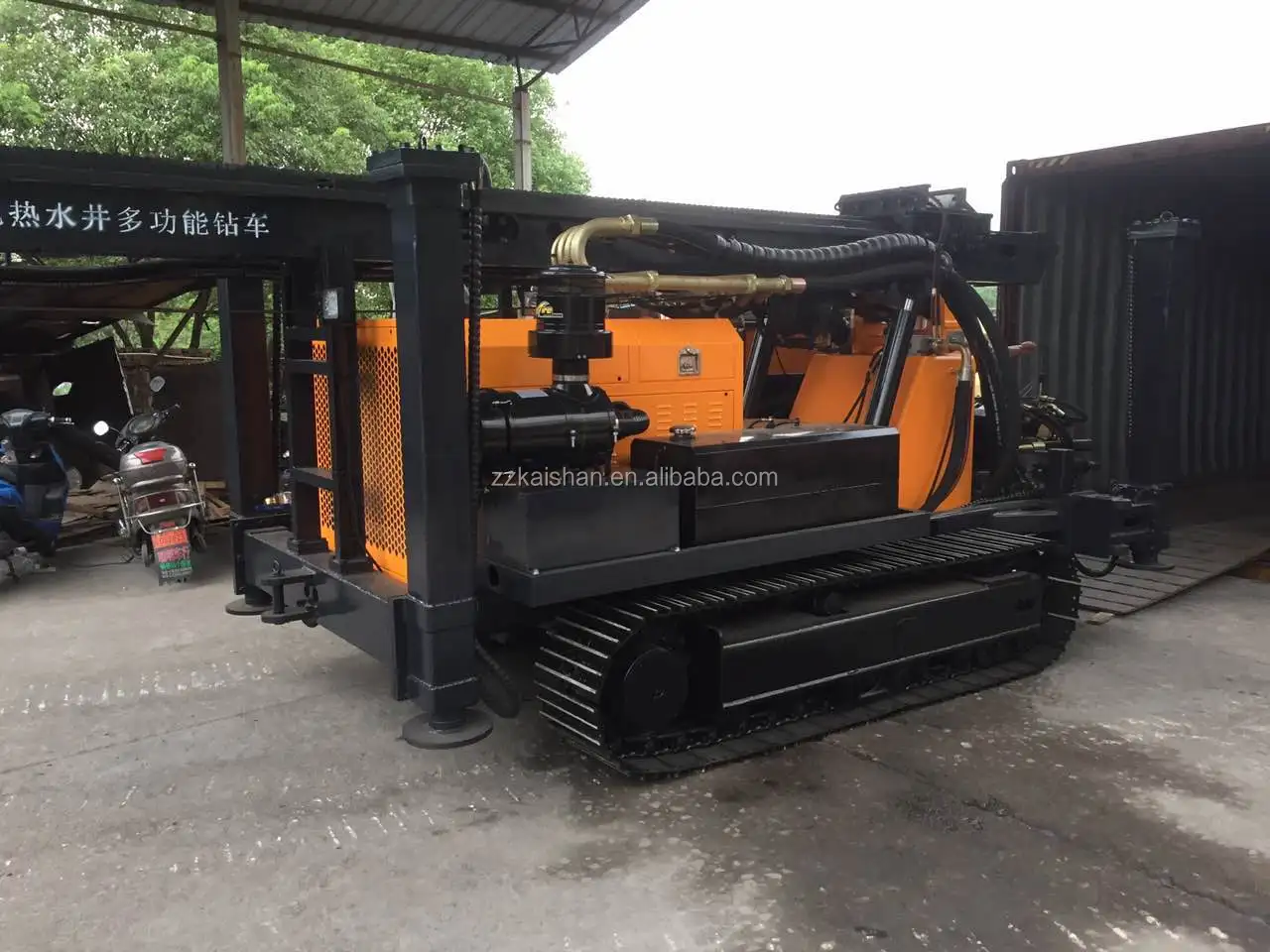

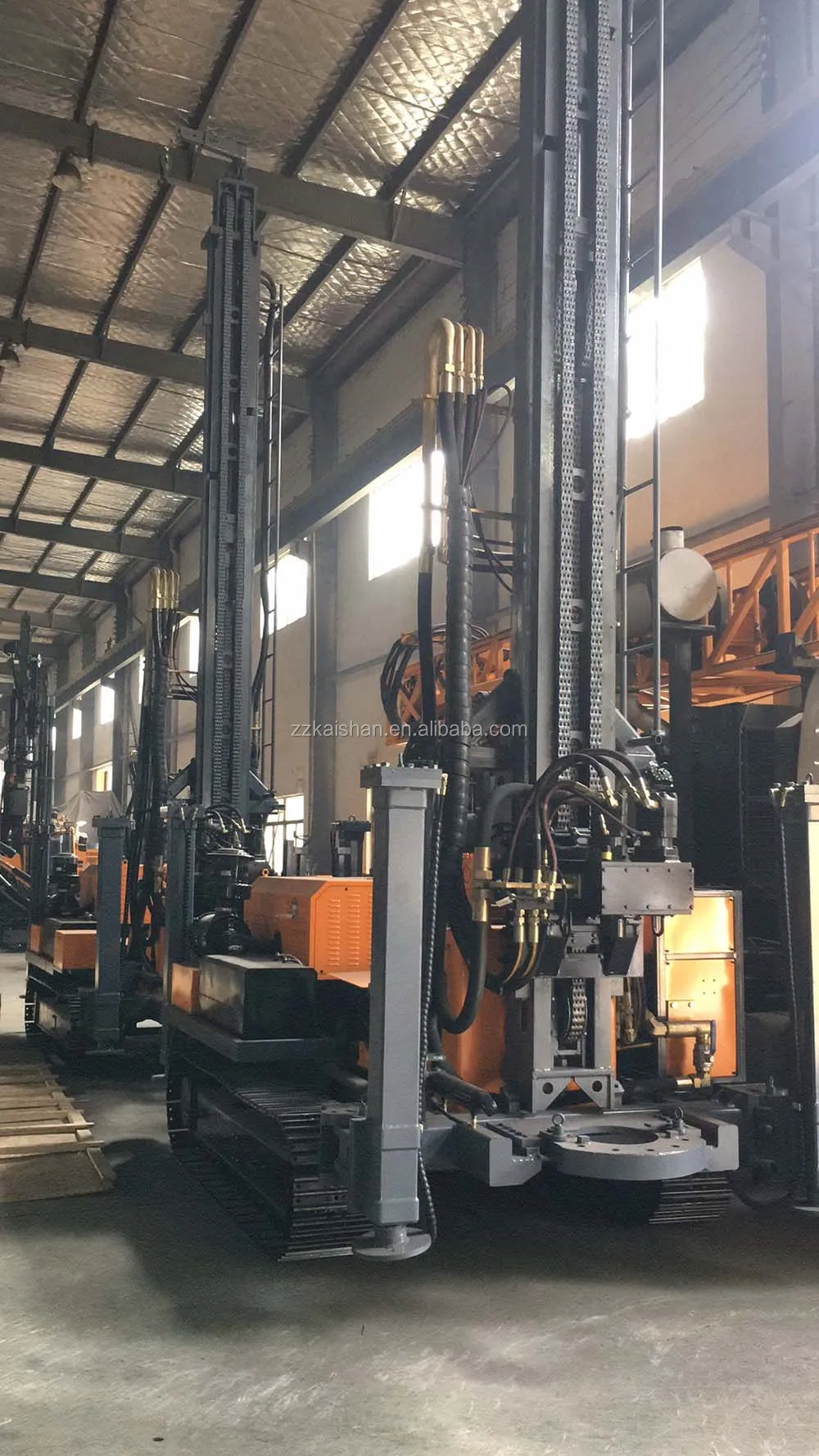

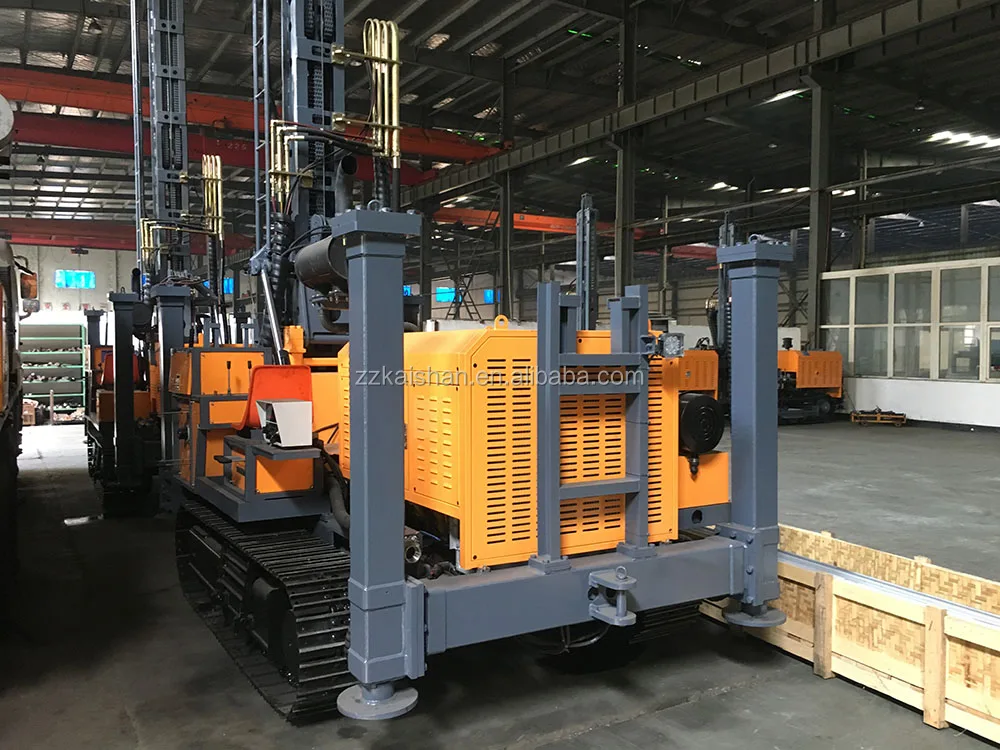

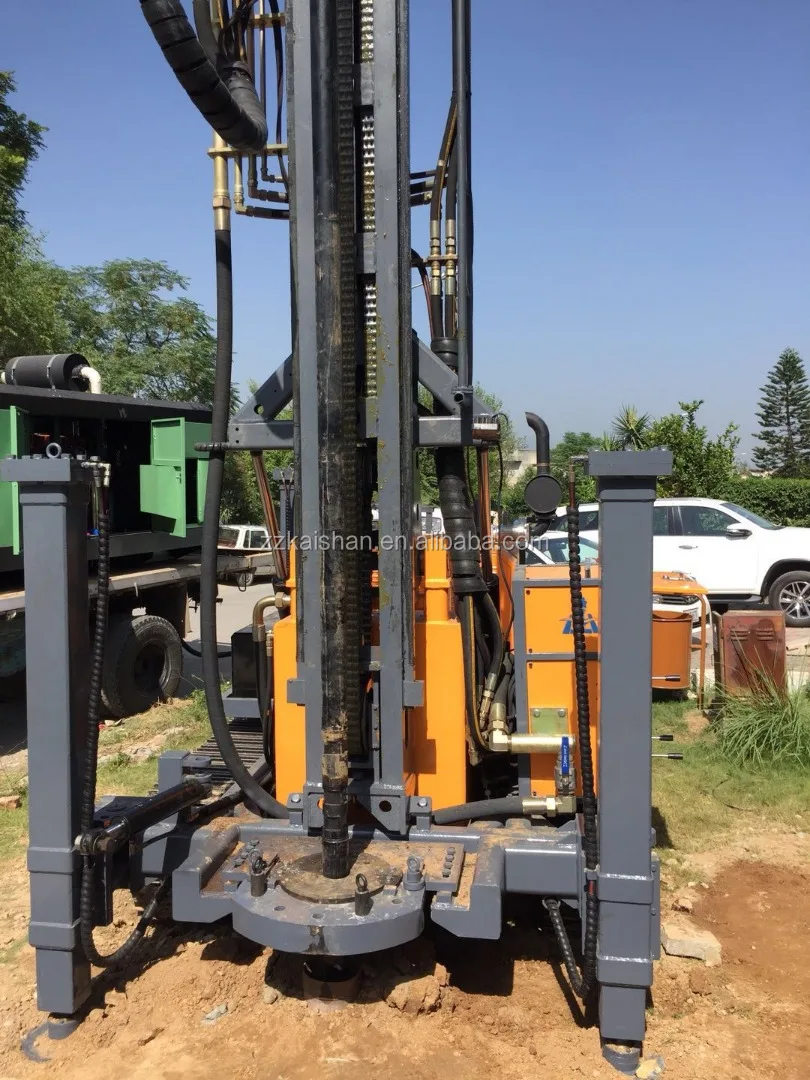

3. Pictures of KAISHAN Brand KW400 300meter depth cheap water well drilling rig used for water well
KAISHAN Brand KW400 300meter depth cheap water well drilling rig used for water well
Our advantages
. Top techonology and guranty
One year warranty in overseas branch
D&R center ensure top advantages
Asian biggest drilling rig manufacturer with long history
World top-class heat treatment production line imported from Japan
Advanced automatic mloding production line from USA
Advanced NC machine
German TRUMPF flexible sheet metal processing system
KAISHAN Brand KW400 300meter depth cheap water well drilling rig used for water well

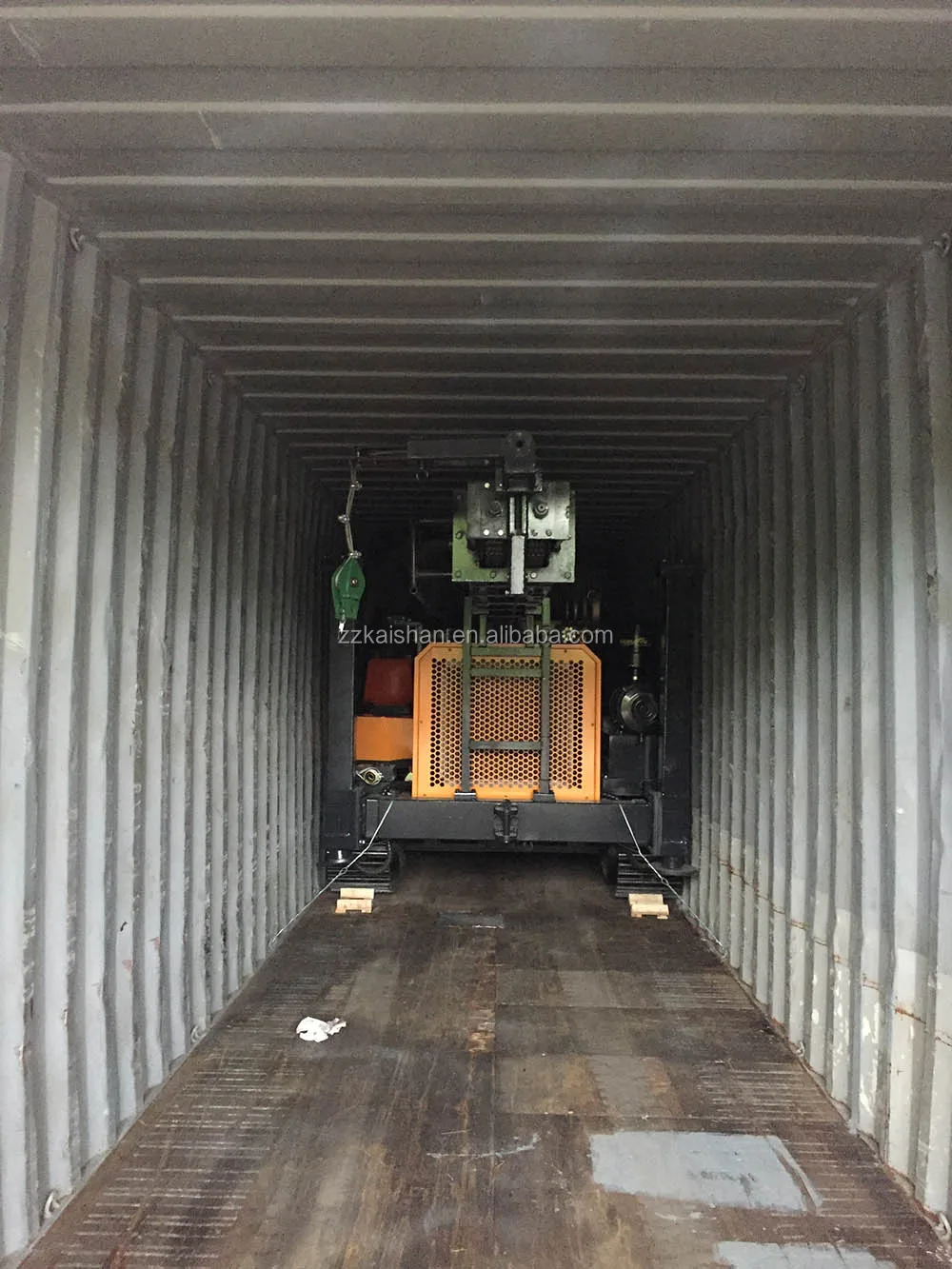

4. package and shipping
Package way: container or as customers' request
Shipping way: by sea or air , railway etc
Delievery time ;15-20 days after the payment.
5. Company info
We are located in Zhengzhou City, Henan Province, the Central area of China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.We now have over 100 employees, an annual sales figure that exceeds USD 10 million and are currently exporting 45% of our production worldwide.
6. FAQ
Why choose us?
1), 100% spare parts can be supplied.
We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)
2), We are the public company,all the products can ensure the quality.
we are the Public company,the group have several fatories.cosist of the spare parts we are all produce ourselves,so we can control the quality,also the significant cost advantage.
3), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.
4), We will recommend a suitable type for you and send you a best quotation.
A: What is the working pressure ( Mpa, Bar, PSI)?
B: What is the volume flow ( m3/min, CFM)?
C: What is the volume flow ( m3/min, CFM)?
D: What is the Power supply ( KW, HP)?
How to place an order:
1), Send inquiry
2), We will contact to you
3), Tell us your require model quantity or ask us other question you need to know
4), Send you the invoice
5), Wait for your deposit
6), Prepare your products, pack your products, delivery
7), Send you document for custom
8), After sale service
The Certifications for KW400 Alibaba Popular Semi-hydraulic type crawler bore well drilling machines for rigs
1.ISO9001;2000
2.CE Certificate
3.European design
4.High Quality
2.CE Certificate
3.European design
4.High Quality

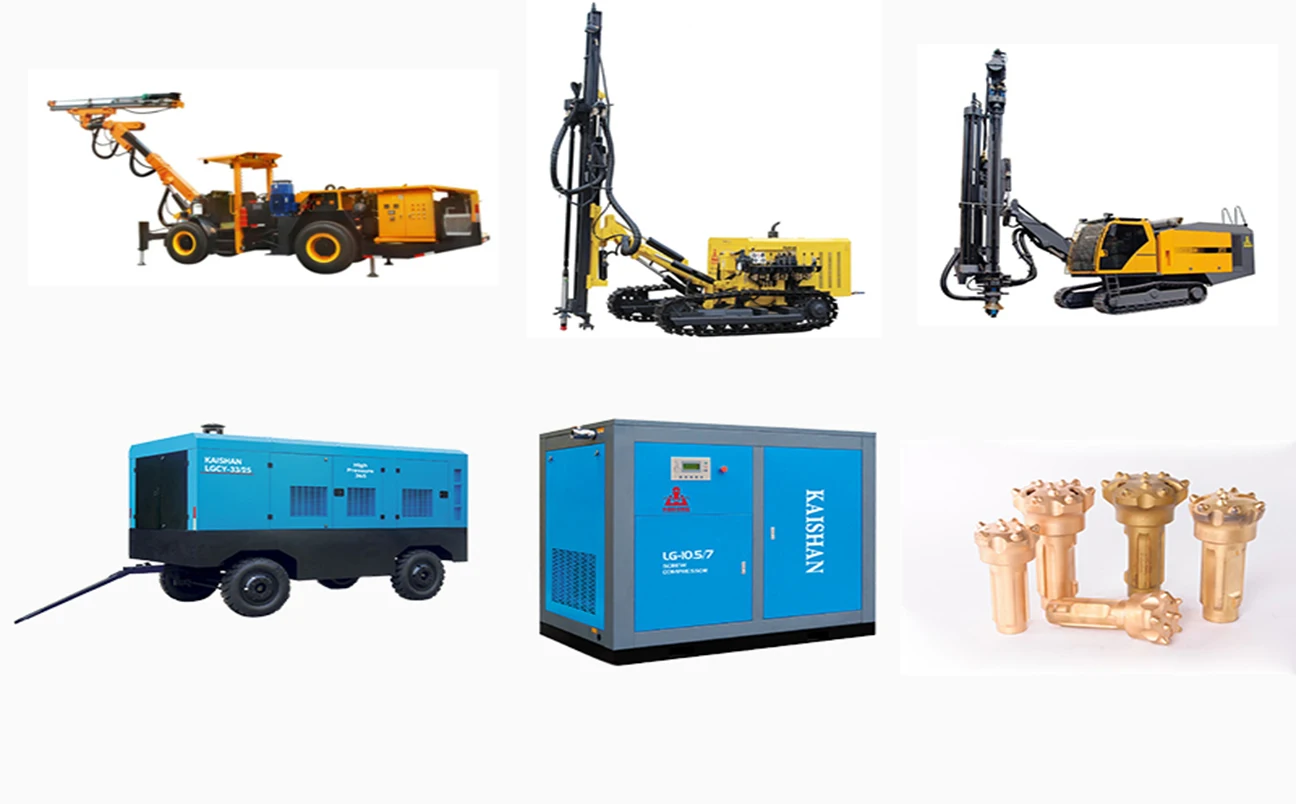

The other bore well drilling machines for rigs
| Model | Dia.Of hole (mm) | Depth of hole(m) | Push length (m) | Working pressure (MPa) | Air comsumption (m3/min) | Max lifting capacity (KN) | Remark |
| KW10 | 115-180 | 120 | 3 | 1.05-2.46 | 16-30 | 70 | drilling machines for rigs |
| KW20 | 115-254 | 200 | 3 | 1.05-2.46 | 16-30 | 95 | drilling machines for rigs |
| KW30 | 168-300 | 300 | 3 | 1.05-2.46 | 16-40 | 150 | drilling machines for rigs |
