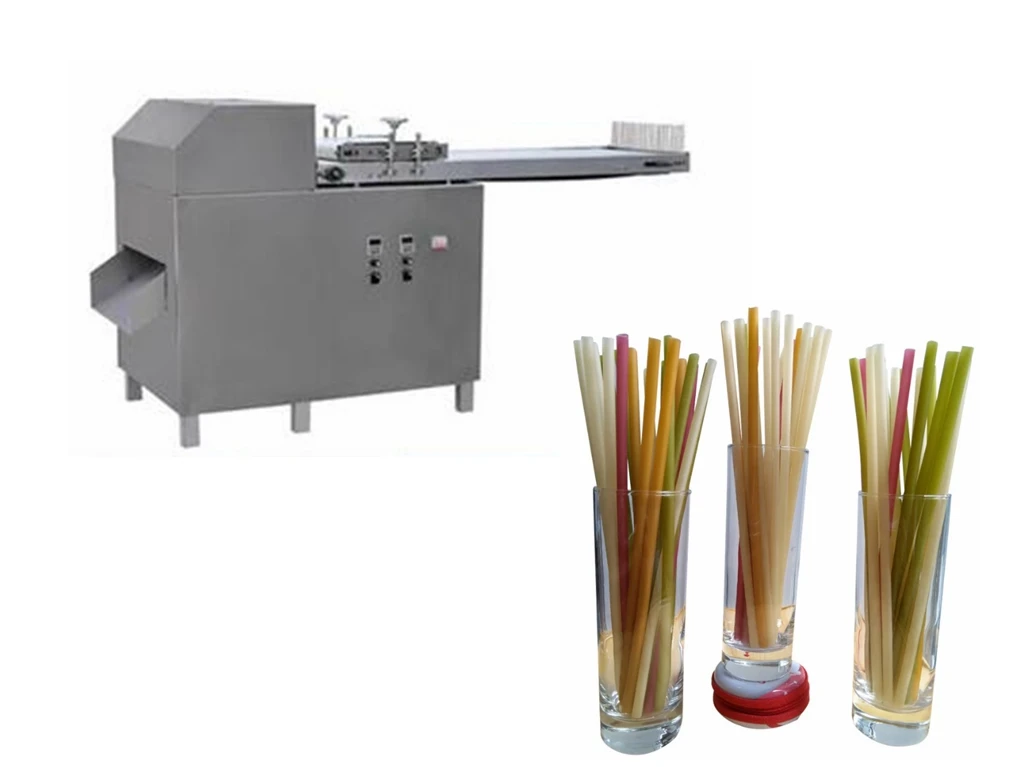

 Eco straw machine drinking rice straw equipment

Introduction:

Eco straw machine drinking rice straw equipment could produce edible rice straw for drinking instead of plastic straw. to aovid environmental pollution, edible rice straw becomes popular to replace plastic straw.  The whole production line includes raw material mixing system, extrusion system, cutting system, cooling system, and drying system. Implement centralized production line fully automatic control, by PLC and touch screen operation, all operations are completed by PLC control of machinery and equipment, reduce the labor intensity of workers and the number of workers, improve the production efficiency.

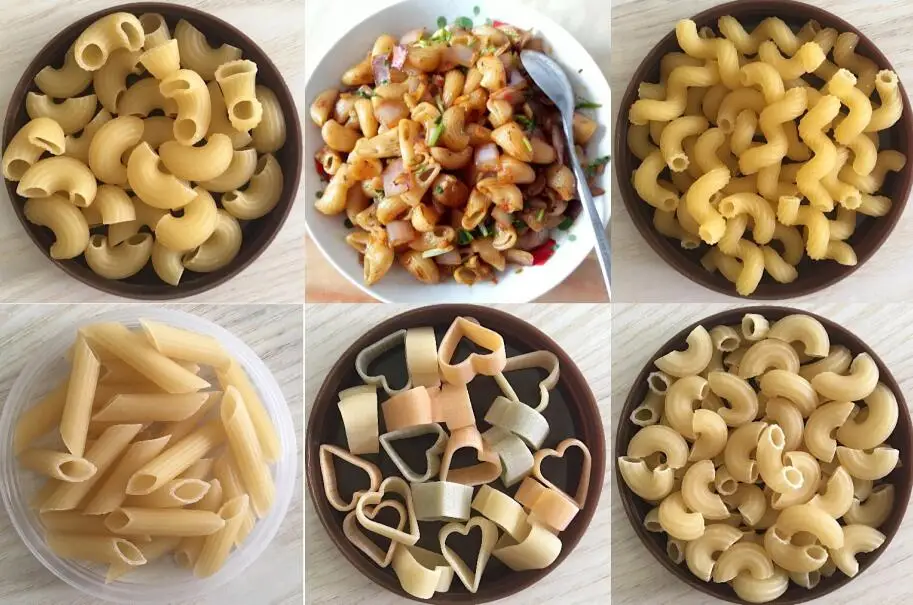

the automatic pasta straw machine rice straw extruder could also produce Italy macaroni pasta with different shapes like shell, spiral, square tube, circle tube, and so on.

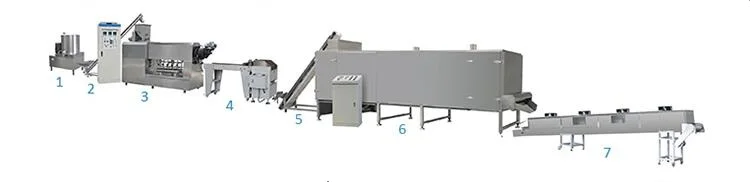

Flow chart



1. Mixer --- 2. Screw conveyer  --- 3. Single-screw extruder --- 4. cutter---5. Hoister ---6.Dryer --- 7. Cooling conveyer

1.Flour mixer : to mix various raw material evenly.

2.Screw conveyor : to convey raw material to extrude

3.Single screw extruder :to extruder and cook the raw material into different shapes macaroni pasta

4. cutter: to cut long strip pasta into short cut shapes.

5. elevator: to convey the food to the next machine



6. Belt drying oven: to dry and remove the extrusion pasta macaroni moisture by circulating belt.



7.Cooling conveyor: to cool down the pasta macaroni from the dring oven.



Raw material

adopts potato starch, corn starch, cassava starch, wheat flour, rice flour, corn flour etc as raw materials

Capacity

100-120kg/h, 150-250kg/h, 250-500kg/h

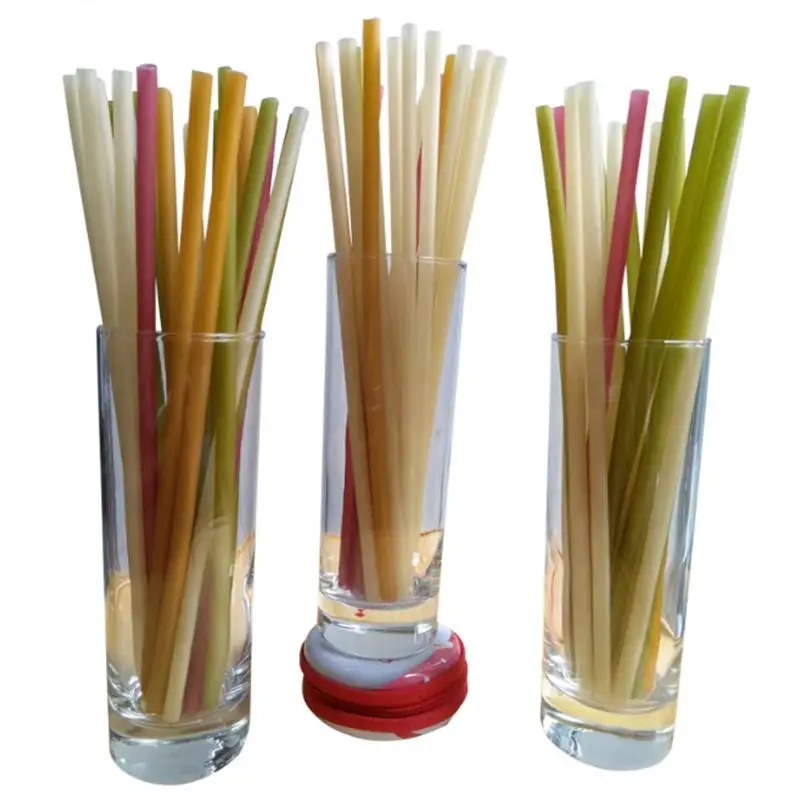

Samples of rice straw











Technical parameters

Model	NL100	NL120	NL150
Installed Power	100kw	160kw	190kw
Power Consumption	90kw	120kw	160kw
Production Capacity	100-120kg/h	150-260kg/h	260-500kg/h
Dimension	27000*2000* 2000mm	35000*2000* 2500mm	43000*3500* 4300mm



Detailed equipment pictures of rice straw line

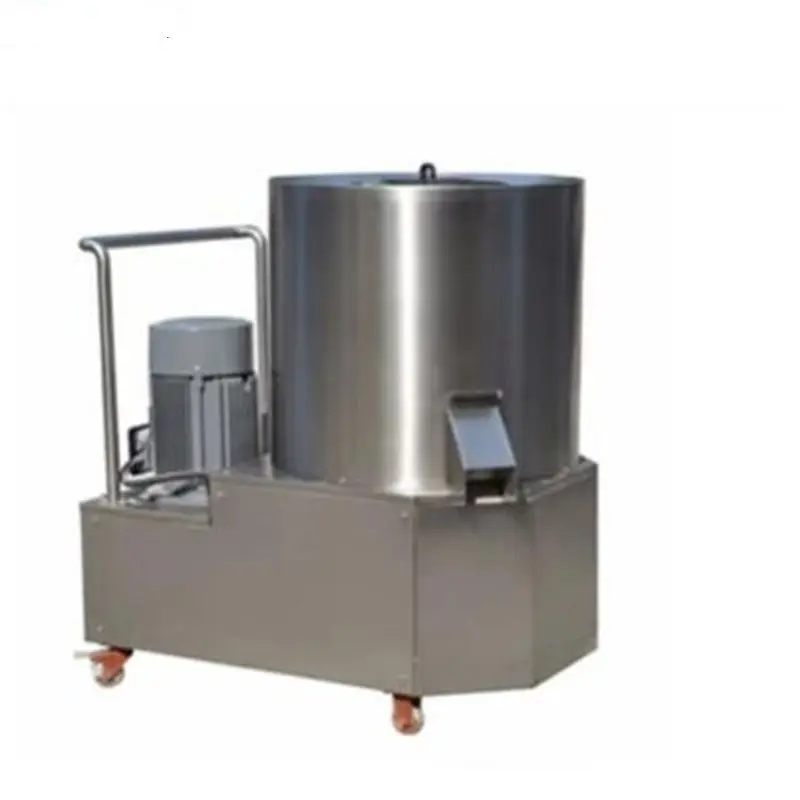

four mixing system

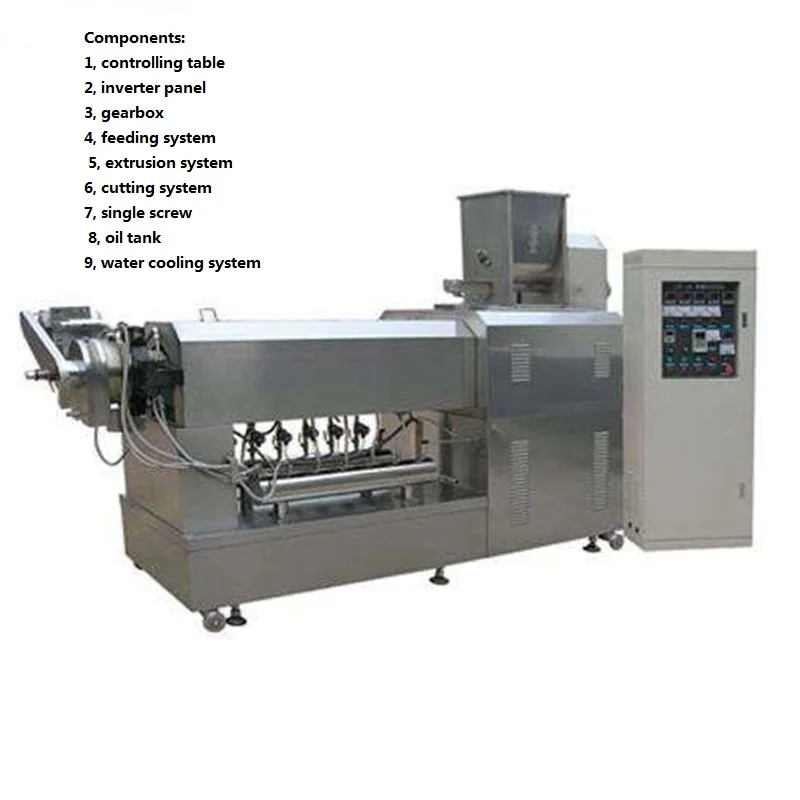

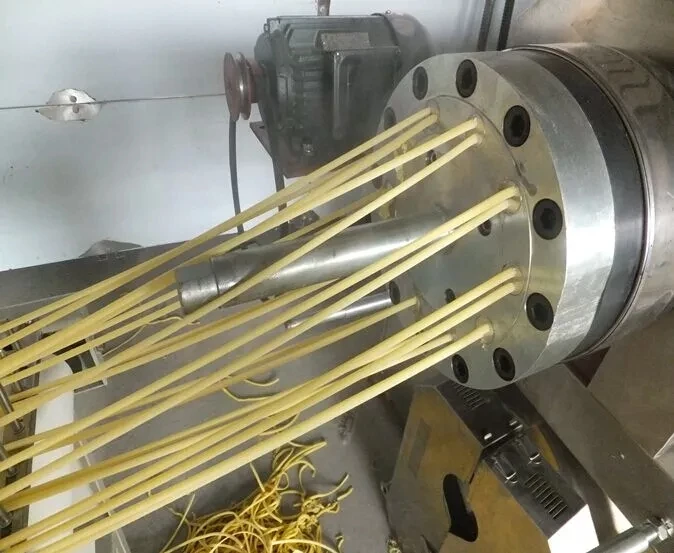

Single screw extrusion system







 Cutting system

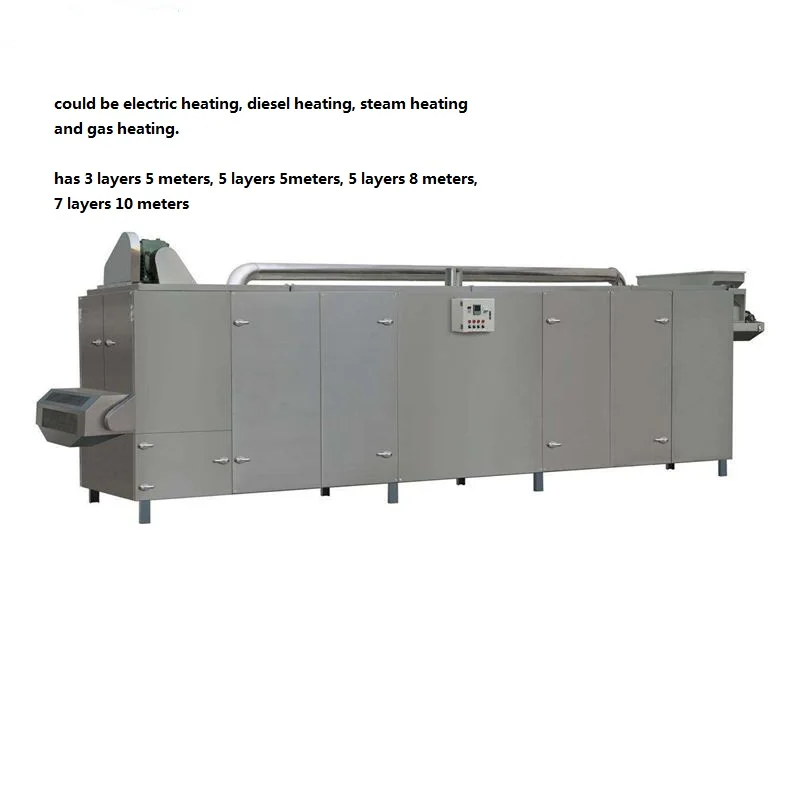

belt drying oven

Cooling system

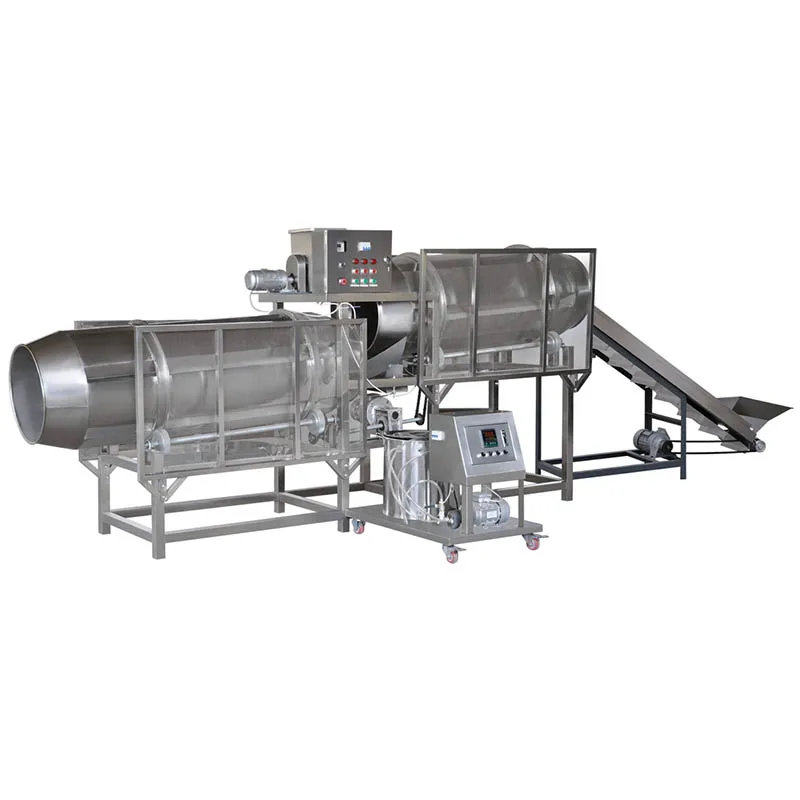

Double roller flavoring line

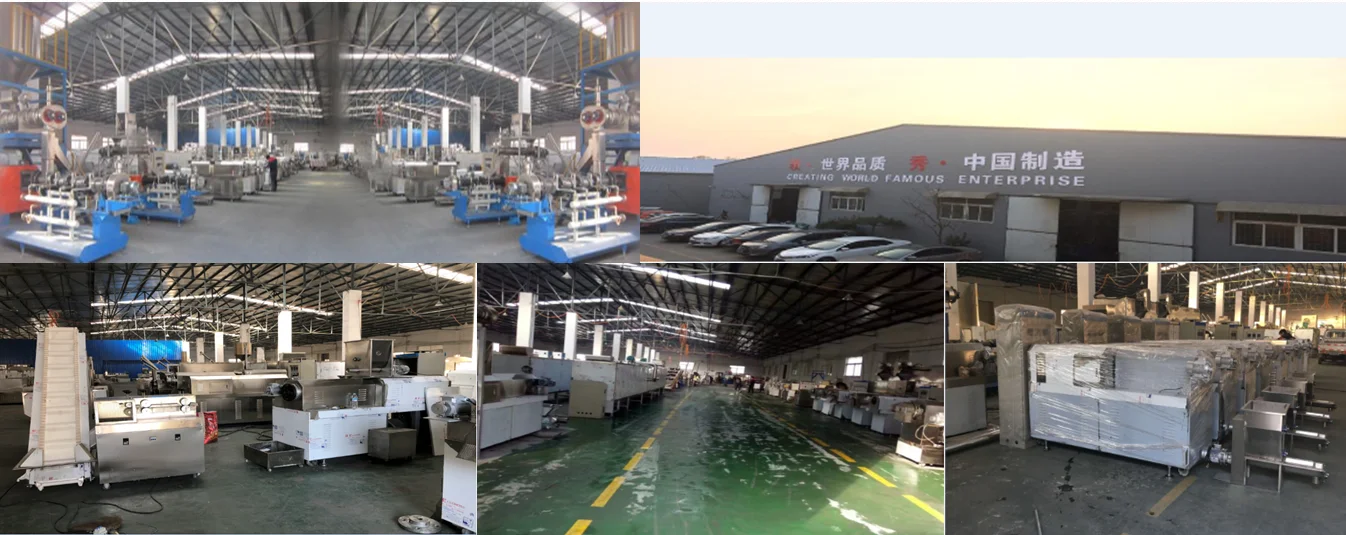

Our company

About Jinan Keysong Machinery

Jinan Keysong Machinery Co., Ltd was founded in 2013, it is located at Jiyang Economic Development Zone. Since its inception, it is specializing in the manufacture, research, development, sales and after-sales of food extrusion machine, puffed food production line, fruit and vegetable washing and drying processing line.



Puffed food equipment: food extruder, twin screw extruder, single screw extruder, breakfast cereals/corn flakes production line, fried and baked snacks production line, pet food production line, fish feed production line, textures soya protein production line, modified starch production line, bread crumb production line, laboratory twin screw extruder, nutritional rice production line, etc.

Vegetable washing and drying machinery: brush washing peeler, fully automatic roller cleaning and peeling machine, vegetable and fruit slicer, blanching and pasteurization equipment, vegetable and fruit drying machine, tunnel type dryer.

Our customers





Our certificates



Our service

1. OEM & ODM

2. One year guarantee and life-time maintenance service.

3. Consultation service before, during, and after sales.

4. Provide factory layout according to your factory size in advance;
5. Provide the basic formula;

6. Debugging of machines until all are functional.

7. Training the customers how to operate and maintain the machines correctly.

8. Offer new product techniques and recipes timely.



Packing and delivery



 •  Inside package is plastic film, outside is wooden or plywood case(based on the customers'

     need).

 •  Only plastic film nude packing with wooden pallet.

 •  We can supply fumigation package and certificate.

 •  Shipping, train, express or upon clients' demands.





You can contact us at any time .CEL/whatsapp/wechat:+86-18560057392.



Or send emails directly from Alibaba.
