Reliable printer mechanism
Portable type
Easy paper loading
Wireless blutooth connection
Diagram/logo printing
Long standby time
Customized case color
Supporting Android/windows/Mac OS
OEM offer
Brand-name printer parts
Android system support
Customization offer
Prompt delivery
Small order accepted
Sample is available
ROHS &CE certificatedLogistics
transportation
postal
city inspectors
tax
meters
retails
dressing and more

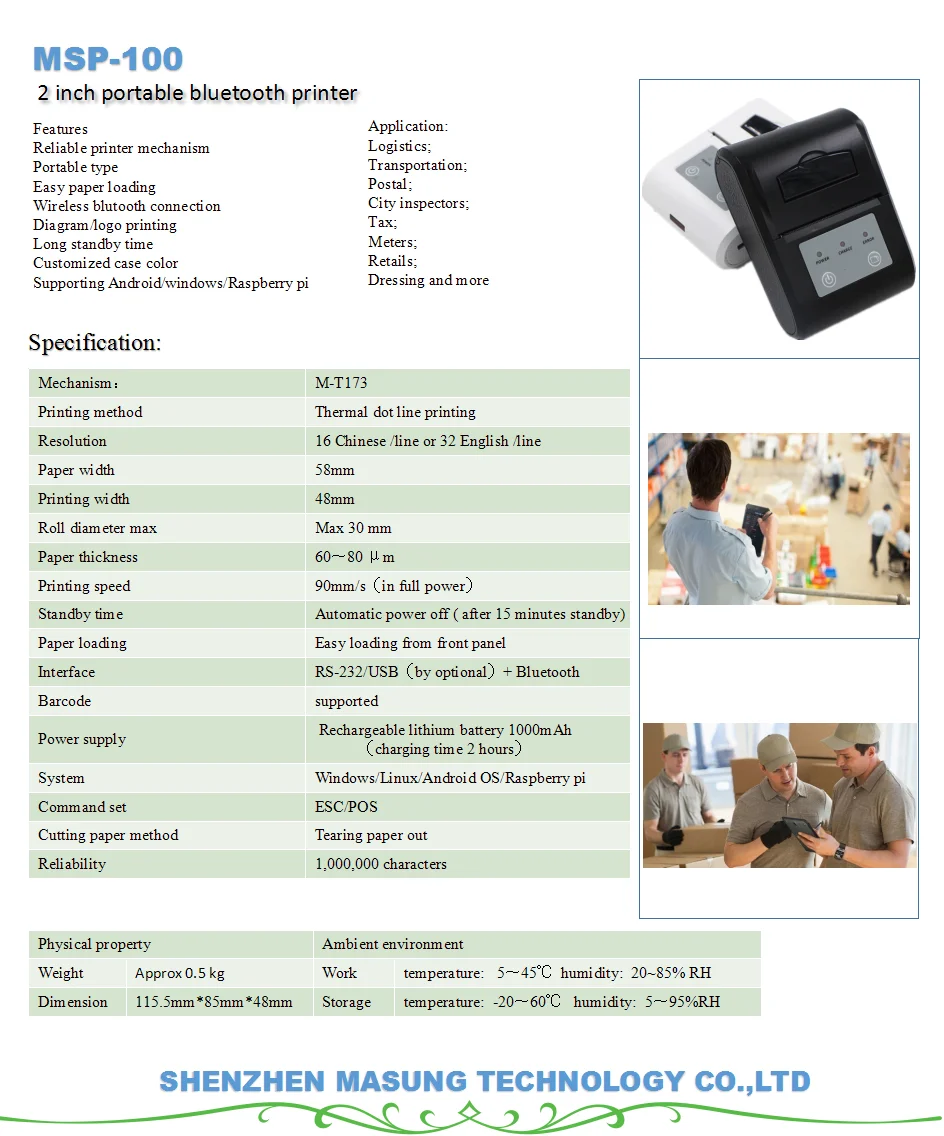

MSP-100 using LTP01-245-01 mechanism,combined with the Independent research and development of P-100 printing control board 58mm easy paper loading thermal printing module. Compact structure and use the newest ARM program and printer mechanism design in the same structure, greatly reducing the installation space, enhance the reliability of the installation of products; the design is exquisite, stable performance, fashion appearance.
Type | Portable printer |
Printing method | Thermal dot line printing |
Paper width | 58mm |
Paper roll diameter | Max 40 mm |
Outside dimension | 110mm*78mm*42mm |
Weight | Approx 300 g(including battery and paper roll) |
Dot/line | 16 Chinese /line or 32 English /line |
Chinese coding scheme | GBK |
Font stock | ASCII GB18030 |
Barcode /bitmap | 1D:UPC-A;UPC-E;EAN-13;EAN8;CODE39;ITF25;CODEBAR; CODE93;CODE128 2D: QR CODE Bitmap |
speed | 50mm/s(in full power) |
Reliability | 1,000,000 characters |
Printing type | languages、numbers、LOGO、diagram |
Resolution | 8 dots/mm |
Interface | RS-232/USB(by optional)+ Bluetooth |
Power supply | Rechargeable lithium battery 1000mAh (charging time 2 hours) |
Adaptor | Input :AC90~230V,output: DC9V1A |
Standby current | Below 20uA |
Standby time | Automatic power off ( after 15 minutes standby) |
Abnormal detection | Out-paper、low power、overheating |
Paper loading method | Easy loading from front panel |
Cutting paper method | Tearing paper out |
Command set | ESC/POS |
Standard accessories | paper、user manual、adaptor、battery、cable |
