Product Description
Featuers:
1.Easy Frame Size Adjustment
2.Corner Softening Capabilities While Under Tension
3.Compatible with Essentially all Frame Types
4.Uniform tension, fast tension, low noise,
5.Utilizes a Wide Locking Bar for Easy Use
6.No Special Training or Tools Required
7.suitable for large format screen tension.
Specification:

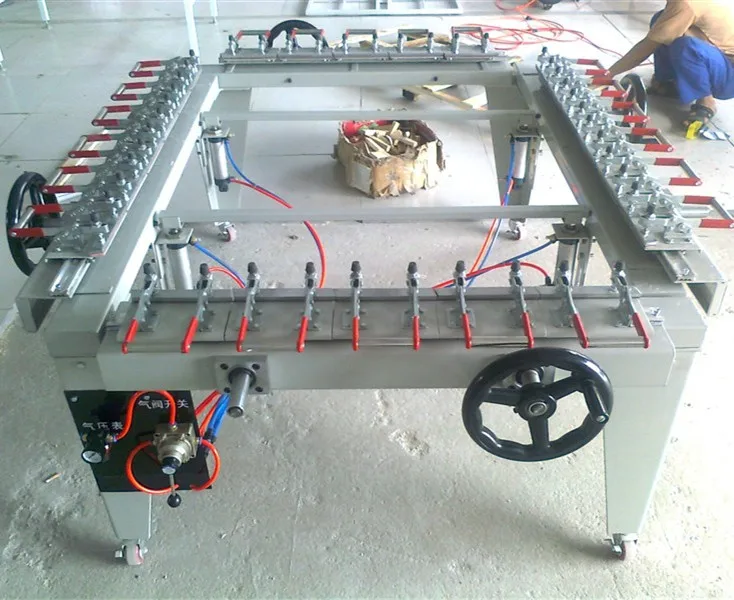

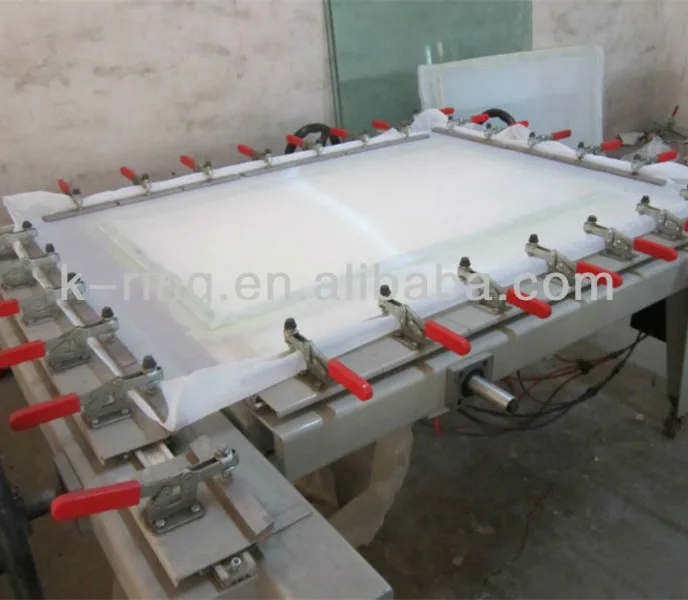

Mechanical chain wheel screen stretching machine | ||
Stretching area: | 900x1200mm | 1200X1500mm |
Max Unilateral stretching trip: | 120mm | 150mm |
Working pressure: | 0.4-7 MPa | 0.4-7 MPa |
Pulling force: | 30N | 30N |
Package size: | 1520x800x450mm | 1820x800x450mm |
Weight: | 180kgs | 200kgs |
Use turbine force reducing device. The shape is not changed when tension reach 50 N / cm. | ||
Warranty:
1.Machine is one year Warranty.
2. We provide on-line tech support for lifelong. With warranty, we provide the free parts when there is problem occur.
Releated Products :
We produce different kinds Screen printing machine, Screen printing exposure machine, screen printing stretching machine and others.
