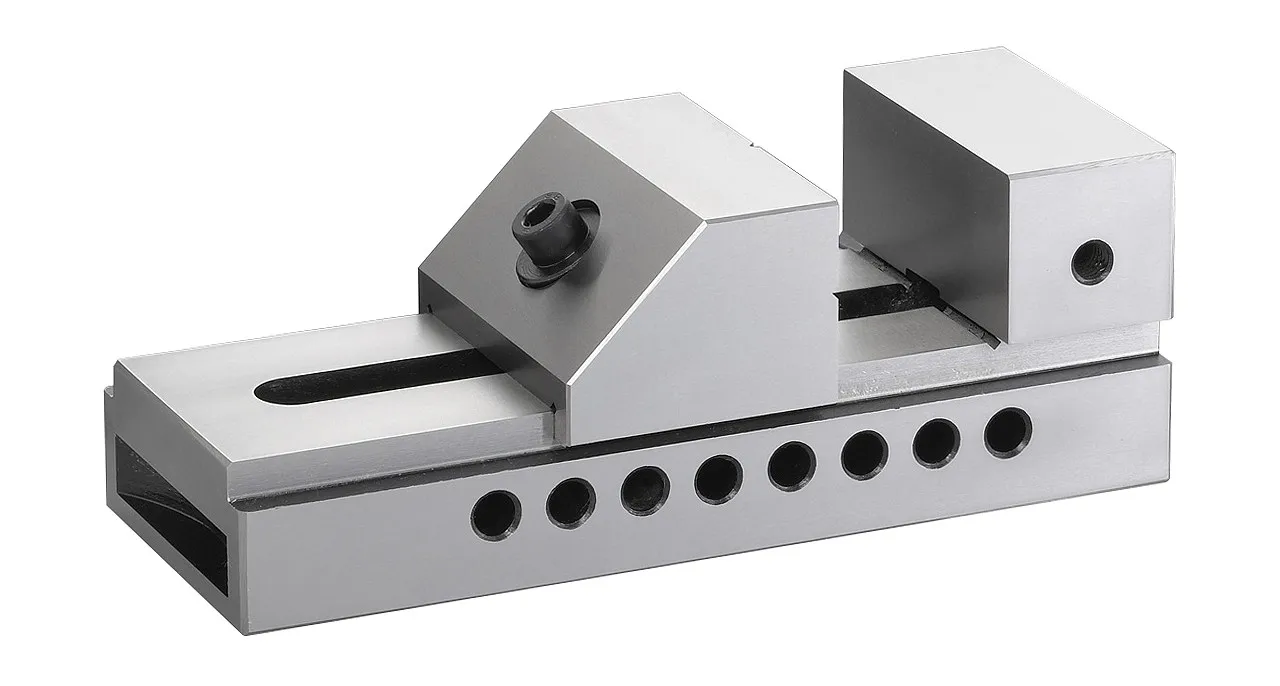

Precision Tool Vises
• Produced of high quality steel, carburized to surface hardness: HRC58~62
• Parallelism 0.005mm/100mm, squareness 0.005mm
• Quickly to clamp and easy to operate

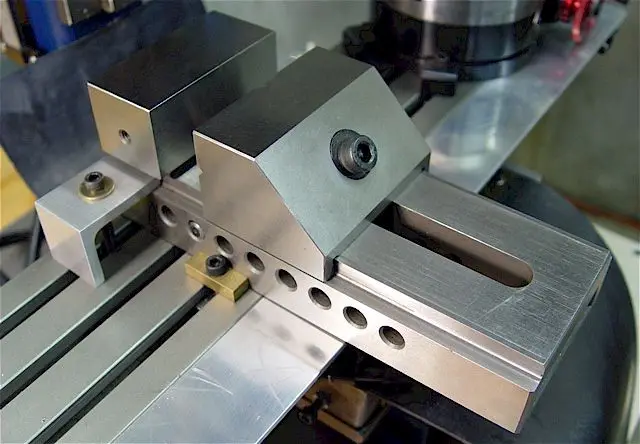

• Used for precision measurement and inspection precision grinding. EDM and wire-cutting machine
• Guarantee high accuracy in any position

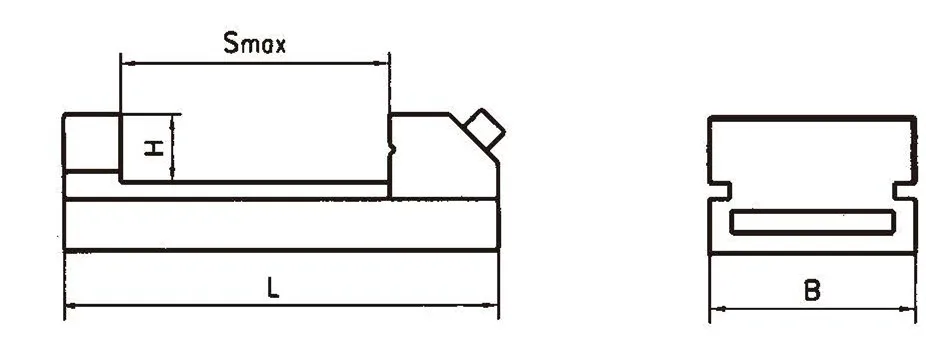

Oder NO. | B(mm) | H(mm) | Smax(mm) | L(mm) | Clamping Force(kg) |
QKG25 | 26 | 9.15 | 22 | 65.4 | 0.5 |
QKG36 | 36 | 20 | 40 | 100 | 1.2 |
QKG38 | 38 | 20 | 44 | 105 | 1.3 |
QKG50 | 50 | 25 | 65 | 140 | 2.0 |
QKG63 | 63 | 32 | 85 | 175 | 3.0 |
QKG73 | 73 | 35 | 100 | 190 | 4.1 |
QKG80 | 80 | 40 | 100 | 200 | 5.5 |
QKG88 | 88 | 40 | 125 | 235 | 7.3 |
QKG100 | 100 | 45 | 125 | 245 | 10.0 |
QKG125 | 125 | 50 | 160 | 285 | 18.0 |
QKG150 | 150 | 50 | 200 | 330 | 21.5 |
QKG150A | 150 | 50 | 250 | 380 | 23 |
QKG150B | 150 | 50 | 300 | 430 | 24 |
Package
The regular packing is 1pcs/plastic bag, or with color sticker and color sleeve,color inner box, as per
customer request.
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
Shandong Pingyuan Syndrome Machinery Co., Ltd was founded in1998. Professional R&D and sales high precision flat nose pliers,
quickchange tool carrier,tool holder,CNC Tools holder,The larger professionalmanufacturer of CNC lathe accessories in china.
We have export experience for more than 10 years , Our customersmainly from Southeast Asia, EU market, north America and other
countriesand regions. So far we have approvals: ISO /CE certificate.
We always adhere to quality first, service first principle, SincerelyHope to co-operate with customers all over the world on the basis
of mutual benefit.
