Products Description
Fully Automatic Pallet Dispenser,Pallet Destacker

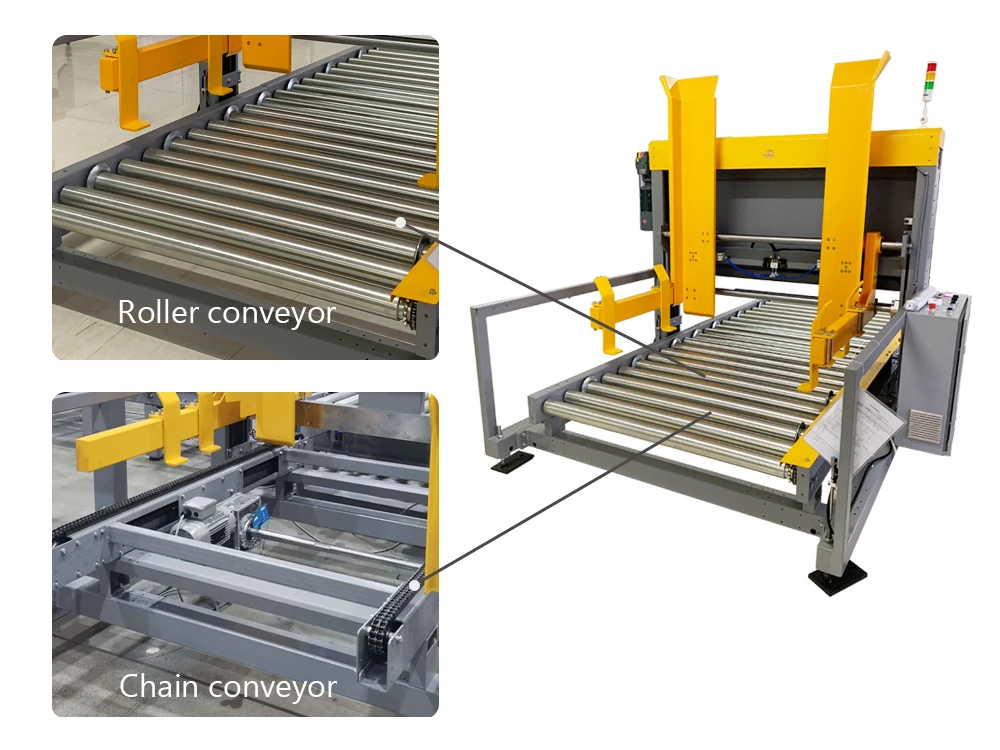

A Pallet Destacker or Pallet Stacker (also called a Pallet Dispenser or Pallet Magazine) is used in a pallet handling system for accumulation or dispensing of empty pallets onto or from your conveyor line or as a stand alone unit. yupack pallet dispenser’s can be designed for use with either pallet roller conveyors or pallet chain conveyors. There are 2 variations of pallet magazine machines that can be used on a production line to accumulate or distribute pallets.
Product Paramenters
Model | GTX |
Feeding speed | 4 times/min |
Compressed air | 0.2m³ /min, 0.6-0.8Mpa |
Voltage power | 380V/50Hz, 1.5kw |
Whole machine weight | 530 kg |
8 piecesStorage quantity | 620kgs |
Warranty period | 1 year |
Product Advantages
pallet dispenser working principle:
1. Place the pallet neatly and neatly on the pallet of the same specification with the finished appearance;
2. The pallet separation mechanism hooks the second pallet of the lower layer to rise, and separates from the first pallet of the lower layer;
3. The roller conveyor starts to transport the separated pallets to the next station;
4. After the pallet at the supply pallet completely leaves the station, the lifting mechanism hooks the pallet and descends to the conveyor line again;
5. After the fork is opened, it rises to the middle position and hooks the second pallet of the lower layer again to separate it from the first pallet;
6. Repeat this process until all the pallets have been disassembled, the equipment stops running and a buzzer sounds a warning to remind you to add pallets.
2. The pallet separation mechanism hooks the second pallet of the lower layer to rise, and separates from the first pallet of the lower layer;
3. The roller conveyor starts to transport the separated pallets to the next station;
4. After the pallet at the supply pallet completely leaves the station, the lifting mechanism hooks the pallet and descends to the conveyor line again;
5. After the fork is opened, it rises to the middle position and hooks the second pallet of the lower layer again to separate it from the first pallet;
6. Repeat this process until all the pallets have been disassembled, the equipment stops running and a buzzer sounds a warning to remind you to add pallets.
Customizable Options
Exhibition
Our Workshop
