TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Мульти-лезвие Автоматическая спиральная бумажная трубка ядро перематывать делая машину Фабрика сразу
- Категории: Paper Product Making Machinery >>>
- Поставщик: Zhejiang,Jinshen,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
FEATURES AT A GLANCE
1. multi blade cutting system, can cutting into final length
2. thicker steels for main structure,more stable and strong
3. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
4. Main motor adopt Vectorial high torque inverter speed adjusting.
5.hydraulic device to adjust belt tension
6.synchronous cutting system, high precision ball screw and high performance server motor drive.
7. pulse length fixation control to ensure cutting length
8. double PLC control system, IO output control and functional operation control separately,
9. new control panel and big size colorful main machine touching interface
10. multi functional bottom paper feeding device, will stop once paper break
11. integral paper reel stand, glue stand, paper feeding assembly
12. Heat sealing device and color detector can chosen

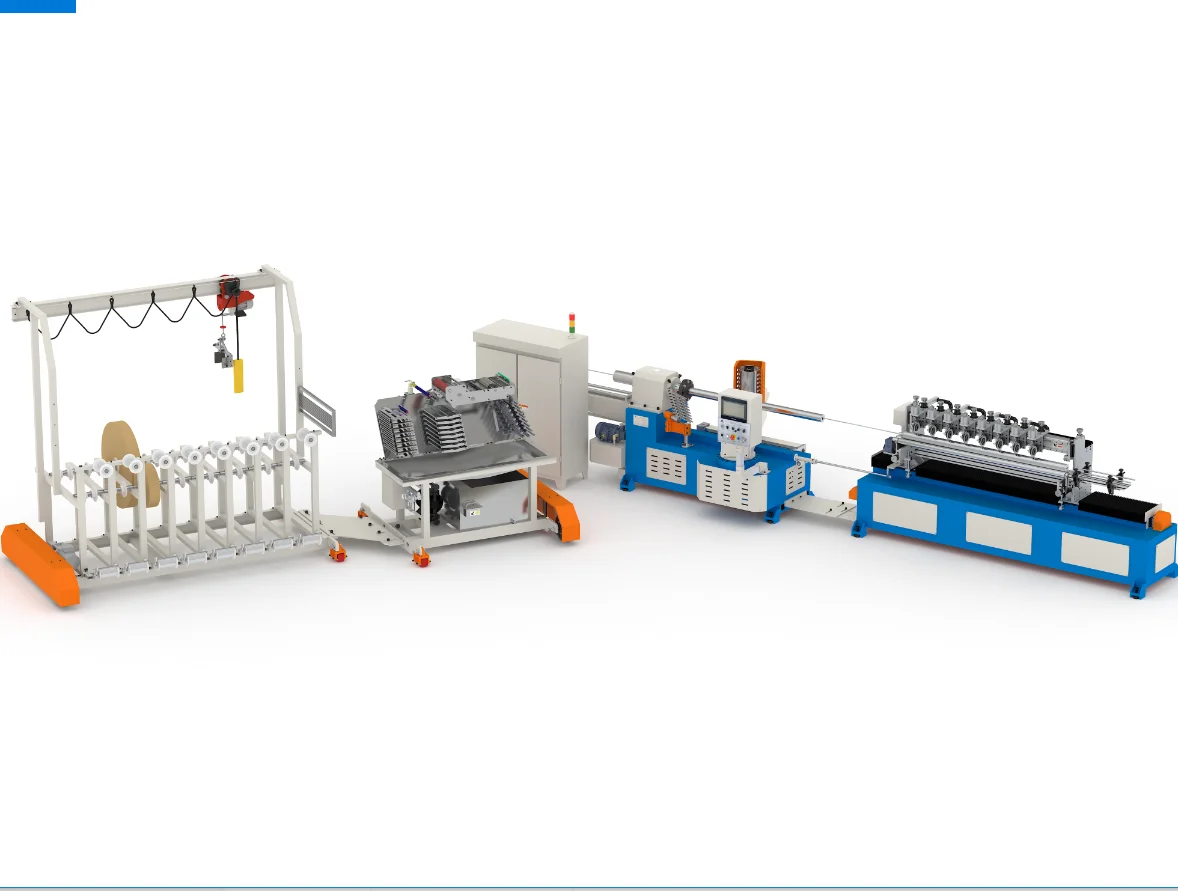

"E" series of paper tube machine ,designing idea simple,compact,stable.
Standardly for making paper tube 3”(ID76.2MM), Max wall thickness under 3MM, biggest tube ID can up to 120MM.
Mainly used for making small size and short tube, can cut into many sections at a time. Use : composite packaging paper can , small packaging material winding core,office use paper core. Model can make spiral paper tube with gluing ,winding, cutting together on.
Standardly for making paper tube 3”(ID76.2MM), Max wall thickness under 3MM, biggest tube ID can up to 120MM.
Mainly used for making small size and short tube, can cut into many sections at a time. Use : composite packaging paper can , small packaging material winding core,office use paper core. Model can make spiral paper tube with gluing ,winding, cutting together on.
Number of roll paper | 3-8 plies | PLC controller | Delta |
tube diameter | 20-120mm | Man machine interface | TAIWAN |
thickness | 0.8-3mm | Program edition | JS-PTM4.2 |
Mandrel fixing way | Flange & pushing | Inverter | YASKAWA 7.5KW |
Rewind nose | Two noses one belt | Actuator(contactor..) | CHNT |
Cutting way | 5 round cutter | Signal component | OMRON |
Gluing way | Double sides / single side | Pneumatic component | AIRTAC |
Operator | 1-2person | Angle adjusting motor | JIACHENG |
Production speed | 3-20M/Min | Synchronism control | Axis Servo Screw |
Speed control | Inverter | Fixing length way | Encoder |
Input power | Custom | Synchronism track cutting system | Servo Tracking System |
Mainframe power | 7.5KW WANNAN | Auto falling tube holder | Have |
output torque | 1200N.m | Belt angle | Electric |
Max rotating speed of wheel hub | 47r/min | Belt adjust | Hydraulic |
Chain model | 12A*2 | Angle of main motor | Have |
cutter motor | Stepping Motor/WANXING Gear Motor | Stop when paper run out | Bottom ply stop automatically |
Wheel hub drive | 2 wheels | Auto glue giving | Screw pump 1.5kw |
Type of paper stand | Integral | Auto lubrication giving | Auto |
Bearing | HRB | Tension adjust | Mechanical |
mainframe
paper stand
glue stand
FAQ
Zhejiang Jinshen Machinery Manufacture Co. Ltd. is an innovative paper tubes and paper cores machines manufacturing company based in Zhejiang Province, China, famous with this kind of industry in mainland China. Our company is started his business at 1995 and quickly became a major exporter to all around of world his economic and reliable paper tubes and cores manufacturing machines.
We have various kind of solutions for textile industry, for construction industry, for motor parts industry, for electrical parts
industry, for logistics company, for food packaging industry, for luxury packaging industry by our different type of machines such as paper slitter & rewinder, spiral paper tube winder, paper tube re-cutter, paper reel stand, glue unit, paper tube slitter,paper tube trimmer, paper tube polisher, and paper tube ends rolling machine.
We main focus is always your satisfaction and your confidence that you give us feedback, we know that the main keyword is always our support after sales who makes you always unworried about your future business days. No matter where you located we are flexible to send you our technicians as quickly as possible where and when you need an on-site help.
We have various kind of solutions for textile industry, for construction industry, for motor parts industry, for electrical parts
industry, for logistics company, for food packaging industry, for luxury packaging industry by our different type of machines such as paper slitter & rewinder, spiral paper tube winder, paper tube re-cutter, paper reel stand, glue unit, paper tube slitter,paper tube trimmer, paper tube polisher, and paper tube ends rolling machine.
We main focus is always your satisfaction and your confidence that you give us feedback, we know that the main keyword is always our support after sales who makes you always unworried about your future business days. No matter where you located we are flexible to send you our technicians as quickly as possible where and when you need an on-site help.
Shipment
Exhibition
SALES AND SERVICE NETWORK
