Двойной двухслойный солнечный модуль Trina/Longi/подряд 410 Вт 405 400 395 390 9 шарикоподшипников двойная стеклянная солнечная

Двойной двухслойный солнечный модуль Trina/Longi/подряд 410 Вт 405 400 395 390 9 шарикоподшипников двойная стеклянная солнечная

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Typical Mechanical Characteristics
Dimension	2020 x 1002 x 30 mm
Weight	26 KG
Frame	Anodized Aluminum Alloy
Front Glass	2.0mm High Transmission , AR Coated Heat Strengthened Glass
Black Glass	2.0mm Heat Strengthened Glass
Encapsulation	POE/EVA
Cells	6x24 Monocrystalline Solar Cells (9BB 166 x 166 mm)
Junction Box	IP68 rated
Cable	Length 280 mm, 1 x 4 mm²
Connector	MC4/TS4

Temperature Characteristics			Maximum Ratings
Voltage Temperature Coefficient	-0.25%/K	Maximum System Voltage (V)	1500V DC (IEC/UL)
Current Temperature Coefficient	+0.04%/K	Series Fuse Rating (A)	20
Power Temperature Coefficient	-0.35%/K	Reverse Current Overload (A)	20

Packaging			System Design
Container 20'	350 pcs.	Temp. Range	-40℃ to +85℃
Container 40'	665pcs.	Hail	Max. diameter of 25mm with impact speed of 23m/s
Container 40'HC	770pcs.	Max. Capacity	Snow 5400 Pa, wind 2400 Pa
		Application Class	A
		Safety Class	Ⅱ

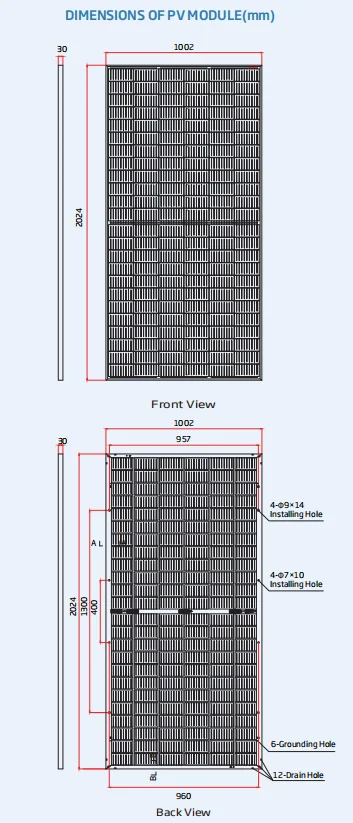

Dimesions

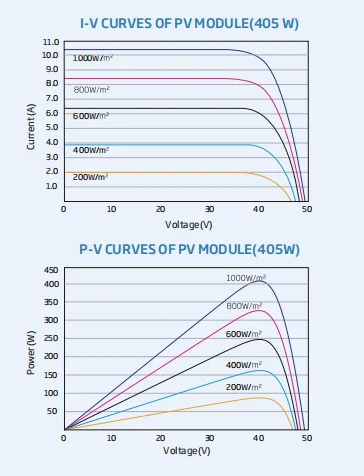

IV-Curves

Details Images
