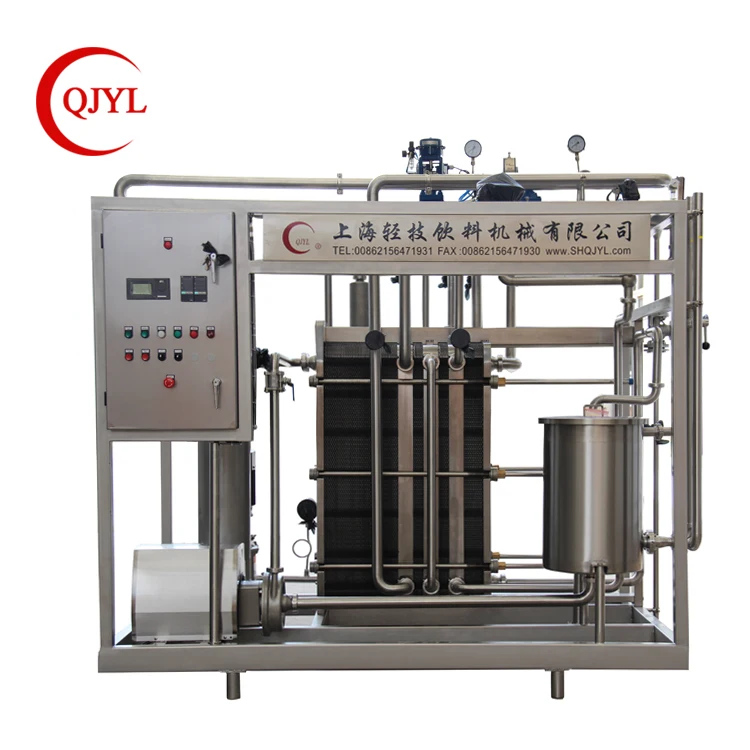

2 т/ч пластинчатая UHT стерилизационная машина для сока стерилизатор

2 т/ч пластинчатая UHT стерилизационная машина для сока стерилизатор

Категории: >>>
Поставщик: Shanghai,Qingji,Beverage,Machinery,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

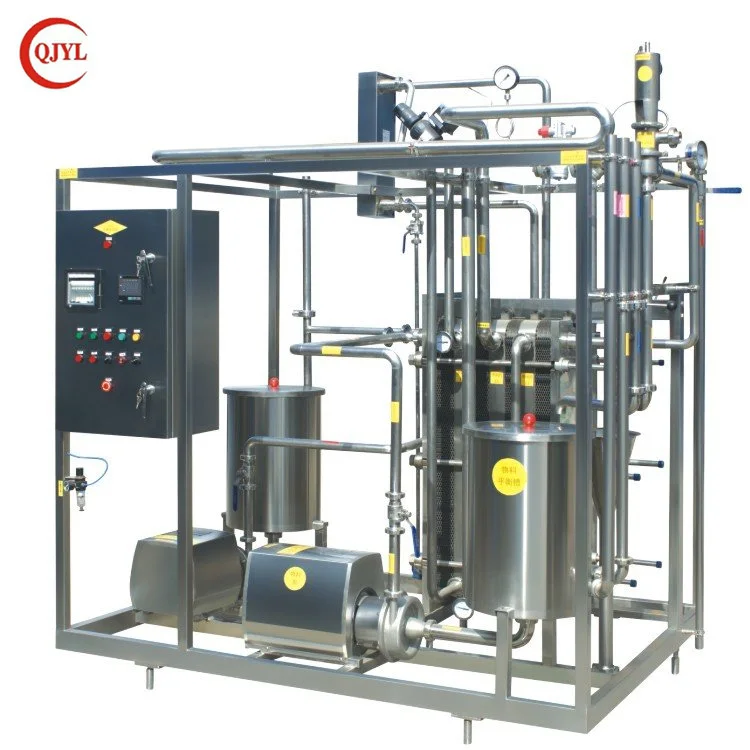

2T/H Plate UHT Sterilization Machine for juice,beverage of tea

plate Heat exchange the complete sets
type and specification	capacity (t/h)	steam consumption (kg/h)	steam pressure (kg)	power (kw)	dimension *lhd(m)*	weight (kg)	diameter(mm)
type and specification	capacity (t/h)	steam consumption (kg/h)	steam pressure (kg)	power (kw)	dimension *lhd(m)*	weight (kg)	material	steam	medium
BR 0.1C-UHT-GCH-1MJ	1	120	6.0	2.8	1.6×1.4×1.8	460	25	1"	25
BR 0.1C-UHT-GCH-2MJ	2	240	6.0	3.0	1.6×1.4×1.8	460	25	1"	25
BR 0.25C-UHT-GCH-3MJ	3	390	6.0	4.0	2.0×1.8×2.0	460	38	DN32	38
BR 0.25C-UHT-GCH-4MJ	4	520	6.0	4.0	2.0×1.8×2.0	500	38	DN32	38
BR 0.25C-UHT-GCH-5MJ	5	650	6.0	5.5	2.0×1.8×2.0	560	38	DN40	38
BR 0.25C-UHT-GCH-6MJ	6	780	6.0	5.5	2.3×1.8×2.0	600	51	DN50	51
BR 0.25C-UHT-GCH-8MJ	8	1040	6.0	5.5	2.3×1.8×2.0	720	51	DN50	51
BR 0.25C-UHT-GCH-10MJ	10	1300	6.0	7.8	2.5×1.8×2.0	820	51	DN65	51
BR 0.4C-UHT-GCH-15MJ	15	1950	6.0	10.5	2.8×1.8×2.5	1620	51	DN80	51
BR 0.6C-UHT-GCH-20MJ	20	2400	6.0	15.0	3.0×3.0×2.5	2400	63	DN100	63

Production Show

Related products

Certifications

Company Information

Packaging & Shipping

FAQ

1) This is the first time I use this kind of Sterilization machine, is it easy operate?

There are guide video that show how to use machine and english instruction book send to you with machine.

2) If Sterilization machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine

3) MOQ ?

Our MOQ is 1 set Sterilization machine.
