Product Description

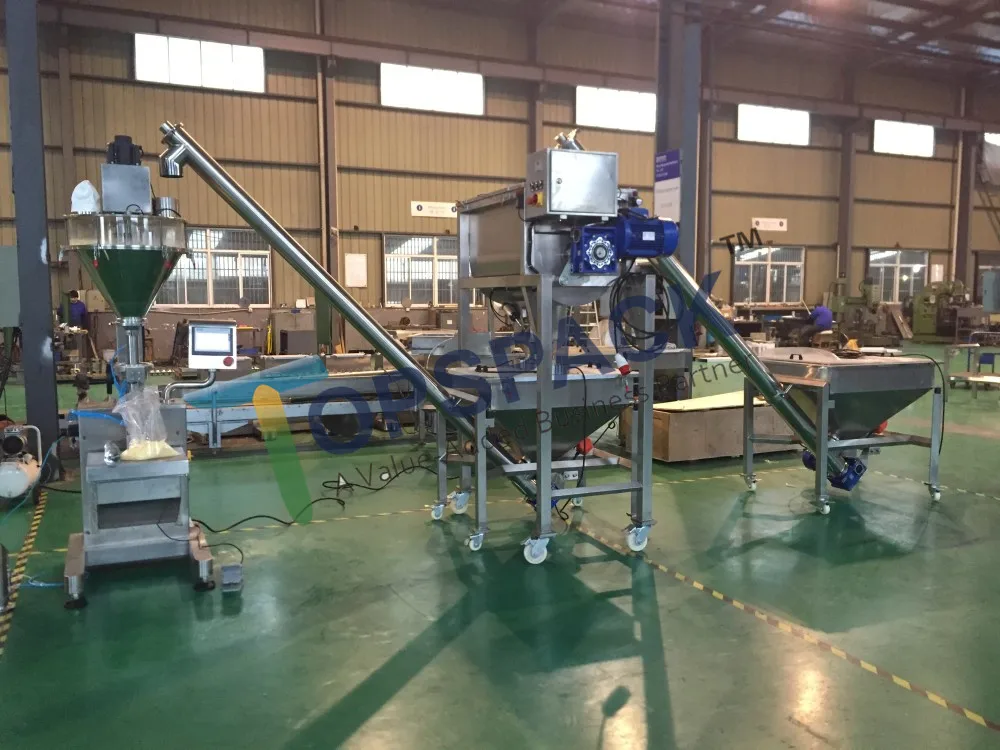

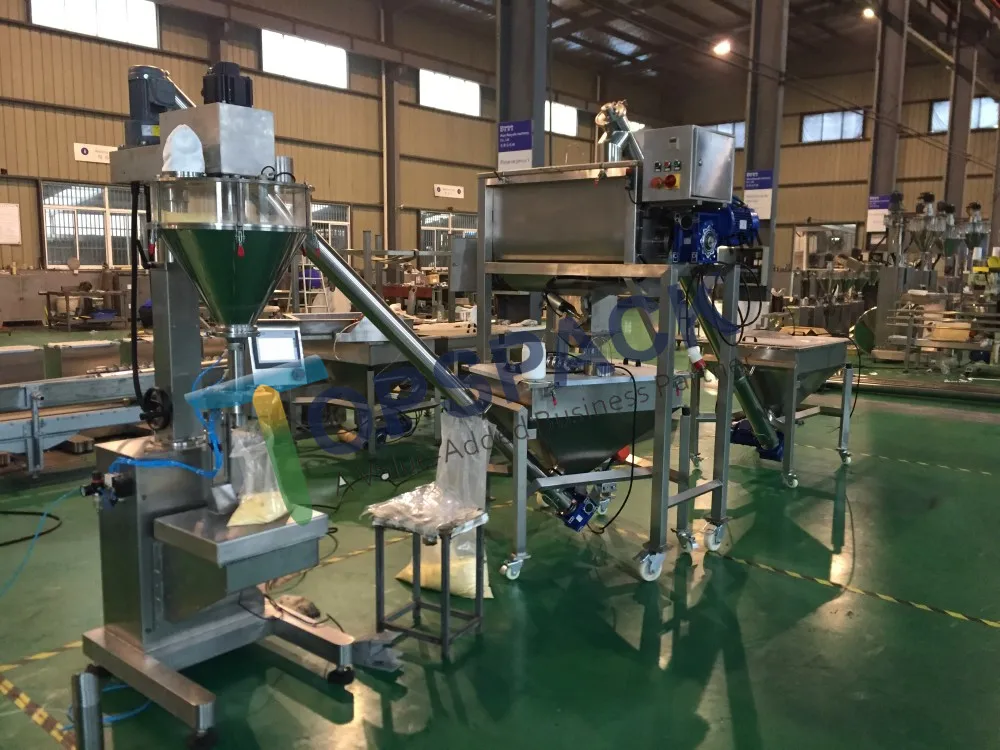

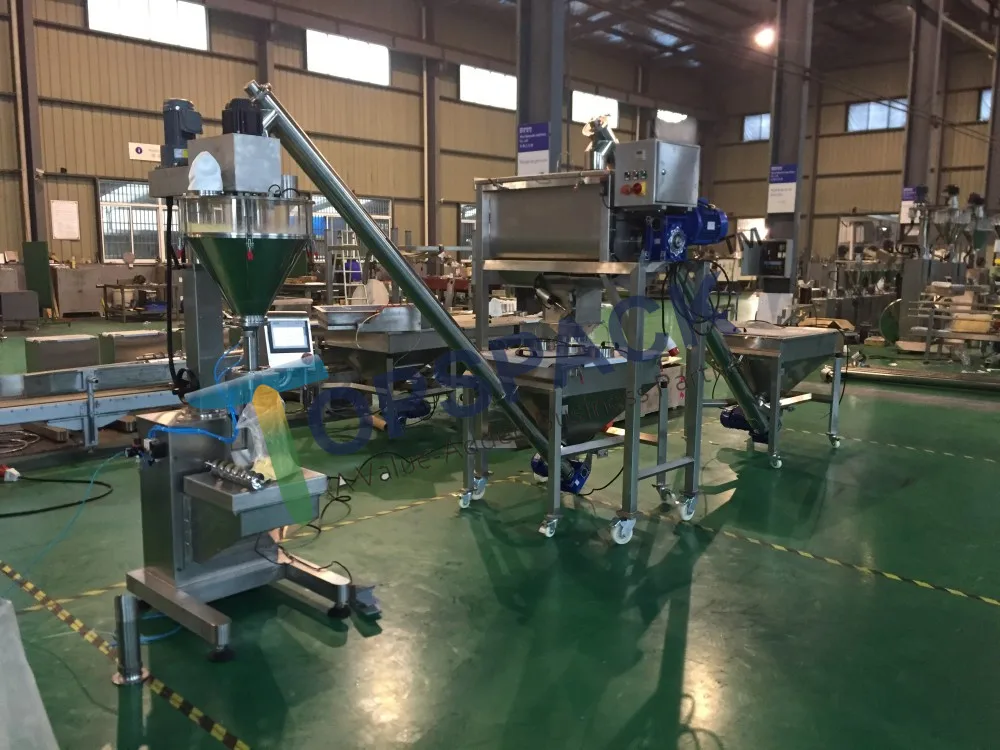

Pharmaceutical Powder Filling Machine For Aseptic Antibiotic Powder Equipment Production Line

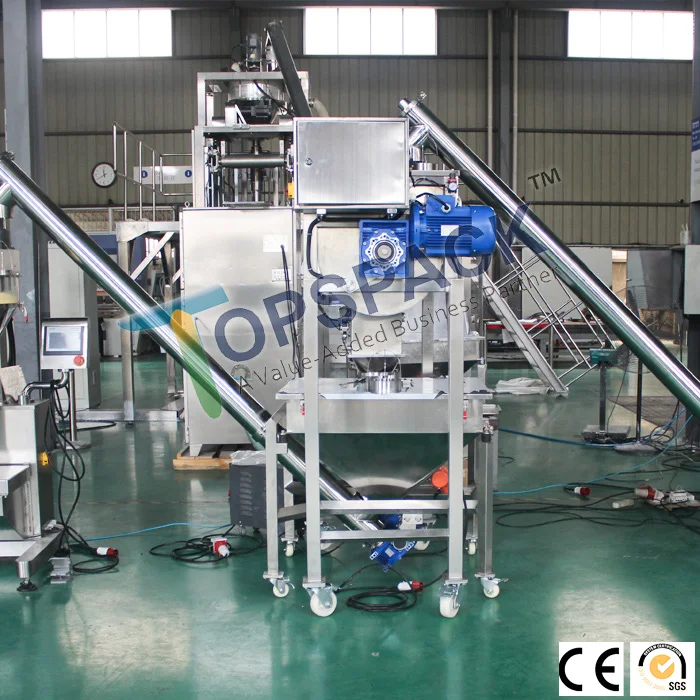

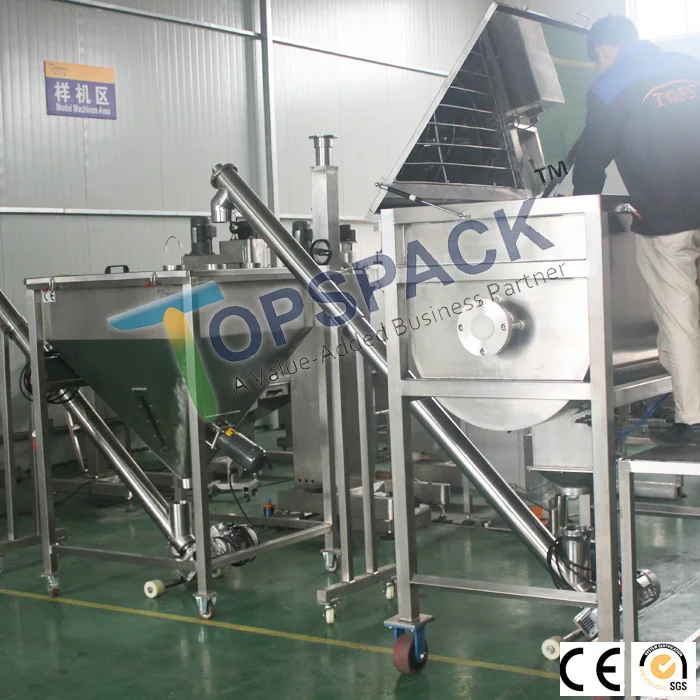

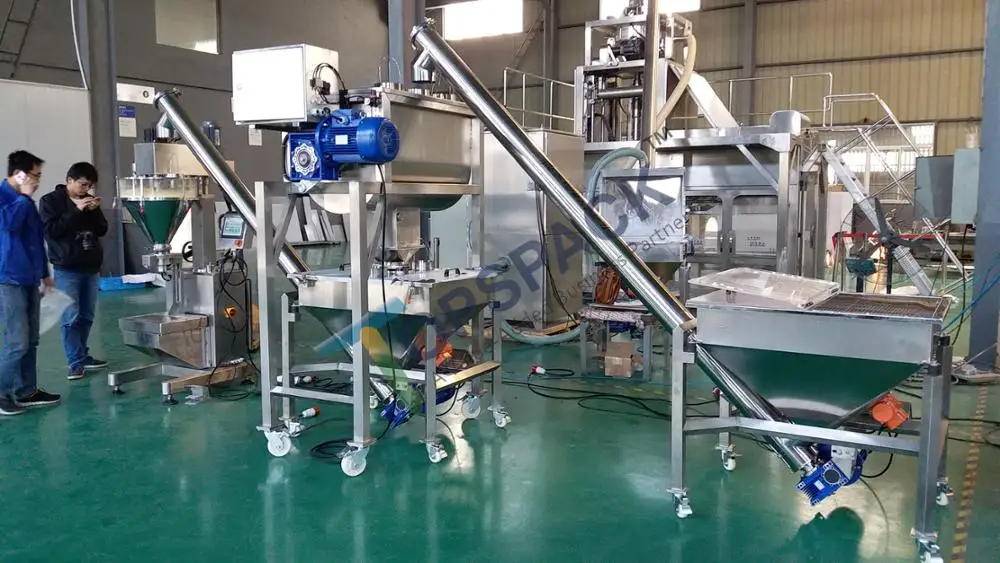

Detailed Images

Main Features
1) Continuous production increases efficiency

2) Whole production only need two workers finished .

3) No dead ends, easy cleaning and maintenance

4) Customized according to customer's specific requirements

5) All the machines with CE Certificates

6)Multi language interface


Related Products

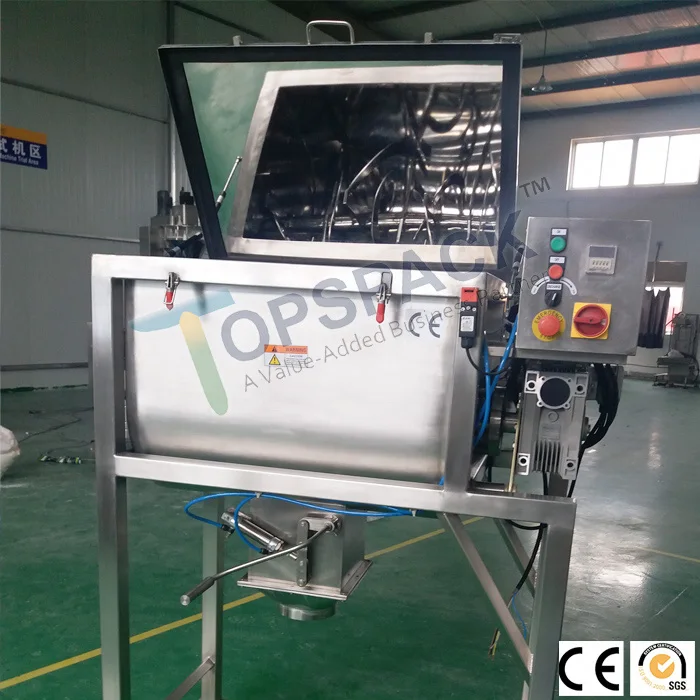

TDPM series Double ribbon mixer


This Vibrating Screw Charging Machine can convey sorts of material. it can do material situation tracing.
Combined with the package-machine of our company, Also can be used separately.

Complete machine made in stainless steel, except for the motors.

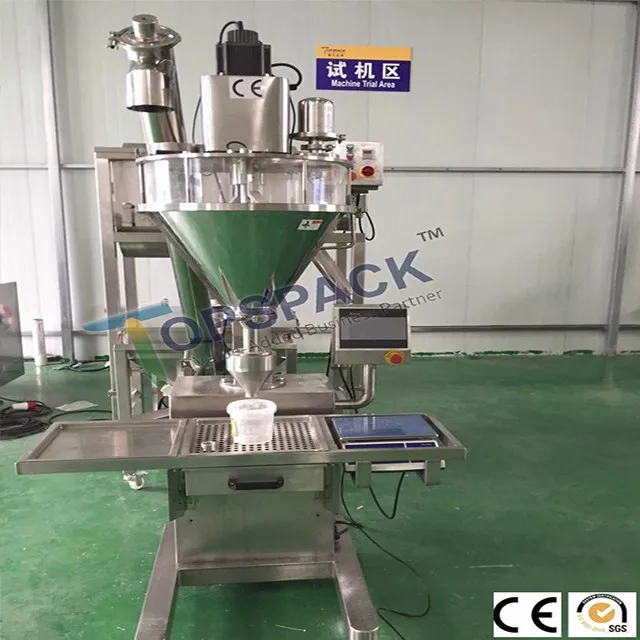

Auger filler Machine


This ribbon mixer is for dry powder or granule mixing or blending,widely applied in food, chemical, pharmaceutical industries.

Such as milk powder, protein powder, spice powder, ingredient, food additive, ice cream powder, etc.

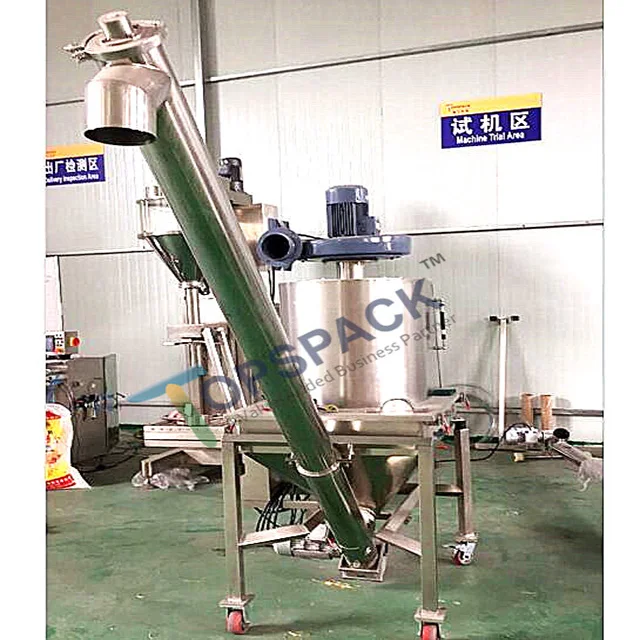

    HZ series Screw feeder

    This type can do dosing and filling work.         Due to the special professional design,         so it is suitable to the fluidic or low-fluidity       materials, like coffee powder, wheat flour,       condiment, solid drink, veterinary drugs,         dextrose, pharmaceuticals, powder                 additive,  talcum powder, agriculture                 pesticide,  dyestuff, and so on.

\t
HZ series Screw feeder
\t
Model
\t
HZ-2A2
\t
HZ-2A3
\t
HZ-2A3
\t
HZ-2A7
\t
HZ-2A8
\t
HZ-2A12
\t
Charging Capacity
\t
2m3/h
\t
3m3/h
\t
5m3/h
\t
7m3/h
\t
8m3/h
\t
12m3/h
\t
Diameter of pipe
\t
Ø102
\t
Ø114
\t
Ø141
\t
Ø159
\t
Ø168
\t
Ø219
\t
Hopper Volume
\t
100L
\t
200 L
\t
Total Power
\t
610W
\t
810W
\t
1560W
\t
2260W
\t
3060W
\t
4060W
\t
Total Weight
\t
100kg
\t
130Kg
\t
170Kg
\t
200Kg
\t
220Kg
\t
270Kg
\t
Charging Height
\t
Standard 1.85M, 1-5M could be designed and manufactured.
\t
Charging angle
\t
Standard 45degree,30-60 degree are also available
\t
TDPM series Double ribbon mixer
\t
Model
\t
TDPM200
\t
TDPM300
\t
 TDPM 500
\t
TDPM1000
\t
TDPM1500
\t
TDPM 2000
\t
Effective Volume
\t
200L
\t
300L
\t
500L
\t
1000L
\t
1500L
\t
2000L
\t
Volume
\t
280L
\t
420L
\t
710L
\t
1420L
\t
1800L
\t
2400L
\t
Turning Speed
\t
46rpm
\t
46rpm
\t
46rpm
\t
46rpm
\t
46rpm
\t
46rpm
\t
Volume of Barrel(mm)
\t
888*554*637
\t
1044*614*697
\t
1219*754*835
\t
1500*900*
1050
\t
1800*970*1155
\t
2000*1068*
1274
\t
Radius of Barrel (mm)
\t
277
\t
307
\t
377
\t
450
\t
485
\t
534
\t
Power
\t
4KW
\t
5.5KW
\t
7.5KW
\t
11KW
\t
15 KW
\t
22 KW
\t
Auger filler Machine
\t
Model
\t
TP-PF-A11
\t
TP-PF-A14
\t
Control system
\t
PLC & Touch Screen
\t
PLC & Touch Screen
\t
Hopper
\t
Quick disconnecting hopper 25L
\t
Quick disconnecting hopper 50L
\t
Packing Weight
\t
1 - 500g
\t
10 - 5000g
\t
Packing Accuracy
\t
≤ 100g, ≤±2%; 100 – 500g, ≤±1%
\t
≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5%
\t
Weight dosing
\t
by auger
\t
by auger
\t
Power
\t
0.93kw
\t
1.4kw

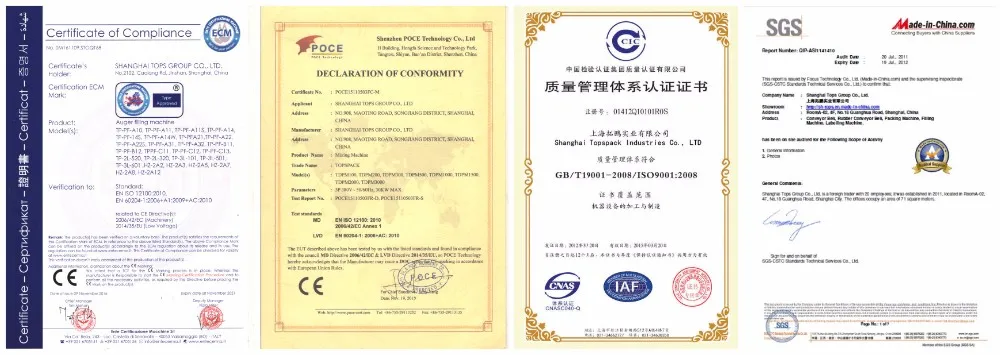

Certifications

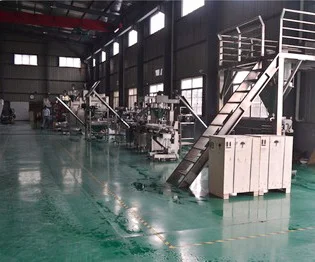

Production Process
Packing & Delivery
Our Company

Shanghai Tops Group Co.,Ltd.

Shanghai Tops Group Co.,Ltd. is a professional enterprise of designing ,manufacturing ,selling powder pellet packing machinery and taking over complete sets of engineering.With the continuously explore,research and application of advanced technology ,the company is developing,and have a innovative team composed of professional and technical personnel,engineers,sales and after-sales service people.Since the company founded,it has successful developed several series,dozens of varieties of packaging machinery and equipment,all the product meet the GMP requirements.

FAQ

1. Q: Can you provide after-sale service?
A: Of course,technical manual in English is provided,and we have engineers available to service machinery overseas .
2. Q: What's your usual payment term for orders?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. Q: What’s the information should I let you know if I want to get a full quotation?
A: Bag type, size, weight of material, type of material, thickness, printing, colors, quantity.
4. Q.Are you a real factory?

A:Yes,of course.We have  10 years’ experience in making packing machines. So We can give you the most competitive price.And welcome to visit our factory.
5. Q:How to contact you?

A:Please leave your Inquiry Details  in the Below, Click "Send" Now! Your requirements are highly concerned!
