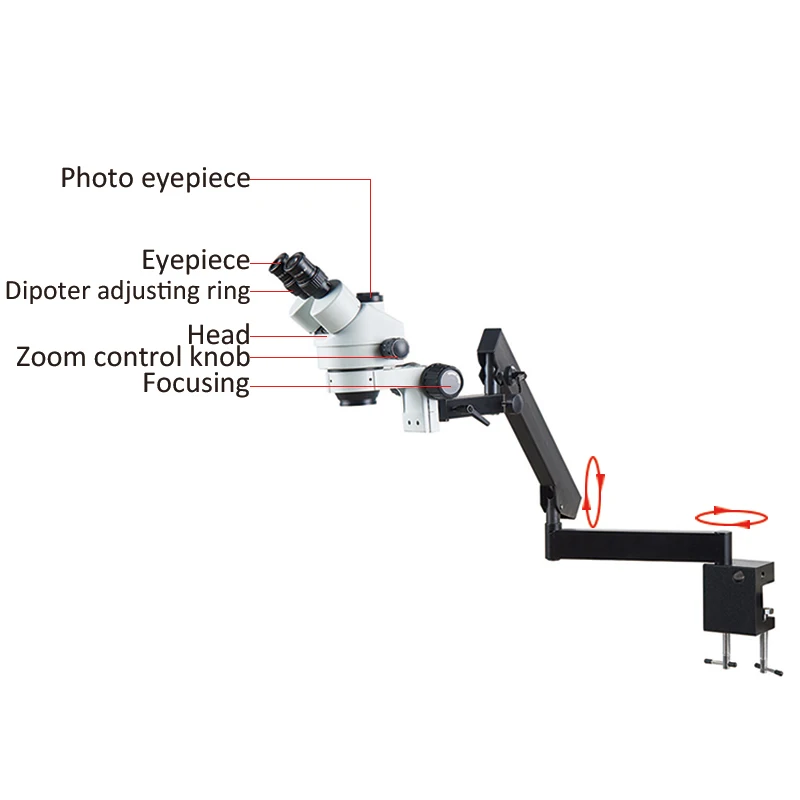

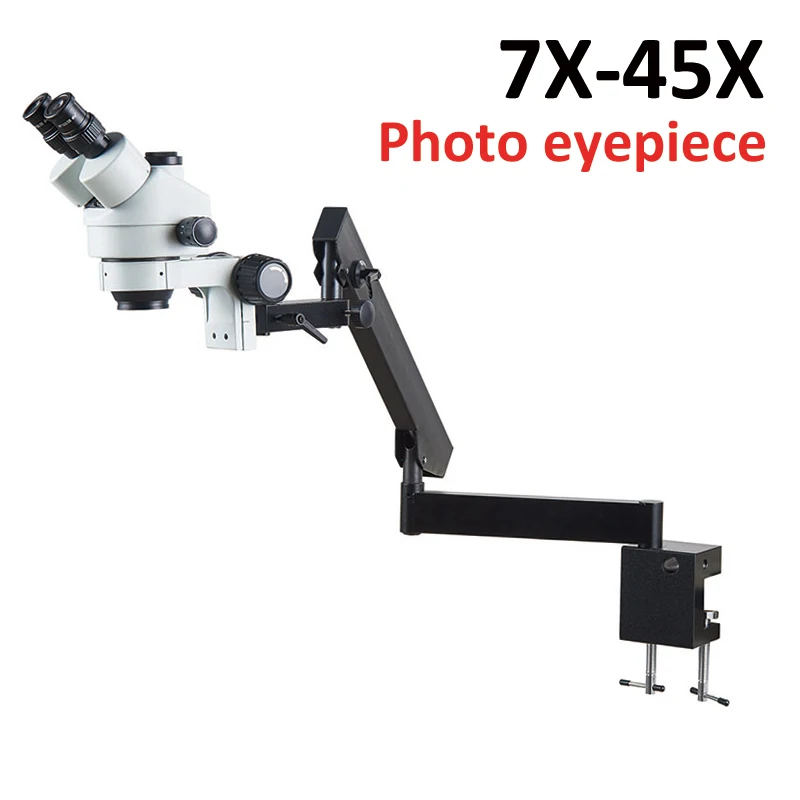

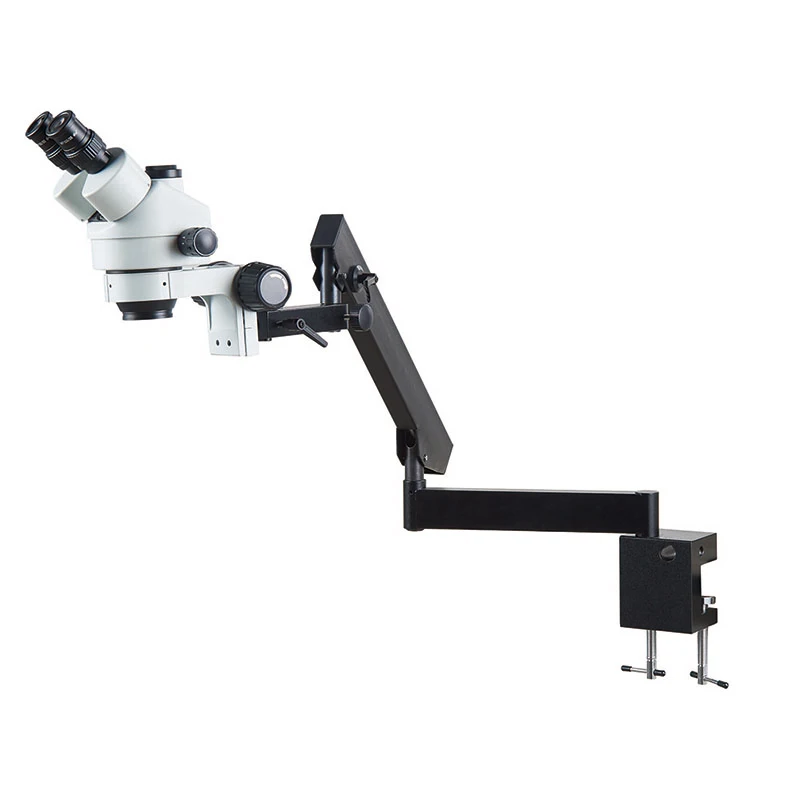

Factory Supply Profesional Simul-Focal Adjustable Arm Clamp Ent Ocular Microscopio Eye Operating Trinocular Stereo Microscope
Main Description
Model No: SZM7045T-STL6-A
High-quality Optical Imaging and a Durable and Reliable Operating Body;
Varieties of Auxiliaries Combinations;
Meet the high precision requirements of Modern Biology, Medicine, Scientific Research, Electronics Industry, Online Testing and other Technology Industries.
Eyepiece | Standard 1.0x | Auxiliary Lens 0.5X | Auxiliary Lens 2X | |||
Working Distance 100mm | Working Distance 165mm | Working Distance 30mm | ||||
Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | |
10X/20mm | 7X | 28.6mm | 3.5X | 57.1mm | 14X | 14.3mm |
45X | 4.4mm | 22.5X | 8.9mm | 90X | 2.2mm | |
20X/10mm | 14X | 14.3mm | 7X | 28.6mm | 28X | 7.1mm |
90X | 2.2mm | 45X | 4.4mm | 180X | 1.1mm | |
30X/8mm | 21X | 11.4mm | 10.5X | 22.9mm | 42X | 5.7mm |
135X | 1.8mm | 67.5X | 3.6mm | 270X | 0.9mm | |
Magnification | Standard: 7X-45X optional eyepiece and auxiliary objective can be extended to 3.5X-270X, continuous zoom | |||||

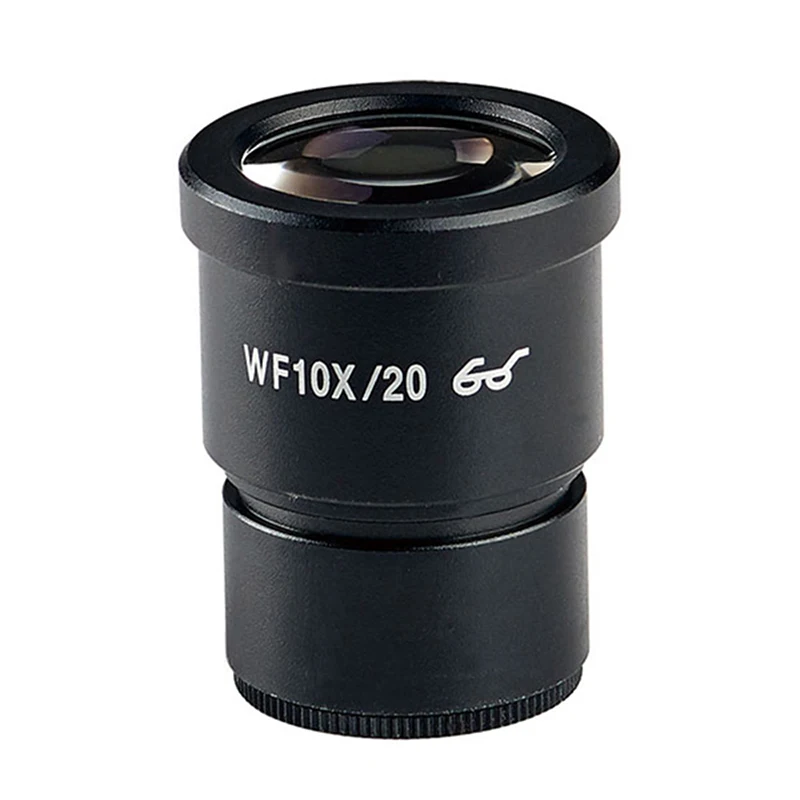

Eyepiece | Standard: 10X/20mm, large field of view, wide angle, high eye point, convenient for observers wearing glasses | |||||
Optional Eyepiece | WF10/22mm,WF15/16mm,WF20/12mm,WF25/9mm,WF30/8mm | |||||
Observation Head | 45° tilt, 360° rotation, 54-76mm pitch; bilateral visibility ±5 | |||||
Hinged Trinocular split ratio 50%/50%, 20%/80% | ||||||
Objective Lens | 0.7X-4.5X continuous zoom, objective lens zoom ratio 6.4:1 to ensure image surface parfocality | |||||
Auxiliary O Lens | Optional 0.5X, 1.5x, 2X | |||||
Focus Bracket | A3 focusing bracket hand wheel elastic adjustable, lifting range 50mm | |||||
Base | STL6 curved arm universal bracket, optional other bases, pls. contact us and we'll reply ASAP. | |||||
Illumination | Varieties of fluorescent, LED ring lights are available. | |||||

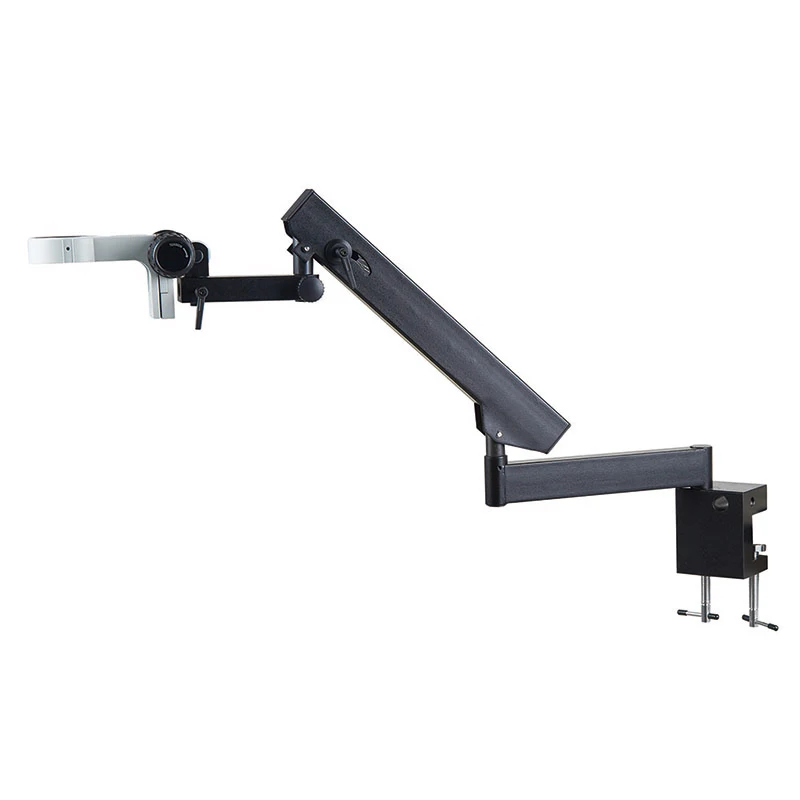

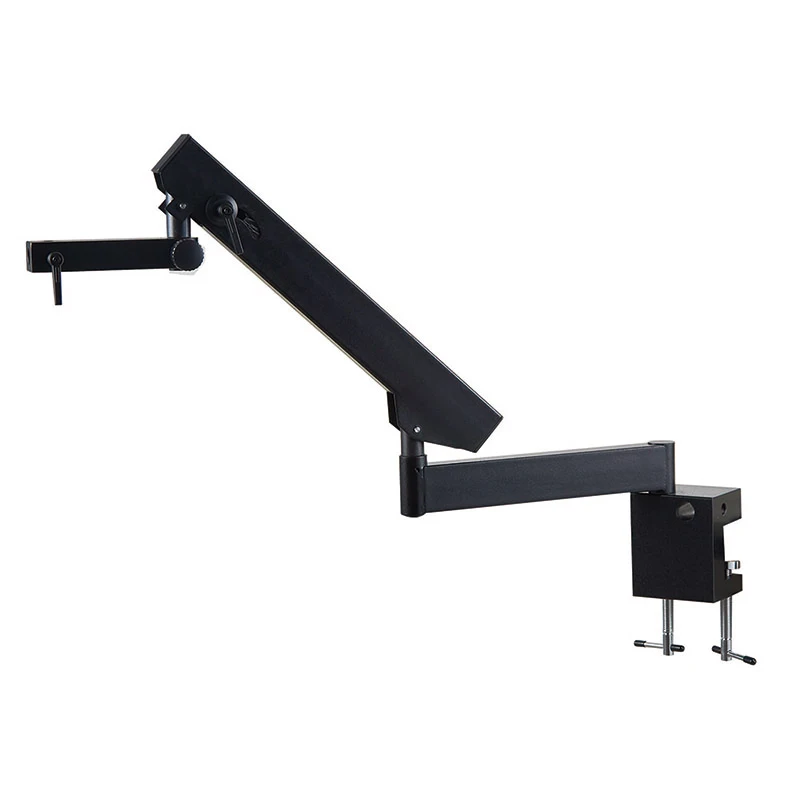

Base: STL6-A rocker universal bracket
Expand the operating range and observe objects in any direction
Vertical height: 400mm
Horizontal distance: 770mm
Base: 98x80x116mm
The base can be clamped up to 50mm
With A3 bracket
Packing List:
7X-45X Trinocular Zoom Stereo Microscope *1
Dust Cover*1
User Manual*1
