High power 52v 60v 72v 96v 120v Electric motorcycle bike vehicle brushless controller 24 tube



The difference between Blue tooth and not equipped with Blue tooth)

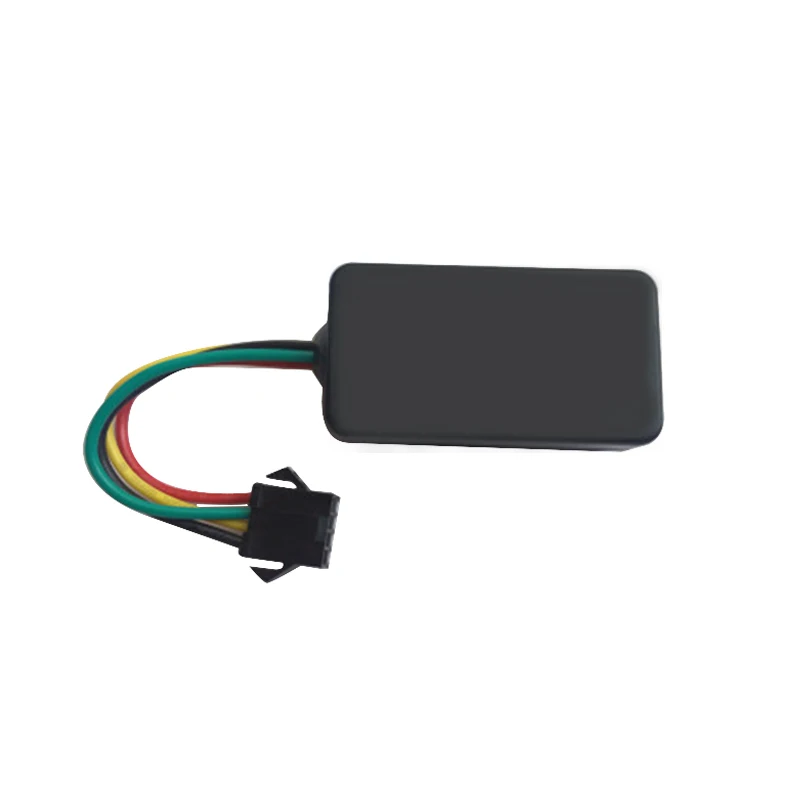

Our smart controller with Blue tooth module can be connected to the mobile phone APP (that is, the mobile phone downloads and installs our application), so that you can see the operating status of voltage, current, temperature, speed, etc., there is a fault prompt, which is convenient for the car to know quickly. Where is the problem, saving time and avoiding being slaughtered by the car. And many parameters can be adjusted to allow the controller to be personalized. You can use it without buying a Blue tooth module, but you can't connect to the app.

(Mobile phones supporting Android and Apple systems)



Application:

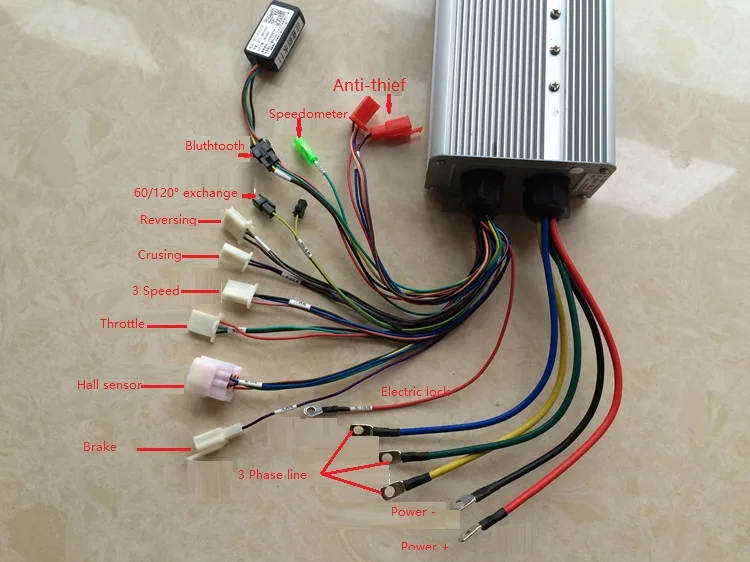

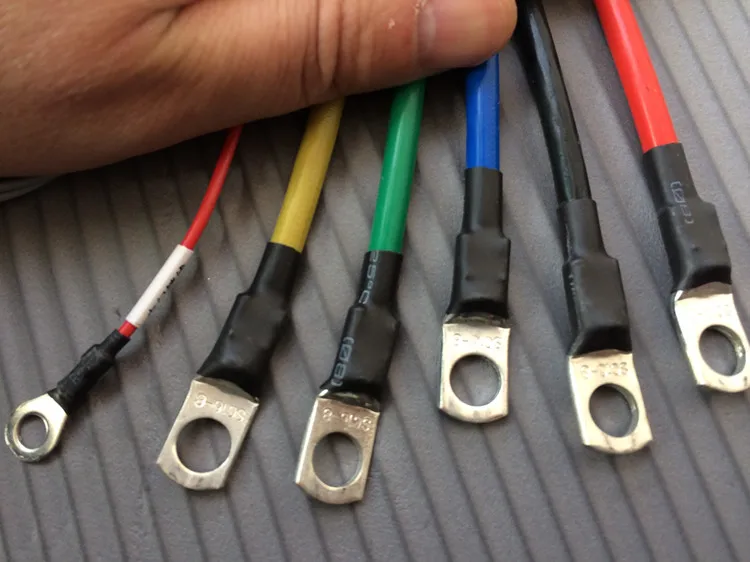

The whole vehicle is powered off → → the car is framed up, the rear tire is off the ground → → first connect the 6 wires in the junction box, which are thick red, thick black, electric door lock line, rough yellow of the motor, rough green, Thick blue

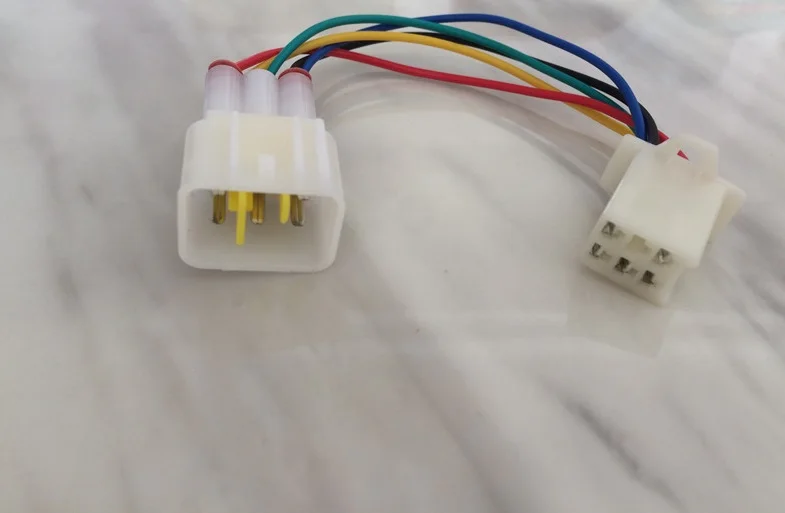

      Then plug in the Hall line, turn the line → → turn on the power gently, the motor will rotate slowly, the sound is very light, if the sound is wrong, do not continue to turn, you need to try to change the motor 3 thick Line or Hall signal line, after turning normally, connect other function lines as needed, do not need to pack one side, and finally fix the controller to complete the installation.





Function Description:

Three speed)

It is suitable for the three-speed switch of the dial, which is the high-speed medium-speed and low-speed; without the switch, the pink black wire of the controller's three-speed line can be directly connected, so that it can be used directly at the highest level.

cruise)

Support manual cruise and automatic cruise; manual cruise is connected to the button switch, which is the switch of the speaker, press to release the hand to enter the cruise, lift the cruise can press the cruise switch or pinch the brake or re-rotate the handle. The auto-cruise is to connect the two lines of the cruise purple and black, keep the switch for 8 seconds and enter the cruise. To cancel the cruise, you can pinch the brakes or re-rotate the handle.

Reversing)

In order to facilitate the adjustment of the head and so on, you can pick up the reverse switch. The reverse line is brown and black. The two switches can be used. This switch is not required, and the dial or button can be used. When the car is not moving, press the reversing switch, turn the handle, and the car will fall backwards; the maximum speed of reversing is half of the forward, and the reversing switch will not reverse when driving, the car will slowly stop and be safe.
