Product Description
1、A dust-proof cap is supplied on the top of the stuffing box gland which can protect the stem thread from the outside impurities. | ||||||||
2、The stuffing filling is under the thread to effectively protect the lubricating grease from being brushed away. | ||||||||
3、The core and the stem is of lapped joint with the functions of up sealing. | ||||||||
4、Vertical hard sealing is used between the core and the body, also between the seat and the body. | ||||||||
5、Non-rotational ball-shaped stem head and adjustable stem head can be supplied. | ||||||||
6、Operating pressure can be up to 6000 psi (413bar). | ||||||||
7、Operating temperature: -53 to 232℃（-65 to 450 F）for PTFE sealing. -53 to 649℃（-65 to 1200 F ）for graphite sealing. | ||||||||
Our Services

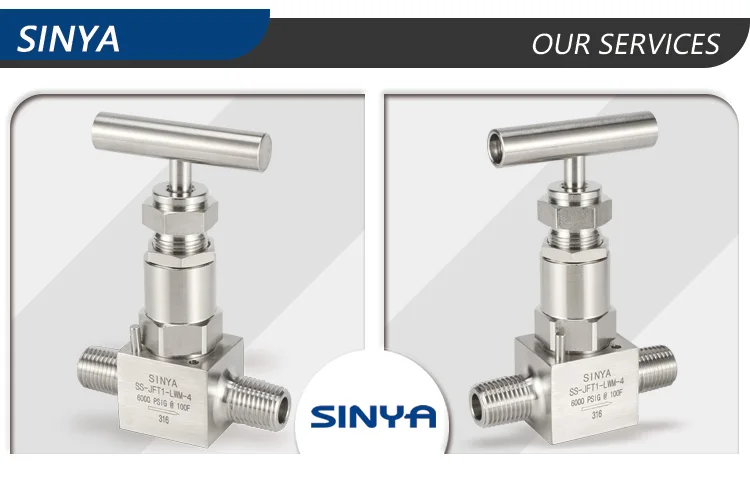

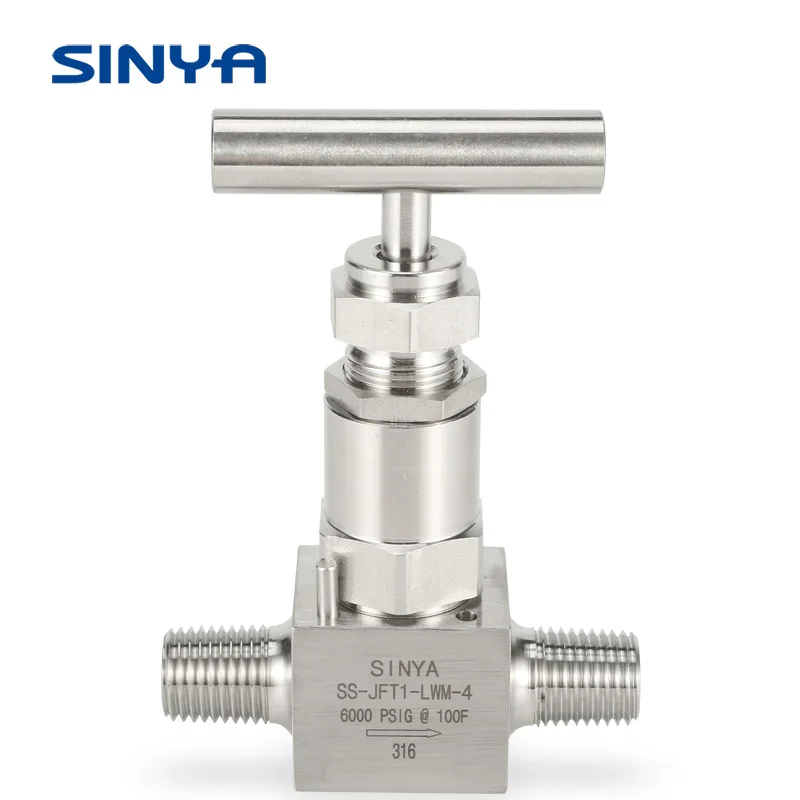

-JFT1 Male Straight Needle Valve | ||||||||
Order information | End Connection | Orifice | Flow coefficient | |||||
(in) | (mm) | Cv | ||||||
-JFT1-LWM-2 | NPT1/8 | 0.09 | 2.4 | 0.15 | ||||
-JFT1-LWM-4 | NPT1/4 | 0.17 | 4.4 | 0.37 | ||||
-JFT1-LWM -6 | NPT3/8 | 0.25 | 6.4 | 0.73 | ||||
-JFT1-LWM -8 | NPT1/2 | 0.37 | 9.5 | 1.8 | ||||

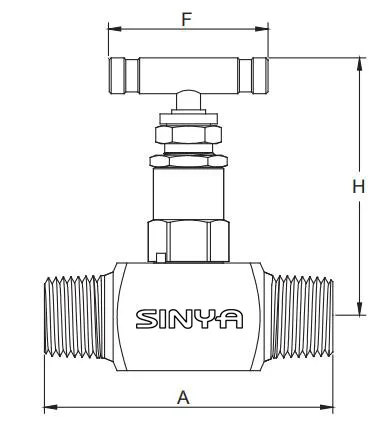

Order information | A | H | F | ||||||
(in) | (mm) | (in) | (mm) | (in) | (mm) | ||||
-JFT1-LWM-2 | 1.97 | 50 | 2.83 | 72 | 1.12 | 28.4 | |||
-JFT1-LWM-4 | 2.2 0 | 56 | 3.39 | 86 | 1.75 | 44.4 | |||
-JFT1-LWM -6 | 2.3 6 | 60 | 3.46 | 88 | 2.23 | 56.6 | |||
-JFT1-LWM -8 | 2.8 3 | 72 | 3.54 | 90 | 2.50 | 63.5 | |||
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||||
1.Custom design, CAD drawing | ||||||||
2.P&ID | ||||||||
3.Component selection | ||||||||
4.Bill of material | ||||||||
5.Professional services such as bending and welding | ||||||||
6.Testing to guarantee the system | ||||||||
7.Professional packaging and delivery | ||||||||
Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packaging & Delivery
Mode of packing: | Export standard package or as your detail request. | ||||||||
Delivery time: | 2 weeks after receipt of payment | ||||||||
Mode of shipment: | By Express like DHL,Fedex,TNT Ups. | ||||||||
Our Company
1.Established in 1995. | ||||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||||
8.We have obtained ISO9001 certificate, CE Certificate. | ||||||||
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries. | ||||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||||
Certifications
6000 PSI 316L PTFE Packing 1/4 NPT 3/8 BSP Swagelok Carbon Steel Small Body Straight Valves Bar Stock Mini Male Needle Valve male Straight Needle Valve 1/8" 1/4" 3/8" 1/2" Swagelok Type S.S. Needle Valve 1/4" OD male Hydraulic Flow Control Needle Valve Male x Male Needle Valves 1/8 in. OD 6000 psi Adjustable shut off crane Needle valve 1/8 1/4 In.Swagelok type Bonnet Small Body Needle Valve
