Проволочный Трос подъемное кольцо винт Goliath для сборной бетонной подъемной

Wire Rope Lifting Ring Screw Goliath for Precast Concrete Lifting System

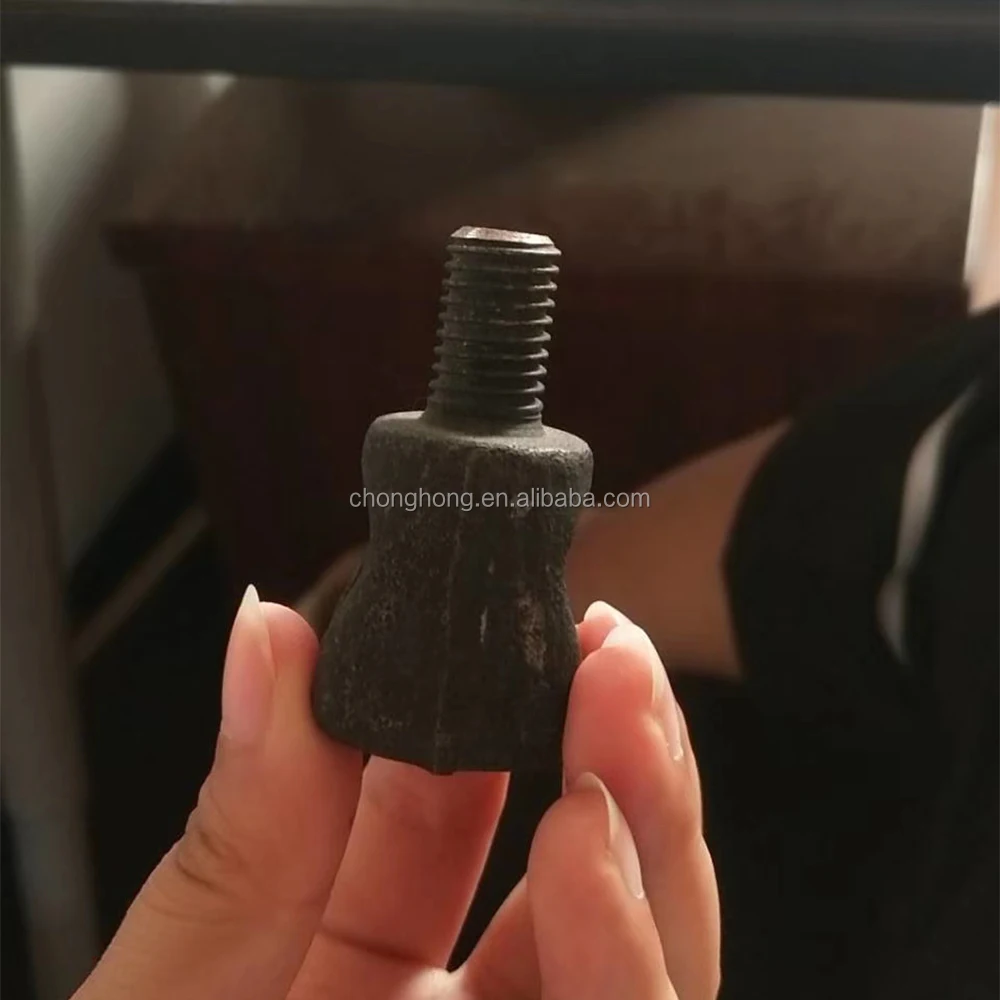

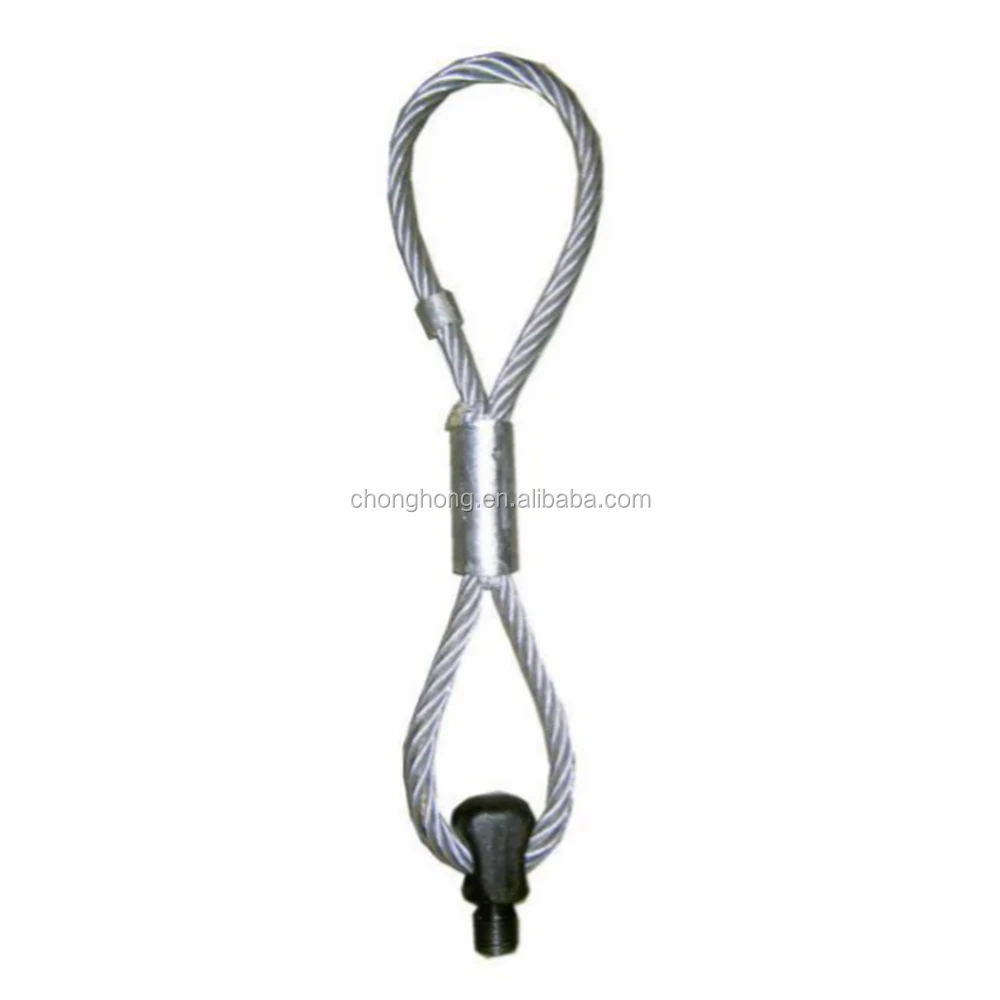

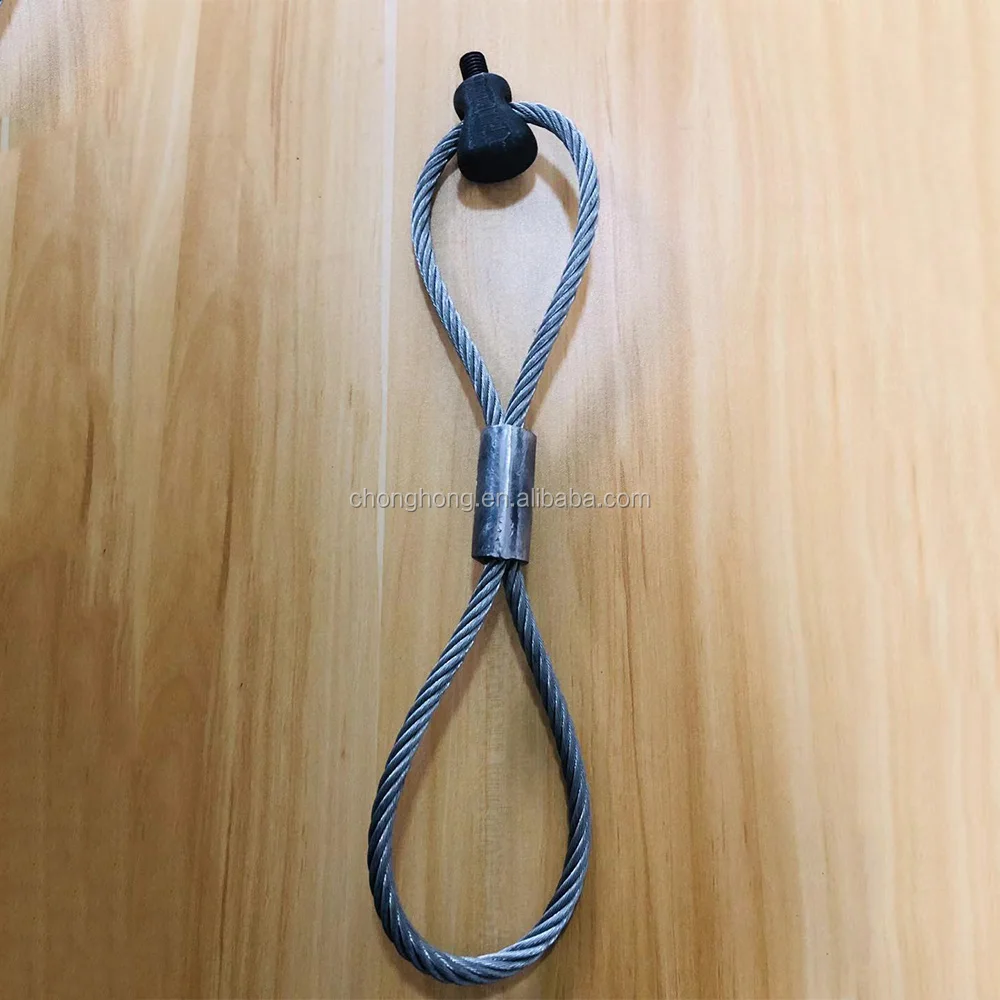

Lifting Loop with Pressure Plate and "Goliath"

• Place of Origin:China


• Brand Name:CHONGHONG


• Product Name:Lifting ring screw Goliath


• Load:0.5T,1.2T,2.0T,2.5T,4.0T,6.3T,8.0T,12.5T


• Screw Type:Metric or Rd thread


• Screw Size:M/Rd 12 16 20 24 30 36 42 52


• Application:Construction lifting


• Used:Precast concrete lifting system


• Packaging:Carton or as per customer's requirements


• Special specifications can also be produced according to drawing and sample.

Materials

1. Loop: Galvanized steel wire rope


2. Label ldentification: plastic or steel


3. Al Ferrule


4. Goliath or plate: steel

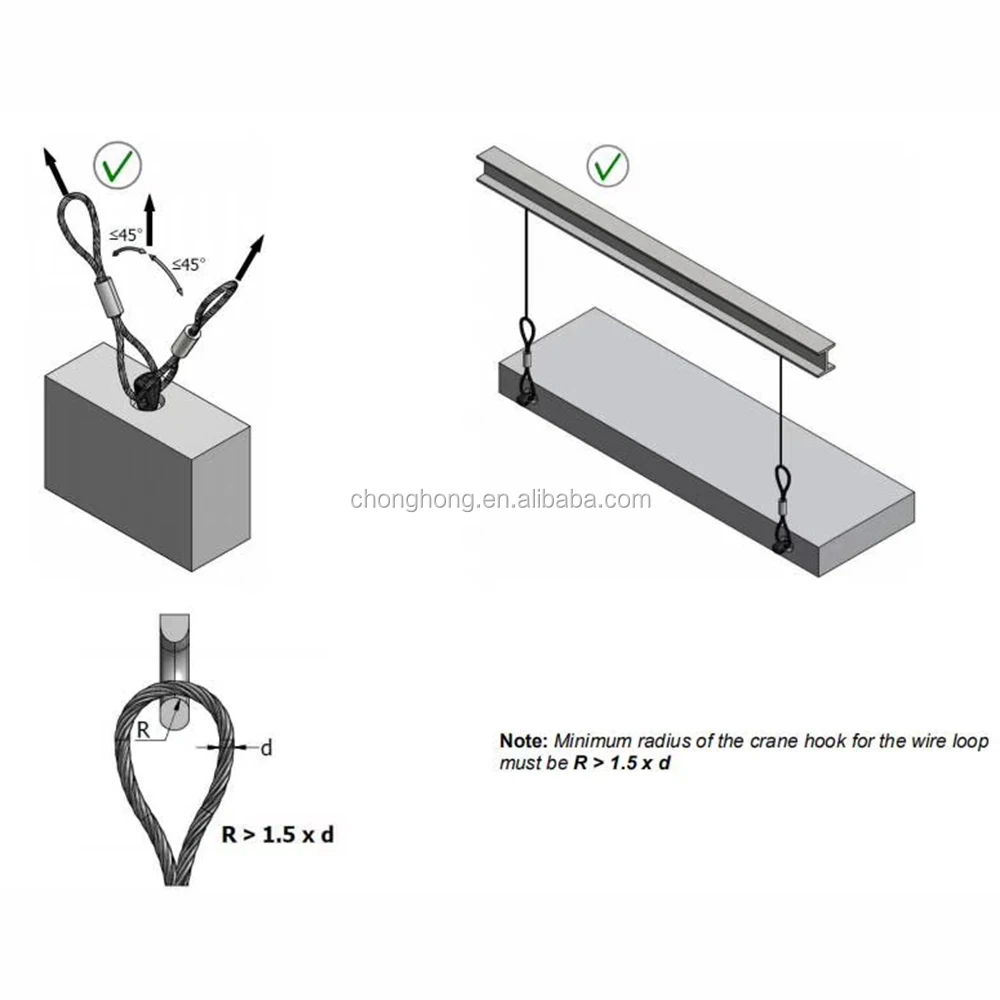

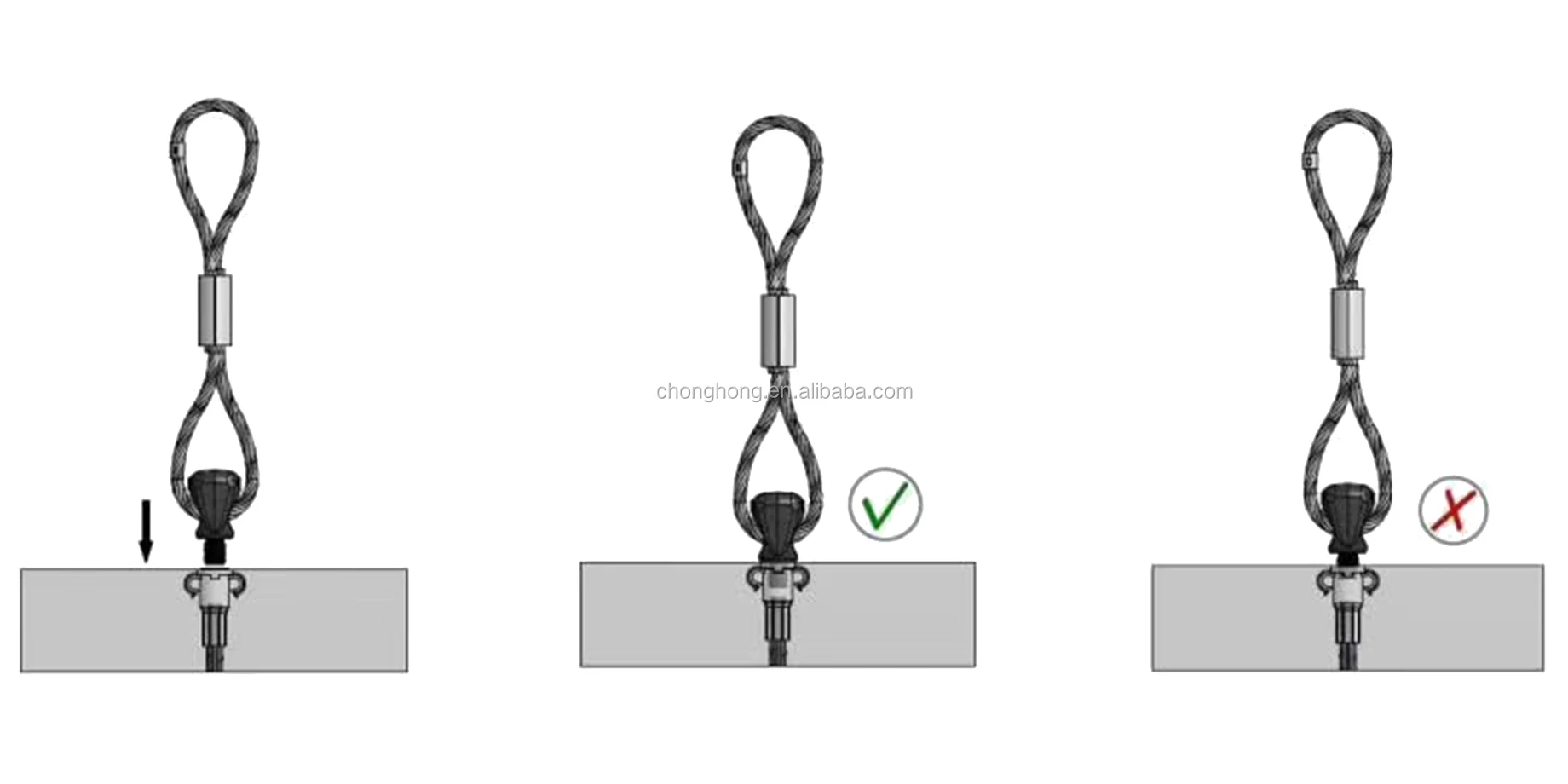

    Lifting loop with pressure Plate and  "Goliath" are to be used as lifting device for the lifting anchors of Threaded Lifting System (Bar Anchors, Waved Anchors DWL and DWK, Sockets, Crimped Sockets, Flat Steel Anchors)

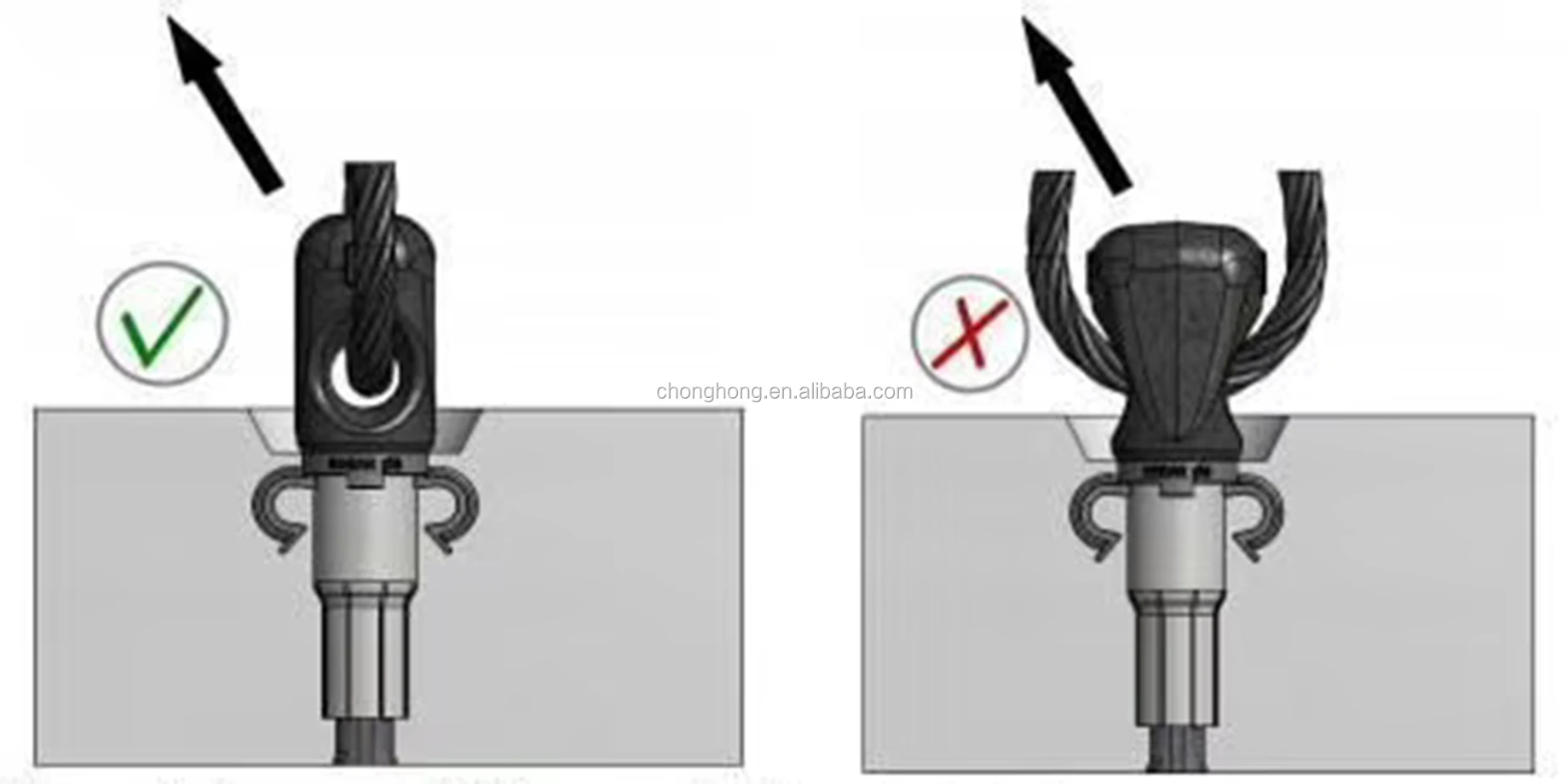

   The lifting loop eye is welded on the base plate. The retracted rope loop allows stress forces from all directions.

   Lifting Ring Screw can be applied with the thread anchor with appropriate metric or Rd thread.

   Identification label shows the size of thread and maximumworking load,with color marked with the admissible load,the thread type and the code number of testing.

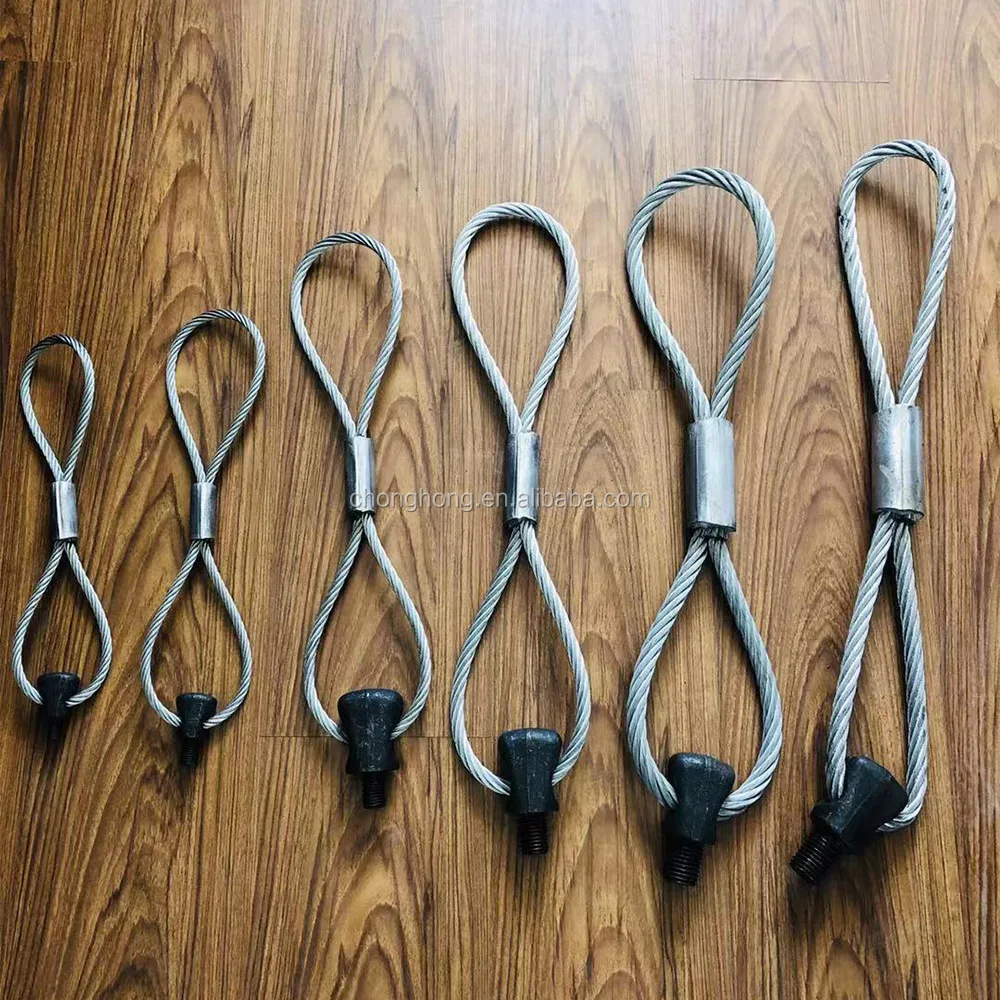

   Lifting loops with changed wire length as per customer's requirements

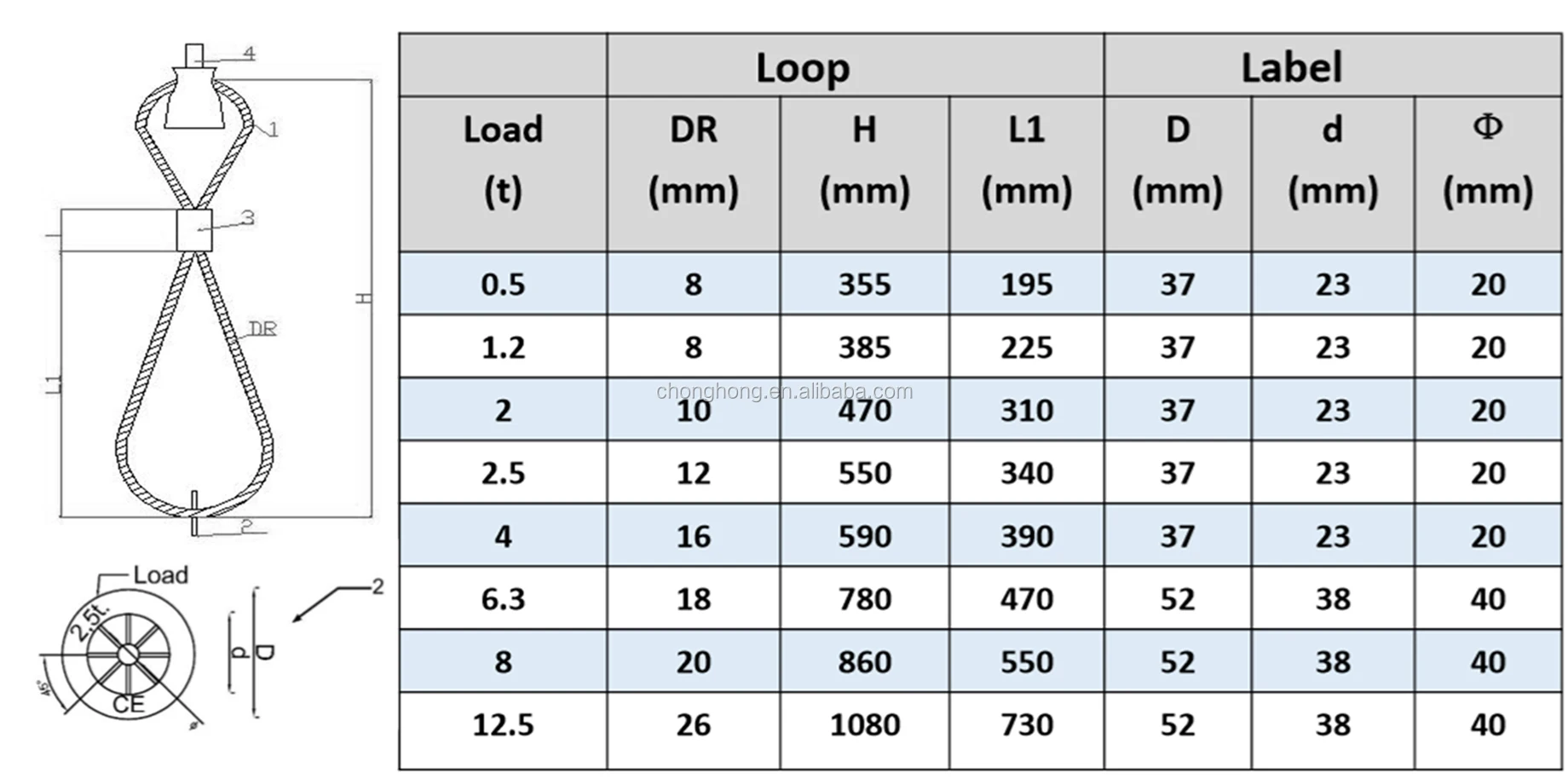

Dimensions of the loop

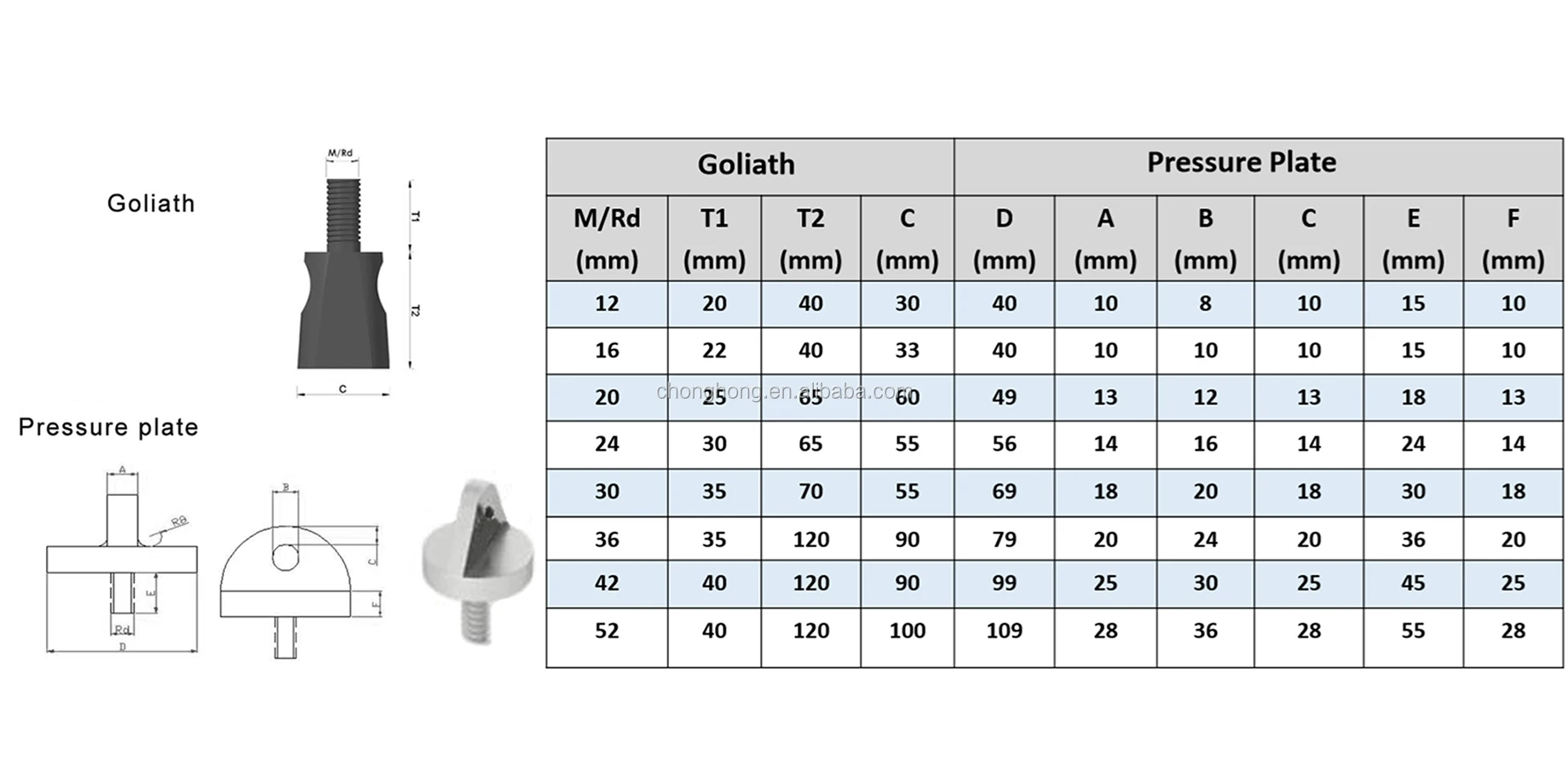

Dimensions of the Goliath and Pressure Plate
