Цифровой Тензиометр используемый для измерения натяжения и веса строительных

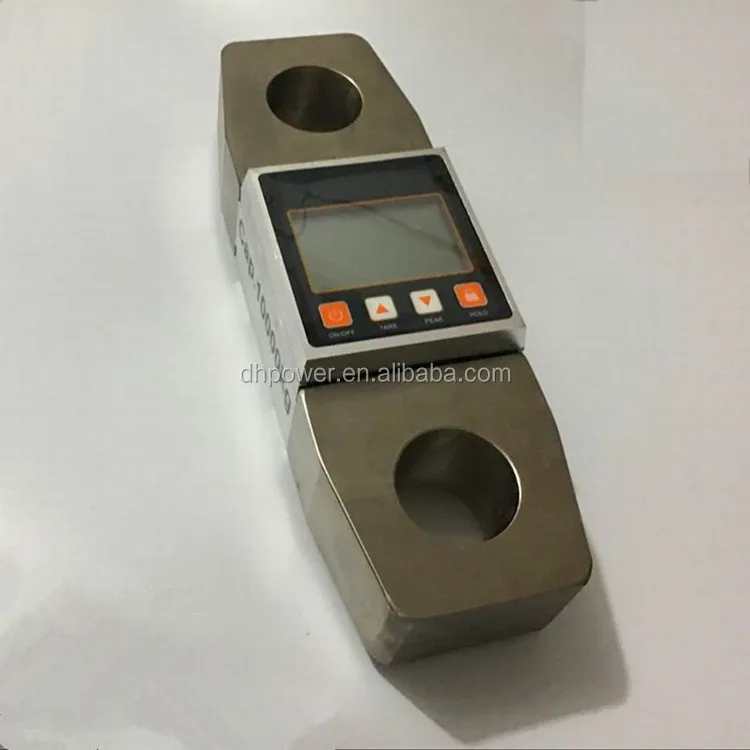

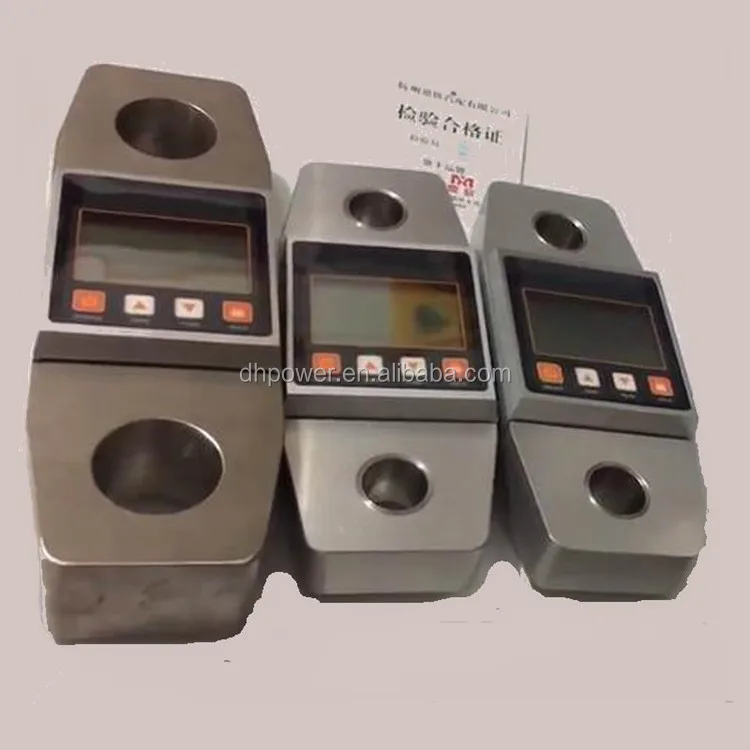

Digital tensiometer Used to Measure Tension And Weight For Construction Works



Uses: Use to measure tension and weight



Feature

1.Smart figure .light weight .

2.Cylinder structure , Industrial-grade high precision dynamometer and tensiometer.

3.Integral metal structure design, more durable, 4 times the ultimate load, waterproof panel keys.

Technical Data



Item number	Max. measurement (T)	Min. measurement (kg)	Graduation value (kg)	Wide (mm)	Thickness (mm)	Long (mm)	Internal diameter (mm)	Weight (kg)
22305	1	10	0.5	90	30	230	25	2.0
22306	2	20	1	90	30	230	25	2.0
22306A	3	20	1	90	30	230	25	2.0
22307	5	40	2	90	30	230	32	3.5
22308	10	100	5	90	48	280	32	7.0
22309	15	100	5	90	60	350	50	15.0
22310	20	200	10	90	60	350	50	15.0
