Medical Single tire low noise caster abrasion resistance

Описание и отзывы

Характеристики

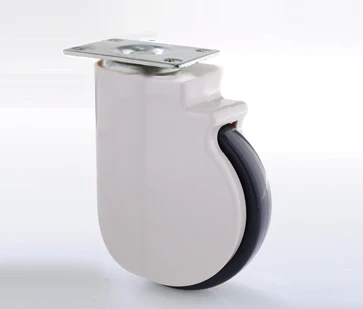

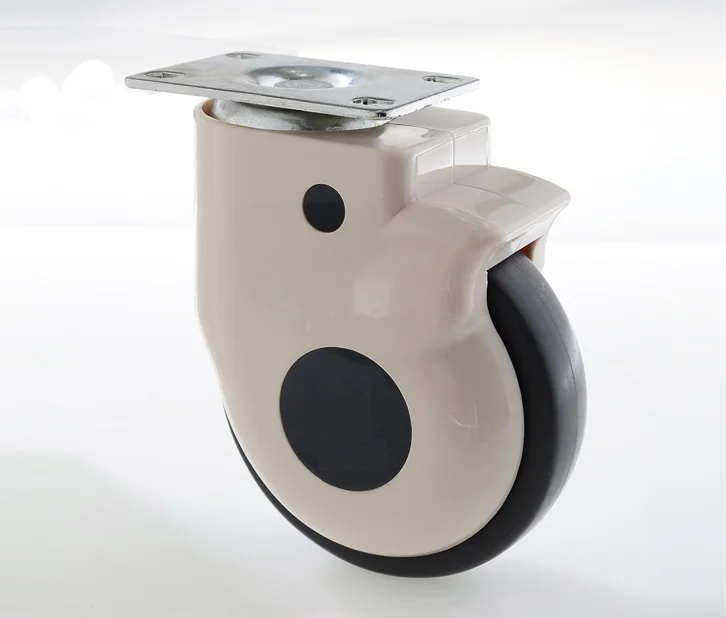

Medical Single tire low noise caster, abrasion resistance castor





DSD-125P-WG-95X70

  Steel frame, wheel core made of high quality Nylon –PA6, which with perfect load-bearing capacity.

  Wheel tread made of PU. It has excellent features in oil resistance, waterproof, drug resistance and bacteria  resistance, also with good effect of vibration and noise reduction.Aesthetic appearance with ABS covers, corrosion prevention and abrasive resistance.
  Swivel axis with ball bearing what ensures easy maneuverability and low noise.

·         Roll performance4A

·         Movement noise4A

·         Attrition4A

·         Corrosion resistance 4A

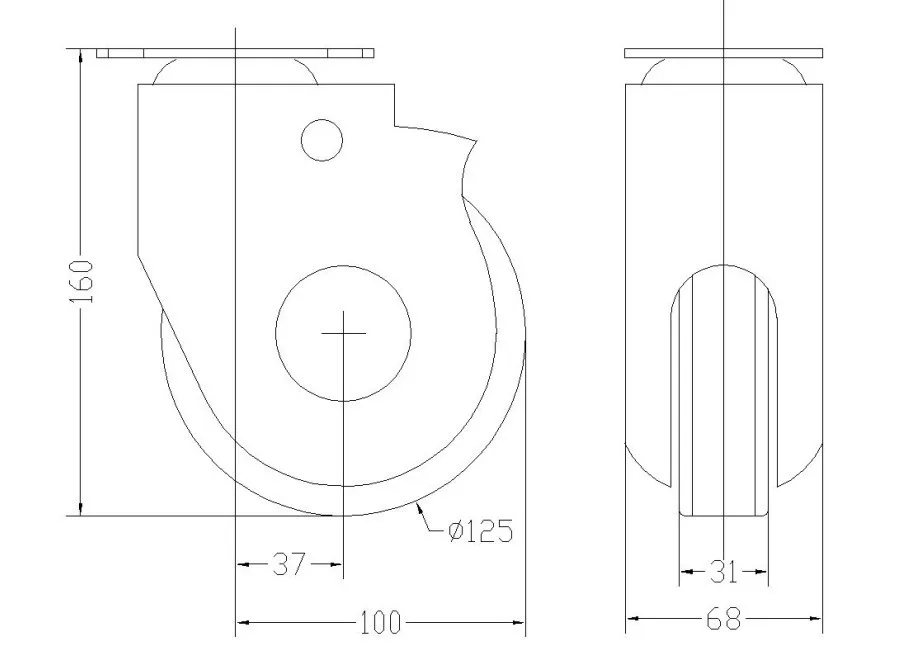

Technical Data

·         125mm Wheel Diameter

·         68mm Caster width

·         31mm Tread width

·         95x70mm  Plate dimension

·         75x45mm  Distance between the plate hole

·         9mm  Plate hole size

·         37mm  Offset

·         103mm  Swivel Radius

·         206mm  Swivel Interference

·         160mm  Overall height

·         -30/+80℃  Temperature

·         EN12531  Standard

·         1.04KG  Weight

·         90KG  Dynamic load capacity

·         120KG  Static Load capacity













Medical Single tire low noise caster, abrasion resistance castor

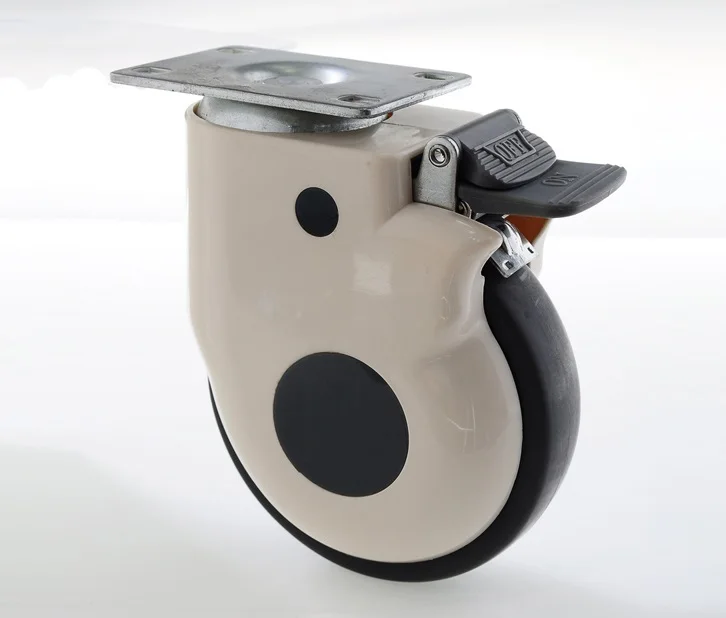

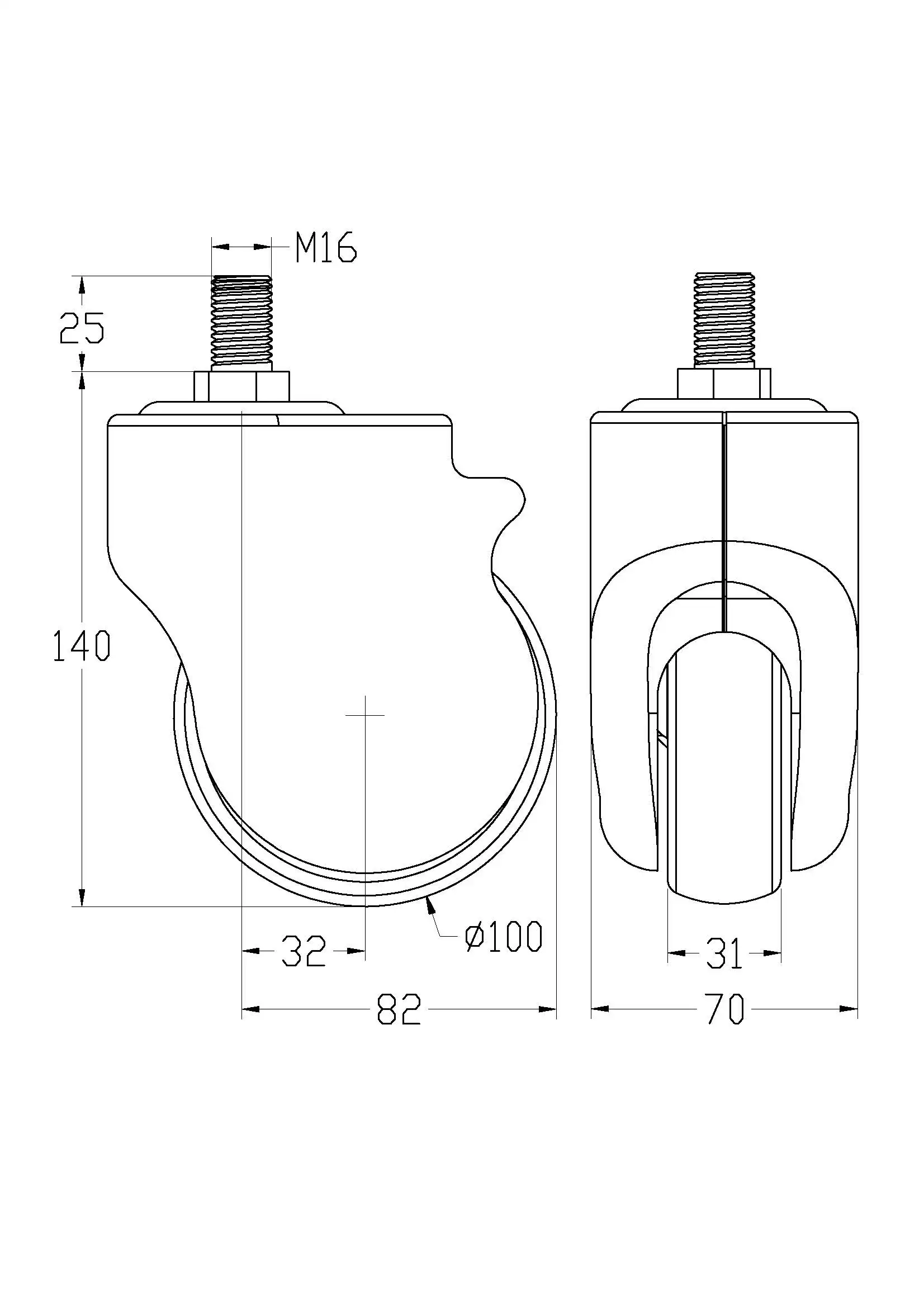

SAME SERIES, OTHER SIZE AND TYPES











Package Detail:



1PC of Medical Single tire low noise caster, abrasion resistance castor

into PE bag/,  50pcs/carton





 Shipping Detail:



Producing Lead time:  1-2 weeks after payment received, depends on your order quantity



Delivery  Method:

1. By Express:  Fedex, UPS, TNT, DHL, SF express       3-5day, 5-7days.

2. By  Road:     Domestic and neighbour country :  3-10 days

3. By  Sea :     5-45 day all over the world.

4. By Air :      5-10 days all over the world.



Loading port :



Shenzhen, Yantian, Shekou, Hong Kong, Xiamen, Ningbo, Shanghai, Nanjing, Qingdao

According to your requirement.



Delivery Terms:



EXW, FOB, CIF, CFR, C&F, DDU, DDP, FCA, CPT



Shipping Documents:



B/L, Commercial Invoice, Packing List, [CO/FORM  A, FORM E, CIQ,]
