China xk3190 a9 weighing indicator Weighing indicator XK3190-A9P addopted high precision ∑-Δ A/D conversion technology , widely applied in electronic
truck scale ,electronic floor scale and so on alike static weighing system equipped with 1-8 load cell.
Feature:
∑-Δ high precision A/D conversion method, able to process input signal from -32mV to 32mV Good consistency, no need to re-calibrate a scale if change the former indicator, high precision DC power socket with anti-connect and anti-short circuit protection; With strong anti-disturbance function
Technical parameter
ADC conversion method: ∑-Δ
Load cell excitation: DC 10V,Max. connection number of load cell: 8 at 350 ohm/16 at 700 ohm
Load cell connection mode: 6 wire, auto compensation for long distance
Data storage:1000 truck records consisting of truck ID and corresponding tare weight 201cargo ID.1001 weighting records
Power supply:AC 220V;50Hz
DC 12V/7Ah External battery rechargeable.
Packing & Delivery
Our Company

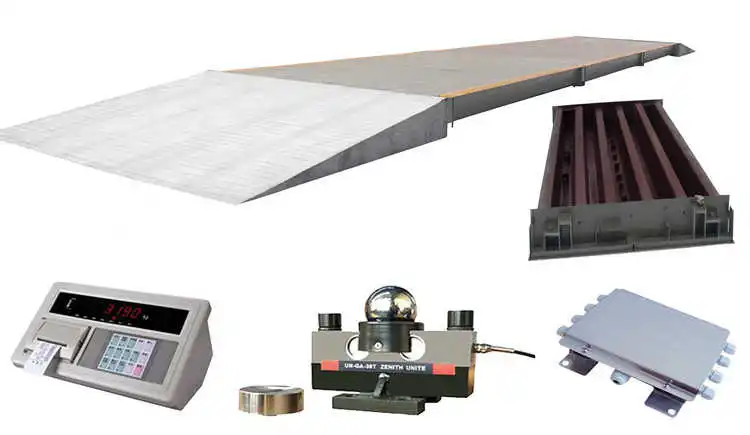

Taian Zhong hang weighing Apparatus Co., Ltd is a professional large-scale manufacturer of industrial weighing equipment for 17 years in China. We started as a truck scale and load cell manufacturer and now 0ur products are extended to OCS electronic hanging scales and electronic platform scales,electronic floor scale,crane scale,load cell ,etc.
