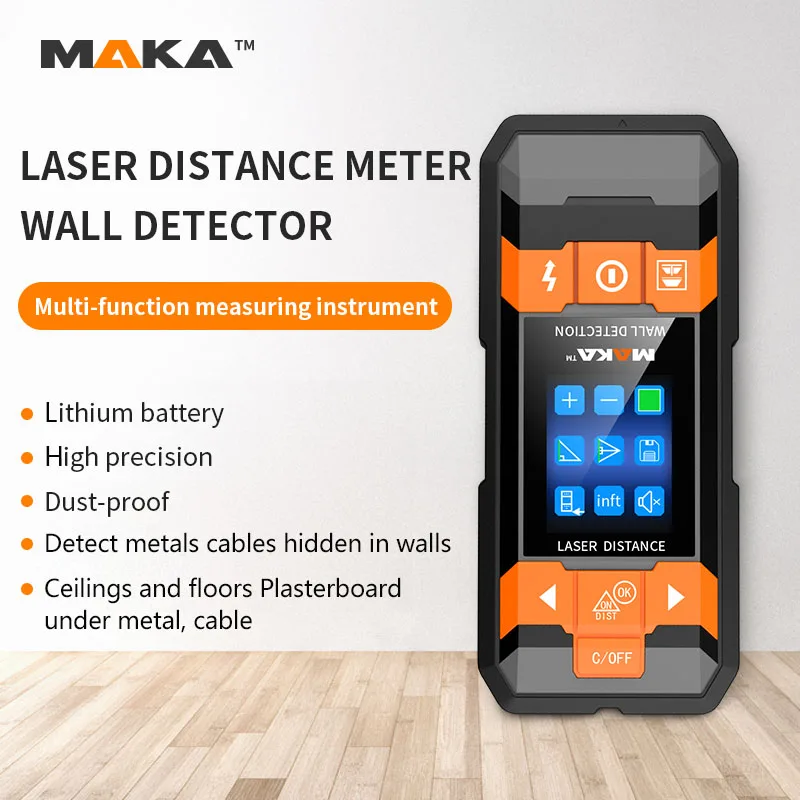

Многофункциональный лазерный дальномер MAKA измерительный прибор 2 в 1 для обнаружения
- Категории: Лазерные дальномеры >>>
- Поставщик: Jinhua,Maka,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
TUV Certified Factory

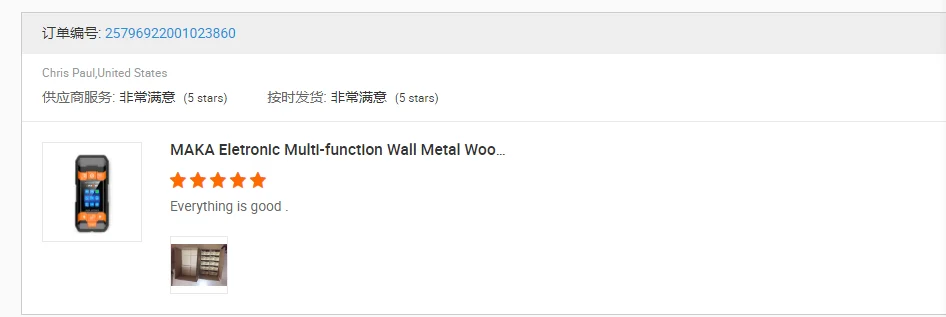

Buyers evaluation
● Open for a wide cooperation
● All of our items are under the cover of patents applied
● More than 1 million pieces annual output to a top quality guarantee .
● Established in 2011 , leading in the designing and manufacturing of laser meter, wall scanner, laser level etc.
● Experienced exports to the whole world, such as USA, Japan, Korea, Europe ,Russia and Australia ,etc, with completed
certifications like FCC/ETL/CE/EMC/Rohs Certificates, BSCI, IS09001 management system.
● Many sound Long-term co-operations with giant companies globally
● A great pack of policies support to VIP clients
● All of our items are under the cover of patents applied
● More than 1 million pieces annual output to a top quality guarantee .
● Established in 2011 , leading in the designing and manufacturing of laser meter, wall scanner, laser level etc.
● Experienced exports to the whole world, such as USA, Japan, Korea, Europe ,Russia and Australia ,etc, with completed
certifications like FCC/ETL/CE/EMC/Rohs Certificates, BSCI, IS09001 management system.
● Many sound Long-term co-operations with giant companies globally
● A great pack of policies support to VIP clients
Contact
Lizzy Xu
E-mail： mk@makalaser.com
WeChat： 15258981196
Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075
WeChat： 15258981196
Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075
Features:
1.Can distinguish the wood, light steel keel, wire under the gypsum board wall.
2.The first multifunctional measuring instrument for laser ranging and wall detection on the market, One is equivalent to two, has
complete functions and is convenient to carry.
4.Color screen display, voice count off, user-friendly interactive interface, easy to operate.
5.The boundary and center of wood can be distinguished
2.The first multifunctional measuring instrument for laser ranging and wall detection on the market, One is equivalent to two, has
complete functions and is convenient to carry.
4.Color screen display, voice count off, user-friendly interactive interface, easy to operate.
5.The boundary and center of wood can be distinguished
Magnetic metal maximum scanning depth | 100mm | ||||||
Non-ferrous metal (copper) maximum scanning depth | 80mm | ||||||
Copper wire (≥4 mm2) maximum scanning depth | 40mm | ||||||
Live wire maximum scanning depth | 50mm | ||||||
Wood maximum scanning depth | 38mm | ||||||
Operating humidity range: | Metal mode 0-85%RH | ||||||
Accuracy of measurement | + / - 5 mm | ||||||
Unit | m | ||||||
Measuring range (no reflector) | 0.05-40 m | ||||||
Measuring time | 0.3 -4 seconds | ||||||
Laser type | Wavelength: 620~670nm, optical power <1mw | ||||||
Self-closing laser | 20 seconds | ||||||
Store the data | 30 sets of data | ||||||
Automatic shutdown time | About 5 minutes | ||||||
The screen | 1.8 inch color screen | ||||||

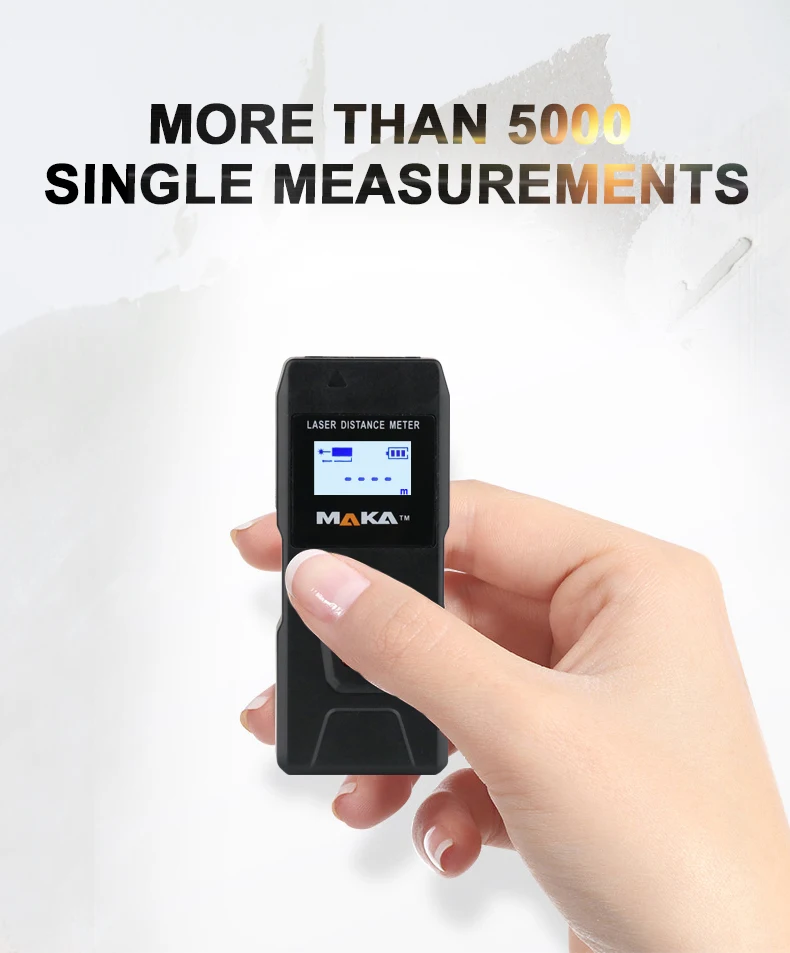

Battery type and life | 600mAH built-in lithium battery, about 5000 times of single measurement | ||||||
Operating temperature range | 0 C°～40 C° | ||||||
Storage temperature range | -20 C°～60 C° | ||||||
Product size | 135*60*25mm | ||||||
Single measurement √
Area measurement √
Area measurement √
Addition and subtraction survey √
Continuous measurement √
Volume measurement √
Volume measurement √
Continuous distance measurement √
metal, cable.
2. This instrument can be used for laser ranging, measuring length, area, volume, addition and subtraction,
Pythagorean measurement, etc.
Pythagorean measurement, etc.
Right view
Left view
Back view

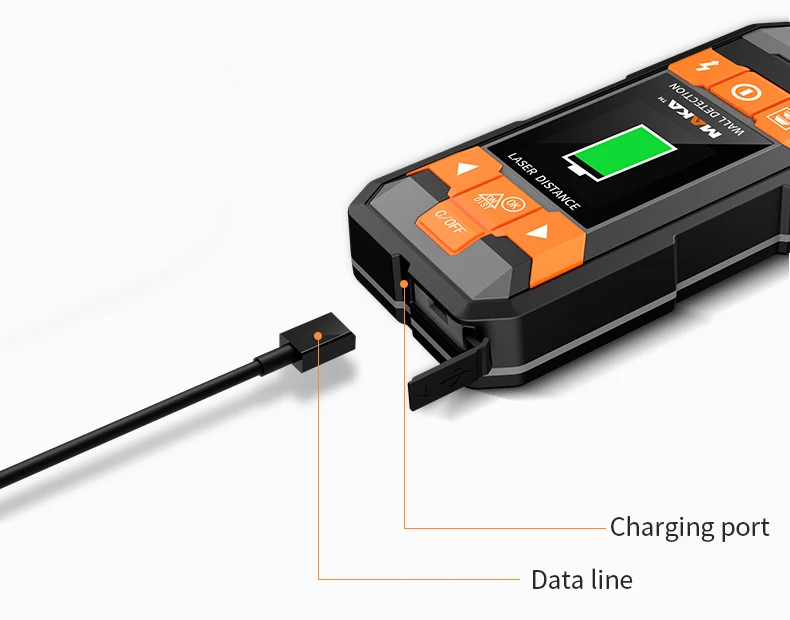

USB charging
You can charge it with a computer or a mobile phone charger.

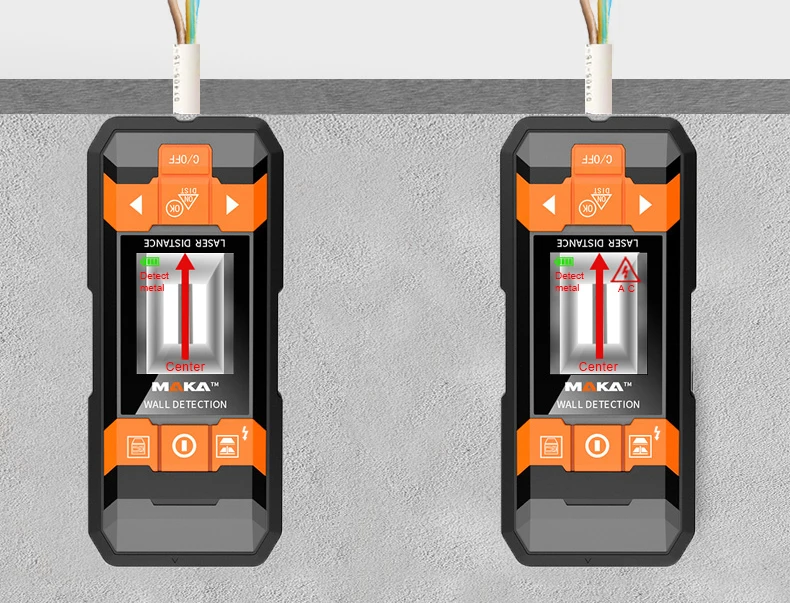

Copper wire detector
Use the metal mode detection copper wire to show the center only, No depth display.AC icon appears when ac signal is received. When the ac signal is weak, the center of the wire tube shown on the screen shall prevail.
The speaker will announce "ac current" and then send out "drip-drip...".
*copper wire must be electrified and copper wire ≥4 mm²
The speaker will announce "ac current" and then send out "drip-drip...".
*copper wire must be electrified and copper wire ≥4 mm²

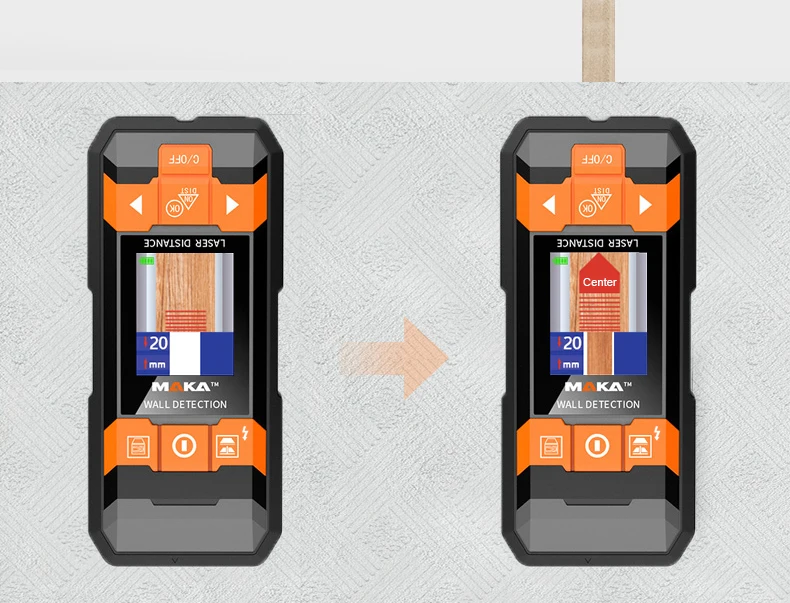

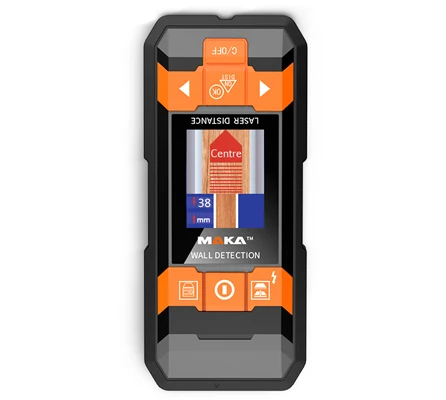

Wood detector
Distinguish the boundary from the center, long press the wood button for 3 seconds to switch to 38mm deep mode.

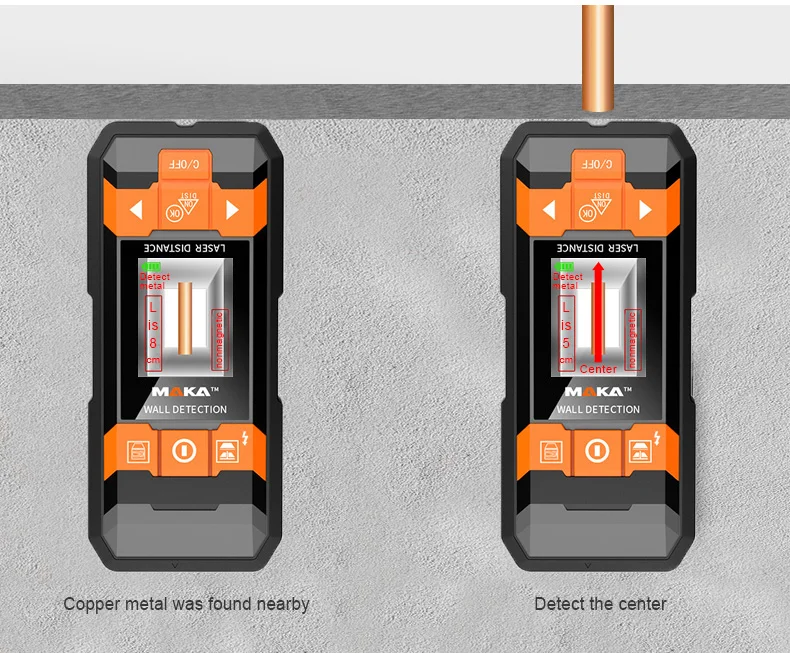

Nonmagnetic metal detector
To obtain the best scanning effect:
• Avoid wearing jewelry such as rings or watches when using detectors.Metals can lead to inaccurate detection.
• Do not touch the detector or scanned surface with the other hand or any other part of the body.
• Always detect slowly to achieve maximum accuracy and sensitivity.

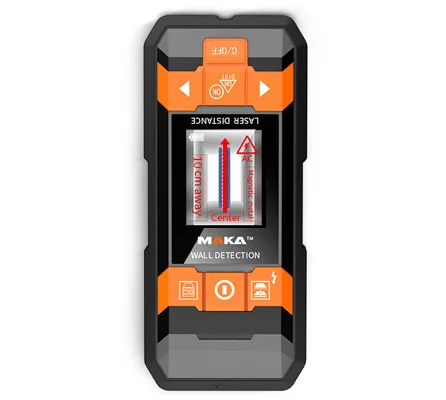

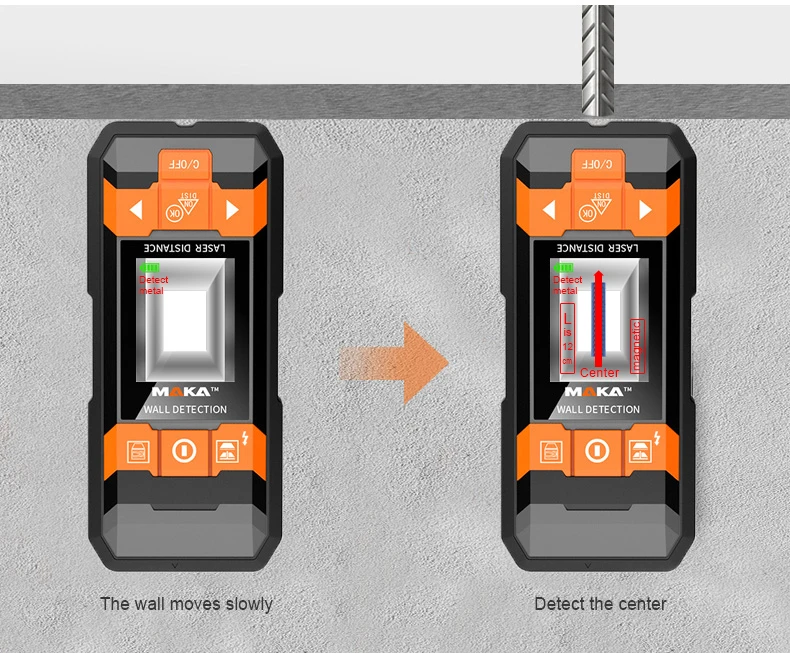

Detection of ferrous metals
Depth value accuracy is best when the measured object is a standard steel bar with a diameter of 18mm.

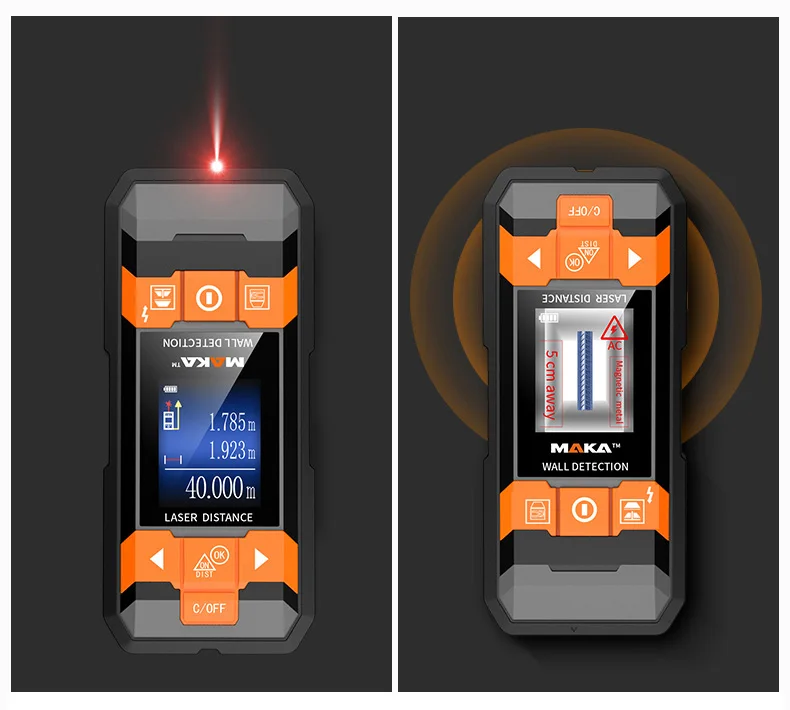

One screen, two displays
Laser ranging function Metal alternating current detection
Contact us
Lizzy Xu
E-mail： mk@makalaser.com
WeChat： 15258981196
Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075
WeChat： 15258981196
Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075
Single measurement
Press "DIST" to start the machine, place the machine, and then press "DIST" to measure.

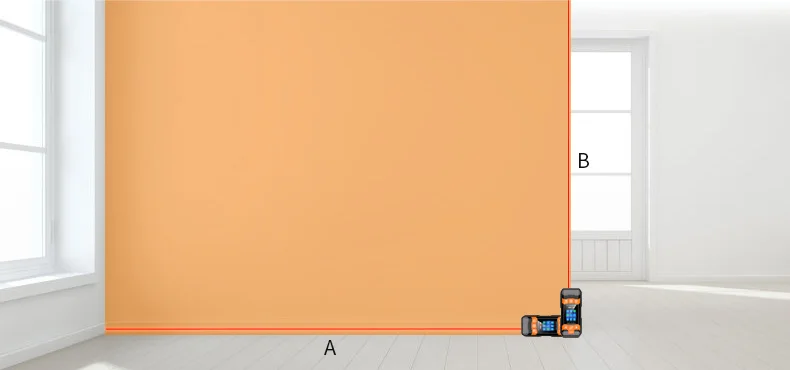

Area measurement
Press "DIST" to start the machine, press the Triangle button to enter the menu and select area measurement.
Company Profile
Jinhua maka technology co., LTD is an experienced professional designer and manufacturer of multi-functional wall detector, infrared thermal imager, laser rangefinder, laser level, humidity meter, endoscope products in the awards of high-tech enterprise and innovative patent demonstration enterprise, and has obtained ISO 9001-2018, BSCI certificates, CE/EMC, EM60825-1:2007, ETL, FCC,C-tick, ROHS, REACH etc.
Adhering to the concept"Quality is the life of the enterprise", our company has built an experienced quality management team, the number of QC is more than 25% of the total employees. There has been a strict quality control chain from incoming material inspection (IQC), process inspection (PQC), outgoing inspection (QA) to reliability test verification (QE) to completely achieve quality control with no blind spots. We set up quick response system to collect products reviews or comments from the market and clients for any improvements and development and have successfully achieved zero customer complaints from our clients these years and been one of the quality suppliers of many famous company around the world.
Our company acts under the concept of "Innovation is the soul of enterprise development", insists on "Innovation-driven development strategy" and yearly invests a great percentage of sales amount in the research and development; There is a gradually increasingly experienced and innovative R&D team. During the passed ten years, we successfully developed a good number of products with good market shares, most of which are patented and have been popular with consumers in their high reviews building us a good name home and abroad.
Adhering to the concept"Quality is the life of the enterprise", our company has built an experienced quality management team, the number of QC is more than 25% of the total employees. There has been a strict quality control chain from incoming material inspection (IQC), process inspection (PQC), outgoing inspection (QA) to reliability test verification (QE) to completely achieve quality control with no blind spots. We set up quick response system to collect products reviews or comments from the market and clients for any improvements and development and have successfully achieved zero customer complaints from our clients these years and been one of the quality suppliers of many famous company around the world.
Our company acts under the concept of "Innovation is the soul of enterprise development", insists on "Innovation-driven development strategy" and yearly invests a great percentage of sales amount in the research and development; There is a gradually increasingly experienced and innovative R&D team. During the passed ten years, we successfully developed a good number of products with good market shares, most of which are patented and have been popular with consumers in their high reviews building us a good name home and abroad.
Certifications
A number of certification
The company's products have obtained ce-EMC,ROHS,EM60825-1:2014,ETL,FCC and other related certifications.
To download the certificate, click on the certificate picture and download it from the company profile.
Exhibition
Our company participates in various exhibitions every year • Germany Cologne international hardware fair
• Las Vegas international hardware fair
• Canton international hardware exhibition
• China International Hardware Fair
• Las Vegas international hardware fair
• Canton international hardware exhibition
• China International Hardware Fair
Package & Transportation
Warm tip: for small orders, the batteries are not included in the delivery.
Contact us
Lizzy Xu
E-mail： mk@makalaser.com
WeChat： 15258981196
Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075
WeChat： 15258981196
Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075
FAQ
Q 1. Are you a manufacturer or a foreign trade company? How about your pricing?
We are an experienced professional designer, manufacturer and exporter of laser meter, distance meter, wall scanner etc for over 10 years with strict quality controls.We are open for a negotiable price for all of our clients. You may send us emails for any of your concerns.
Your concerns are of the most importance to us and takes our first focus.
Q 2. How can I go to your factory?
Our factory is located in Yongkang, Zhejiang,China.About 1.5 hours from Guangzhou by air; 2 hours from Shanghai by highway , and 1.5 hours drive to Yiwu city.Warmly welcome to our factory!
Q3 . What's the annual outputs?
More than 1 million pieces each year.
Q 4. What's your MOQ? Can I buy some samples to test your quality or my market?
Generally MOQ is 100pcs.
Sample order also is accepted. We are pleased that you can test our items' quality and market.
Sample order also is accepted. We are pleased that you can test our items' quality and market.
Q 5. Can you provide OEM&ODM service?
Yes, we do have much experiences with many giant companies in the industry globally. If you need more details, please contact us.
Q 6. Do you have neutral English labels, manuals and cartons?
Yes, we do.
Q 7. Do you have quality control?
Yes, all items shall be 100% inspected strictly before delivery. Yearly there are several times of annual audits from the third parties and our clients.
Q 8. How about warranty?
We offer 1 year warranty.
Q 9. Did you attend Exhibitions?
Yes. Every year we attend Spring Canton fair during April 15th-19th and Autumn Canton fair during Oct 15th-19th. And we always go to Cologne, Vegas Show, MITEX Show etc. Welcome your visit.
Q10. Did you export goods to EU/South and North America/USA/Asia ect ?
Yes. If you need more details, please contact us for our company presentation.
