Product Description

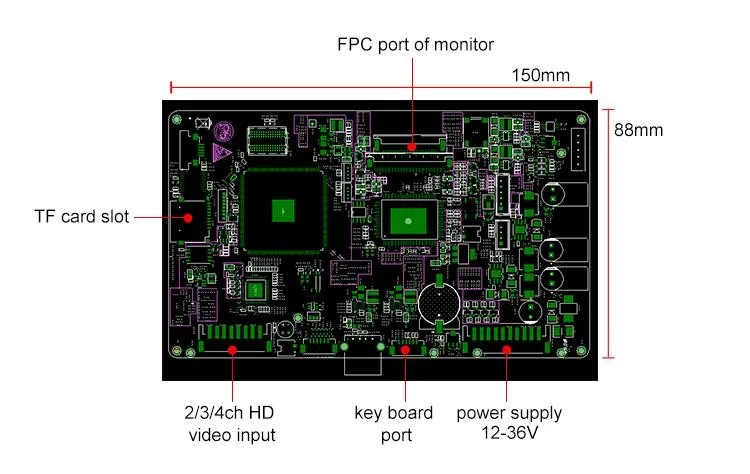

AHD 1080P Board System

Solution	Hi 3520 V300
Video Compression	H.264
Video Input	4ch AHD 1080P / 960P / 720P input
		4ch CVBS input
		compatible with CVBS and AHD signals
		compatible with PAL and NTSC systems
Video Output	40pin\\50pin(TTL\\LVDS )interface , 1024 * 600 resolution
Output Resolution	19201080, 1280720, 1024768, 800600
Recording Resolution	1920*1080
Storage	2G-512G TF card

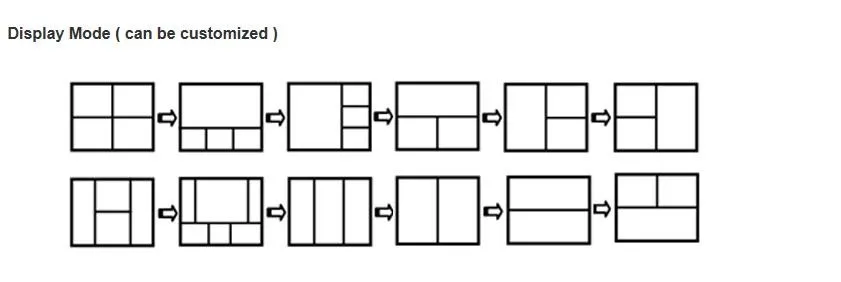

Display Mode	12 display modes , support full screen mode of each channel
Boot Screen	H, Quad, 3 split mode, dual mode , power –off memory are optional
Record Mode	H, Quad, 3 split mode, Dual mode(default mode : QAUD);
Recording Quality	Ultra HD, HD, Standard, Ordinary are adjustable
Video Mode	automatic record mode, delay-off 24h record mode
Video Playback	online playback or playback on computer ( Use USB to back the files or use professional player )
Power Management	Adaptive wide voltage input, reverse short circuit / low voltage / high voltage protection , etc.
Working Voltage	DC11.6V-36V
Power Consumption	<7W( doesn't include 4pcs cameras )
Working Temperature	-30°C~+70°C
Operation Mode	IR remote controller , auto trigger

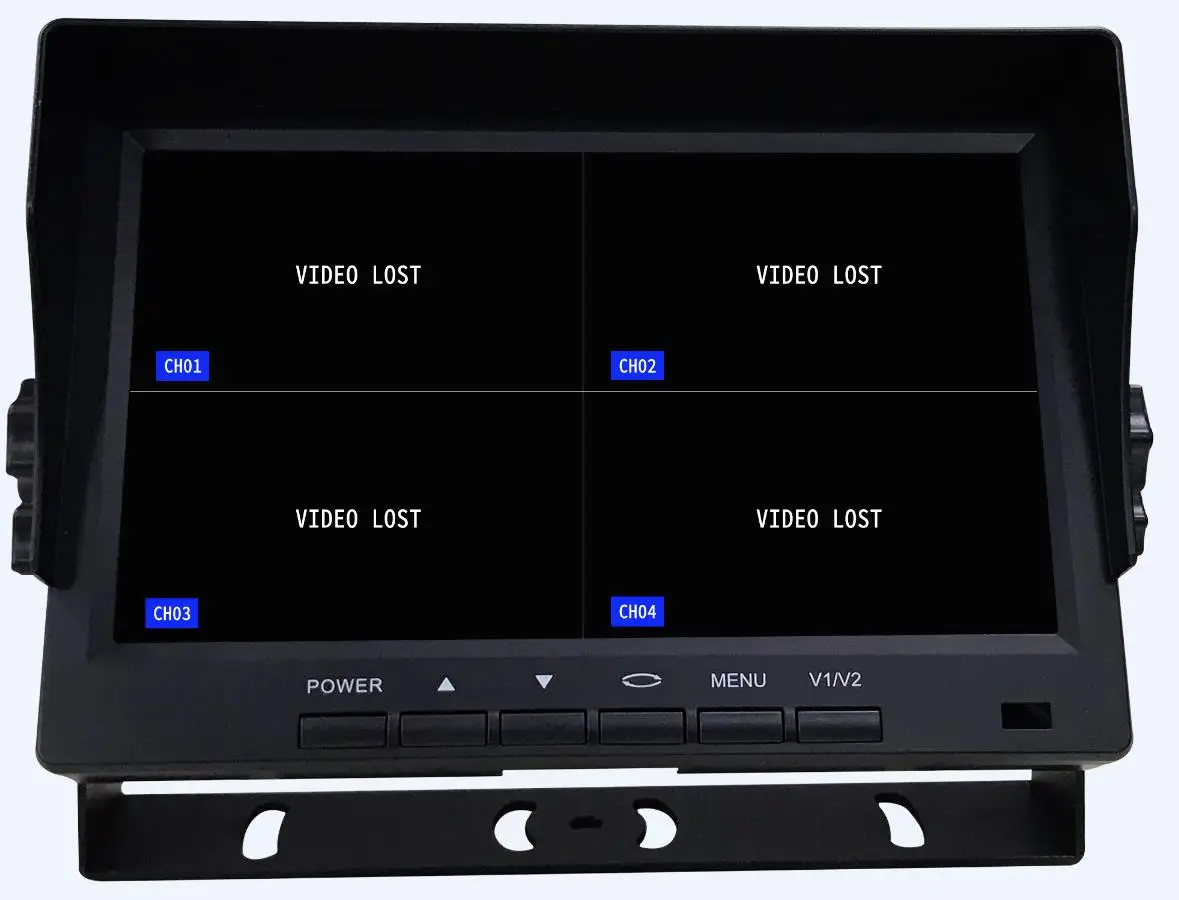

Car Monitor Specification

Screen Size	7 inch
Resolution	1024 ( RGB ) x 600
Image Area	154.21(H)x85.92(V)
Viewing Angle	IPS
Brightness	220(TYP.)
Interface	LVDS
Backlight	White light LED
Working Temperature	-10℃-+60℃
Storage Temperature	- 20℃- +70 ℃

Detailed Functions

1.Full real-time display , videos from 4pcs cameras can be displayed on a screen

2.Support mixed input of AHD1080P, AHD 720P, 960H , CVBS

3.Compatible with NTSC/PAL system

4.High quality resolution 1920x1080P ( include video input, recording resolution )

5.4ch cameras can record and store videos simultaneously

6.Support video display mode modification , such as H , QUAD, 3 split mode , dual split mode , etc.

7.Support 4chs synchronous online video playback, pause, fast forward, fast back and other operations are available

8.When the storage capacity is full, videos will be overwritten automatically

9.Support video files locking function, and locked files won't be overwritten and deleted

10.As for each video source , brightness, contrast, saturation, color and sharpness can be adjusted independently

11.Independent adjustment of left and right mirror, up and down / 90 degree / 270 degree rotation for each channel .

12.Support open or close the overlay display information, such as time, date, channel character, etc.

13.Support IR remote controller operation

14.With automatic trigger function, reversing light , high beam, brake light , etc. correspond to some operations.

15.Real-time video storage technology, even if the power is off suddenly, the video files won't be lost

16.Independent setting and adjustment of auxiliary line , when encounters barriers, the driver can adjust the auxiliary line based on the vehicle width, to make a decision whether the car can pass the barriers successfully .

17.As for video output, zoom display of top, bottom, left and right margins can be adjusted , to ensure that images can be displayed totally.

18.Power-off memory function, if the power is off suddenly, the last setting screen will be displayed when the power restores.
