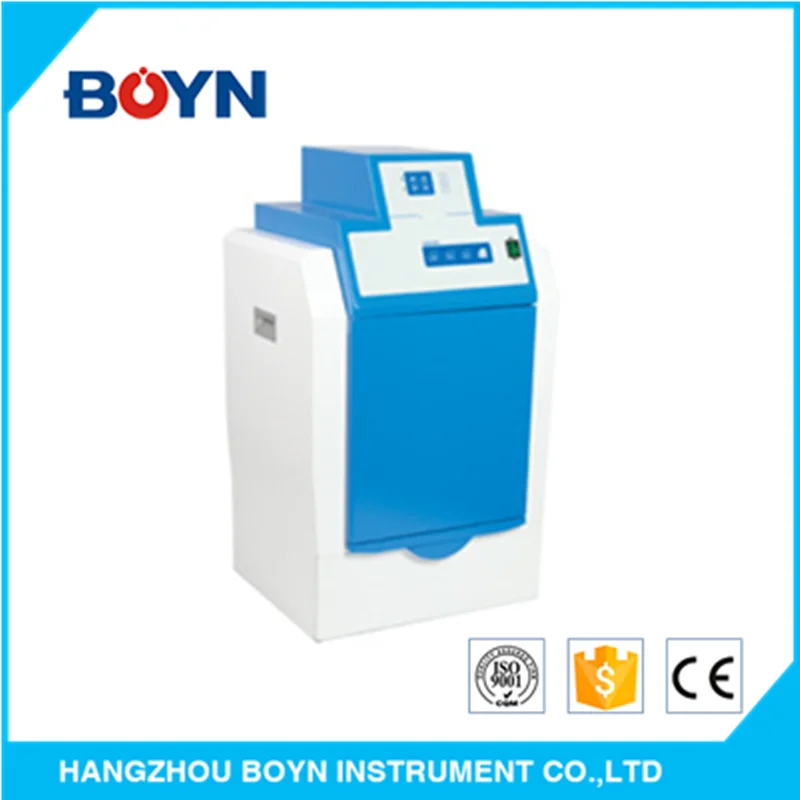

JY04S-3C High-resolution gel documentation Imaging system

JY04S-3C

Characteristic feature

• CCD with lower lux and high-resolution, easy to get dim stripes and real-time browse, whole-screen display and simple to operate:

• Six time zoom lens and simple to enlarge and shrink gel photos.

• The center position indicator, which can ensure the gel is placed in the center position.

• Intelligent control box:

• You can realize the control of the zoom, focus, aperture, UV light and white light through panel key.

• Safety function for your eyes that automatically shuts down the UV light when the door is opened and reactivates the UV light when the door is shut.

• Timed shut down: The UV light protection system automatically shuts down the lights after 15 minutes to maximize the life of lamp and vitreous.

• The zoom lens is protected with RS232 interface.

• Drawer-style gel platform, convenient to observe, operate, and cutting gel.

• Transferring plate changes UV-light into white-light.

• Using a multi-layer gel-filter effectively filters background noise.

• You can realize the control of the zoom, focus, aperture, UV light and white light through computer mouse.

• Regular and reliable system convenient to maintain and exchange parts.

Specifications

Model	JY04S-3C	JY04S-3E
Effective pixels	1280×1024	2560×1920
Pixel density	10 bit	10 bit
Pixel size	5.4×5.4(um)	5.4×5.4(um)
Resolution	1.4 megapixels	5.0 megapixels
Signal to noise ratio	≥56db	≥56db
Sensitivity	Can detect the double chain DNA of EB staining below 20pg	Can detect the double chain DNA of EB staining below 20pg
Camera	low illumination and high resolution digital CCD	low illumination and high resolution digital CCD
Zoom lens	F=1:1.2,2/3 inch 6 times zoom lens	F=1:1.2,2/3 inch 6 times zoom lens
Filter	590(nm)	590(nm)
UV light transmission area(W×L)	250×200(mm)	250×200(mm)
Visible light transmittance area(W×L)	250×210(mm)	250×210(mm)
Transmission UV wavelength	302(nm)	302(nm)
Reflectance UV wavelength	254,365(nm)	254,365(nm)
Transmission UV lamp power	302nm(8W)	302nm(8W)
Reflectance UV lamp power	254nm(11W),365nm(11W)	254nm(11W),365nm(11W)
Volume(L×W×H)	470×405×820(mm)	470×405×820(mm)
Weight	29.0kg	29.0kg
