JY-SP серии Горизонтального электрофореза геля

Описание и отзывы

Характеристики

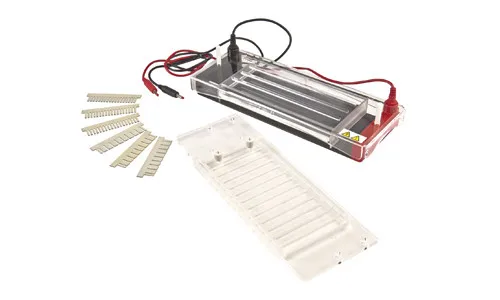

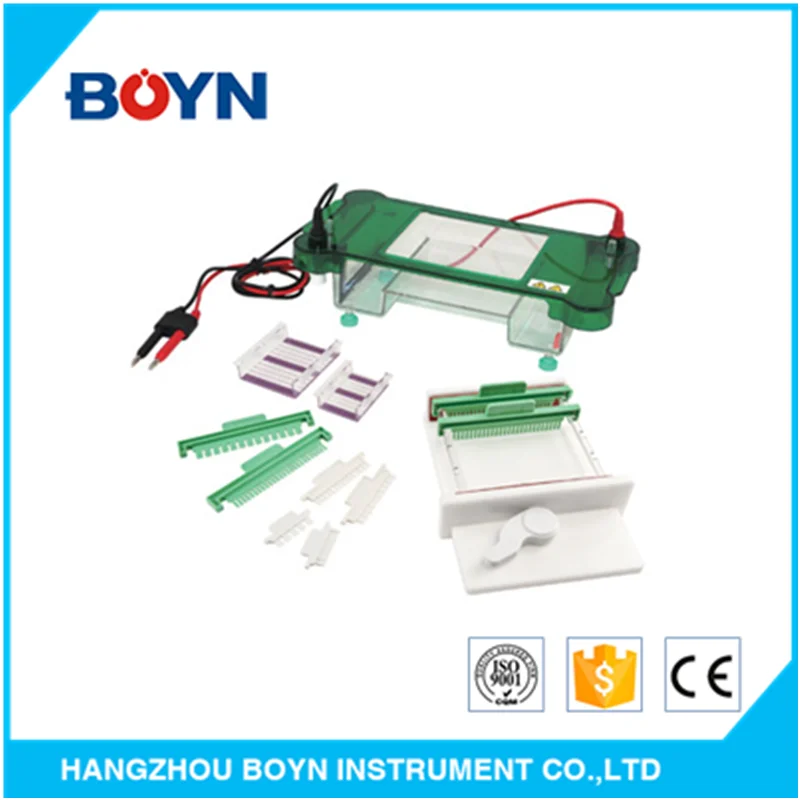

JY-SP Series Horizontal gel electrophoresis cell

JY-SP Series

Characteristic features

• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.

• Removable electrode enables maintain and replacement easy and quick.

• Adding sample more quick and suitable for the multi-channel pipettes.

• With a special gel casting, preventing the gel leakage, operation is simple and convenient.

• The transparent top lid effectively prevents liquid in the cell from volatilizing and avoids electricity leakage.

• Auto-switch-off when the lid is removed.

Specifications

Model	JY-SPAT	JY-SPDT	JY-SPFT	JY-SPGT	JY-SPHT
Gel Size(WxL)	48x75mm	140x140mm; 140x70mm; 70x70mm	130x130mm; 78x100mm; 48x75mm	200x200mm; 200x150mm; 200x100mm	245x250mm
Sample volume	3, 5, 9	1, 2, 3, 6, 14, 8,17, 13, 29	3, 5, 10, 15, 13, 26	17, 22, 36, 44	19~364
Buffer Volume	~150ml	~900ml	~600ml	~1800ml	~2000ml
Dimension(LxWxH)	250x90x50(mm)	390x187x63(mm)	305x152x80(mm)	397x230x93(mm)	487x300x93(mm)
Net weight:	0.4(kg)	2.0(kg)	1.7(kg)	3.3(kg)	3.8(kg)



Characteristic feature

• Fast electrophoresis running speed, the whole process can be finished within 15mins

• 96 sample detection in one time;

• Adding the sample quickly, suitable for themulti-channel pipettes;

• Auto-switch-off when the lid is removed.

Specifications

Model:JY-SP3

Technical specifications

Bridge Size (W×L):66×250mm;  82×250mm.

Buffer Volume: ~560ml.

Dimension(L×W×H):318×175×65(mm)

Net weight: 1.0(kg)
