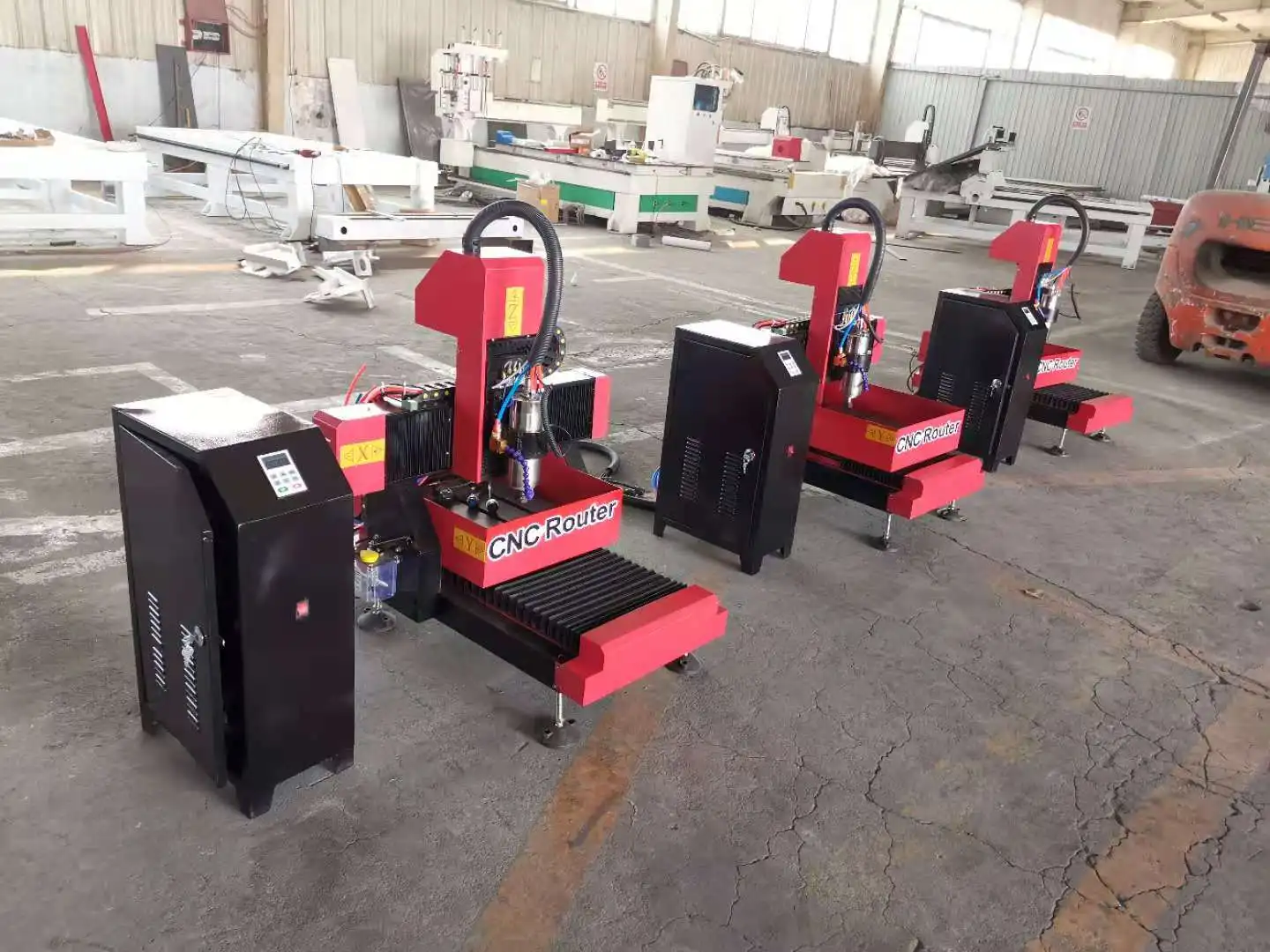

Mini CNC Router/ CNC Router metal Mini CNC Milling Machine


_20201114135303


Machine Features:
1) Small body, takes just little space
2) Popular in arts&crafts industry
3) Germany TBI ball screw for X Y Z axis
4) Cheap price
Applicable Materials:
Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet,


PCB Aluminum ,brass,steel,metal
Wide range of application:
Such as seal, packing, scutcheon and pane making, decorating, art and craft,
architecture model, souvenir, badge, electric circuitry and carpentry fiel

























































































ModelSW-6090SW-3025SW-3030SW-3040SW-4040SW-6060
Working area600*900mm300*250mm300*300mm300*400mm400*400mm600*600mm
Working modeGantry movingTable movingTable movingTable movingTable movingTable moving
Guide railround rail or Taiwan HIWIN linear square guide raill
TransmissionTaiwan TBI rolling ball screw
Drive systemStepper or servo motors and drivers
Spindle0.8 or 1.5KW water or air cooled spindle
Spindle rotating speed6000-24000rpm
Reposition accuracy0.03mm
Max. travlling speed20m/min
Max. working speed15m/min
Power supplyAC220V 50HZ
Machine size1500*1100*600mm400*350*600mm400*400*600mm400*500*600mm600*600*600mm800*800*600mm
Machine weight200kg70kg80kg90kg120kg180kg

2

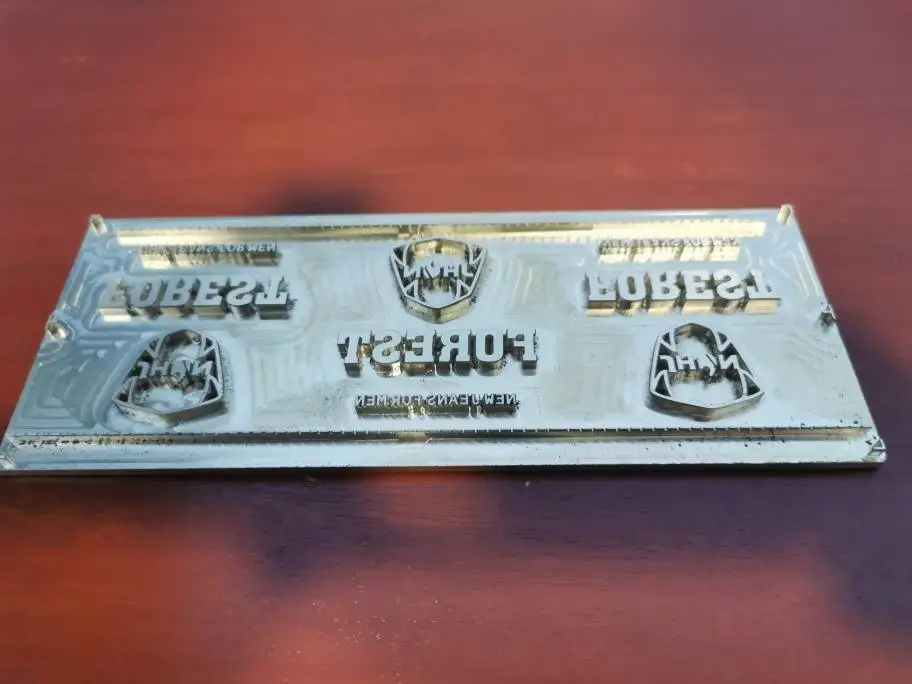

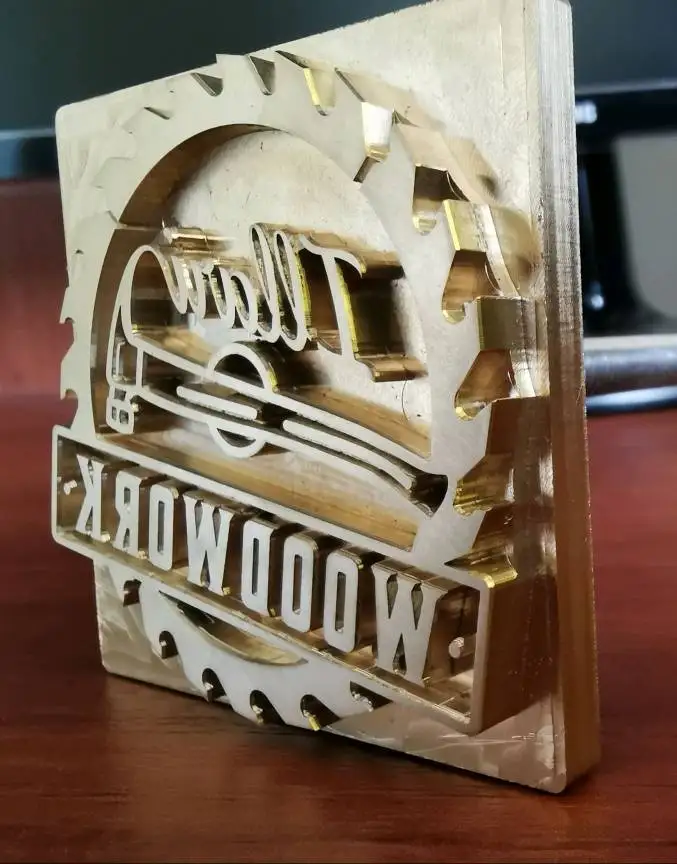

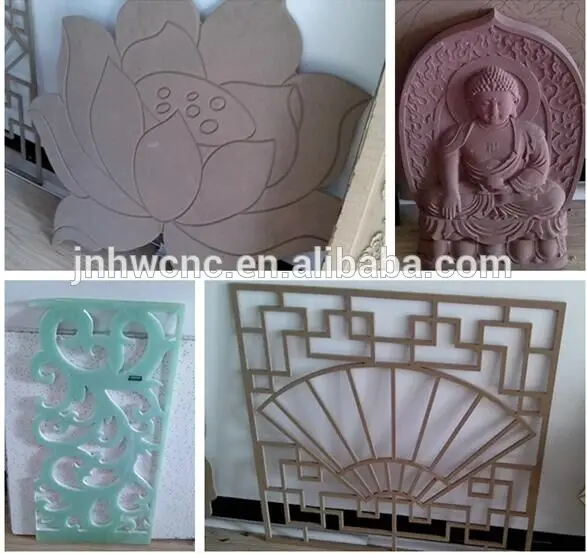

sample picture.






Company Information


JiNan Huawei CNC machinery Co.,Ltd specilized in raising the R&D capabilities of cnc & laser machine and engages to be the leading specialized company in the industry
Established in 2002, we have a professional team of unity, skill and strong sense of responsibility, having over 10 years experience, we create a set of precise and elegant engraving skills with modern high-tech means and advanced digital technology
Most components of cnc and laser machines can be produced and processed by ourseleves, which great guarantee on production efficiency, with the expanding scale, we have purchased several forkifts and large equipment to improve our processing technology to a higher leavel

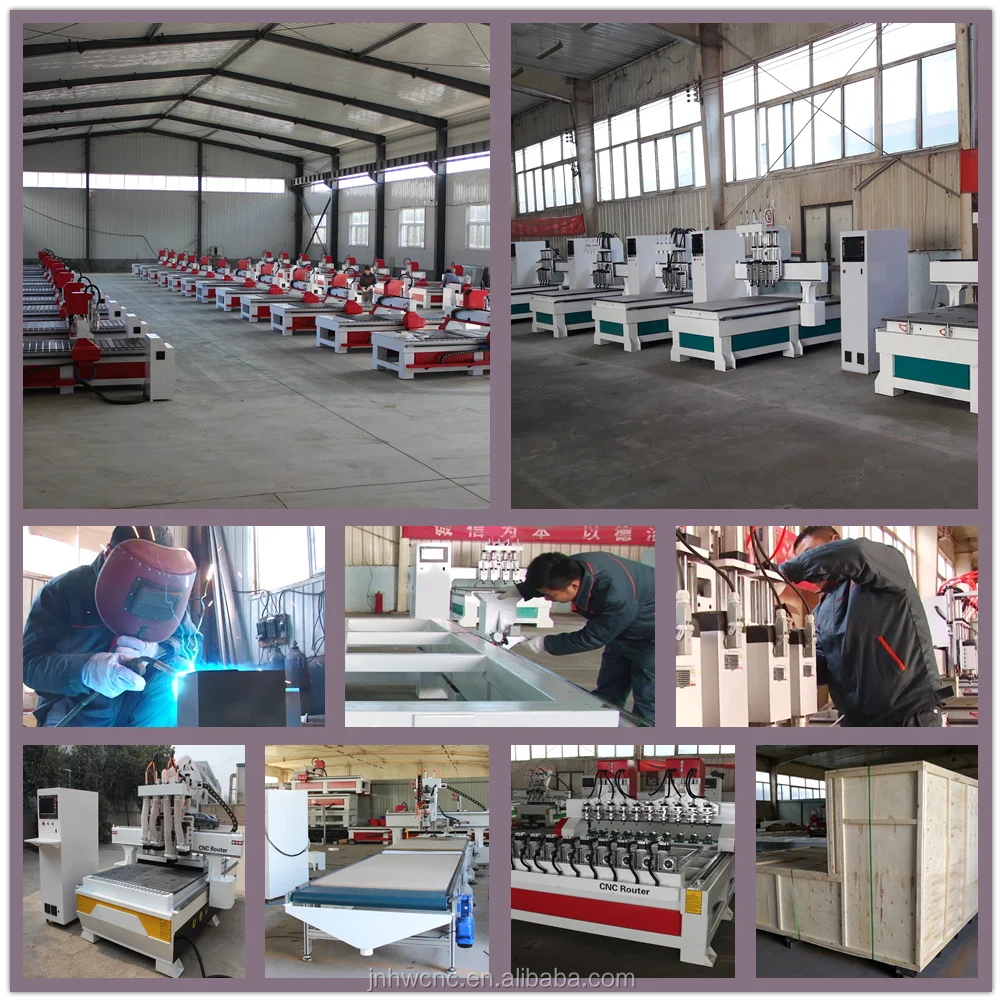

factory 2.png





Our Services


A. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

B. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc





C. Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare
parts at cost price. You will also get technical support and service all the lifetime.





FAQ


1) This is the first time I use this kind of machine, is it easy to operate?
Together with our machine, there are english manual or guide video that show how to operate the machine.
If you have any question, we can talk by phone, email or skype.



2) If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem.
Free after sales service for lifetime, please feel free to contact us if your machine have any problem. we will give you 24 X 7 support by phone, email and skype.



3) This model is not suitable for me, do you have more models available?
Yes, we can supply many models. Replacement of some part, we can produce wood CNC engraving machine, marble CNC engraving machine, and etc. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
