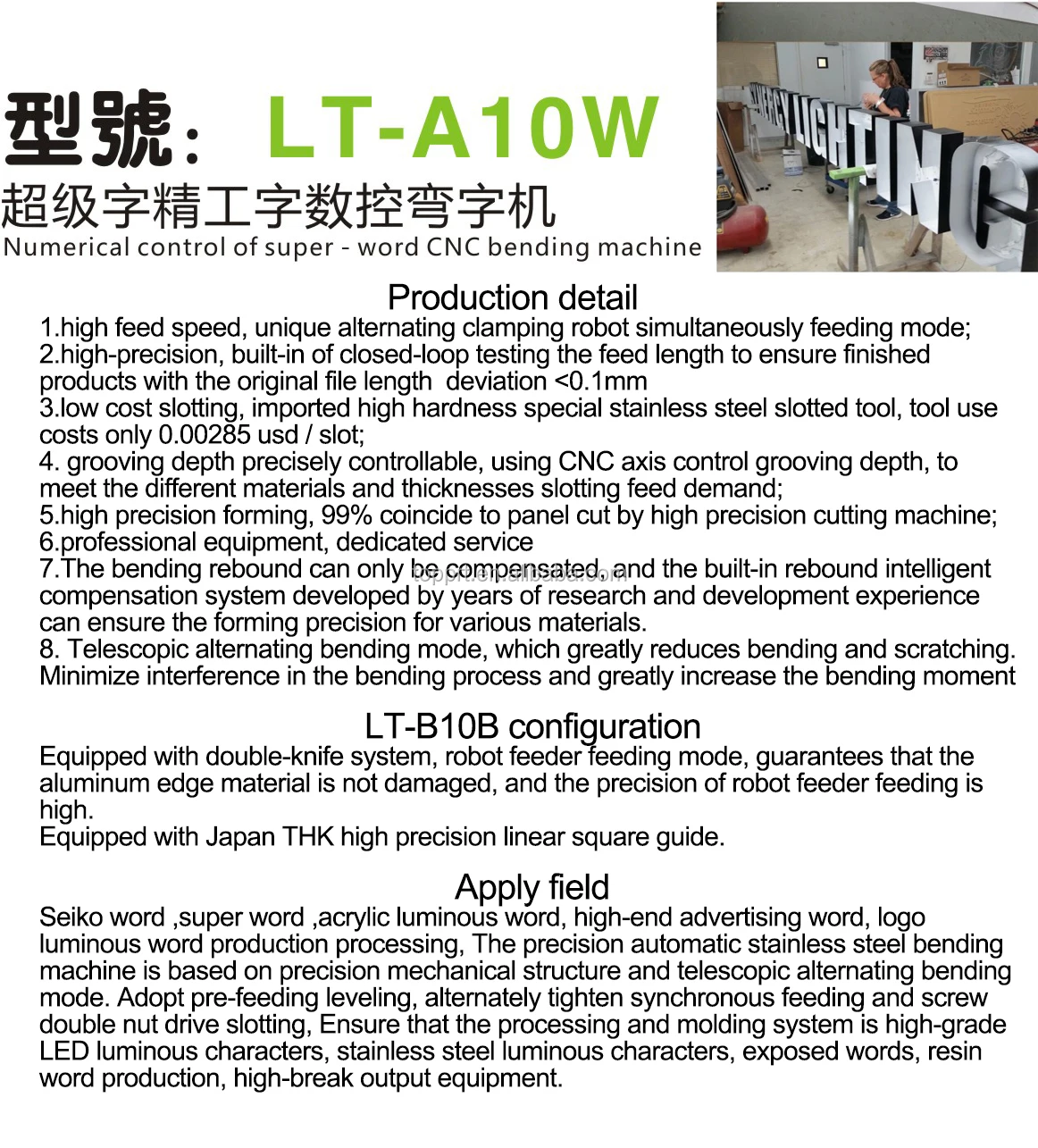

AUTOMATIC CNC CHANNEL LETTER BENDING MACHINE



1.   high feed speed, unique alternating clamping robot simultaneously feeding mode;

2.high-precision, built-in of closed-loop testing the feed length to ensure finished

products with the original file length  deviation <0.1mm

3.low cost slotting, imported high hardness special stainless steel slotted tool, tool use

costs only 0.00285 usd / slot;

4. grooving depth precisely controllable, using CNC axis control grooving depth, to meet the different materials and thicknesses slotting feed demand;

5.high precision forming, 99% coincide to panel cut by high precision cutting machine;

6.professional equipment, dedicated service

7.The bending rebound can only be compensated, and the built-in rebound intelligent compensation system developed by years of research and development experience can ensure the forming precision for various materials.

8. Telescopic alternating bending mode, which greatly reduces bending and scratching. Minimize interference in the bending process and greatly increase the bending moment



Detailed description
model		LT-H10
Control system		Self-developed bending system
Processed maerial		4shaft
Operating		Windows
bending		Fully automatic bending slot
Input compressed air		0.6-1.0KG/CM2
Working voltage		AC220/50HZ
Power		Largest2200W
Graphical format		PLT.BMP.DXF.AI.CDR
material width		0-100mm
Slitting rolling		Clamping alternate mode
Drive system		Digital DC servo system
