Супер сентябрь горячая Распродажа 60000 об/мин PCB сверление металла фрезерный Шпиндельный двигатель 1.8квт
- Категории: Machine Tools Accessory >>>
- Поставщик: Guangdong,Xingtuo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Please Attention
OUR COMPANY OFFER YOU:
1.FACTORY DIRECT PRICE.
2.NICE QUALITY.
3.QUICK SHIPPING WITHIN 15 DAYS.
4.NO MOQ, 1PC OK. SMALL ORDER WELCOME.
5.ONLINE PAYMENT.
6.WE OFFER OEM SERVICE.
7.AFTER SALES SERVICES 24/7
Customer comments
OUR COMPANY OFFER YOU:
1.FACTORY DIRECT PRICE.
2.NICE QUALITY.
3.QUICK SHIPPING WITHIN 15 DAYS.
4.NO MOQ, 1PC OK. SMALL ORDER WELCOME.
5.ONLINE PAYMENT.
6.WE OFFER OEM SERVICE.
7.AFTER SALES SERVICES 24/7
Customer comments
Motor power | KW | 1.8 |
Rate voltage | V/AC | 200（3~） |
Max speed | Rpm | 60000 |
Max current | A | 6.5 |
Max frequency | Hz | 1000 |
Torque | N·M | 0.28 |
Specification | ||||||||||
Cone at the end of the shaft pulsates | mm | ≤0.001 | Tooling releasing air pressure | Kgf/cm² | 5.6-6.0 | |||||
Tooling change method | ─ | ATC | Air cutain presssure at front end | Kgf/cm² | ≈2.0 | |||||
Tooling pulling force | N | ≥1200 | Tooling back air pressure | Kgf/cm² | ─ | |||||
Tooling connection | ─ | φ3-φ6 Collet | Cooling | ─ | Water Cooling | |||||
Encoder | ─ | NO | coolant pressure | Kgf/cm² | ≥2.5 | |||||
Approach switch | ─ | NO | Bearing lubrication method | ─ | Grease | |||||
Balance level | ─ | G1 | Install method | ─ | Clamp | |||||
Vibration Value | mm/s | ≤0.8 | Weight | Kg | 3.97 | |||||
- Advance/Features：
· Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
Applicable to denture machine, zirconia, ceramics, titanium alloy high precision drilling, milling, grinding and other composite processing.

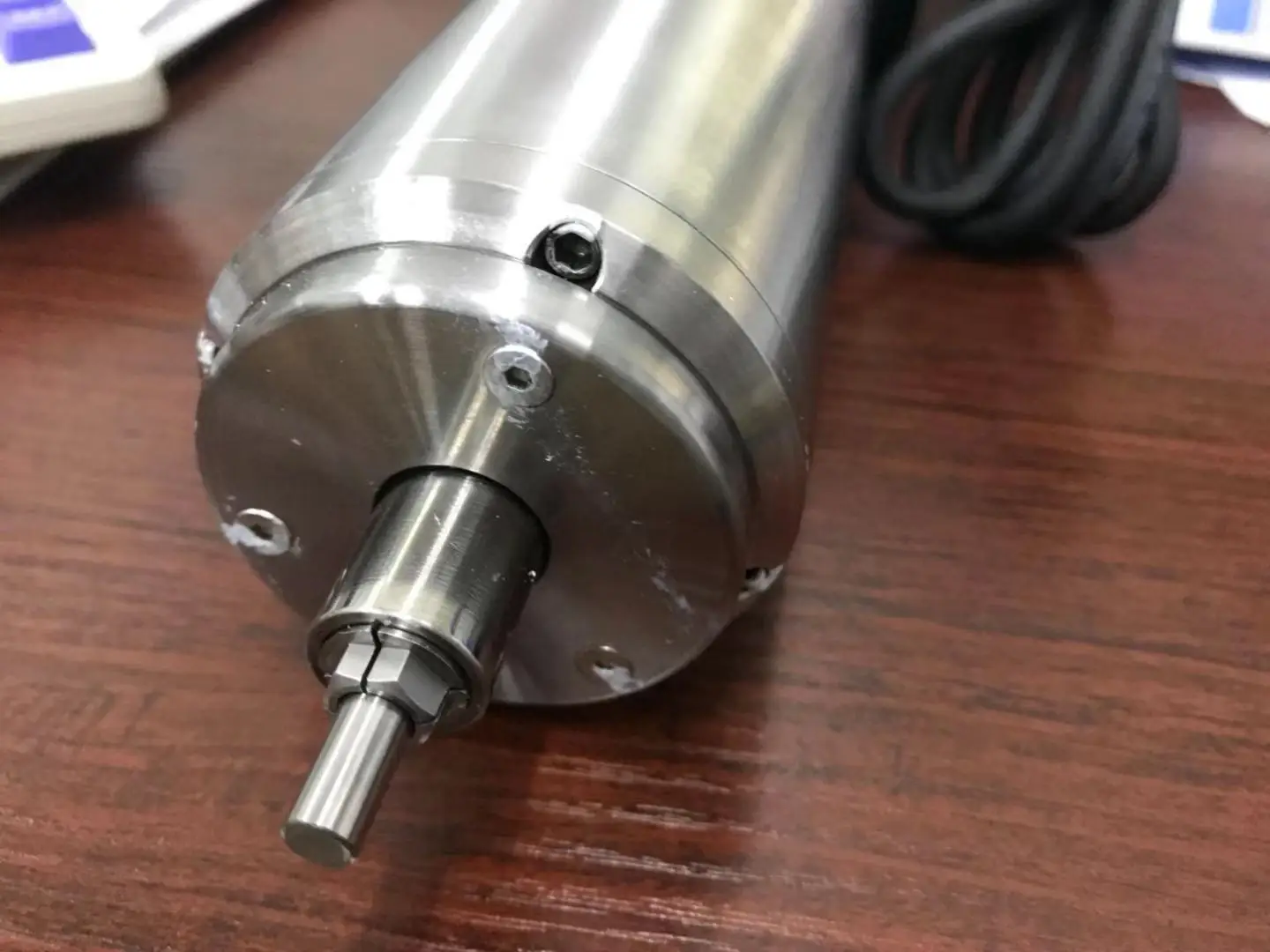

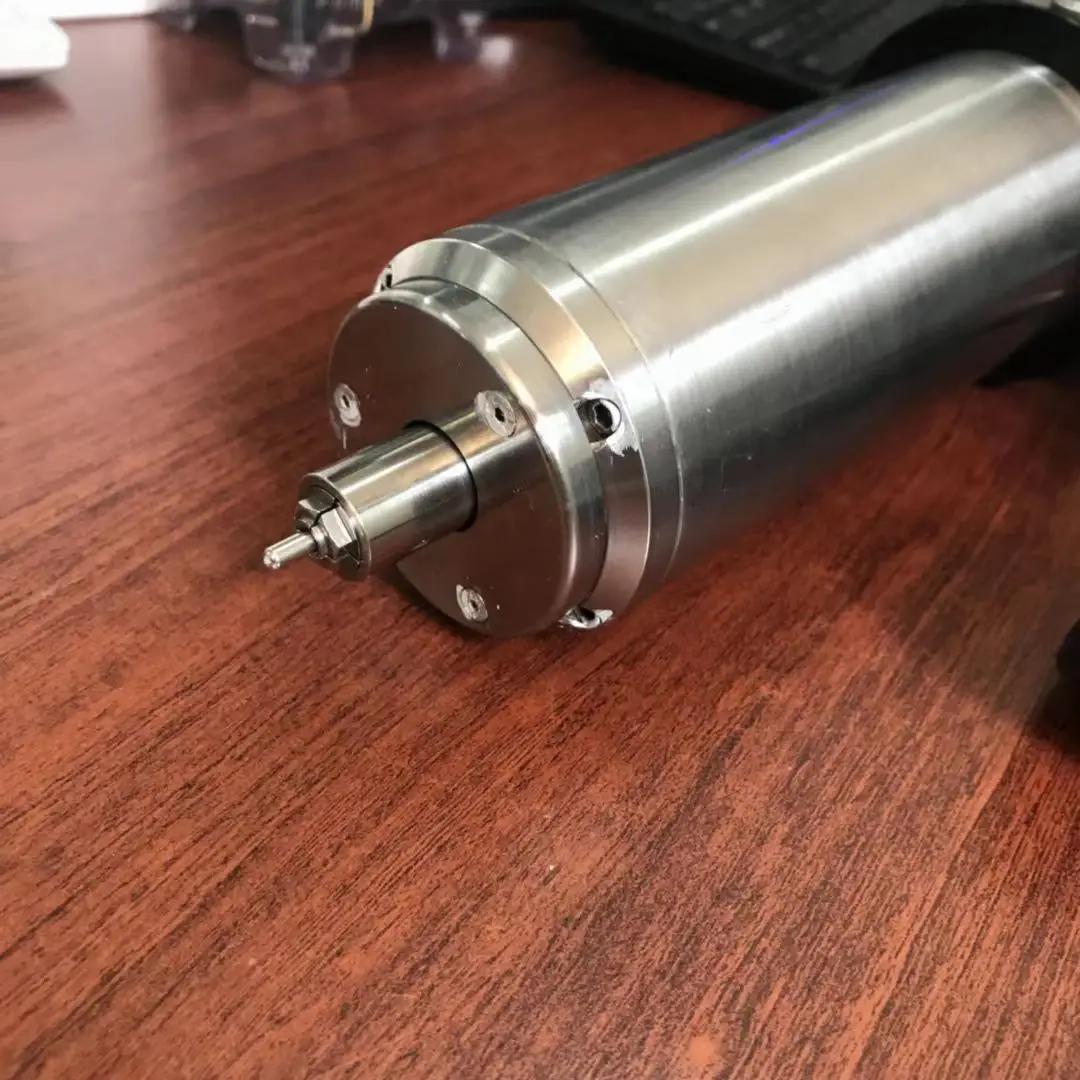

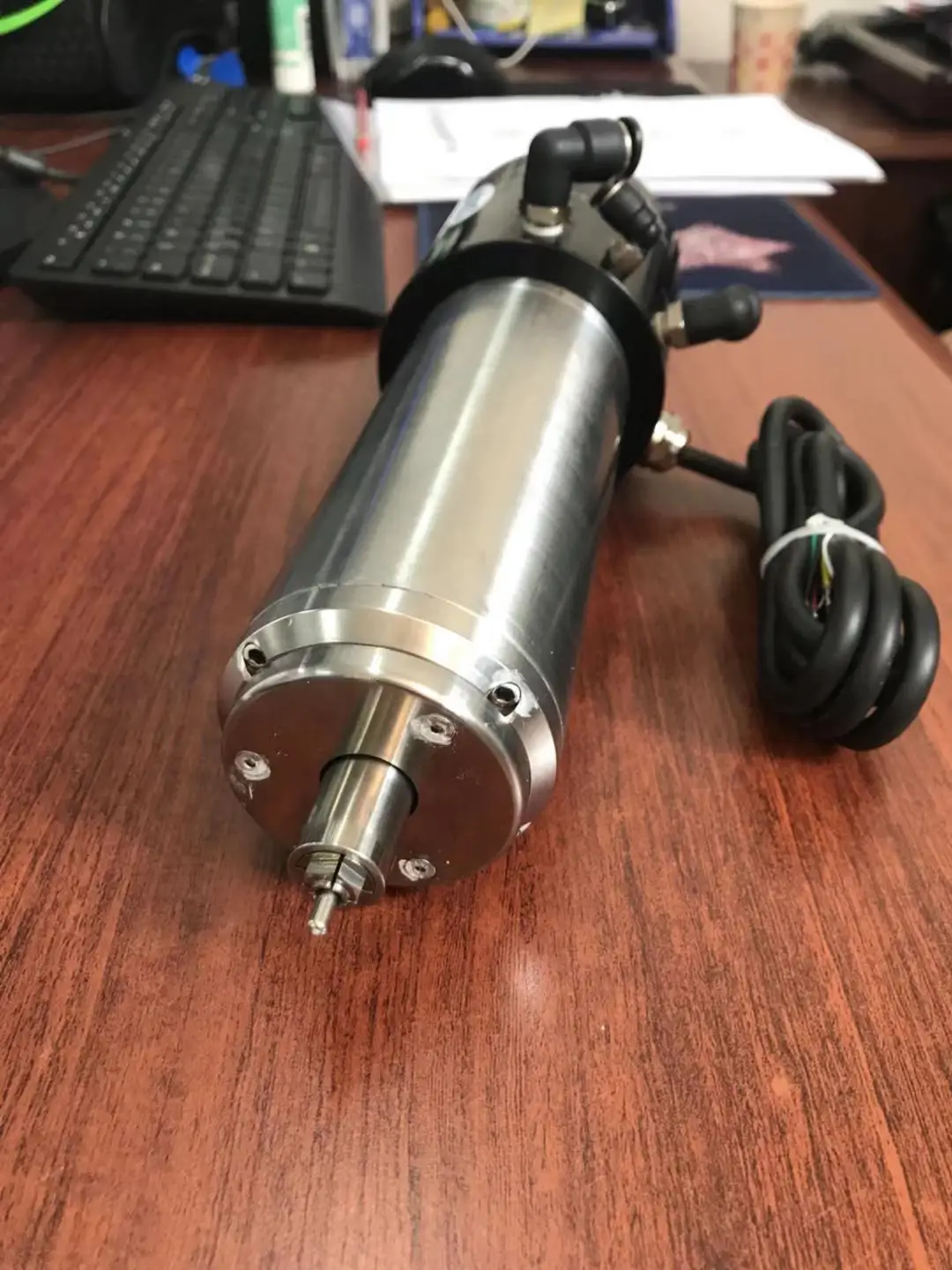

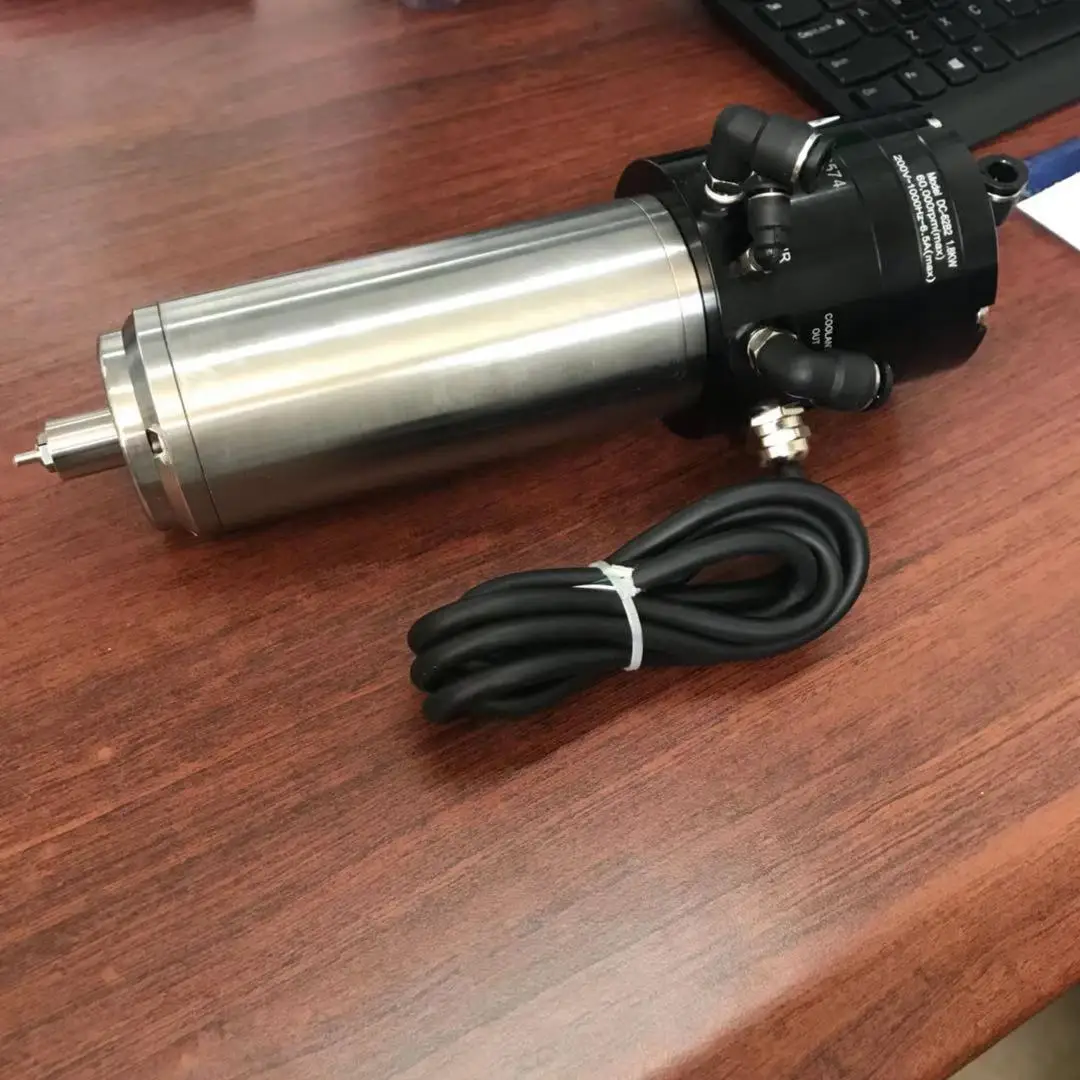

Detailed Images
