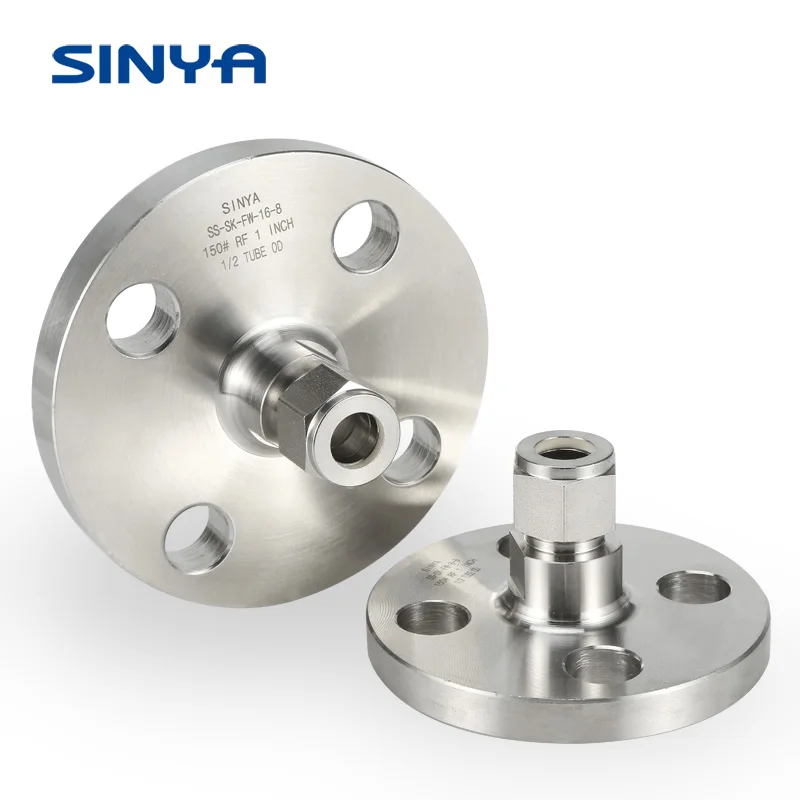

Прибор Flang адаптер китайского производства Swagelok фитинги 316L нержавеющая сталь Компрессионный фитинг двойной
- Категории: Pipe Fittings >>>
- Поставщик: Yangzhong,Xinya,Automatic,Control,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

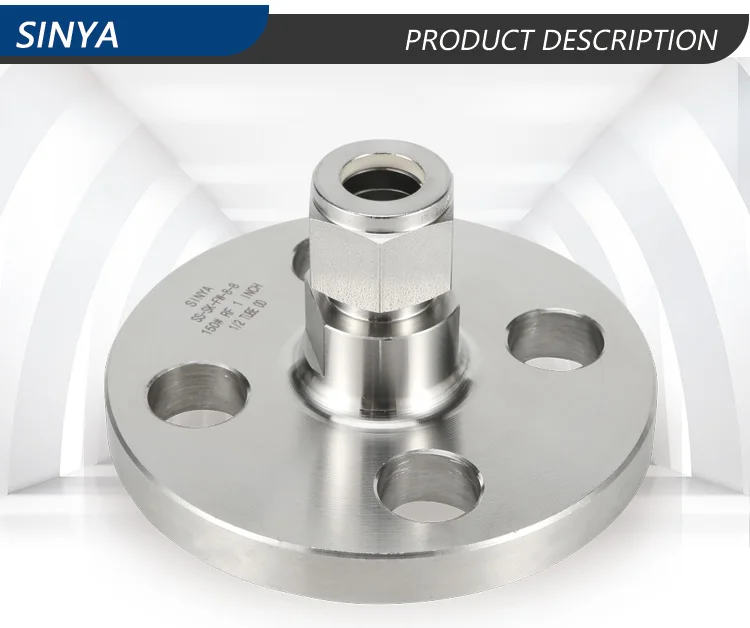

Product Description
1.Available in size: 1/16" to 1", and 2mm to 25mm. | ||||||
2.Working temperature:-325℉~800℉ (-198℃~426℃). | ||||||
3.Material grades: SS 304, SS 316, Brass, Special Alloys. | ||||||
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc. | ||||||
5.Zero leakage even under tough working conditions. | ||||||
6.High quality silver plated threads on nuts to ensure no galling on the body threads. | ||||||
7.Simple to operate and save time and cost because of the usage of elastic seal. | ||||||
8.Available in wide variety of configurations. | ||||||
9.It can be reused. | ||||||

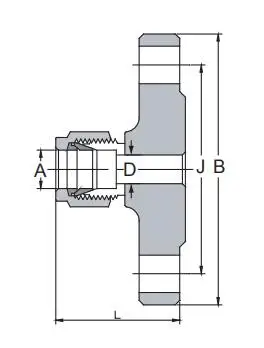

-SK-FW Flange Adapter(DIN Flange) | ||||||||||
Order information | A | DN | PN | L | ||||||
(mm) | (in) | (in) | (mm) | |||||||
-SK-FW-6mm-16 | 6 | 1 | 4.0 | 1.87 | 47.5 | |||||
-SK-FW-12mm-8 | 12 | 1/2 | 4.0 | 1.91 | 48.5 | |||||
-SK-FW-12mm-16 | 12 | 1 | 4.0 | 1.99 | 50.5 | |||||
-SK-FW-12mm-32 | 12 | 2 | 4.0 | 2.18 | 55.3 | |||||
-SK-FW-18mm-8 | 18 | 1/2 | 4.0 | 2.04 | 51.8 | |||||
-SK-FW-18mm-16 | 18 | 1 | 4.0 | 2.12 | 53.8 | |||||
-SK-FW-25mm-16 | 25 | 1 | 4.0 | 2.52 | 64.0 | |||||
Order information | B | D | J | ||||||
(in) | (mm) | (in) | (mm) | (in) | (mm) | ||||
-SK-FW-6mm-16 | 4.53 | 115 | 0.19 | 4.8 | 3.35 | 85.0 | |||
-SK-FW-12mm-8 | 3.74 | 95 | 0.37 | 9.5 | 2.56 | 65.0 | |||
-SK-FW-12mm-16 | 4.53 | 115 | 0.37 | 9.5 | 3.35 | 85.0 | |||
-SK-FW-12mm-32 | 6.50 | 165 | 0.37 | 9.5 | 4.92 | 125.0 | |||
-SK-FW-18mm-8 | 3.74 | 95 | 0.06 | 1.5 1 | 2.56 | 65.0 | |||
-SK-FW-18mm-16 | 4.53 | 115 | 0.06 | 1.51 | 3.35 | 85.0 | |||
-SK-FW-25mm-16 | 4.53 | 115 | 0.86 | 21.8 | 3.35 | 85.0 | |||
-SK-FW Flange Connector(JISFlange) | ||||||||||
Order information | A | DN | PN | L | ||||||
(in) | (mm) | (in) | (mm) | |||||||
-SK-FW-4-15mm | 1/4 | 15 | 10K | 1.66 | 42.16 | |||||
-SK-FW-6-15mm | 3/8 | 15 | 10K | 1.72 | 43.69 | |||||
-SK-FW-8-15mm | 1/2 | 15 | 10K | 1.83 | 46.48 | |||||
-SK-FW-12-15mm | 3/4 | 15 | 10K | 1.91 | 48.51 | |||||
-SK-FW-8-25mm | 1/2 | 25 | 10K | 2.40 | 60.96 | |||||
Order information | B | D | J | ||||||
(in) | (mm) | (in) | (mm) | (in) | (mm) | ||||
-SK-FW-4-15mm | 3.74 | 95.00 | 0.19 | 4.83 | 2.76 | 70.10 | |||
-SK-FW-6-15mm | 3.74 | 95.00 | 0.28 | 7.11 | 2.76 | 70.10 | |||
-SK-FW-8-15mm | 3.74 | 95.00 | 0.41 | 10.41 | 2.76 | 70.10 | |||
-SK-FW-12-15mm | 3.74 | 95.00 | 0.41 | 10.41 | 2.76 | 70.10 | |||
-SK-FW-8-25mm | 4.92 | 124.97 | 0.41 | 10.41 | 3.54 | 89.92 | |||

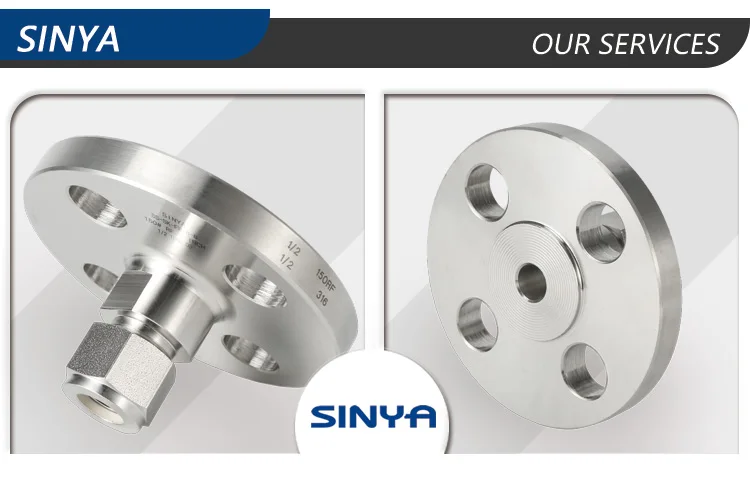

Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||
1.Custom design, CAD drawing | ||||||
2.P&ID | ||||||
3.Component selection | ||||||
4.Bill of material | ||||||
5.Professional services such as bending and welding | ||||||
6.Testing to guarantee the system | ||||||
7.Professional packaging and delivery | ||||||

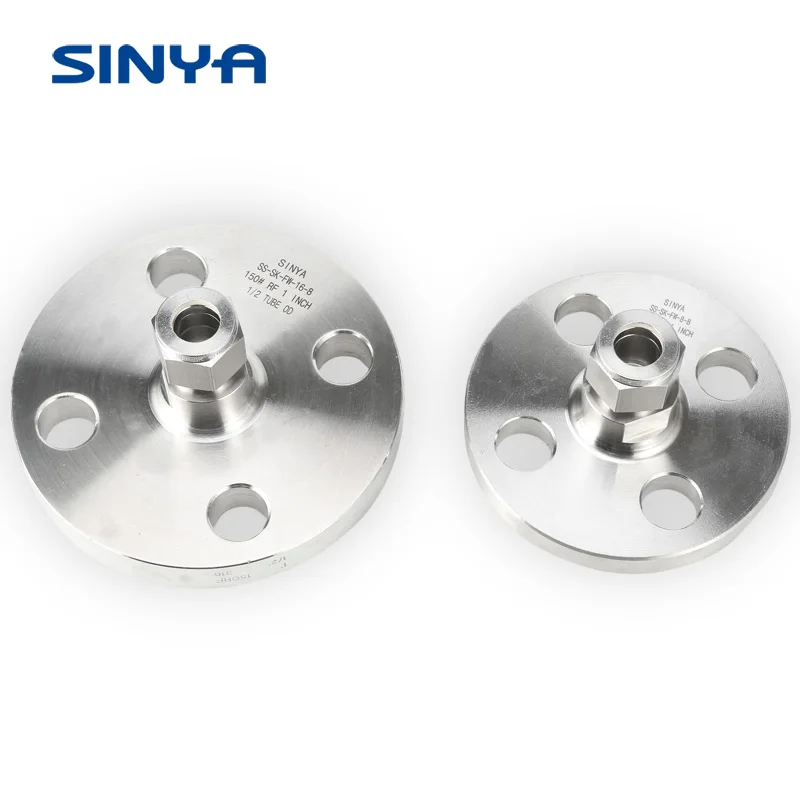

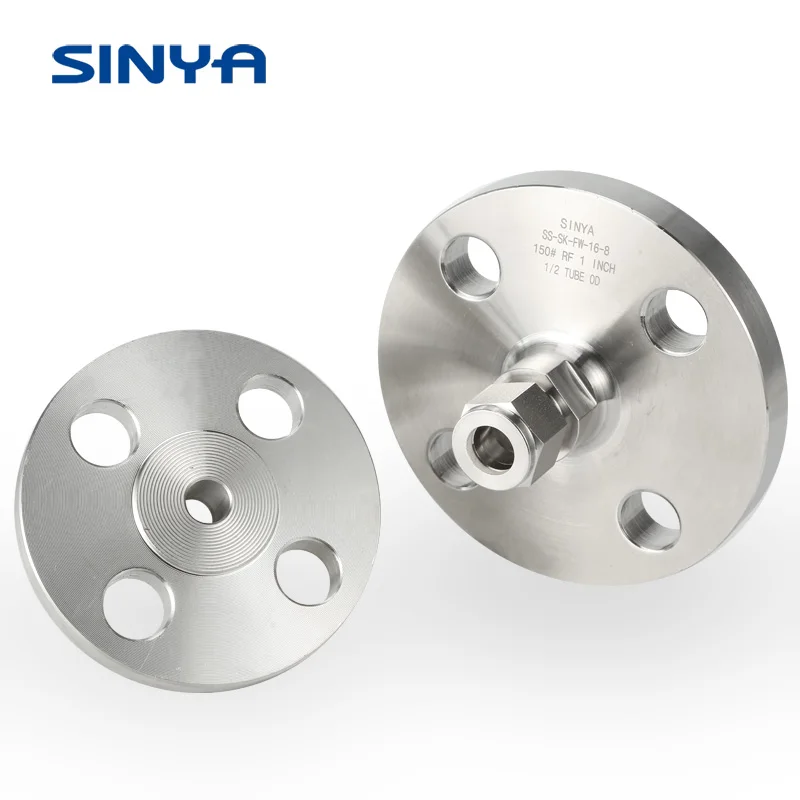

Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packing & Delivery
Mode of packing: Export standard package or as your detail request. | ||||||
Delivery time: 2 weeks after receipt of payment | ||||||
Mode of shipment: By Express like DHL,Fedex,TNT Ups. | ||||||
Our Company
1.Established in 1995. | ||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||
8.We have obtained ISO9001 certificate, CE Certificate | ||||||
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.. | ||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||
