Product Description
Multi Stage 24v Digital Temperature Controller Heat Pump Thermostat for HVAC System
>> General
HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
>> Feature
Elegant design with 4.3” LCD display
Individual programming Schedules:7 days*4 time periods
Tempered glass panel with capacitive touch buttons
NTC thermistor
>>Specification
>>Power supply： | AC24V, 50Hz | AC24V, 50Hz | |||||
>>Power dissipation： | 2W Dimension: 136*94*26mm Output: <1A (Resistant load) | 2W Dimension: 136*94*26mm Output: <1A (Resistant load) | |||||
>>Temperature range: | 41ºF -99ºF (5ºC -37ºC) | 41ºF -99ºF (5ºC -37ºC) | |||||
>>Display accuracy: | ±0.5 ºc | ±0.5 ºc | |||||
>>Wiring: | Terminals | Terminals | |||||
>>Installation dimension: | 60mm / 82mm (hole pitch) | 60mm / 82mm (hole pitch) | |||||
>> Application
>>1H/1C (conventional)
>>1H/2C (conventional)
>>2H/2C (conventional)
>>2H/1C (conventional)
>>1H/1C (heat pump)
>>2H/1C (heat pump)
>>2H/2C (heat pump)
>>3H/2C (heat pump)
>>1H/2C (conventional)
>>2H/2C (conventional)
>>2H/1C (conventional)
>>1H/1C (heat pump)
>>2H/1C (heat pump)
>>2H/2C (heat pump)
>>3H/2C (heat pump)

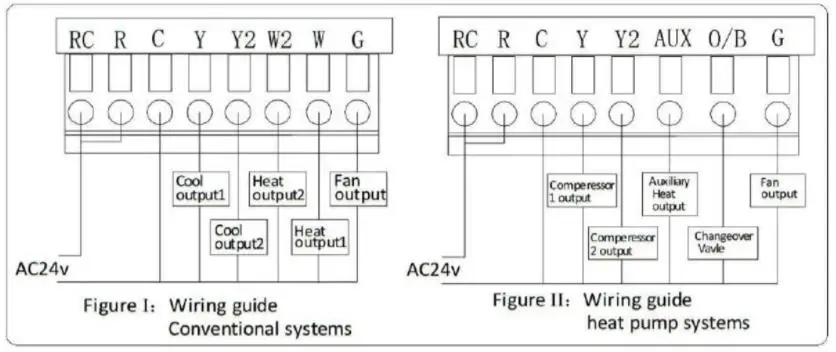

>> Wiring Diagram

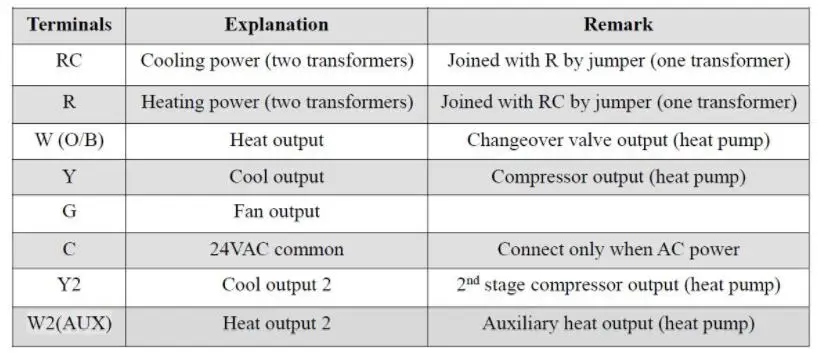

>> Terminal Instruction

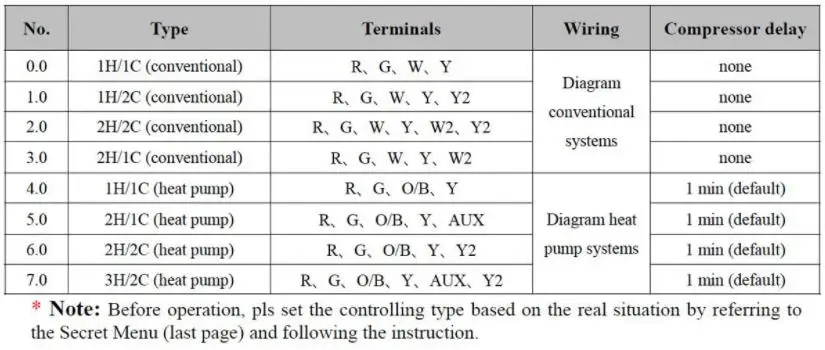

>> Controlling Type Configuration
Hotowell Products Catalogue
Factory Show
Packing & Shipping
Packing details
Unit Weight: 0.48KG/PC;
25 PCS/CTN;
Gross Weight: 12KG;
Paper box packing;
Box dimension: 45*33*23CM
Delivery time :\tShipped in 15-20 days after payment
Shipping Method
We usually ship by
1.Sea shipping ：25-30 days
2. Air shipping ：5-7 days
3. Express delivery(DHL, UPS, FedEx, TNT etc.）：4-7days
