Производство оптовая продажа Предварительно сформированные армированные стержни 1/7 оцинкованная стальная проволока зажим для натяжения кабеля индивидуальный захват ADSS

Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.

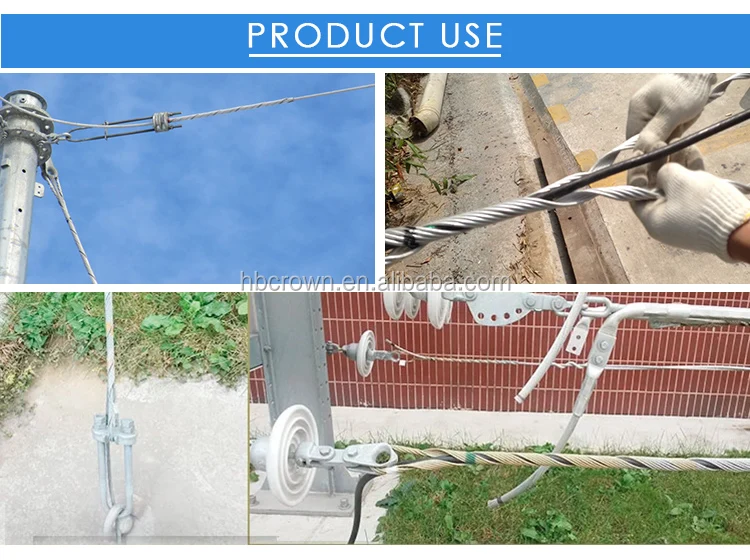

Support full tension strength for ADSS cable, connect the ADSS cable to the pole tower, corner pole tower and terminal pole tower with larger differences in terms of height.

Features:

1. Materials are aluminium clad steel wire or galvanized steel wire.

2. Different span distance:0-100m, 101-200m, 201-300m, 301-400m, etc.

3. The preformed guy grip for span more than 200m, is composed of inner rods and outer rods.

4. Marked with various code colour: yellow, red, green, blue, black, orange.

5. Grip strength can be over 95% RTS or customization.

6. Installation with other hardware: thimble, U-shackle, extension link, entensive-link, straps, etc.

7. Saving metal material and reduce the cost of line.

8. Aging resistance.

9. Packing with carton box or wooden pallet.
