Плакированная под серебром медная лента ламинированный Соединитель шины Медные

Описание и отзывы

Характеристики

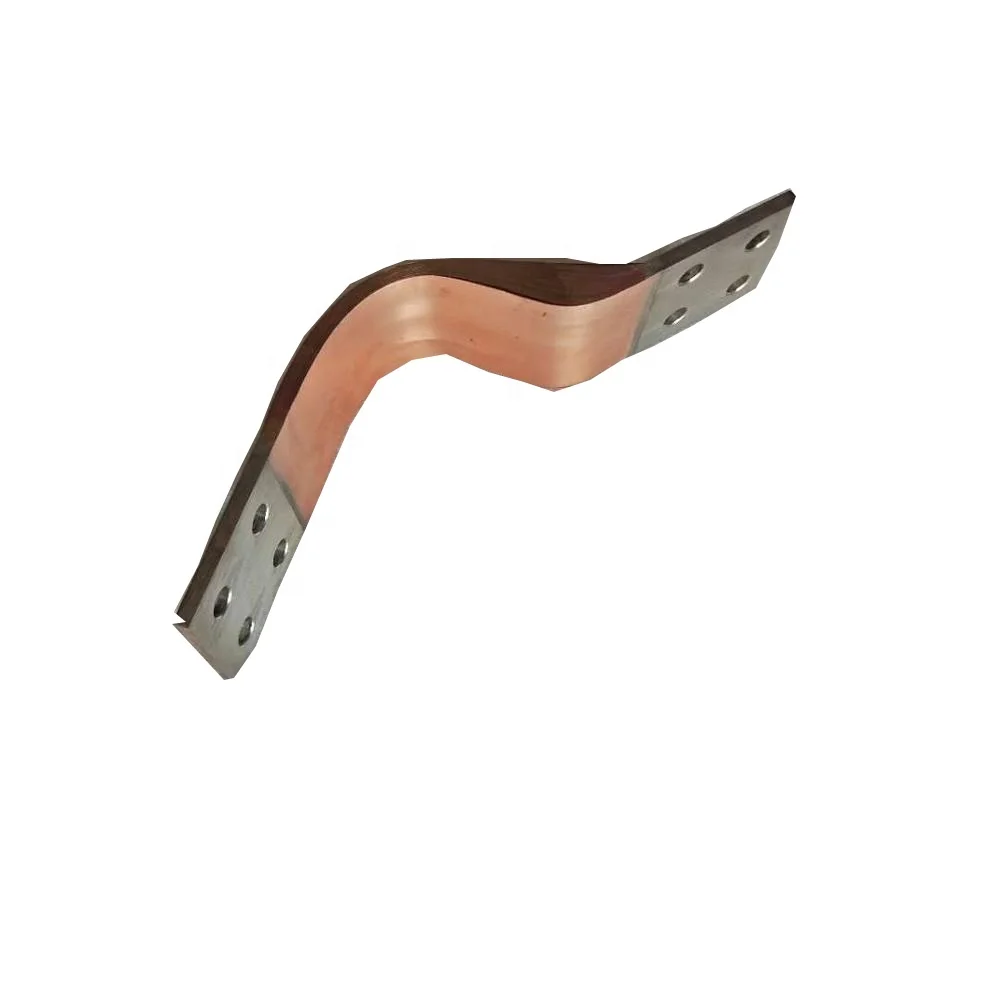

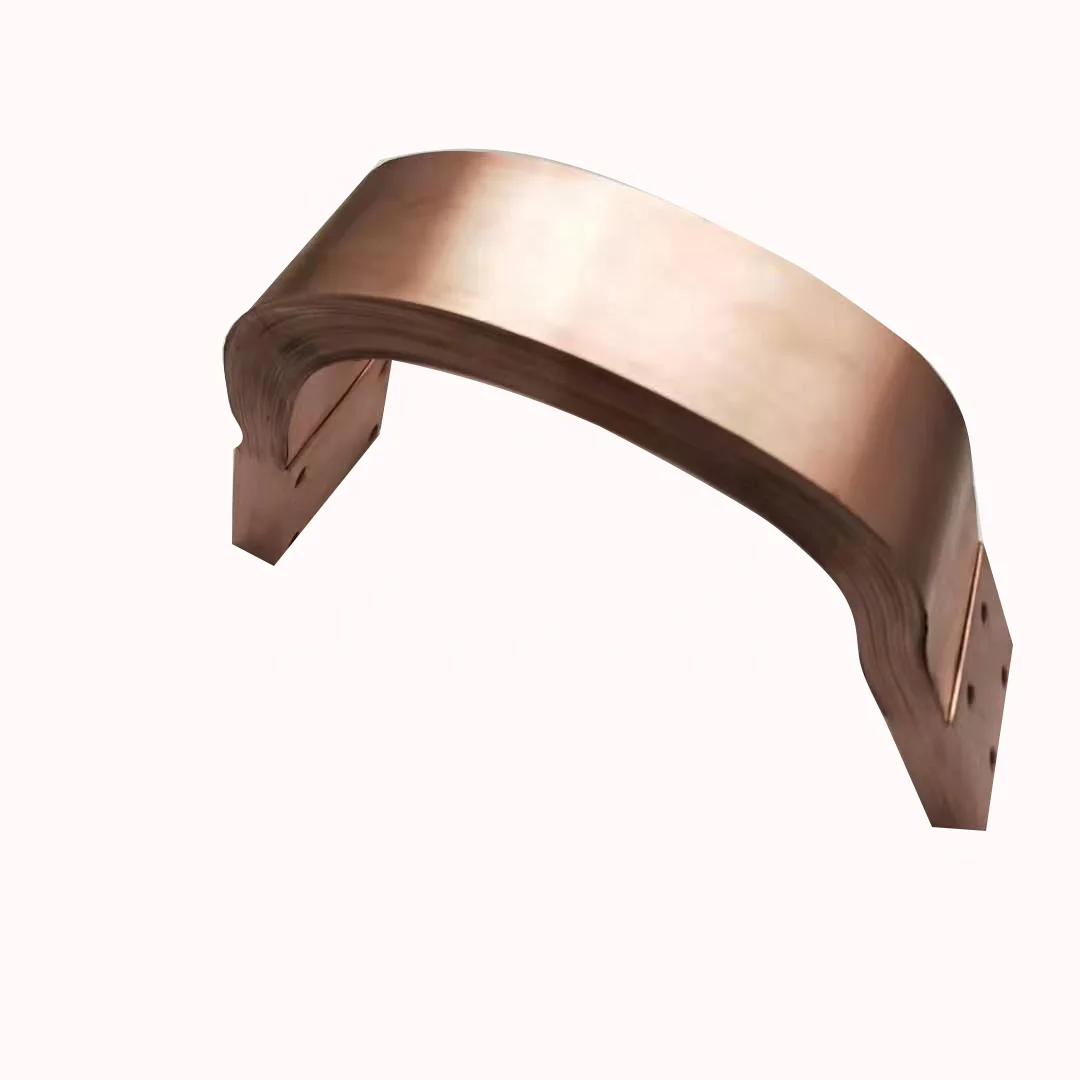

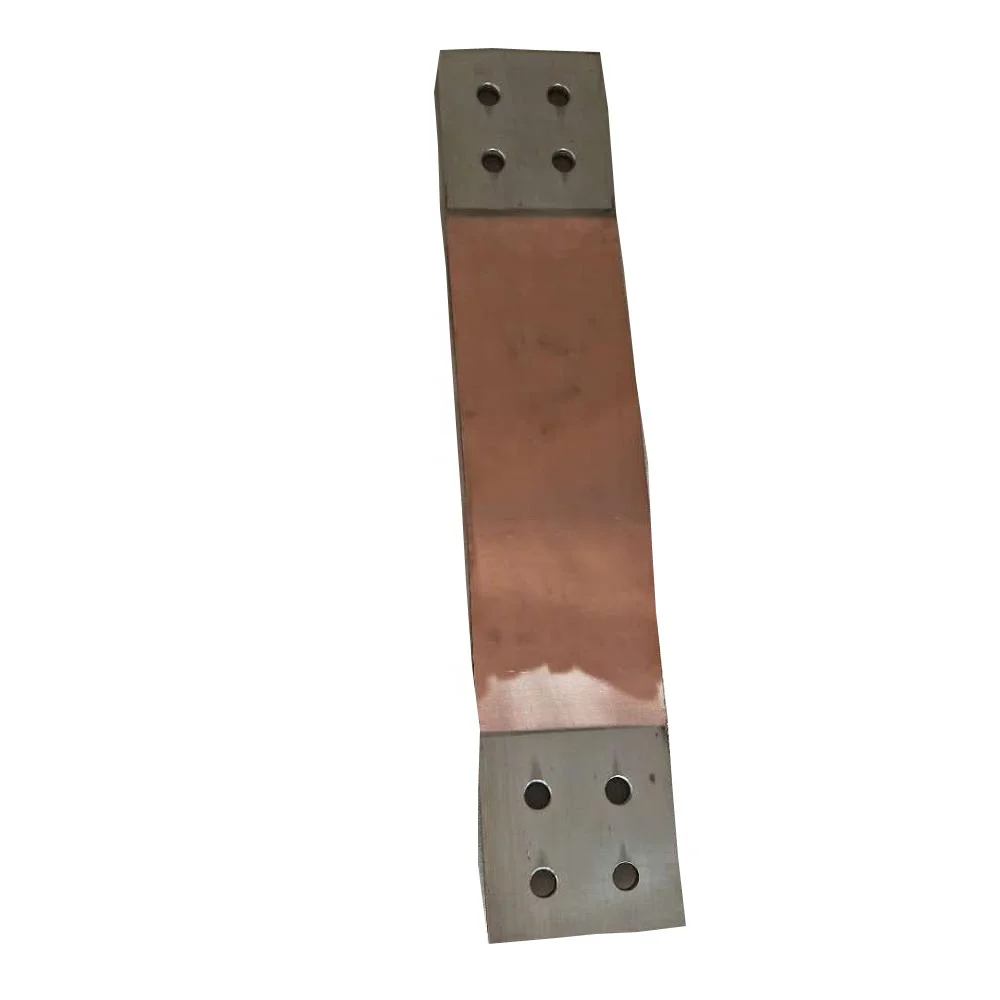

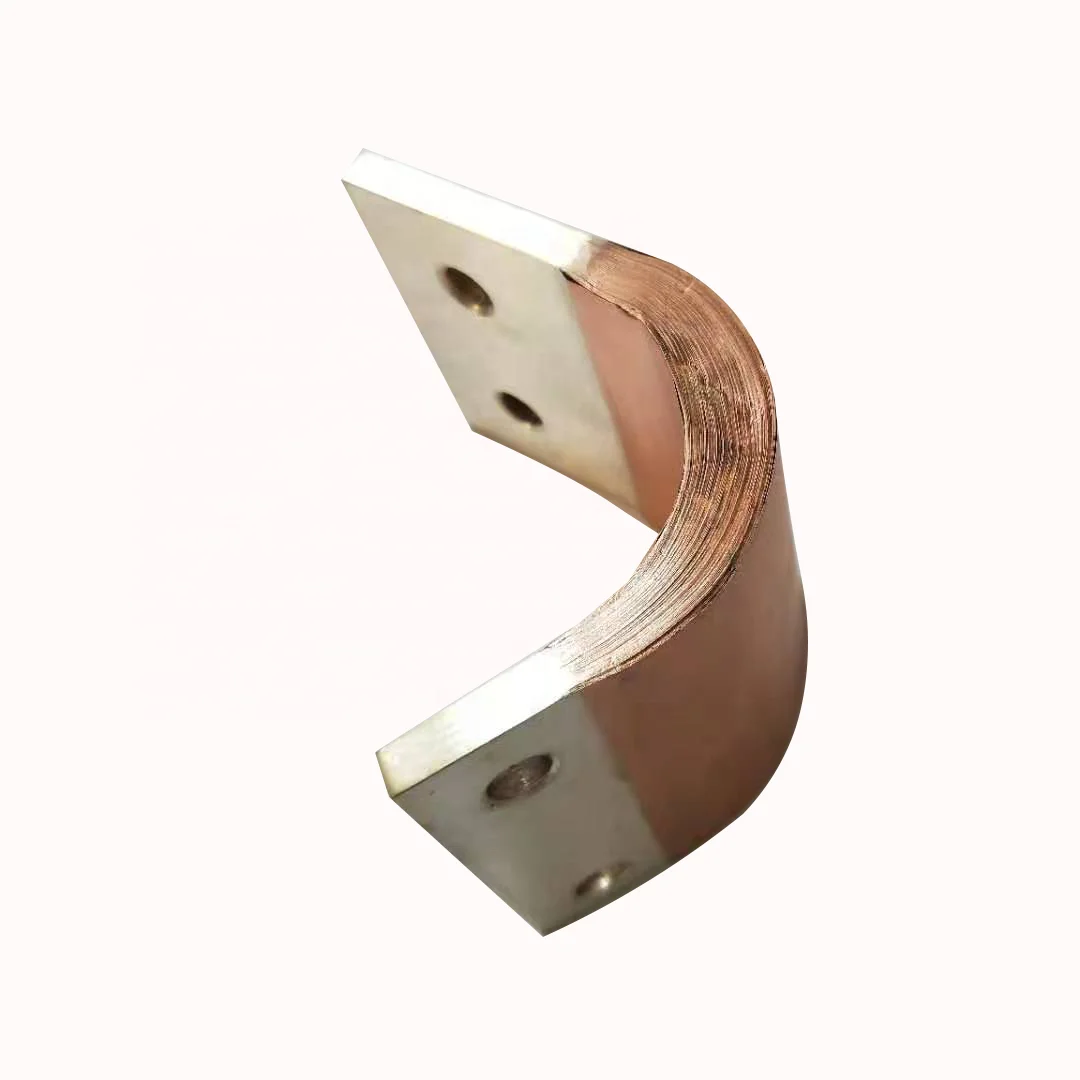

0035mm flexible laminated copper busbar

Pressure welding soft connector

 The pressure welding is to press the copper foil laminations together, using molecular diffusion welding, and forming by high-current heating and pressure welding.

Copper foil: 0.03mm to 0.3mm thick.
The contact surface can be tinned or silver plated according to users’ requirements.

Technical parameters

 See the table below.
The width, length and drilling holes not included in the table below can be processed according to user requirements
The allowable current carrying capacity is a reference value. This value is related to the installation and use conditions of the soft connector.

 Technical parameters

 See the table below.
The width, length and drilling holes not included in the table below can be processed according to user requirements.
The allowable current carrying capacity is a reference value. This value is related to the installation and use conditions of the soft connector.



Scheme(II)

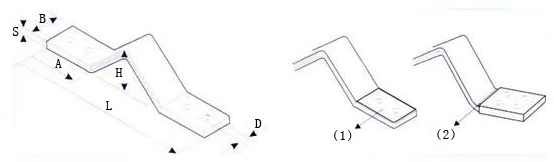

Technical parameter table of pressure welding / brazing

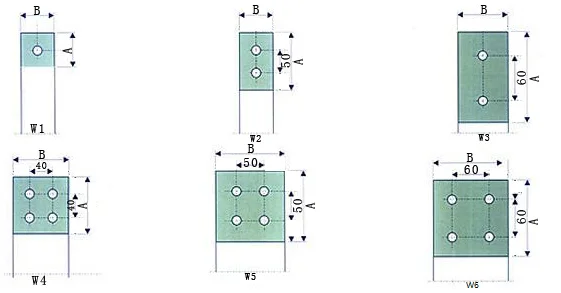

ED copper	Section mm2	A mm	B mm	S mm	L mm	H mm	Holes Diameter mm	End drilling	Current capacity A
PWR 200/180/40	200	50	40	5	180	40	13	W1	600
PWR 200/230/40	200	50	40	5	230	40	13	W1	800
PWR 320/230/40	320	50	40	8	230	43	13	W1	800
PWR 400/230/40	400	50	40	10	230	45	13	W1	900
PWR 250/250/50	250	60	50	5	250	45	13	W1	700
PWR 400/250/50	400	60	50	8	250	48	13	W1	950
PWR 500/250/50	500	60	50	10	250	50	13	W1	1100
PWR 480/300/60	480	90	60	8	300	70	13	W2	1100
PWR 600/300/60	600	90	60	10	300	70	13	W2	1200
PWR 640/300/80	640	90	60	8	300	70	13	W4	1350
PWR 800/350/100	800	90	60	10	300	70	13	W4	1500
PWR 960/300/80	960	90	60	12	300	70	13	W4	1700
PWR 800/350/50	800	110	100	8	300	80	13	W5	1550
PWR 1000/350/100	1000	110	100	10	350	80	13	W5	1800
PWR 1200/350/100	1200	110	100	12	350	80	13	W5	1900
PWR 1200/400/120	1200	130	120	10	400	80	13	W7	2000
PWR 1440/400/120	1440	130	120	12	400	80	13	W7	2200
