Product Description

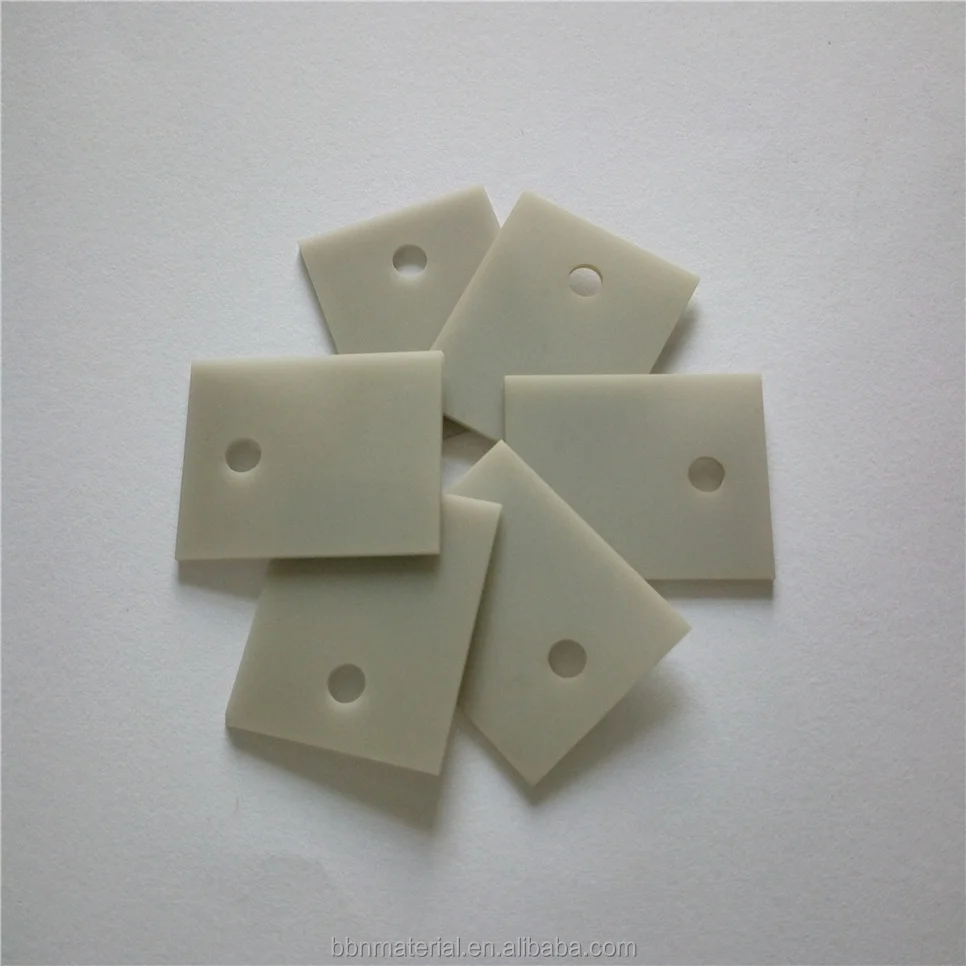

Product Name | DBC aluminum nitride AlN ceramic sheet with copper |
Material | Alumina nitride |
Key words | Alumina nitride ceramic plate |
Advantage | Excellent thermal conductivity |
Introduction
Alumina nitride ceramic has high thermal conductivity of more than 170W/m. K, high resistivity, low dielectric loss, good insulation and some other excellent properties.
Features
1.High resistivity
2.High thermal conductivity of more than 170W/m. K
3. Low dielectric loss
4. Good insulation
2.High thermal conductivity of more than 170W/m. K
3. Low dielectric loss
4. Good insulation
Advantages
2. Wear resistance
3. High temperature resistant
4. Corrosion resistance
Technical Date of ALN | ||||
Property content | Unit | Property index | ||
Density | g/cm3 | ≥3.30g/cm3 | ||
Water absorption | % | 0 | ||
Thermal conductivity | (20℃, W/m.k) | ≥170 | ||
Linear expansion coefficient | (RT-400℃，10-6） | 4.4 | ||
Flexural strength | Mpa | ≥330 | ||
Bulk resistance | ≥1014 | |||
Dielectric constant | 1 MHz | 9.0 | ||
Dissipation factor | 1 MHz | 3*10-4 | ||
Dielectric strength | KV/mm | ≥15 | ||
Surface roughness | Ra(μm） | 0.3~0.5 | ||
Camber | （~25.4（length)) | 0.03~0.05 | ||
Appearance | Dense | |||
Note: 1. Surface roughness can be reached 0.1μm after polished. | ||||
2. Size tolerance can be controlled in ±0.10mm with laser machined. | ||||
3. Special specifications can be suppled upon requests. | ||||
Company Introduction
Equipment&workshop
LianYungang Highborn Technology Group is an integrated industry and trade company, with an independent plant, the factory covers an area of 100000 square meters. The factory has complete
production line, material warehouse, molding workshop, sintering workshop, drying workshop, quality inspection room, etc
production line, material warehouse, molding workshop, sintering workshop, drying workshop, quality inspection room, etc
Office
Group has 30 professional sales team, the team has rich sales experience,10 peoples have more than 10 years experience,8 peoples have more than five years experience. Full team vitality, strong cohesion,
good division of labor and cooperation, strong sense of responsibility, to ensure the efficient operation of the business.
good division of labor and cooperation, strong sense of responsibility, to ensure the efficient operation of the business.
Certification
Patent
Honor
Certificate
Packing&Shipping
Regarding the package,we usually use carton and wooden box with bubble wrap.If you need special package,please inform us the detailed information of package kindly,we will pack them according to your requirements.
Regarding the delivery,we support each courier to send you our products.Such as, UPS, TNT, FEDEX, DHL ,SF and so on.
Why choose us
FAQ
Q: How can I get a quotation for alumina nitride ceramic sheet?
A: Please send your drawing or the details of your demand to us, then we will quote to you.
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer in China ,and have in this line for almost 10 years.
Q: Would it be possible for us to visit your factory?
A: Sure, we welcome you at any time! Seeing is believing.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we do.The sample expense will be deducted from the value of your order.
Q: How about the delivery time?
A: If we have the same size in stock, we will send out in 3-5 days, if it is customized part, the production will need about 15-25days.
A: Please send your drawing or the details of your demand to us, then we will quote to you.
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer in China ,and have in this line for almost 10 years.
Q: Would it be possible for us to visit your factory?
A: Sure, we welcome you at any time! Seeing is believing.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we do.The sample expense will be deducted from the value of your order.
Q: How about the delivery time?
A: If we have the same size in stock, we will send out in 3-5 days, if it is customized part, the production will need about 15-25days.
