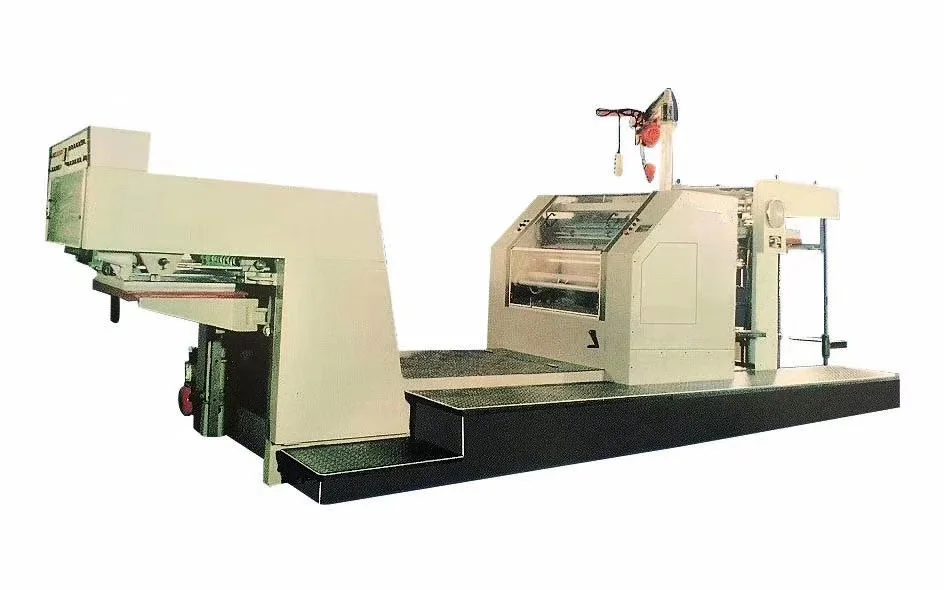

automatic Sheet-fed Intaglio PrintingMachine,automatic Sheet-fed Gravure Machine

  1. Metal color ink, pearl luster ink, gold inkand silver ink can be used.

2. No ink balance problem, no color difference or bar or ink.

3. PLC programming control and variable frequency speed control system

4. High  efficiency  paper  transmission,  continuous  (not  stop)  paper  collection, printing speed up to 8000 PCS/h.

5. Pneumatic on-off device, pneumatic ink scraper.

6. Ink fountain and ink box used in combination, and equipped with circulation ink device.

7.Hot air drying tube, equipped with standard temperature control infrared drying system, optional UV curing equipment.

8. The cooling system can make the printing paper to normal temperature before stacking (choose).



Technical data of automatic Sheet-fed Gravure Machine:

Model	XH920 sheet-fed Gravure Printing Press
Printable Sheet Size (LxWxH)	363mm*390mm-650mm*920mm
Paper Weight	80~350gsm
Max. Printing Area	630mm*920mm
Max. Rotatioon Speed	8,000rph
Max. Printing Speed	6,000pcs/h
Bite white border	13mm
Paper pile height	1400mm
Power	30.4kw
Machine Overall Dimension (LxWxH)	6240mm*3300mm*2740mm
Machine Weight	8200kg

Configuration:

Feeder	Xinxiang Zhongda
Vacuum pump	Wuxi Hengli
Breaker	Siemens,Schneider
PLC	Mitsubishi
Expansion module	Matsushita
Relay	Japan IDEC
Button	Schneider
Indicator light	Schneider
Motor	Nangjing Zhongke



Any requirements can immediately contact me on alibaba.com or Whatsapp: +86 18616909963
