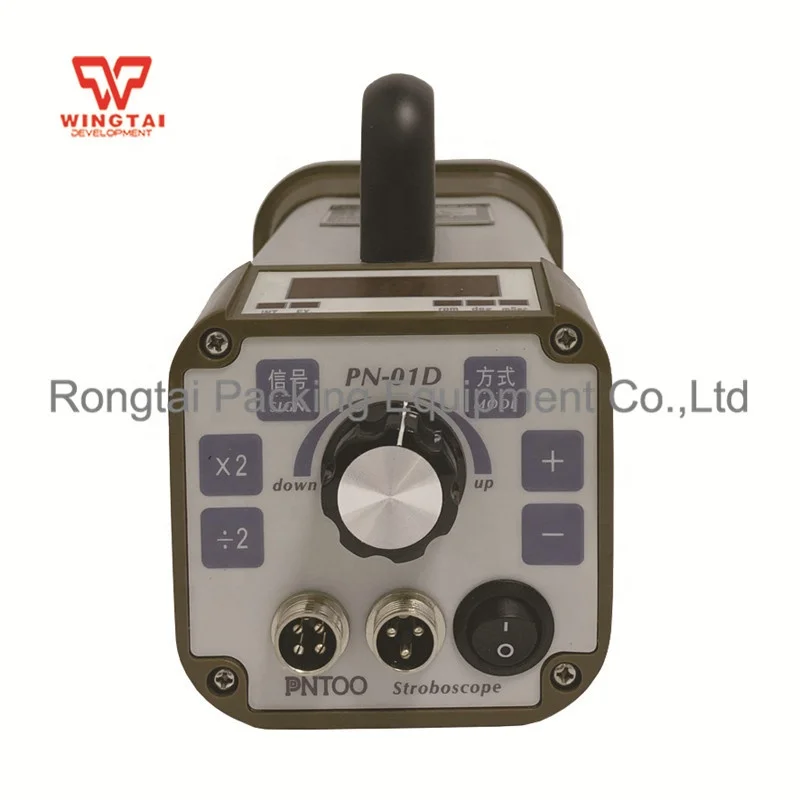

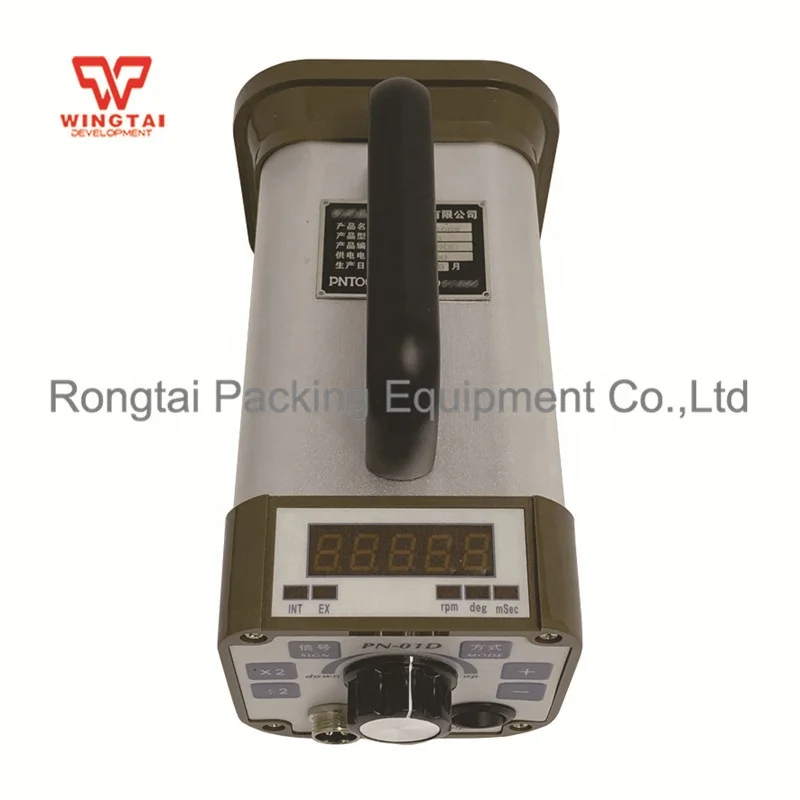

PN-01D Digital Stroboscope



Technical parameters /Technical parameters:



1. Power source: AC 220V plus or minus 10%, 2A, 50Hz;
2. Display: 5 digital tube display;
3. Stroboscopic accuracy:±0.1%
4. Working mode: internal trigger & external trigger;
5. Internal trigger frequency range: (50 ~ 12000) times/min;
6. Limited frequency: 6000 times/min;(customizable)
7. External trigger frequency range: (50-12000) times/min;
8. External trigger function: support phase shift (hysteresis Angle) control;
9. External trigger input type: photoelectric switch, hall switch (PNP normally open), proximity switch (PNP normally open);
10. External trigger input signal: low level 0~0.7V, high level > 2.7V (maximum allowable 24V), rising edge triggered, high level duration > 20 us;
11. External trigger power output: DC12V 50mA (provided by strobe);
12. Single working time: set by the function key;
13. Single flash energy: about 0.18 J @ 1000f/m, 0.08 J @ 4000f/m;
14. Ambient light intensity: less than 10,000 lux;
15. The light spot: Φ 300 mm round @ 500 mm;
16. Light illumination LUX: about 850 LUX @ 500mm 4000f/m;

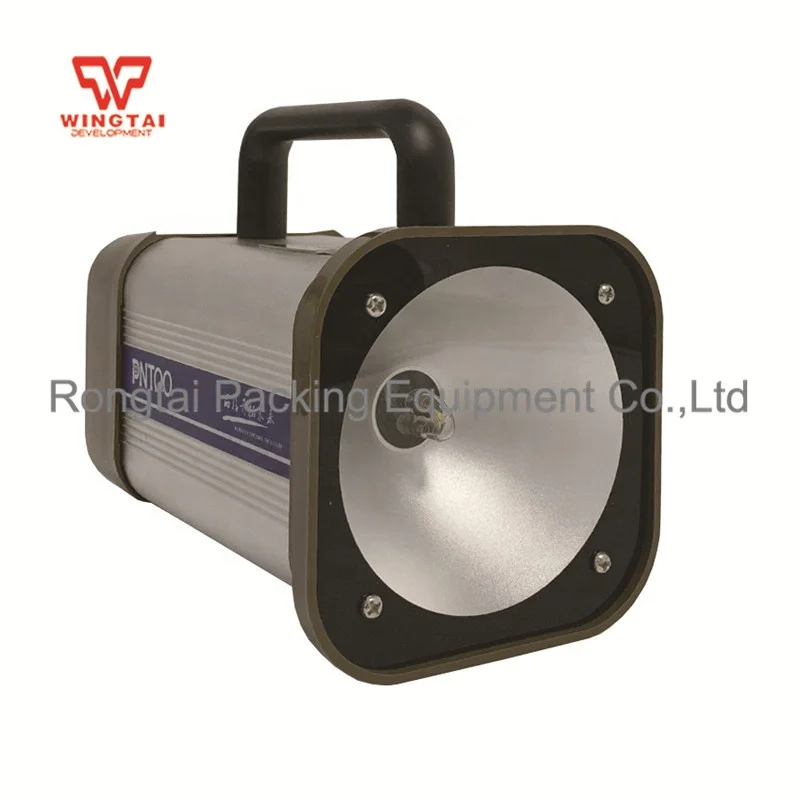

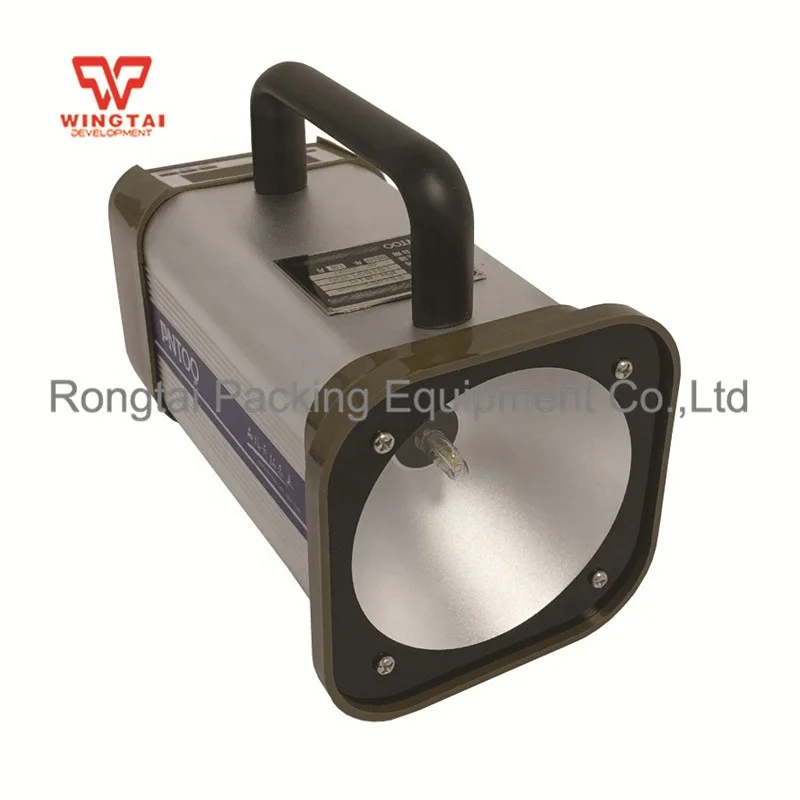

Product Picture









This instrument is an enhanced strobe, which is widely used in the industry and the field.Is mainly used in the printing industry: printing machine, screening machine, slitting machine, rewinding machine, and need to speed counting, measuring frequency occasions, also can use it for all kinds of rotor, gear mesh, machine vibration diagnosis, textile manufacturing high speed movement monitoring an object's surface defect and the running track.At present, it is widely used in printing, paper making, textile, medicine, light industry, machinery processing and other industries.

Product Features:


  1. 1.Quick switch of internal trigger/external trigger;Double frequency and half frequency fast frequency modulation function;
  2. 2.When External triggerworking mode(utilize photoelectric signal),Can realize the automatic tracking function of the pattern.
  3. 3.Built-in memory, with flash frequency and internal parameter automatic memory function, to facilitate the next use;
  4. 4.Adopt the import encoder, cooperate with the simple operation software, the knob adjustment is more rapid, accurate, practical, easy to use, handy;
  5. 5.The software has the function of frequency flashing phase Angle adjustment;
  6. 6.Automatic stop and flash function, saving power, and improving the service life of the strobe lamp;
  7. 7.Adopt the German imported strobe lamp tube, with built-in high-performance switch power module to improve the flash brightness and work reliability;
  8. 8.The latest products have stable performance, long use time and very little fault.
  9. 9.The software has two tracking programs, which can automatically track the printed surface of the unfixed color mark.
  10. 10.High energy efficiency and low calorific value;
