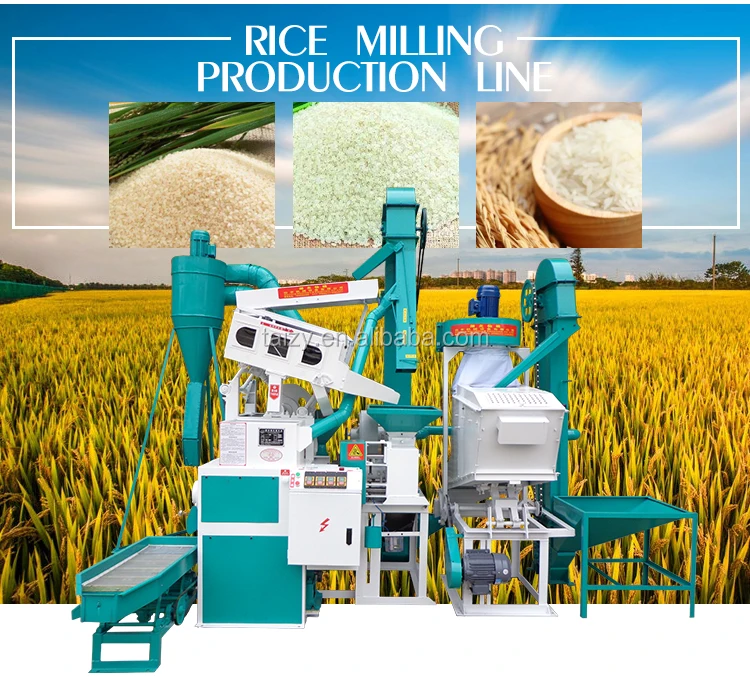

Customized integrated combined mini rice milling plant / rice milling production line

Rice milling equipment of  brief  introduction

This model is special big scale equipment for paddy rice processing .Rice milling equipment is composed of feeding hopper, paddy husking unit , separating unit for brown rice and chaff, milling unit and air jet blower ,etc.

Rice huller machine consists of 10 parts, and is a whole processing line to process the rice, removing the rice husk and other impurities during working. Its capacity is 600-700kg/h and you get rice with high quality.  In recent years, we export this paddy miller to such countries as Thailand, Nigeria,Vietnam, Nigeria etc, and those countries mainly market for rice milling equipment, thus our company has already built long-time partnership with them. In addition, warranty for integrated rice milling unit is 2years.

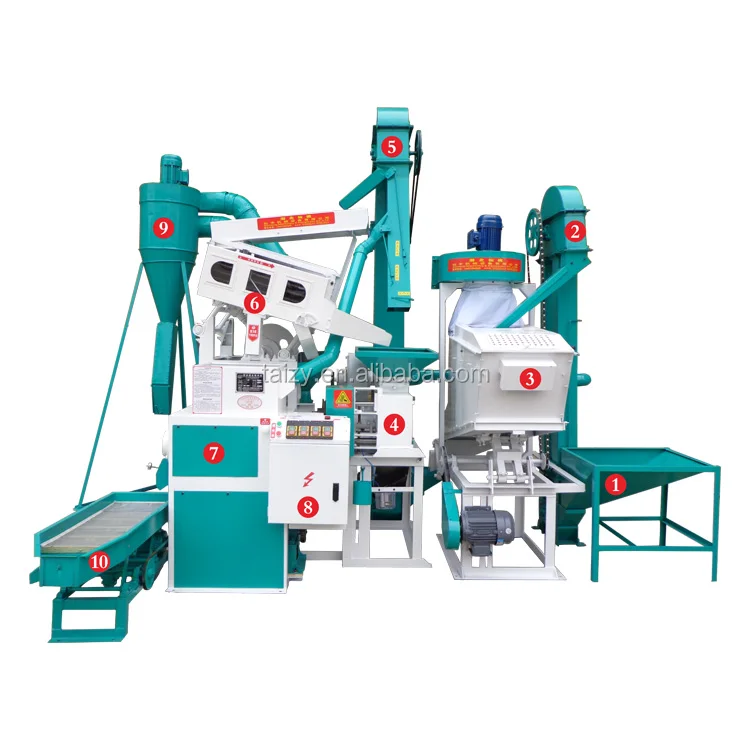

1	Name	Rice milling equipment
2	Elevator	Single elevator, delivering rice to destoner
3	Destoner	Removing the stone and impurity from rice
4	Rice husking machine	removing the rice husk.
5	Elevator	Double elevator, delivering rice to screening machine
6	Screening machine	Classifying the impurity and rice
7	Electric cabinet	Control the electricity of whole machine plant
8	Rice mill machine	Grind brown rice into white rice
9	Dustless chaff unloader	Collect chaff and dust
10	Grading sieve for broken rice	Remove the broken-rice, and get the good rice,



Model	6LN-15-B
Capacity	600-700kg/h, 15t/Day
Power	27.35kw with crusher
Voltage	380V
Milled rice rate	71%
Size	3000*2600*2900mm
Plant area	3600*2600*3300mm

Rice milling machine plant of advantages

1. Rice milling equipment is equipped with a rational layout, compact structure and little noise in operation .

2. Rice processing machine is light and easy to operate with less power consumption and high productivity

3. Rice milling equipment  can produce white rice with high purity that meets national standard, and with less chaff containing and broken rice,so Rice milling equipment is a very good paddy rice processing machine for the countryside.

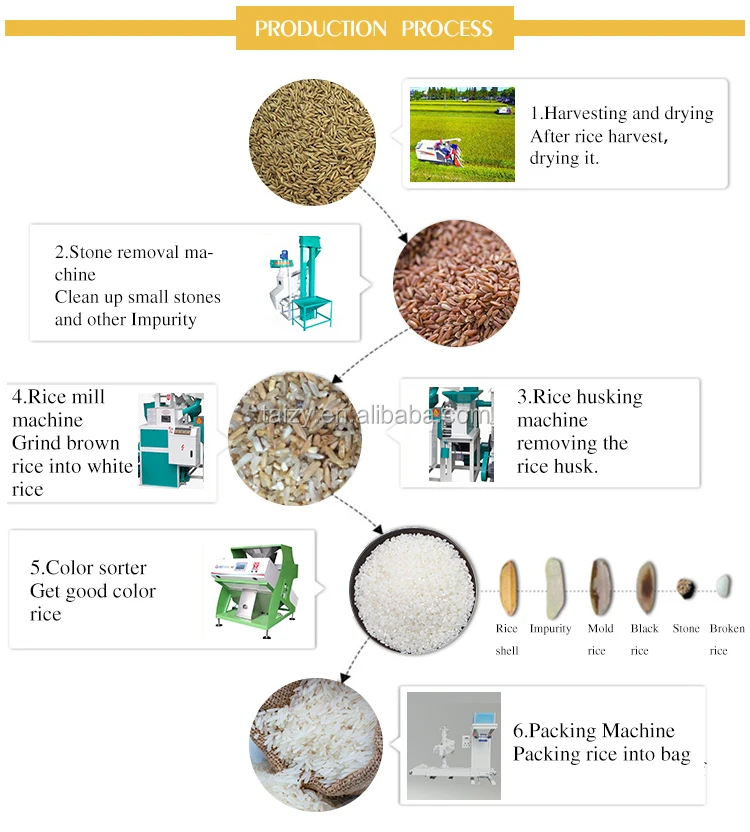

Rice milling machine of working principle

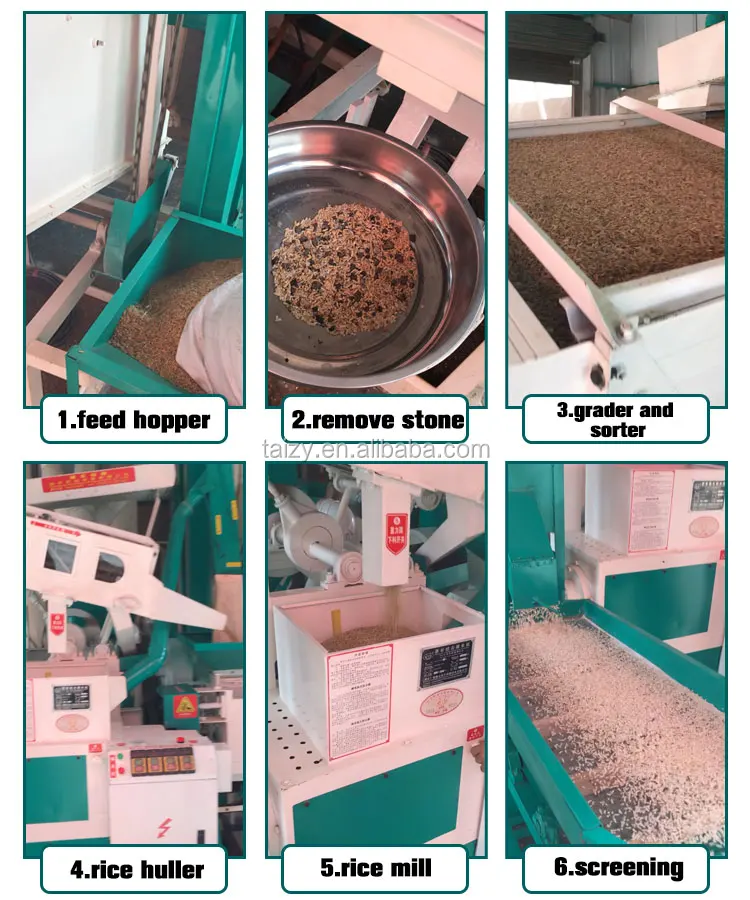

1. Paddy first goes into machine through vibrating sieve and magnet device, and then passes rubber roller for hulling.

2. After air blowing and air jetting to the milling room, the machine can finish the process of cleaning, husking, air blowing selecting, milling and polishing in succession.

3. The husk, chaff, runtish paddy, and white rice are pushed out of machine respectively.

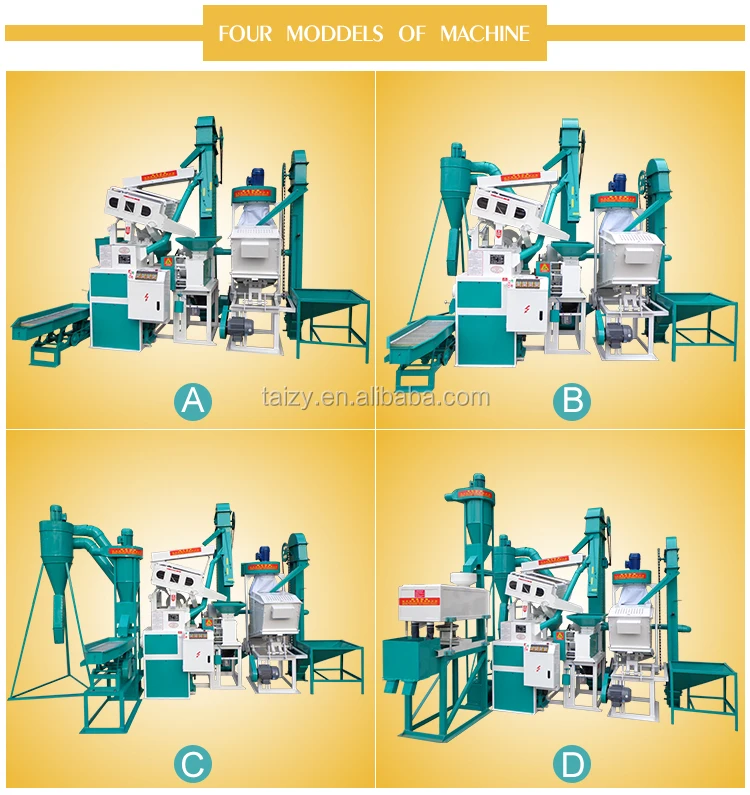

We have four main machine types, you can choose according to your needs, Please click on pictures,we will introduce more details of other machines to you.machines to you.

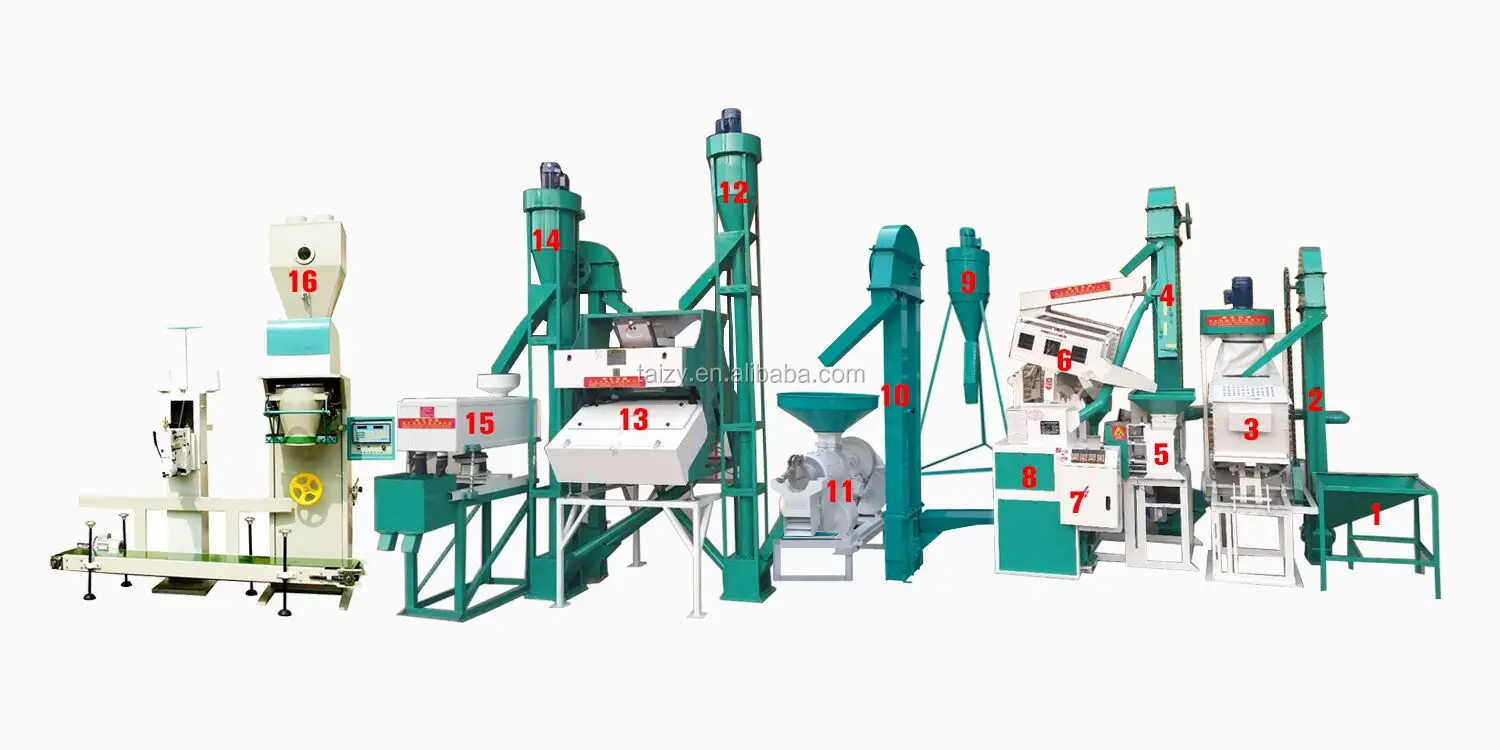

If you want to buy a complete combined mini rice milling plant, we have a complete production line.Including

1.Feed hopper 2.Elevator3.Destoner machine 4.Elevator 5.Rice huller machine 6.Paddy separator 7.Electric cabinet 8.Rice mill machine 9.Discharge rice chaff 10.Elevator 11.Rice polishing machine 12.Elevator 13.Color sorter 14.Elevator 15.Screening machine 16.Packing machine





Installation and Sale-service

Engineer Number	2 engineers from Taizy Company for installation( One for rice milling plant, one for color sorter machine) 3 local workers for helping installation
Installation time	About 4 days
Needed instruments	Forklift, Electric drill, Hand type Angle mill, Percussion drill, Electric wire, Pipeline. Please check the detailed table below.
Installation cost	You need to offer our engineer’s salary $80 per day and should bear round tickets, visas, food, hotel, and traffic of our engineer goes to and in your country.
