Водонепроницаемая геомембрана из полиэтилена высокой плотности с 100% защитой от
- Категории: >>>
- Поставщик: The,Best,Project,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Waterproof HDPE Geomembrane with 100% Virgin Aging Resistance for Channel Lake Dam Pond Liner Cover

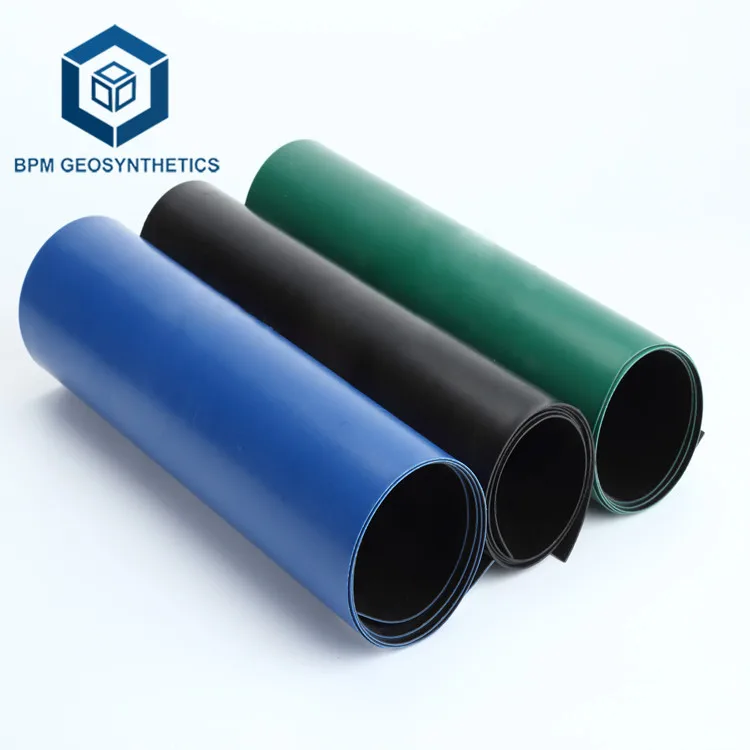

Pond Liner is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components.

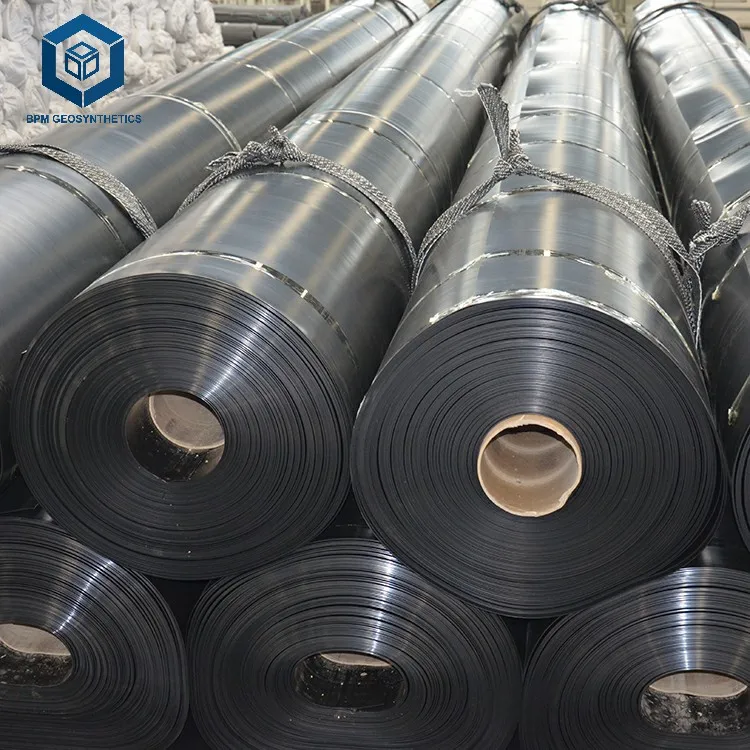

Pond Liner are fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard.
- Excellent chemical resistance.
- Outstanding stress crack capacity.
- Lowest permeability.
- Excellent UV resistance.
- Stable low temperature embrittlement resistance.
- Complete width and thickness specifications.
- Cost effective.
- Proven performance.
- Fast deployment.
- Easy transportation.
- Meet or exceed all aspects of GRI GM13.
Pond Liner Fabric Technical Parameter
| Item | Unit | Standard | Test Frequency | BM75 | BM10 | BM15 | BM20 | BM30 | |
| Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
| Density | g/cc | D1505/D792 | 90,000 kg | 0.94 | |||||
| Tensile Properties | |||||||||
| yield strength | kN/m | D 6693 Type IV | 9,000 kg | 11 | 15 | 22 | 29 | 44 | |
| break strength | kN/m | 20 | 27 | 40 | 53 | 80 | |||
| yield elongation | % | 12 | 12 | 12 | 12 | 12 | |||
| break elongation | % | 700 | 700 | 700 | 700 | 700 | |||
| Tear Resistance | N | D 1004 | 20,000 kg | 93 | 125 | 187 | 249 | 374 | |
| Puncture Resistance | N | D 4833 | 20,000 kg | 240 | 320 | 480 | 640 | 960 | |
| Stress Crack Resistance | hr. | D 5397 | per GRI GM-10 | 300 hr. | |||||
| Carbon Black Content | % | D 4218 | 9,000 kg | 2.0-3.0% | |||||
| Reference Propertied | Oxidative Induction Time | ||||||||
| (a) Standard OIT | min | D 3895 | 90,000 kg | 100 min. | |||||
| (b) High Pressure OIT | D 5885 | 400 min. | |||||||
| Oven Aging at 85°C retained after 90 days | % | D 5721 | |||||||
| (a) Standard OIT – % | D 3895 | per each formulation | 55% | ||||||
| (b) High Pressure OIT – % | D 5885 | 80.0% | |||||||
| UV Resistance | |||||||||
| High Pressure OIT – % retained after 1600 hrs | % | D 5885 | per each formulation | 50% | |||||
| Roll Size | Roll Width | m | 7 | 7 | 7 | 7 | 7 | ||
| Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
| Size stability | % | 2% | |||||||

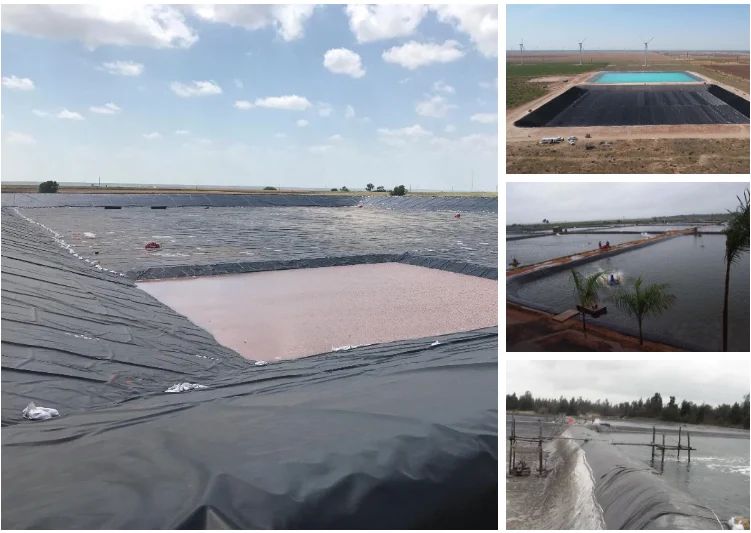

Applications
Waterproof HDPE Geomembrane with 100% Virgin Aging Resistance for Channel Lake Dam Pond Liner Cover

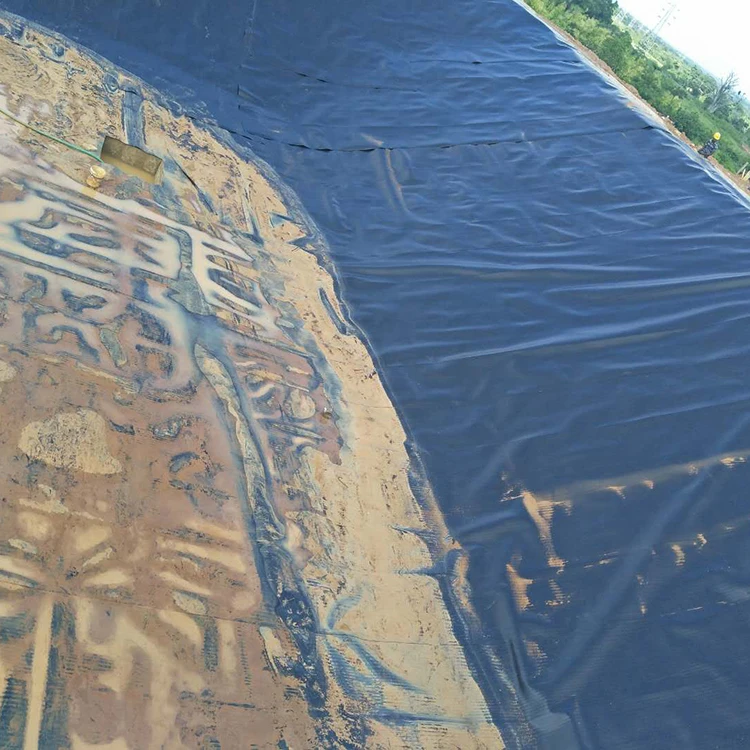

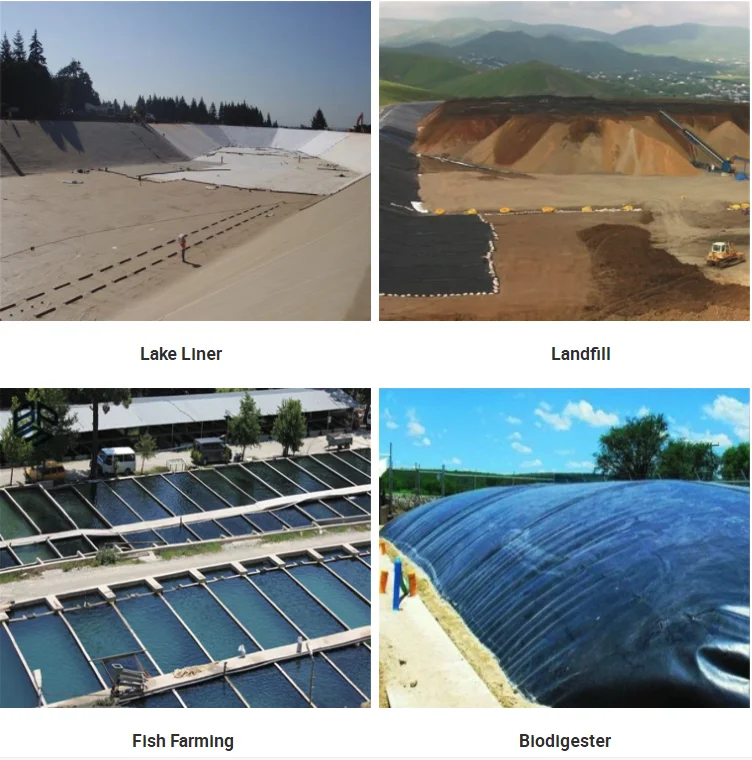

Pond Liner is widely used for canal, aquaculture, irrigation ponds and remediation liners, other liner applications include landfills, waste water treatment lagoons, oil and gas exploration, power plants, etc al.

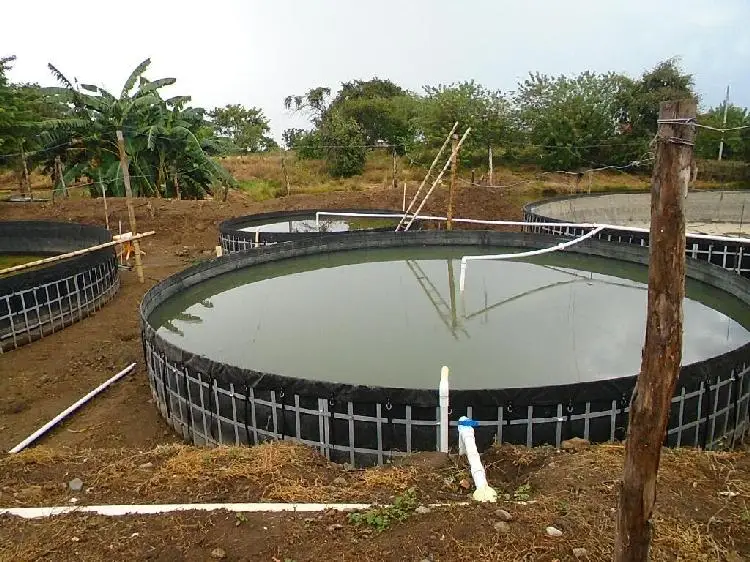

Aquaculture. Pond Liner can be used as fish ponds, shrimp pond and other aquacultures.
Landfills. Pond Liner is used for Bottom landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
Water Treatment System.Pond Liner is applied to the adjustment of the power plant and sewage treatment pool or water treatment system.
Mining.Pond Liner is applied for mining industry as washing pool, pool heap leaching, heap yard, dissolving tank, storage tank, the bottom of the tailing seepage control, etc.
Other Applications.Pond Liner perfect for Environment protection and sanitation, water conservancy, municipal projects, landscaping, petrochemical industry, salt industry, agriculture, etc.
Packaging & Shipping
Selling Packing:Customer’s company Logo mark can be designed and added
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling
Transport Packing: Put in the container

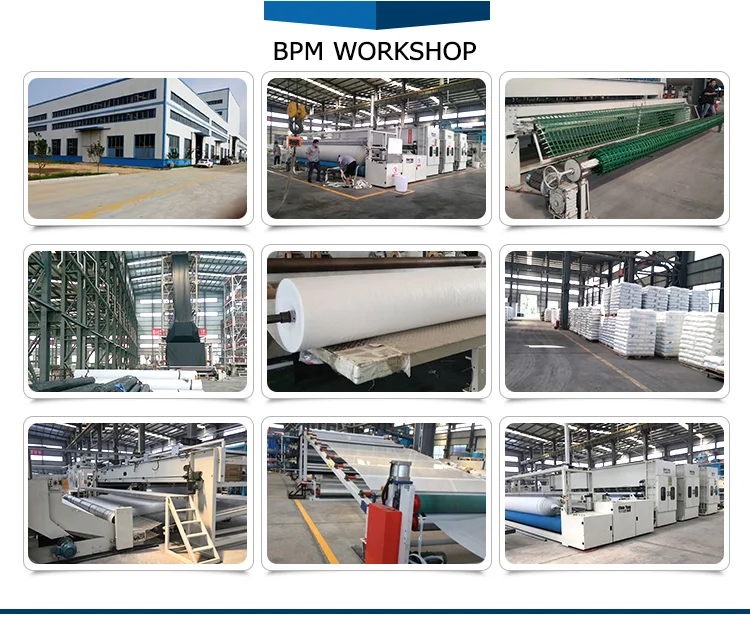

Company Information
The Best Project Material Co., Ltd (BPM) is the leading geomembrane manufacturer and exporter since 2007. All products have been approved by the ISO9001,ISO14001 and BV certificates and passed the test of SGS,SONCAP,SASO etc
Our main innovative, high quality geosynthetics products include geomembranes, geotextiles, geocells, Welding machine,geosynthetic clay liners (GCLs), drainage boards, geogrids, etc.

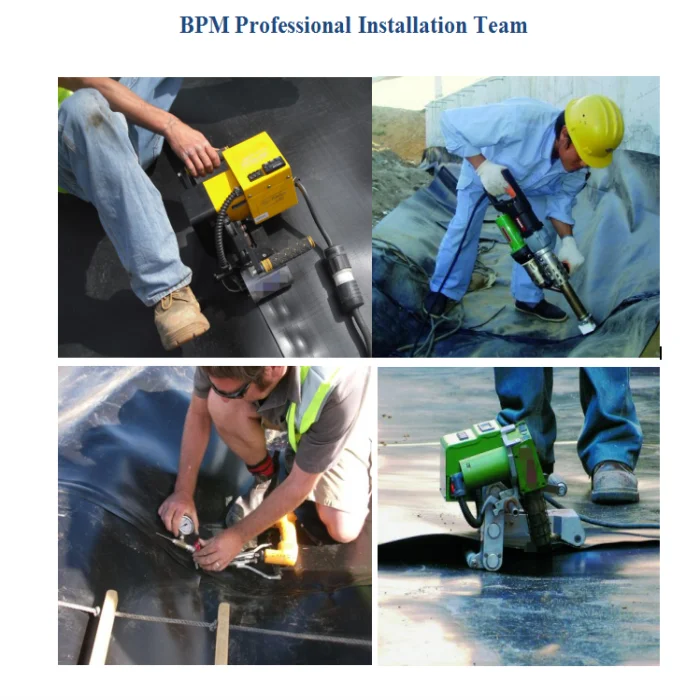

BPM is providing professional design and installation service. OEM and ODM are also available.
Our Services
If you have any questions or inquiries, please visist our official website :
www.bpmgeosynthetics.com
www.bpmgeomembrane.com
www.bpmgeotextile.com
Please contact Sunny Sun:
I will reply your inquiry in time.
Whatsapp/Mobile/Wechat:+86 13455634103
Email:sales21(@)hdpetgm.com
