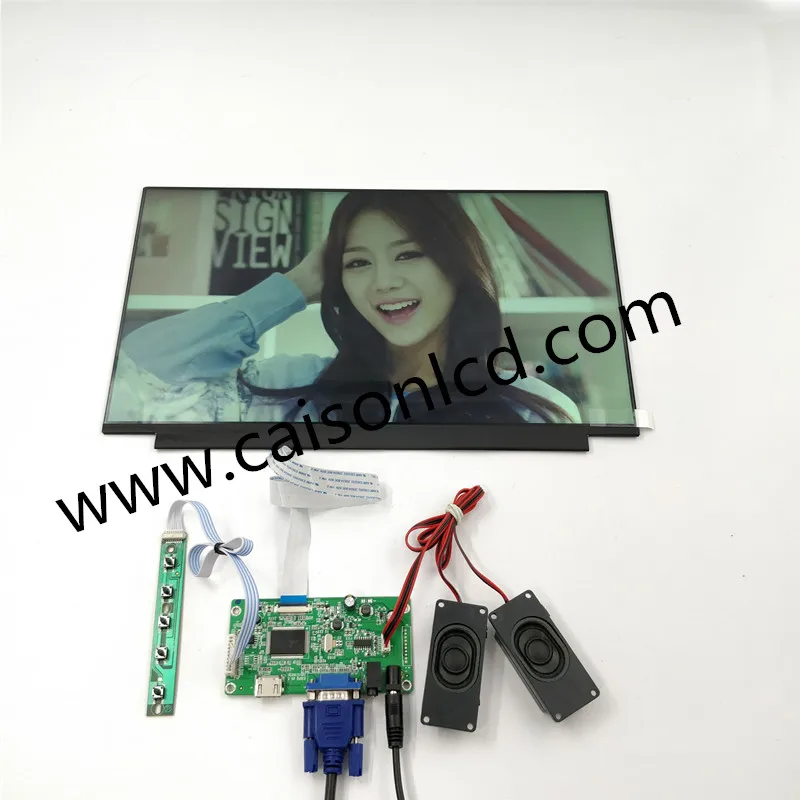

EDP ЖК дисплей Поддержка плата контроллера 15 6 дюймов ЖК-панель с 1920*1080300 станд. DIY inch

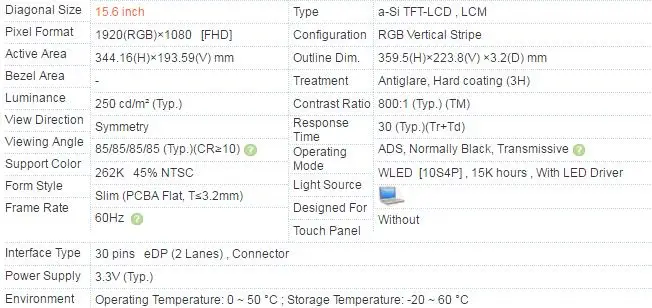

1*15.6 inch LCD panel

1* LCD controller board

1*OSD keypad with cable

1*LVDS cable

1*Speaker

Main chip

RTD2556-CG

Support signal

PC

Maximum supported resolution

1920*1200

Color

32bit

Line synchronization range

31.5-94.038KHz

Field sync range

60-75Hz

Interface

Input

VGA

Analog RGB (0.7Vp-p), line separation synchronization signal

Input

(T.M.D.S) digital signal

Input

Audio

Analog audio signal input (1.0Vp-p)

Output

PANEL interface

0.5mm pitch 30PIN flip-up FFC connector

Output

Headphone audio output

(optional)

power supply

Input power

12V DC

Screen voltage

3.3V/5V/12V optional

Power operation

Normal operating mode, low power mode

Motherboard standby power consumption

<0.3W

OSD menu

Brightness, contrast, auto correction, phase, clock, line position, function settings, reset

Wait

OSD language

Chinese, English, etc.

Button

POWER, LEFT, RIGHT, AUTO, MENU, UP, DOWN 7 keys (

Change to 5 or 6 via software according to customer requirements
