Automatic Packaging Machine for Instant Noodles Cakes Horizontal Flow Pillow Pack Multipack Packing Sealing
- Категории: Упаковочный станок >>>
- Поставщик: Qingdao,Bostar,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

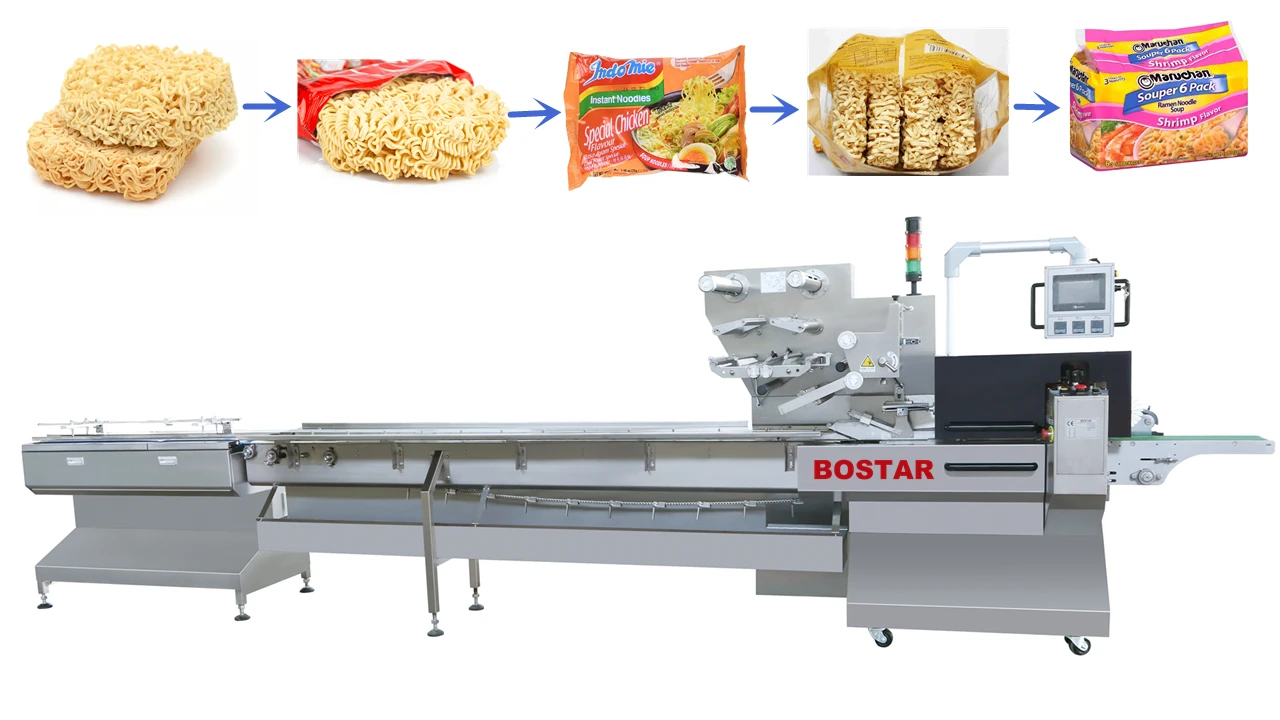

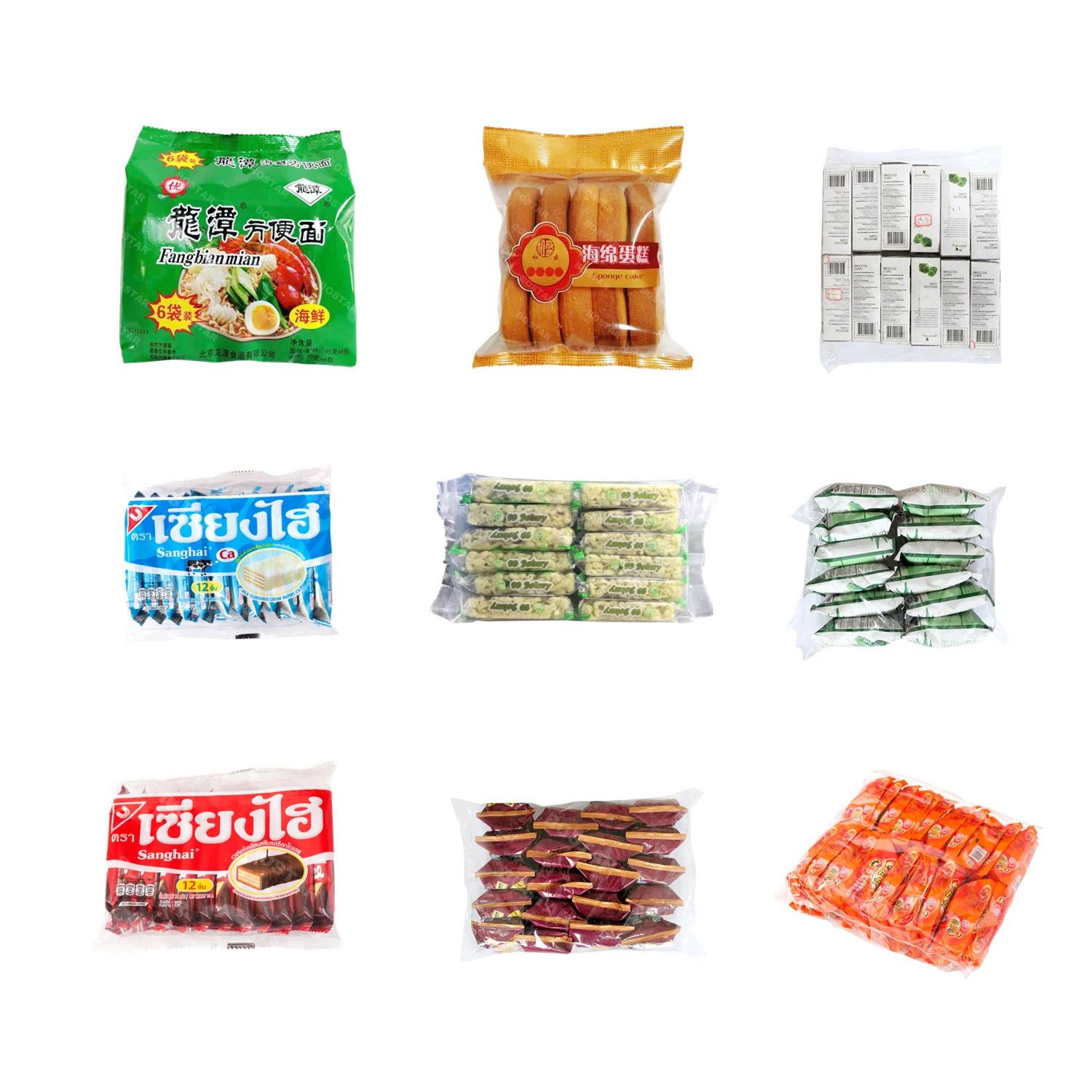

Product Application of Instant Noodle Packing Machine

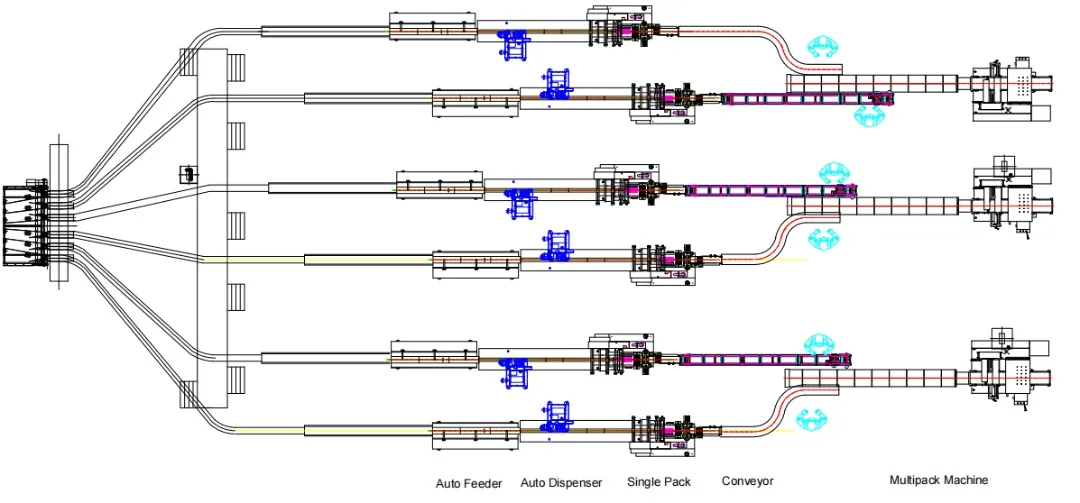

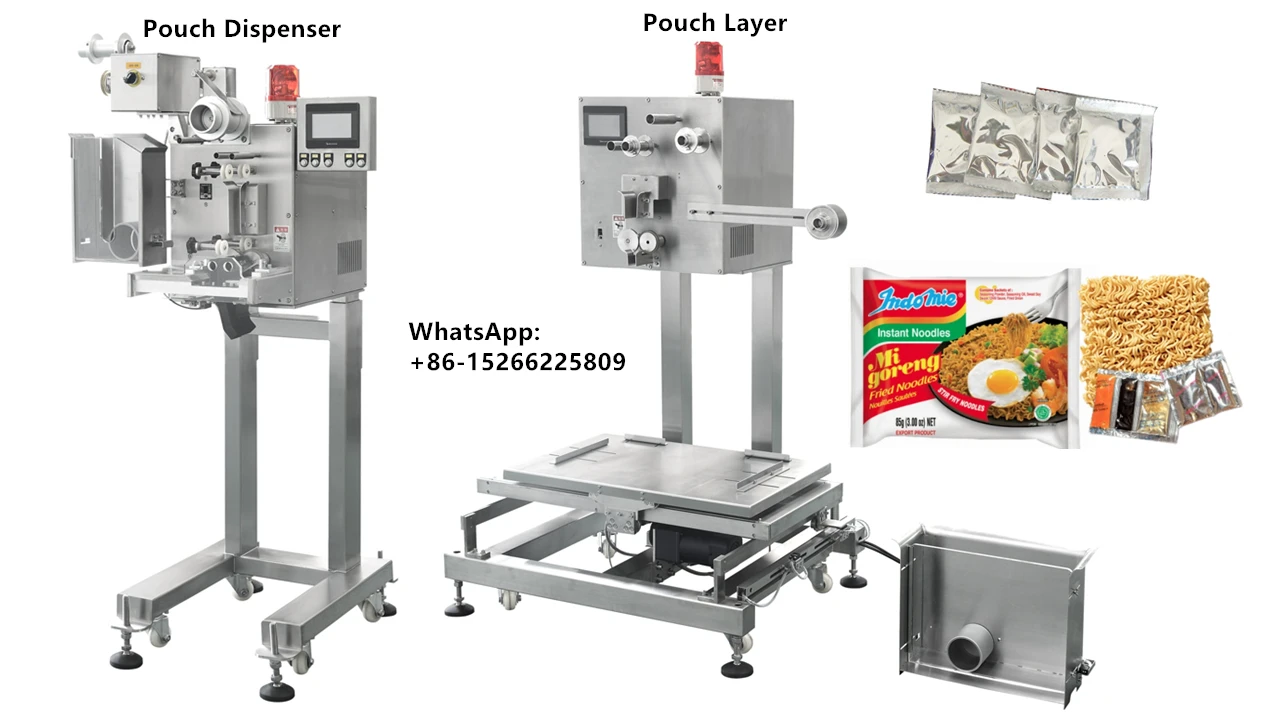

Speed： instant noodle 200 bags per minute of each set machine with seasoning bags Auto dispenser for seasoning flavor bags Full
Automatic No Manual
Automatic No Manual
Model | BOSS450/120-S | BOSW720 |

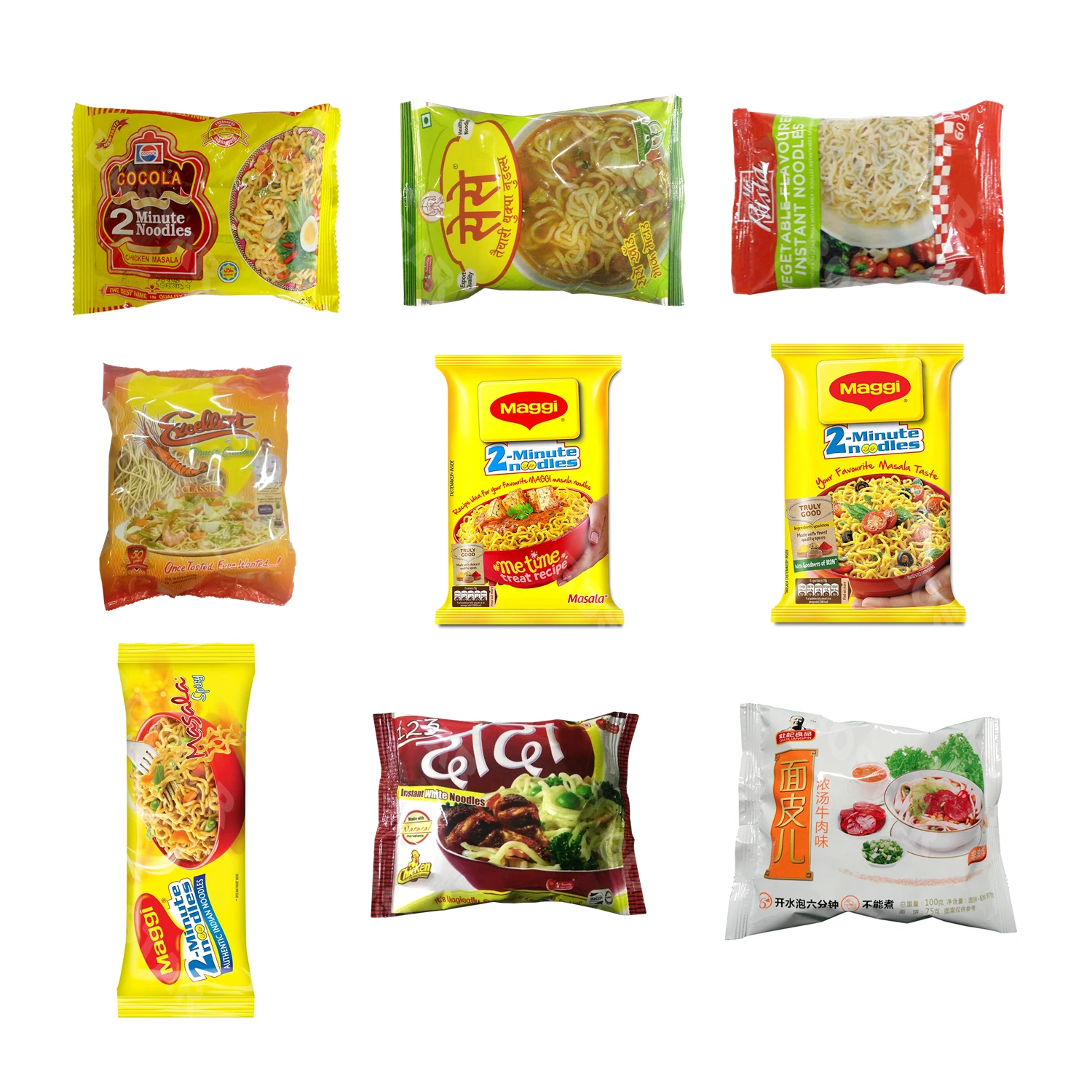

Pack Products | Single bag noodle | Bag noodle 5 in 1 multipack |
Packing film size (mm) | Max450 | Max720 |
Packing speed (packs/min) | 20-80 | 20-80 |
Package length (mm) | 150-600 | 180-600 |
Product width (mm) | 40-220 | 40-320 |
Product height (mm) | 5-150 | 5-150 |
Power (kw) | 4.5 | 4.5 |
Dimension L*W*H (mm) | 6300*1300*1900 | 6300*1400*1900 |
Wight (Kg) | 1300 | 1500 |
Power supply | 220V 50HZ | 220V 50HZ |
Main Features of Automatic Instant Noodle Packaging
* Three servo motors driven;
* Three servo motors driven;
* Human machine interface, PLC program controlled;
* Photo cell sensor, auto tracking for cutting position;
* Film holder with auto centering device
* Security protactive measures reach EU CE certificate
* Cantilevered touch screen
* Adjustable bag former, alarm device for emergency stop,
* Misplaced item stop device
Auto Feeder for Instant Noodle packaging:
* Auto arranging products, with functions No product No pack, speed up and down automatically.
* Four belts make a high speed; independent control; input controlled by servo motor.
* Independent PLC controlled.
* Independent Touch screen controlled makes the data easy to input and adjust.
* Independent Touch screen controlled makes the data easy to input and adjust.
* Three Panasonic Servo motor controlled Bag noodle
Main Features of bag noodle 5 in 1:
* Human machine interface, PLC program
* Three servo motor driven, no product no pack.
* Photo cell sensor, auto tracking the cutting position precisely
* Security protective measures reach EU CE certificate
* Box motion type end sealer with hermetic sealing
* 10 receipes, keep up to 10 products data memory
* Cantilevered touch screen
* Adjustable bag former
* Gusset Fold device
* Alarm device for emergency stop
* MIS (Misplaced Item Skip) device
* Resetting end sealer cutter quickly by manual handle while cutting products
* Human machine interface, PLC program
* Three servo motor driven, no product no pack.
* Photo cell sensor, auto tracking the cutting position precisely
* Security protective measures reach EU CE certificate
* Box motion type end sealer with hermetic sealing
* 10 receipes, keep up to 10 products data memory
* Cantilevered touch screen
* Adjustable bag former
* Gusset Fold device
* Alarm device for emergency stop
* MIS (Misplaced Item Skip) device
* Resetting end sealer cutter quickly by manual handle while cutting products
Note: We can customize the suitable one for you according to your requiredment
Just Tell us: Product Size (Length, width, height) required

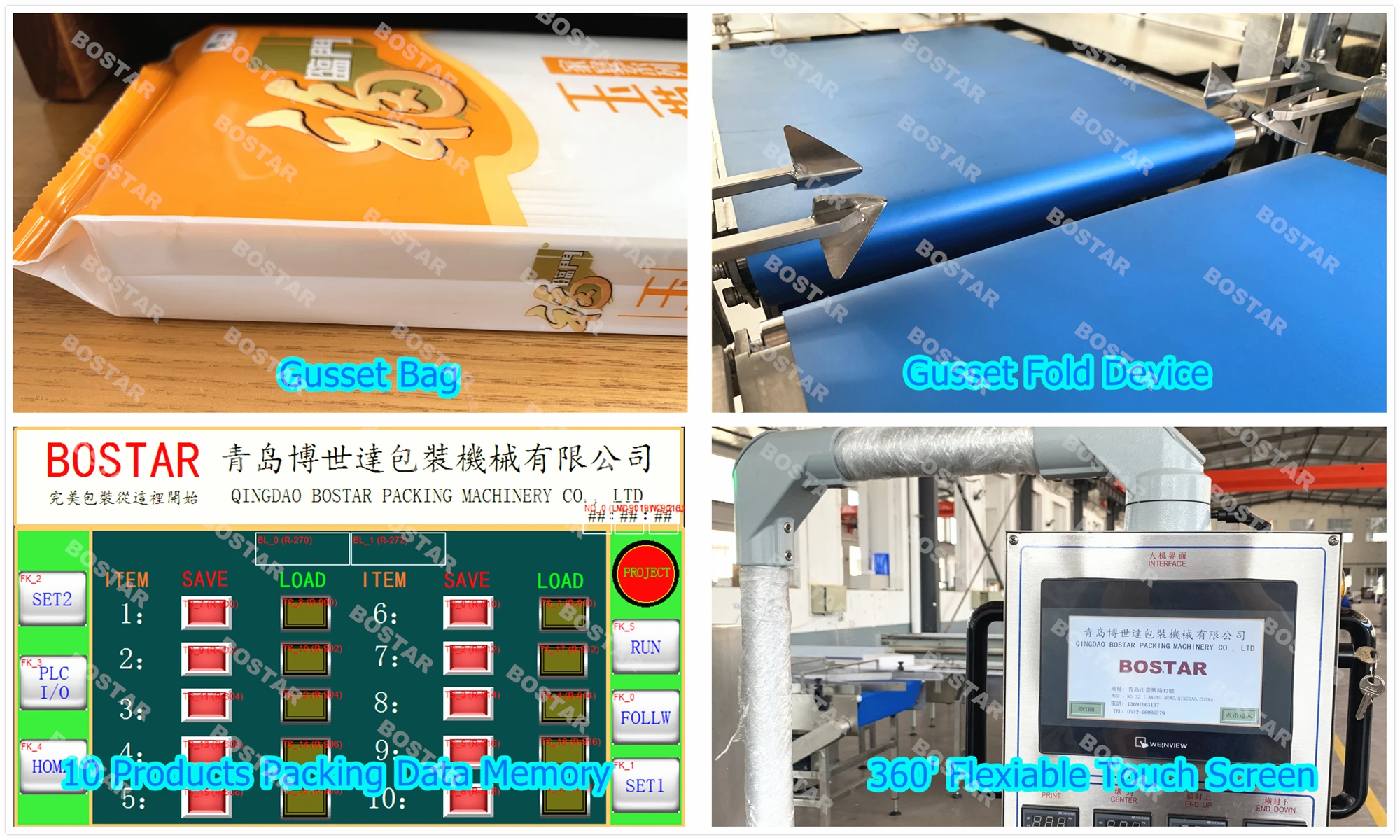

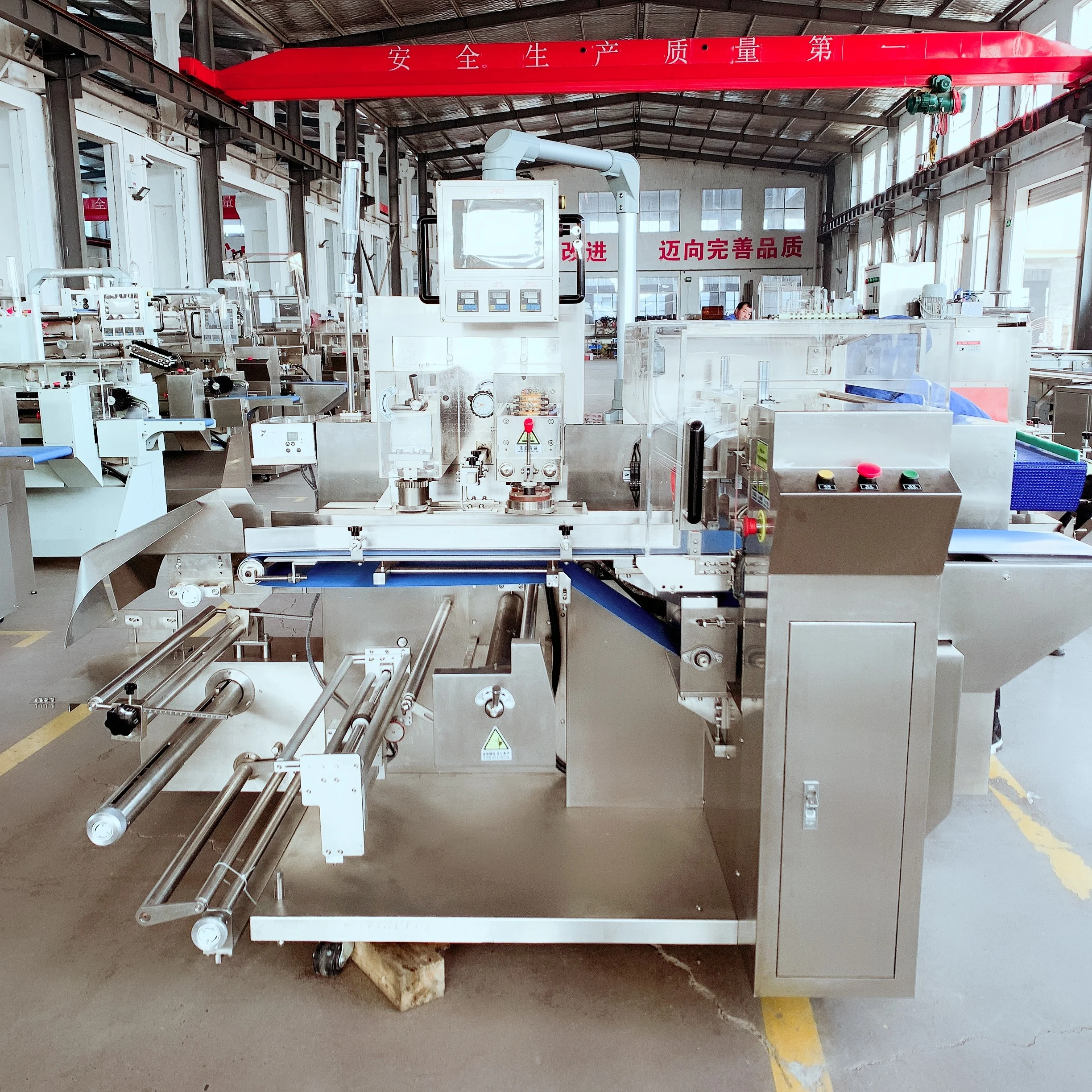

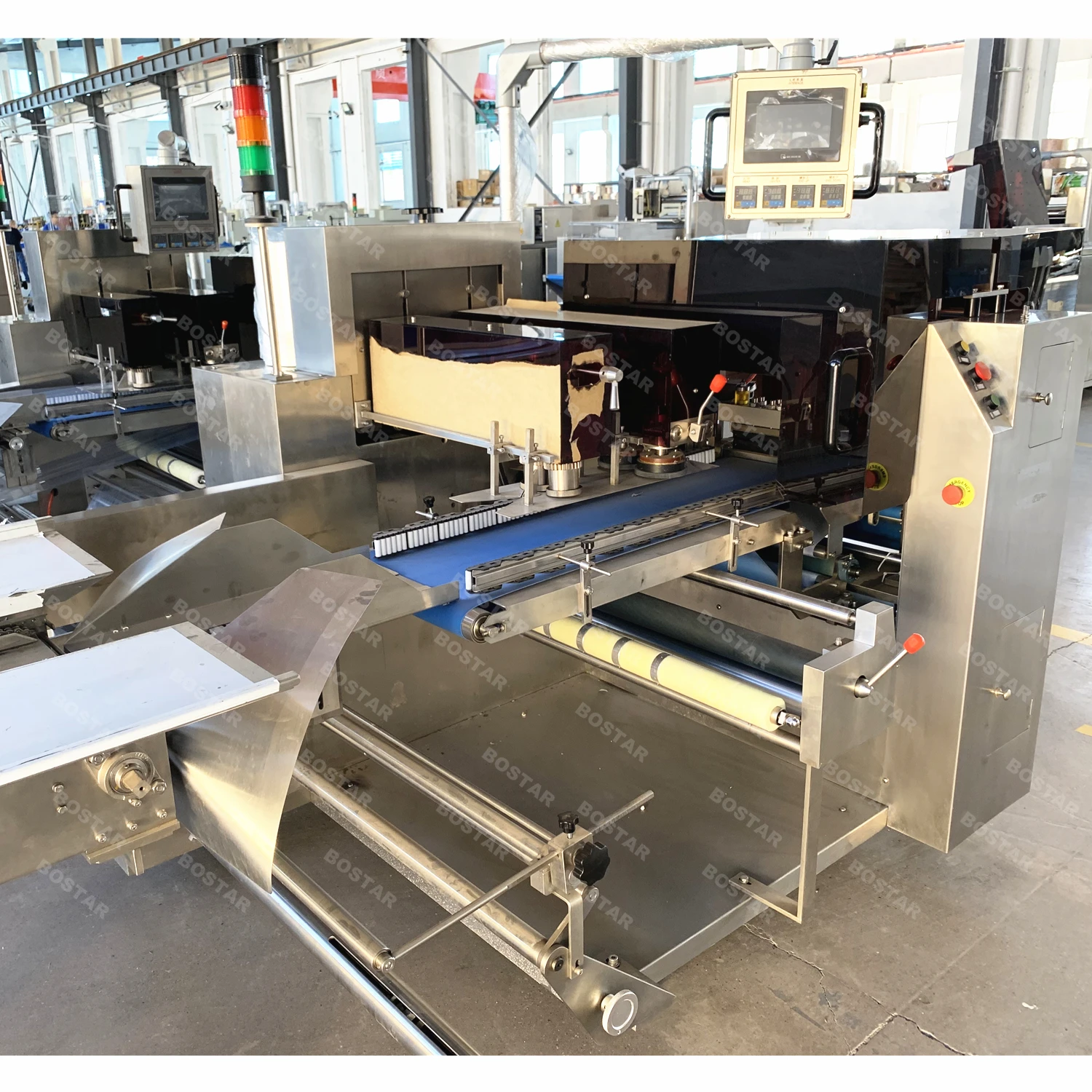

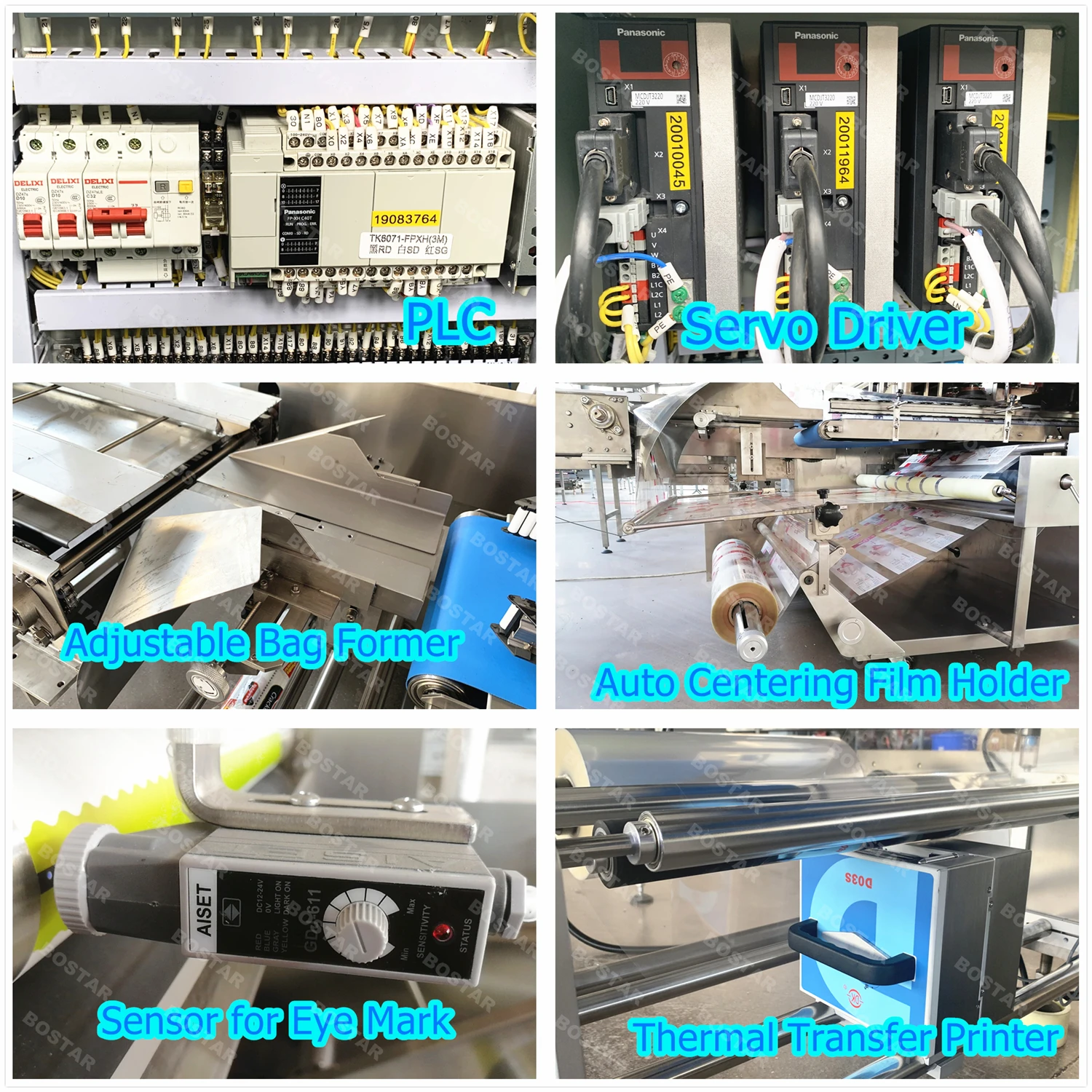

Detailed Images

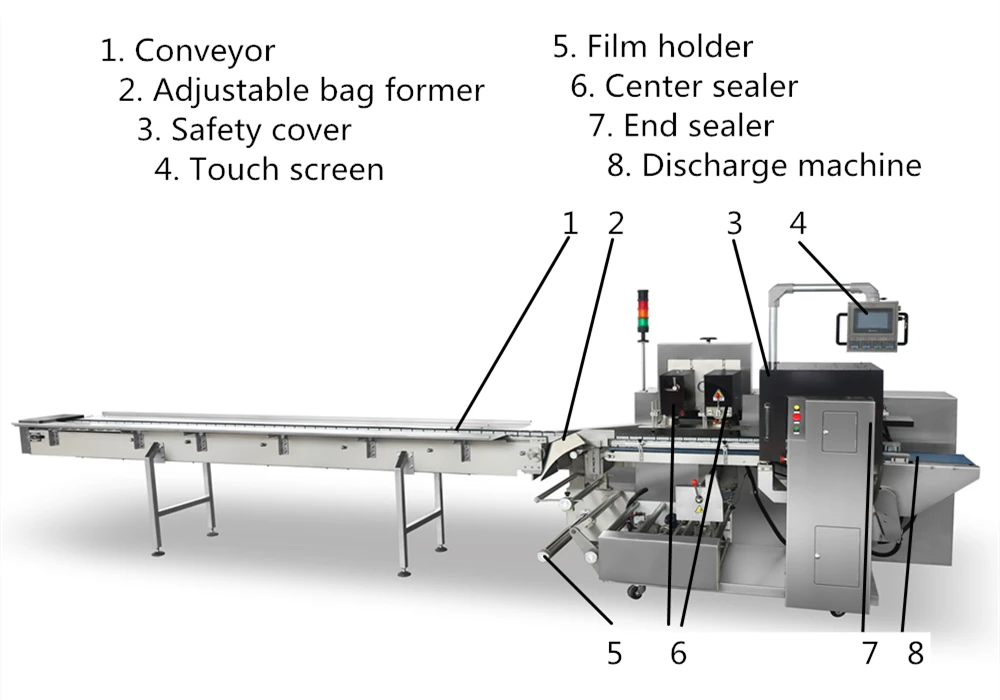

Main Features:
* Three servo motor control
* Human machine interface, PLC program
* Keep up 10 products packing data in touch screen.
* Gusset device
* Film Holder with auto centering device* Adjustble Bag former
* Box Motion type end sealer with hermetic sealing
* Bottom Film Feeding
* Three servo motor control
* Human machine interface, PLC program
* Keep up 10 products packing data in touch screen.
* Gusset device
* Film Holder with auto centering device* Adjustble Bag former
* Box Motion type end sealer with hermetic sealing
* Bottom Film Feeding

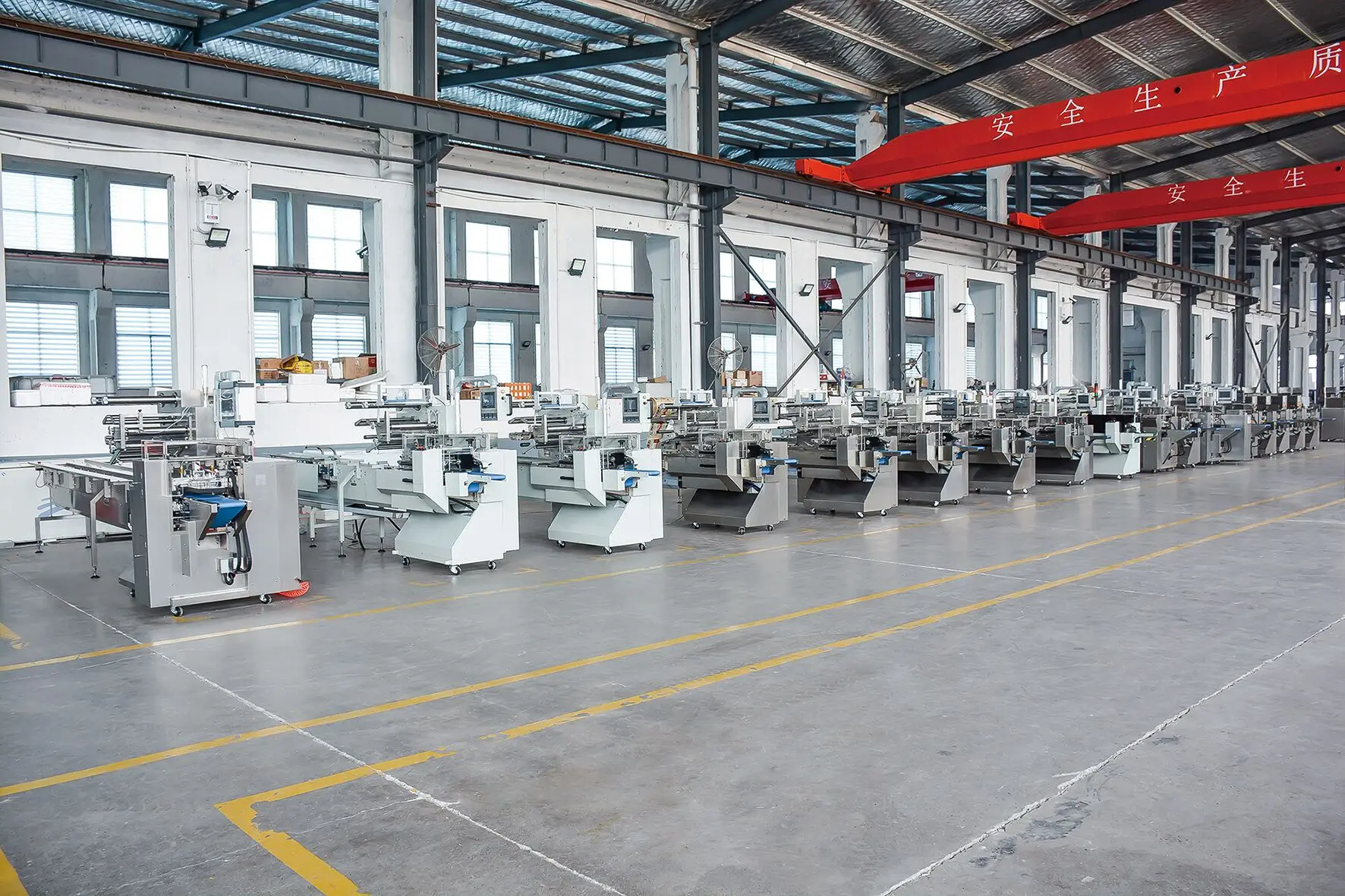

Our Company
World-Wide Customer

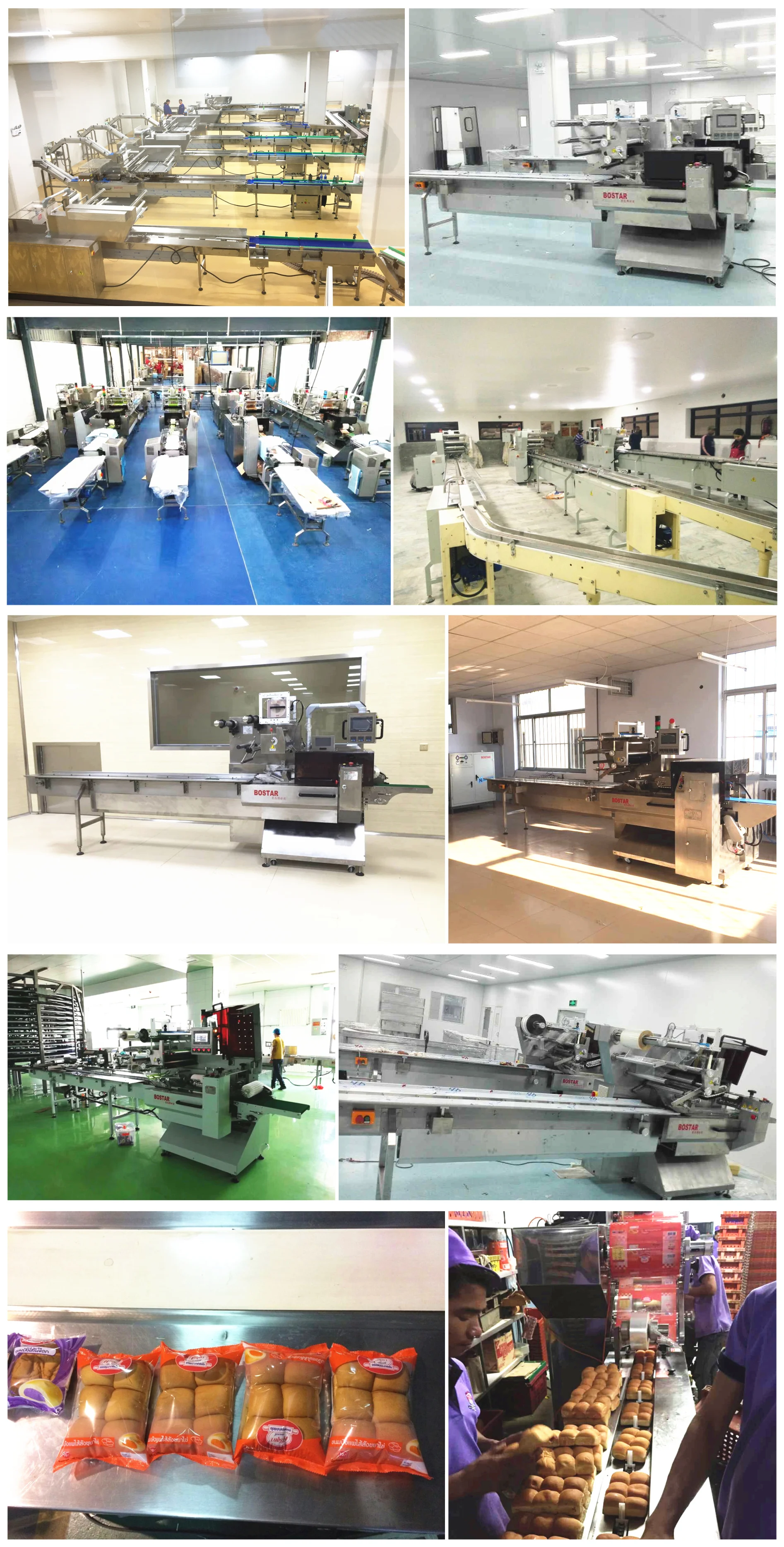

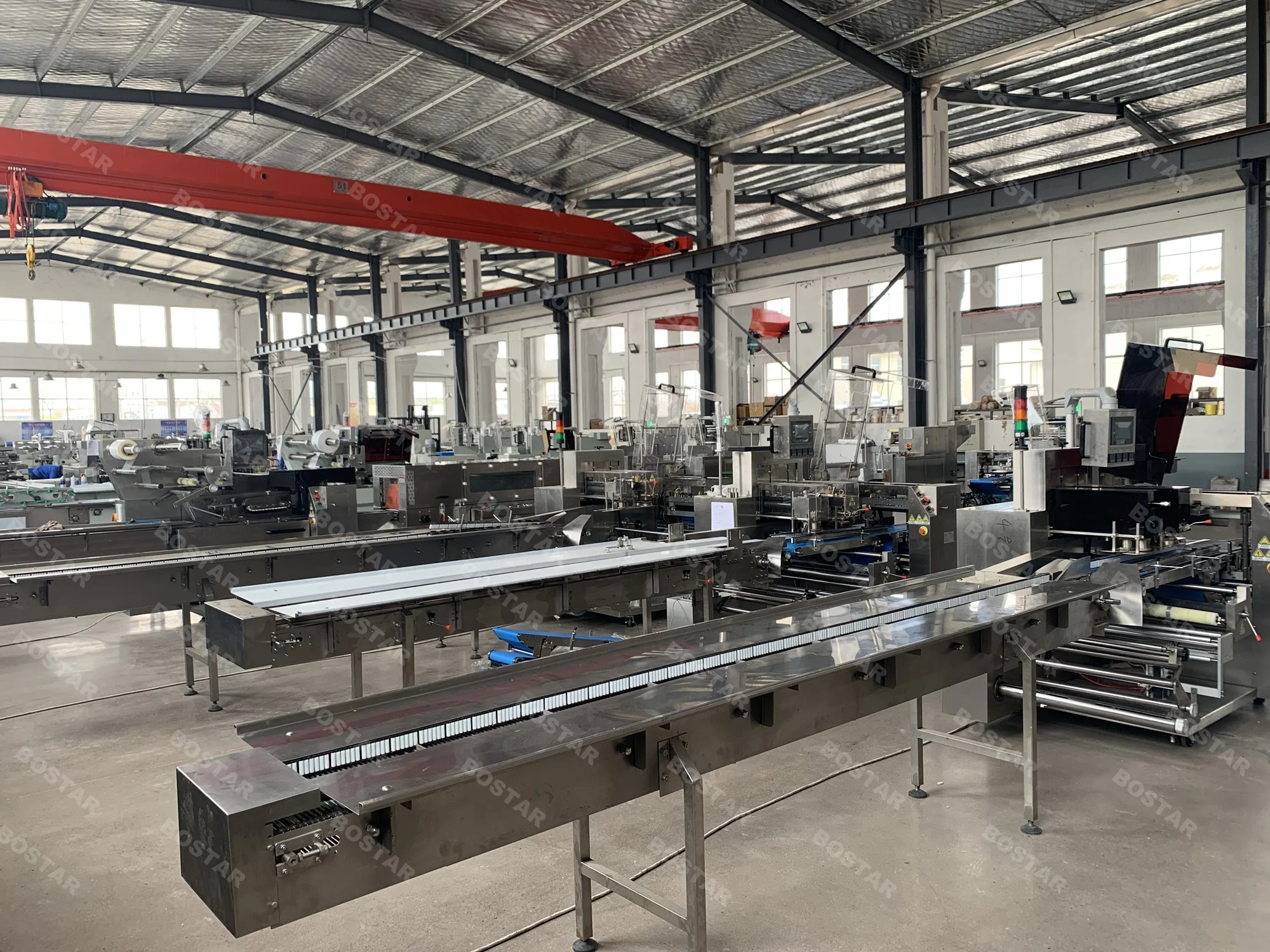

Customer Factory
Our Service

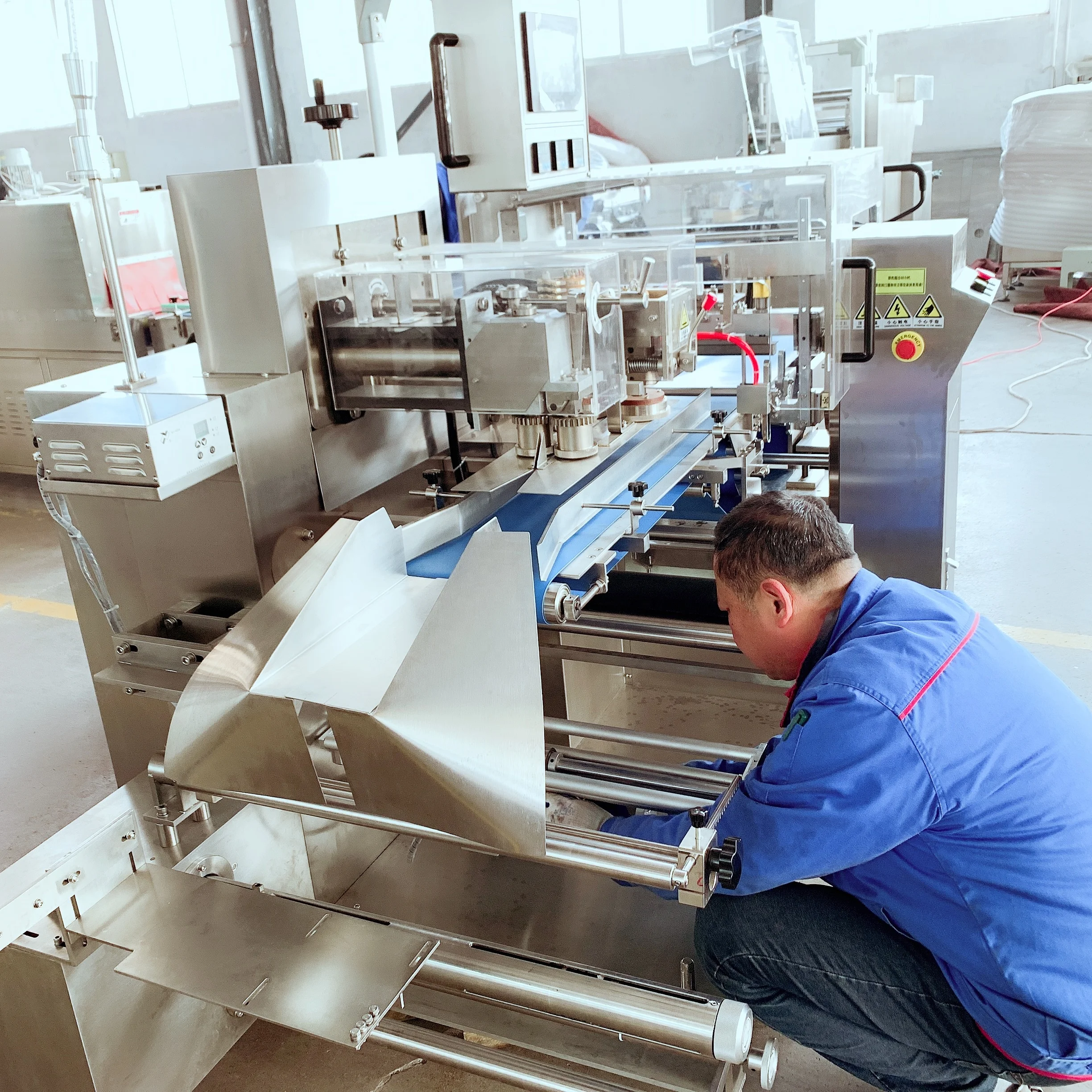

Machine Testing Before Delievery
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visiting our Factory.
Machine Testing Before Delievery
* Testing and running before machines delievery to make sure all parts and function are perfect.
After-Sales Service for Noodle Packing Machine
* Training how to instal the Noodle Packing Machine, training how to use the Noodle Packing Machine.
* Engineers available to service Noodle Packing Machine overseas.
Certifications

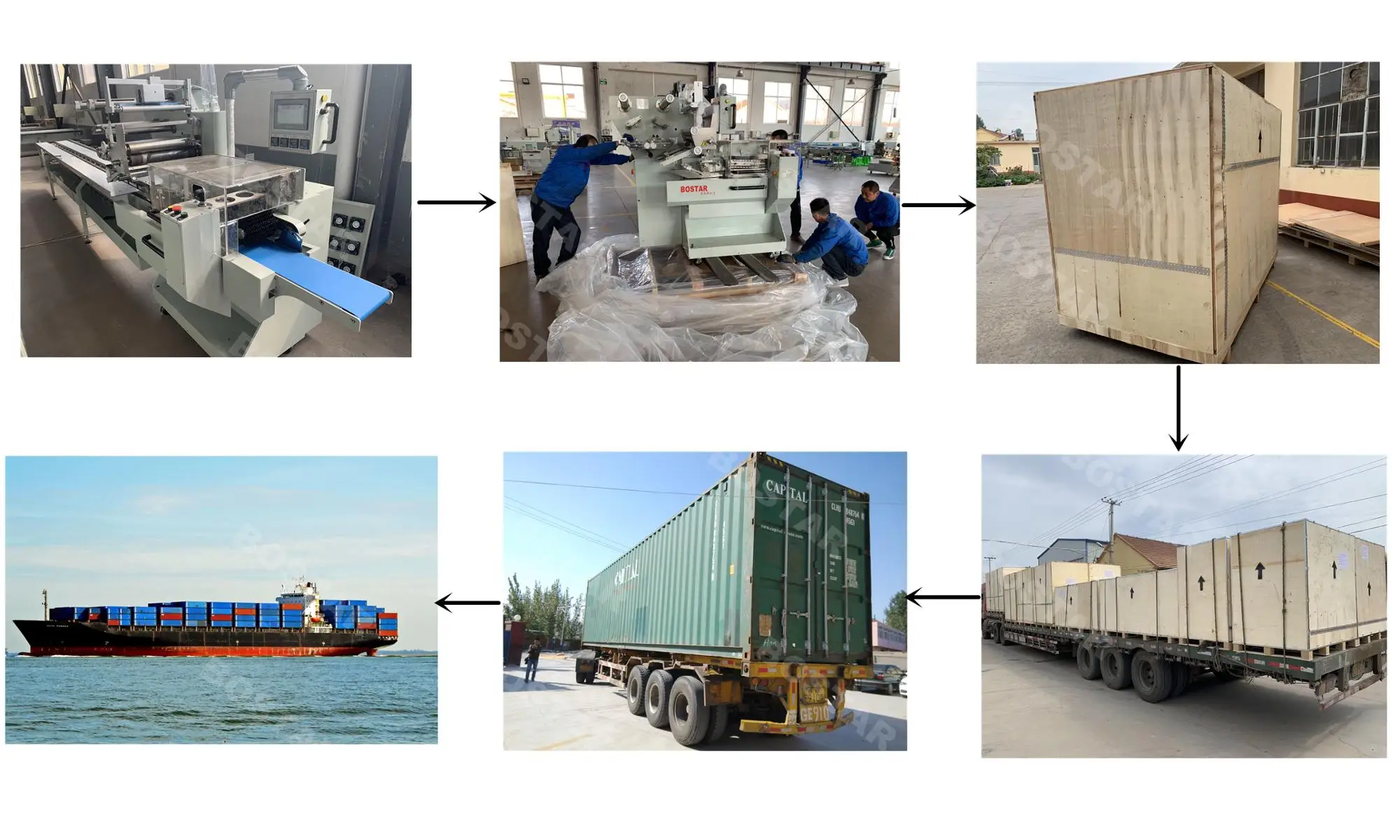

Packing & Delivery
