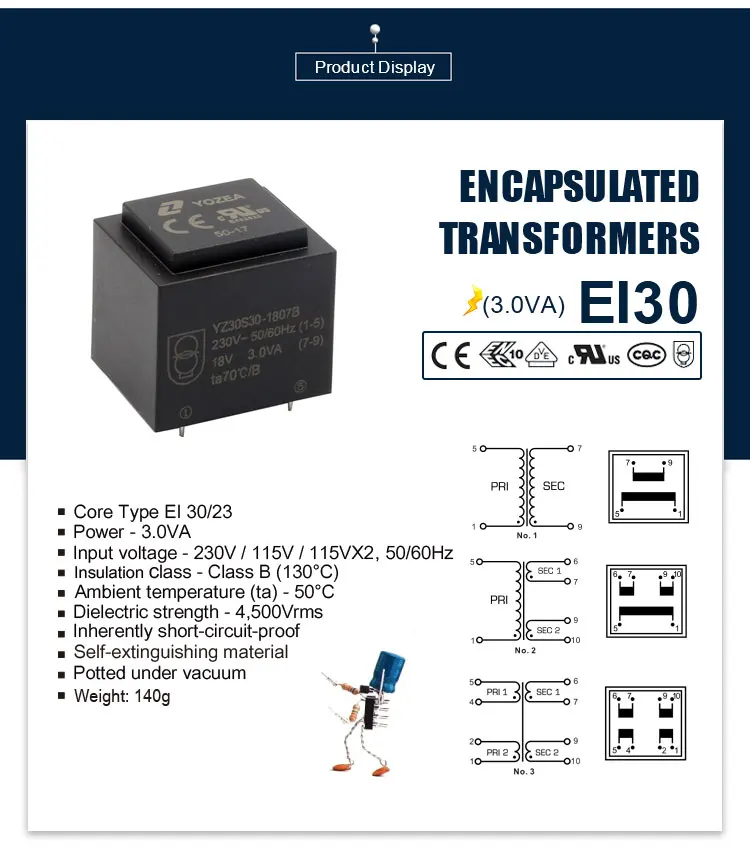

Трансформатор питания переменного тока EI3023 3 Вт 230 В 110 19 в 5 12

Описание и отзывы

Характеристики

Designed and manufactured according regulations EN61558 EN61000

Vacuum sealed

Safety transformer class II

Short-circuit-protected

Self-extinguishing plastic Isolation: Prim./Sec. = 10 MOhm to 500 Vcc - Sec./Sec. = 2 MOhm to 500 Vcc

Dielectric strength Prim. / Sec. = 4.5kV / 1min.

Full testing of all electrical parameters during production

Reliability tests for production batch (life term)

Certifications VDE

How to get quotation:

In order to get exact quotation ,Please advise these specifications:

Input/output voltage
Output current or power
Working frequency
MAX dimension of transformer
Application



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cardboard tray and brown carton, then put carton in the pallet.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We could send inspection report for our approval before shipping
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 15days agasint down payment.

Q5. Can you produce according to the samples?
A: Yes, we can produce customized product according to your specification and drawings.

Q6. What is your sample policy?
A: Free sample avaibale, but customer need pay for shipping cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have three times 100% test during production
