LAS25 KLZ linear slide guide bearing LAS25KLZ
Drawing
Specification
Item | H | E | W2 | W | BxJ | L | L1 | J1 | K | T | QxI |
LAS15 KL | 24 | 4.6 | 18.5 | 52 | 41x26 | 40.4 | 23.6 | 11.8 | 19.4 | 8 | 4.5x7 |
LAS15 FL | 24 | 4.6 | 18.5 | 52 | 41x26 | 56.8 | 40 | 7 | 19.4 | 8 | 4.5x7 |
LAS15 EL | 24 | 4.6 | 18.5 | 52 | 41x26 | 56.8 | 40 | 7 | 19.4 | 8 | |
LAS20 KL | 28 | 6 | 19.5 | 59 | 49x32 | 47.2 | 30 | 15 | 22 | 10 | 5.5x9 |
LAS20 FL | 28 | 6 | 19.5 | 59 | 49x32 | 65.2 | 48 | 8 | 22 | 10 | 5.5x9 |
LAS20 EL | 28 | 6 | 19.5 | 59 | 49x32 | 65.2 | 48 | 8 | 22 | 10 | |
LAS25 KL | 33 | 7 | 25.5 | 73 | 60x35 | 59.6 | 38 | 19.5 | 26 | 11 | 7x10 |
LAS25 FL | 33 | 7 | 25.5 | 73 | 60x35 | 81.6 | 60 | 12.5 | 26 | 11 | 7x10 |
LAS25 EL | 33 | 7 | 25.5 | 73 | 60x35 | 81.6 | 60 | 12.5 | 26 | 11 | |
LAS30 KL | 42 | 9.5 | 31 | 90 | 72x40 | 67.4 | 42 | 21.5 | 33.5 | 11 | 9x12 |
LAS30 FL | 42 | 9.5 | 31 | 90 | 72x40 | 96.4 | 71 | 15.5 | 33.5 | 11 | 9x12 |
LAS30 EL | 42 | 9.5 | 31 | 90 | 72x40 | 96.4 | 71 | 15.5 | 33.5 | 11 | |
LAS35 KL | 48 | 10.5 | 33 | 100 | 80x50 | 77.4 | 49 | 24.5 | 37.5 | 12 | 9x13 |
LAS35 FL | 48 | 10.5 | 33 | 100 | 82x50 | 108 | 80 | 15 | 37.5 | 12 | 9x13 |
LAS35 EL | 48 | 10.5 | 33 | 100 | 82x50 | 108 | 80 | 15 | 37.5 | 12 | |
LAS15 KLZ | 24 | 4.6 | 18.5 | 52 | 41x26 | 40.4 | 23.6 | 11.8 | 19.4 | 8 | 4.5x7 |
LAS15 FLZ | 24 | 4.6 | 18.5 | 52 | 41x26 | 56.8 | 40 | 7 | 19.4 | 8 | 4.5x7 |
LAS15 ELZ | 24 | 4.6 | 18.5 | 52 | 41x26 | 56.8 | 40 | 7 | 19.4 | 8 | |
LAS20 KLZ | 28 | 6 | 19.5 | 59 | 49x32 | 47.2 | 30 | 15 | 22 | 10 | 5.5x9 |
LAS20 FLZ | 28 | 6 | 19.5 | 59 | 49x32 | 65.2 | 48 | 8 | 22 | 10 | 5.5x9 |
LAS20 ELZ | 28 | 6 | 19.5 | 59 | 49x32 | 65.2 | 48 | 8 | 22 | 10 | |
LAS25 KLZ | 33 | 7 | 25.5 | 73 | 60x35 | 59.6 | 38 | 19.5 | 26 | 11 | 7x10 |
LAS25 FLZ | 33 | 7 | 25.5 | 73 | 60x35 | 81.6 | 60 | 12.5 | 26 | 11 | 7x10 |
LAS25 ELZ | 33 | 7 | 25.5 | 73 | 60x35 | 81.6 | 60 | 12.5 | 26 | 11 | |
LAS30 KLZ | 42 | 9.5 | 31 | 90 | 72x40 | 67.4 | 42 | 21.5 | 33.5 | 11 | 9x12 |
LAS30 FLZ | 42 | 9.5 | 31 | 90 | 72x40 | 96.4 | 71 | 15.5 | 33.5 | 11 | 9x12 |
LAS30 ELZ | 42 | 9.5 | 31 | 90 | 72x40 | 96.4 | 71 | 15.5 | 33.5 | 11 | |
LAS35 KLZ | 48 | 10.5 | 33 | 100 | 80x50 | 77.4 | 49 | 24.5 | 37.5 | 12 | 9x13 |
LAS35 FLZ | 48 | 10.5 | 33 | 100 | 82x50 | 108 | 80 | 15 | 37.5 | 12 | 9x13 |
LAS35 ELZ | 48 | 10.5 | 33 | 100 | 82x50 | 108 | 80 | 15 | 37.5 | 12 |

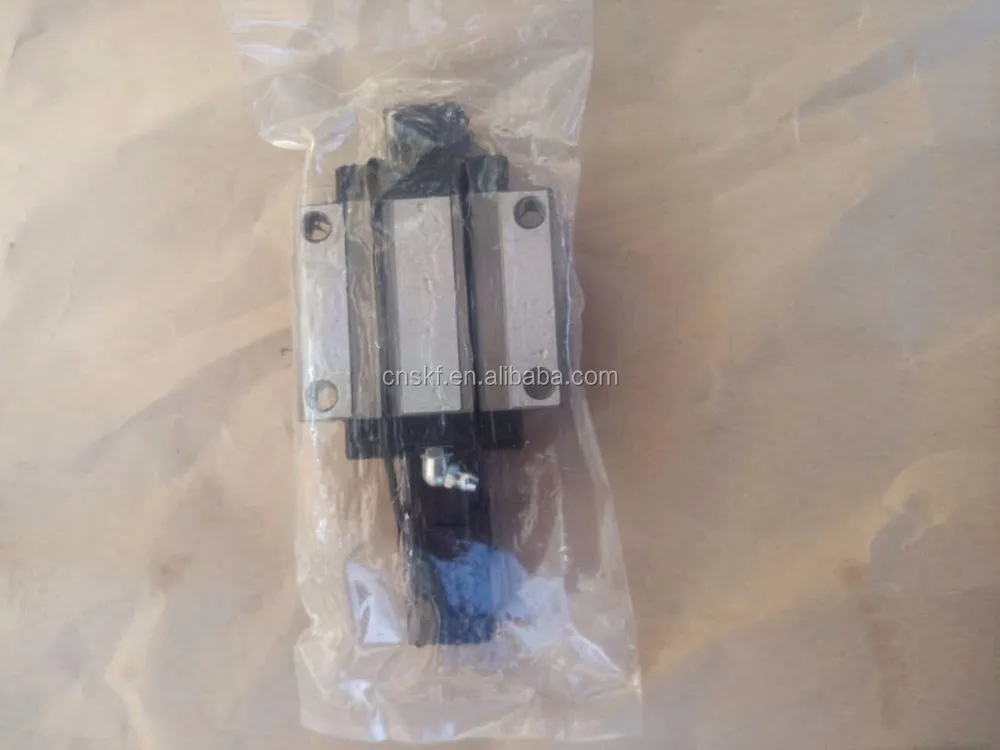

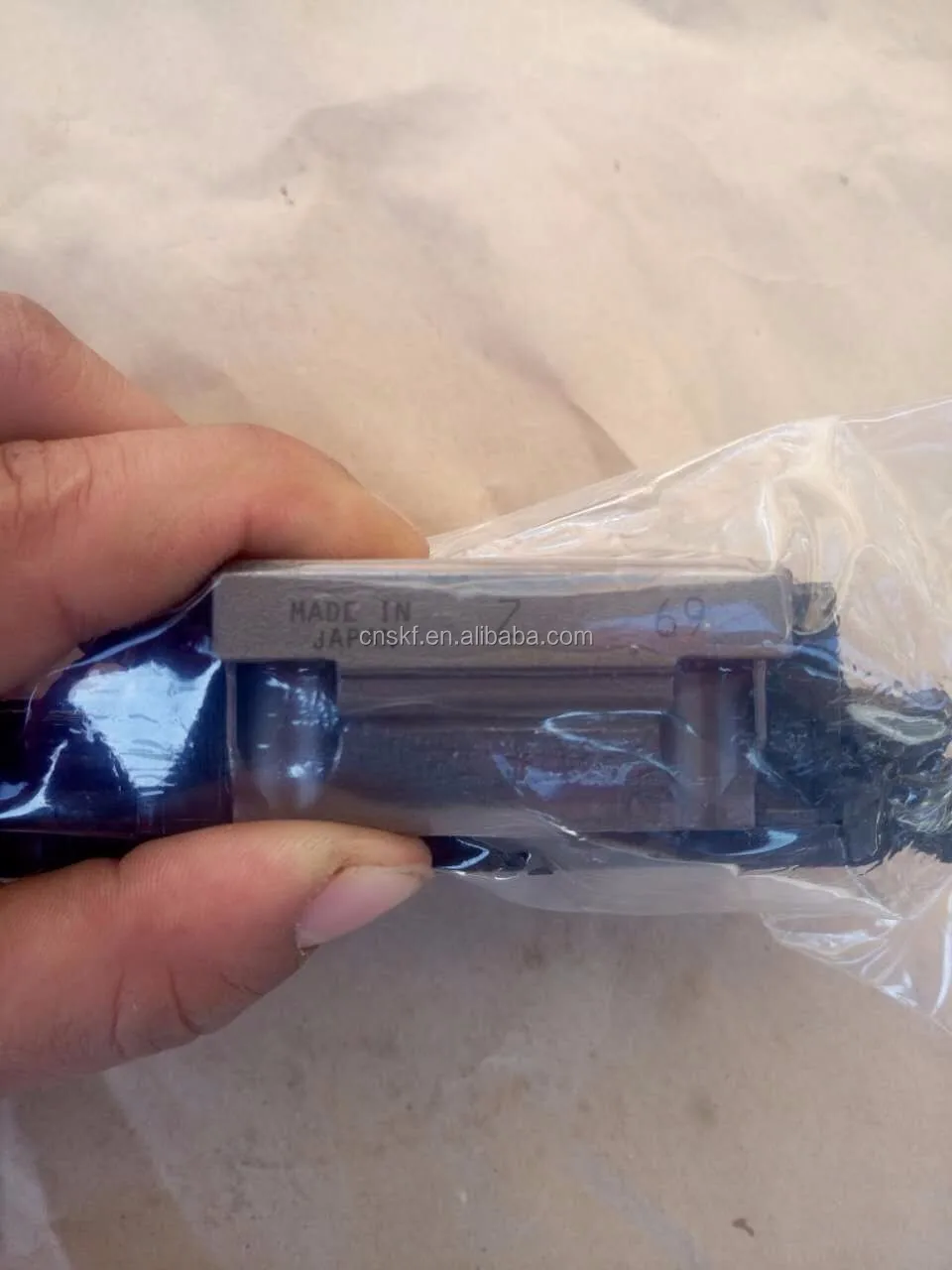

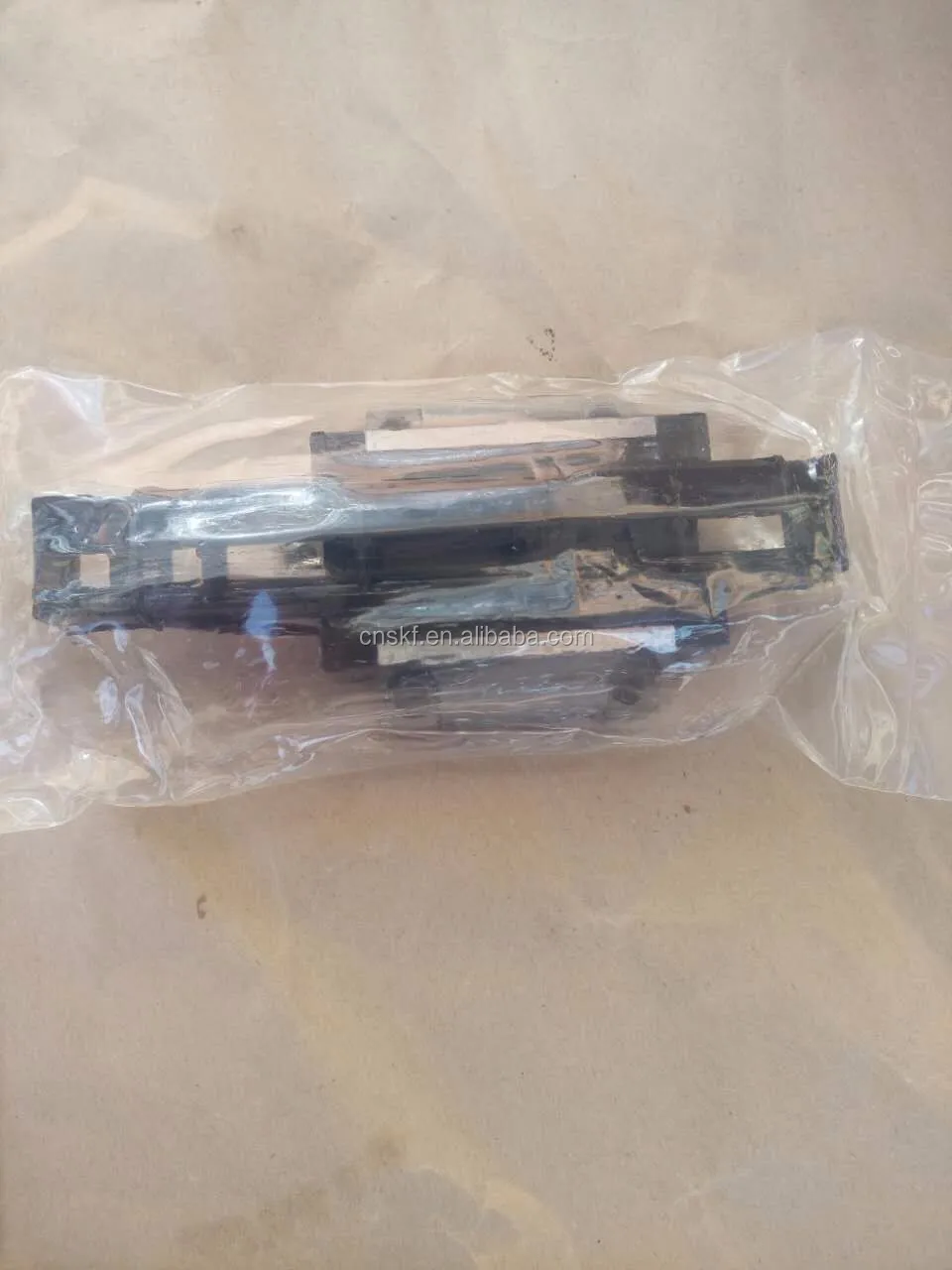

Pictures
Anhui KaiFu Bearing Import&Export Co., Ltd.Specializing in the production of bearings stainless steel and so on. Products of high quality, fashionable, widely use.We have plentif experiance in doing business with different countries.Both our company and products enjoy a good reputation from home and abroad.With so many talented workers here, we sincerely hope to have a cooperation with you in the future.
Welcome to visit our company !
1. OEM service . We can design and produce it based on your requirment.
2. The different package can be choose.
3. 12 months warranty after shippment.
4. Long life maintenance service for the products.
5. 24 hours 7 days online-service.
For Shipment
We can ship the goods for you by following ways:
1. By Express: DHL, FEDEX, UPS, TNT, ARAMEX, SF EXPRESS and China Post, China Small Package and so on.
2. By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Urumqi, Beijing.
3. By Sea: We can offer you FOB Ningbo, FOB Shanghai, FOB Shenzhen, FOB Urumqi, FOB XiaMen, FOB Beijing.
4. We also can send to your forwarder or agent in China, who can arrange shipment for you.
For Payment
We accept 30% payment in advance, the balance payment before shipping.
We also accept L/C according to the order amount.
We can accept the payment by T/T, Western Union, Paypal, Private Account, Escrow, Cash.
Welcome to contact us and visit our factory !
