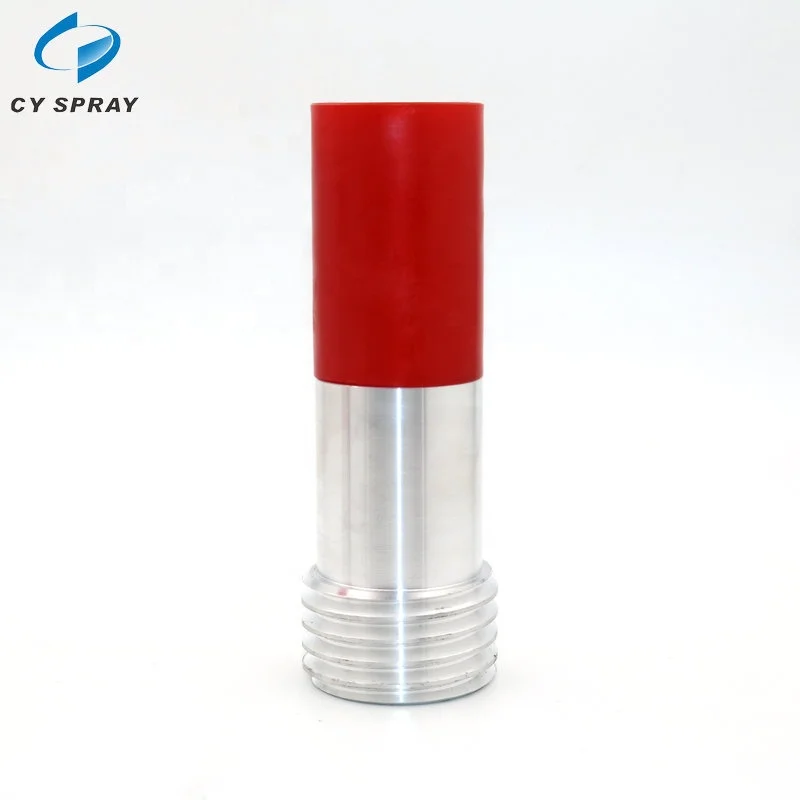

Sand blasting machines tungsten carbide inserts nozzle pressure washer extension
Specification:
Density> =2.48g/cm3;
Hardness> =3500kgf/sqm, bending resistance: ≥ 400Mpa
Melting point: 2450degree
Woking conditions:High temperature, high pressure, grinding, acid and alkali
Material :Bore carbide ,Silicon, Tungsten carbide
The size can be customized as per drawing

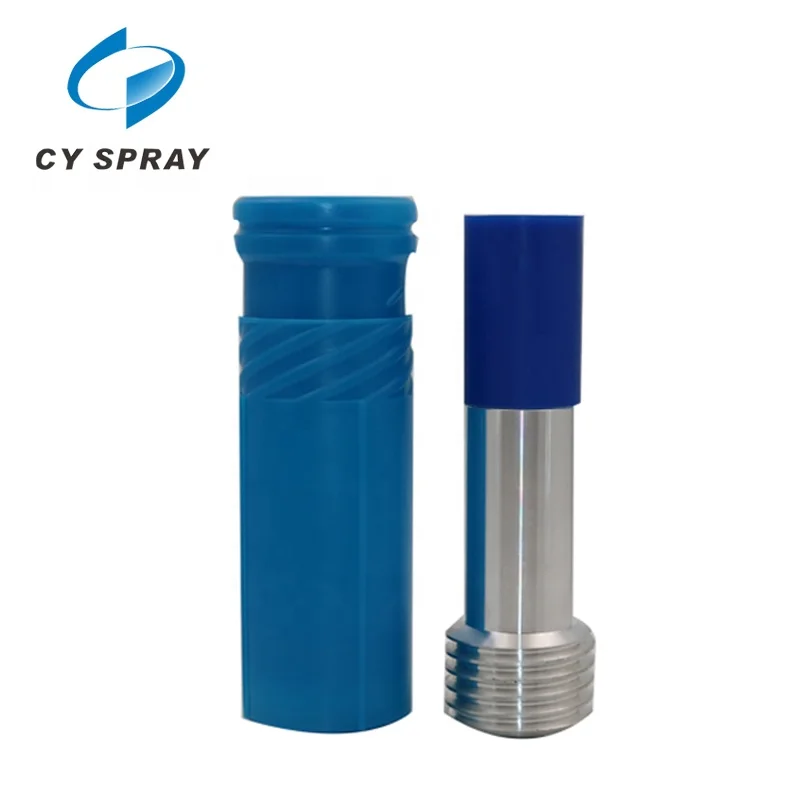

Jacket type: Aluminum,MS,Nylon jackets,Stainless Steel
Approximate Nozzle Service Life in Hours :
Nozzle material | Steel Shot and Grit | Expendable Abrasives | Aluoxide Abrasives |
Alumina | 20-40 | 10-30 | 1-4 |
Tungsten Carbide | 500 - 800 | 300 - 400 | 20-40 |
Silicon carbide | 600-1000 | 400-600 | 50-100 |
Boron Carbide | 1500 - 2500 | 750 - 1500 | 200 -1000 |
parameter:
Part Number | Bore Diameter | Exit | Length |
CY-17830B | 4.8mm | 9mm | 140mm |
CY-17840B | 6.4mm | 10.5mm | 140mm |
CY-17850B | 7.9mm | 12mm | 145mm |
CY-17860B | 9.5mm | 14mm | 170mm |
CY-17870B | 11.1mm | 15mm | 195mm |
CY-17880B | 12.7mm | 17mm | 225mm |
CY-17841B | 4.8mm | 7.5mm | 150mm |
CY-17851B | 6.4mm | 9.5mm | 150mm |
CY-17861B | 7.9mm | 11.1mm | 150mm |
CY-17871B | 9.5mm | 12.7mm | 150mm |
CY-17881B | 12.7mm | 15mm | 150mm |
Note:Customizable
Company profile
Our certificates
Shipping&Payment
FAQ
Q1. What are your terms of payment?
T/T, Paypal,Western Union. We will arrange product after received payment. And we'll show you the photos of the products and packages before shipping.
Q2. How about your delivery time?
A:3 workdays for goods in stock.
B:7-10 workdays for existing model which is without stock.
C:30 to 35 workdays for casting models.
D:The specific delivery time depends on the items and the quantity of your order
Q3. Can you produce according to the samples or can you provide the sample for the quality test?
Yes, we provide OEM service and customized product. We can provide the sample for a quality test before order confirmation and will charge sample cost. But the cost can be refunded after order confirmed when your quantity is more than our MOQ.
Some samples we can provide free of charge ,But should pay the courier cost.
Q4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
