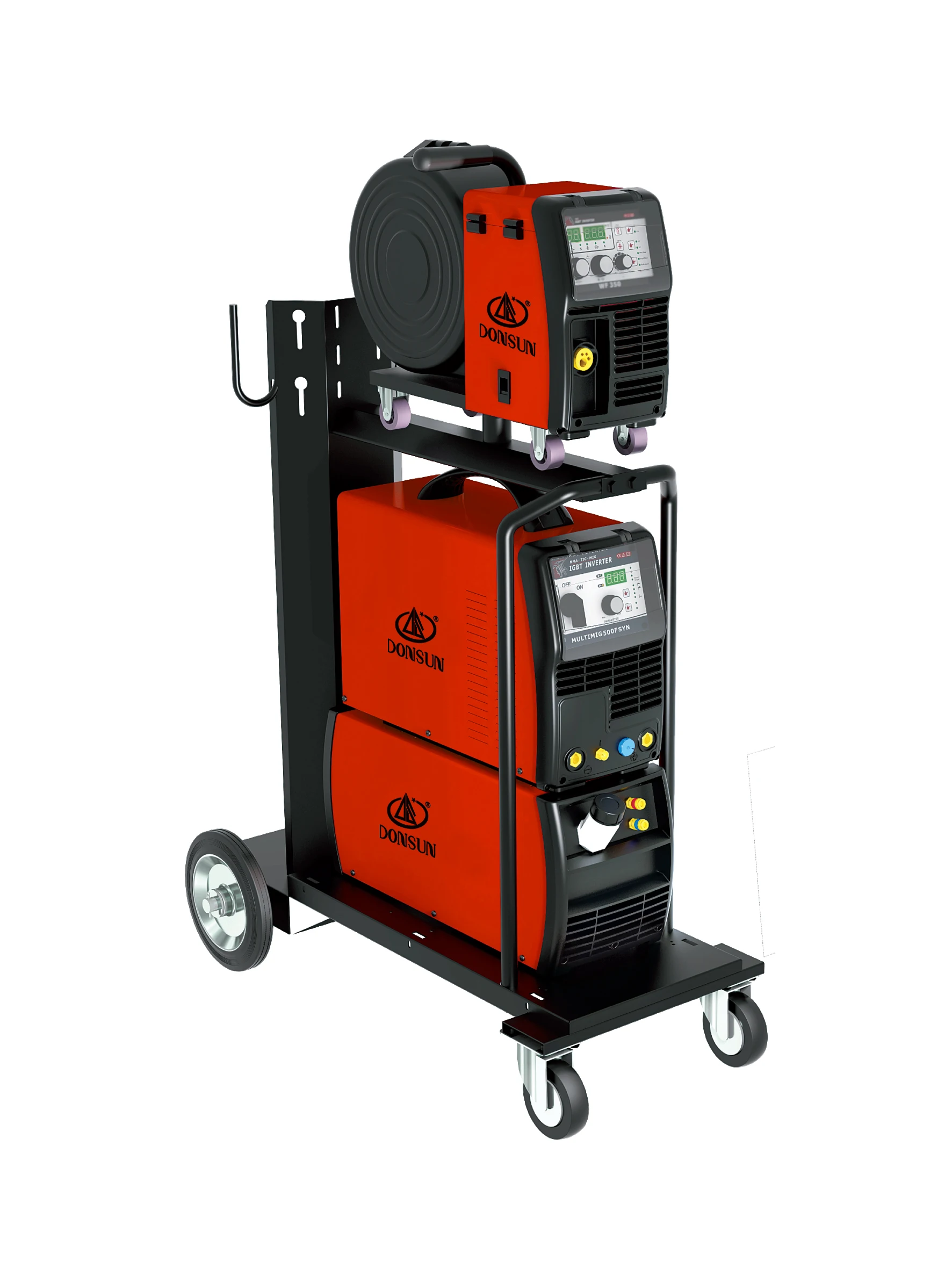

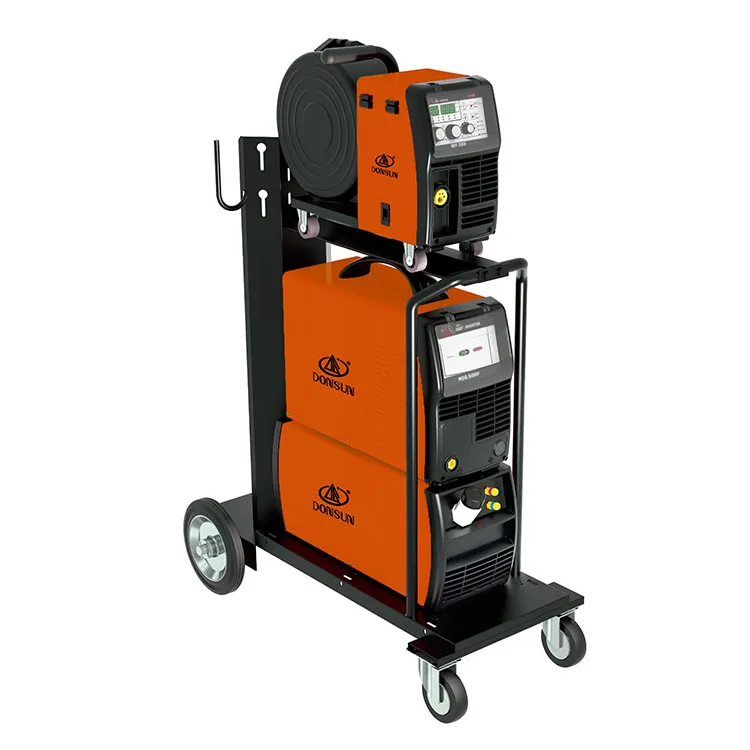

Multimig 500F SYN Промышленное Использование обычной источник питания для сварки Mig

Описание и отзывы

Характеристики

Arc Stability
Waveform control,for added stability of the arc,even at low current.

Digital display
Variable amperage control with digital meter,for a simultaneous welding current and tension display.

Protections
Equipped with temperature,voltage and current sensors for high protection.

Accessories
Optional trolley and water cooling unit.



Model	MULTIMIG 500F SYN
power supply voltage(V)	3~400 ±10%
Fre.(HZ)	50/60
Rated Input Power (KW)	MIG 23   TIG 18   MMA 23
Rated input current(A)	MIG 43   TIG 32   MMA 43
Duty Cycle(40℃ 10Min)	60% 500A
	100% 400A
No Load Voltage(V)	65(MIG)   14.5(MMA/TIG)
Welding Current Range(A)	40~500
Welding Voltage Range(V)	14~50
Wire Diameter(mm)	Fe:0.6/0.9/1.0/1.2/1.6 Ss:0.8/0.9/1.0/1.2/1.6 Flux-Cored:0.6/0.8/9.0/1.0/1.2/1.6
Efficiency	≥85%
Net Weight(Kg)	31.5
Dimensions(mm)	555x240x445
power factor	0.95
Insulation Class	H
Protection Class	IP23
Cooling	AF
