Introduction Of ZB800-6A Automatic Wall Plaster Render Machine For Sale

Wall Plaster Render Machine is a machine that automatically plasters the wall. The wall Plastering machine belongs to the field of construction machinery. Its advantages and practicability are strong. It saves time and effort in the construction of plaster wall ash. It is easy to operate and has excellent engineering quality, especially for workers who do not have any experience and technology.zmwm02

Wall Plaster Render Machine Methods Of Application:

1)assembly: firstly, you should accurately assembly the main box, machine rack with electric box.



2)energized: switch the three-phrase power, and make sure that this motor rotation is accurate. In the meantime, you should check the switches, and be sure that the position of switches is in normal situation.



3)straightening: move the machine very closely to the wall. Then you turn the switch on, in this  time, you can adjust the wiping body according to the Vertical Situation Indicator, and make sure that the angle of the wiping body is 90°.



4)filling: fill the plastering material stirred equally into the tank.



5)construction: simultaneously turn the conveying switch, vibrating switch and jack switch on, plastering wall starts.



6)dropping: it will stop automatically when the plastering body reach the the topline, in this time, you should place the up-down switch into the down position. Later on, the machine will execute the downing program.



7)downing the jack: when the tank reaches the ground, you should turn its switch on, and return the jack. At this time, one complete action finish. Then, you can move the machine into next station, and adjust the machine into accurate position, and repeat the process.

Parameter Of ZB800-6A Automatic Wall Plaster Render Machine For Sale

Model	ZB800-6A
Plastering Height	0-3.6 meters
Plastering Thickness	2-30mm
Plastering Width	100cm
Capacity	500-700m2/8hours
Dimensions	720*1000*680mm
Voltage/frequency	According to your demands
Weight	140KG
Surface	Smooth
Vibrator	3 vibrators
Juncture device	Yes
Smoothing knife	Yes
storage capacity	50-60KG

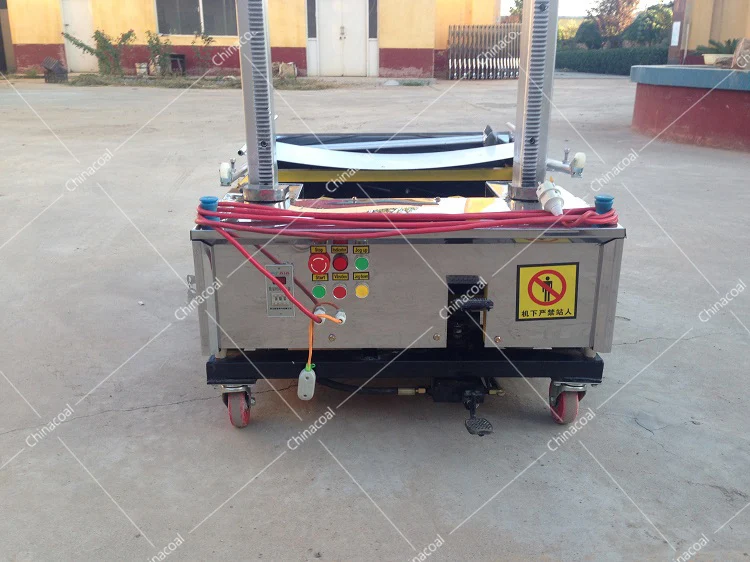

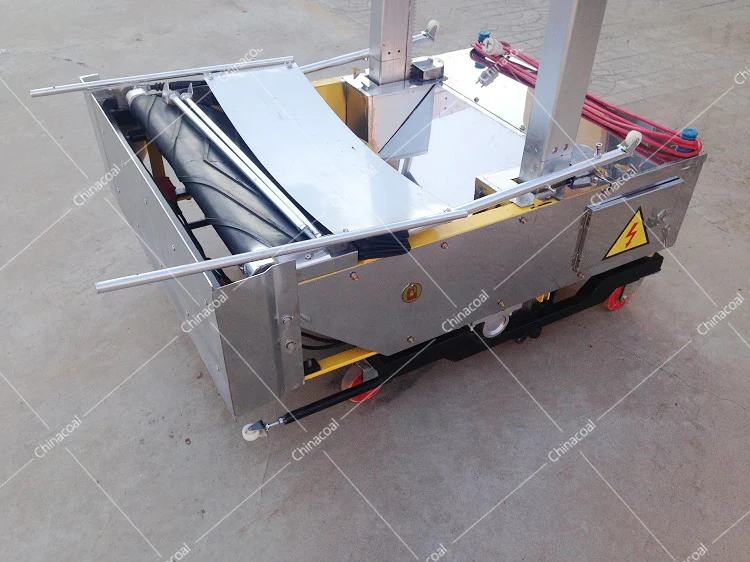

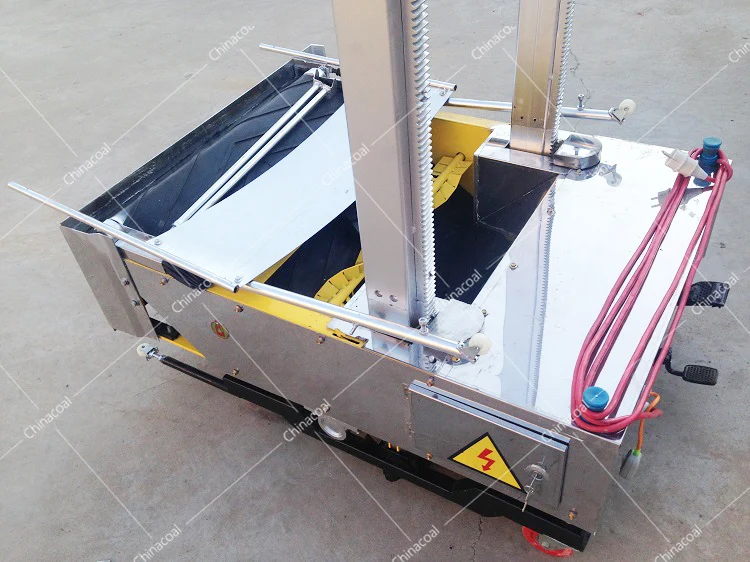

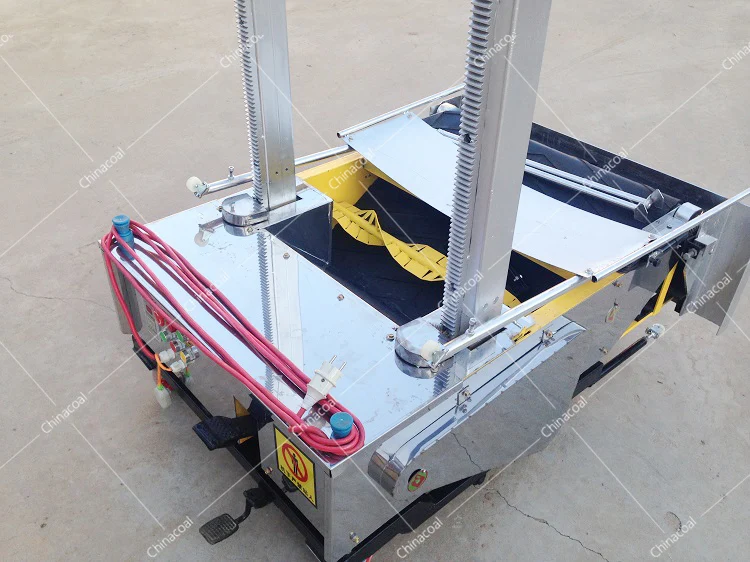

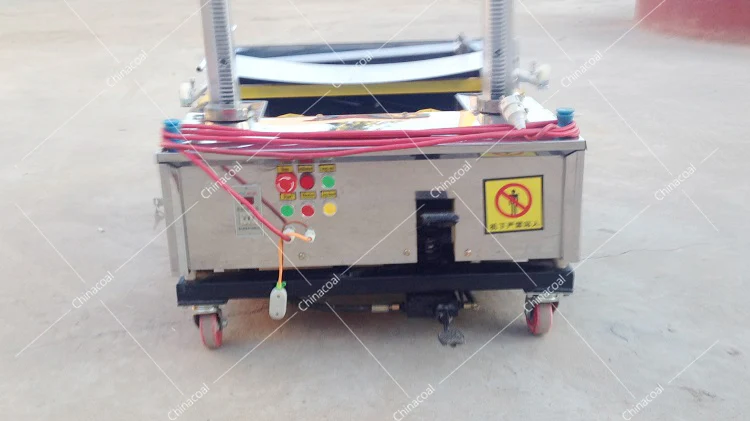

Photos Of ZB800-6A Automatic Wall Plaster Render Machine For Sale
