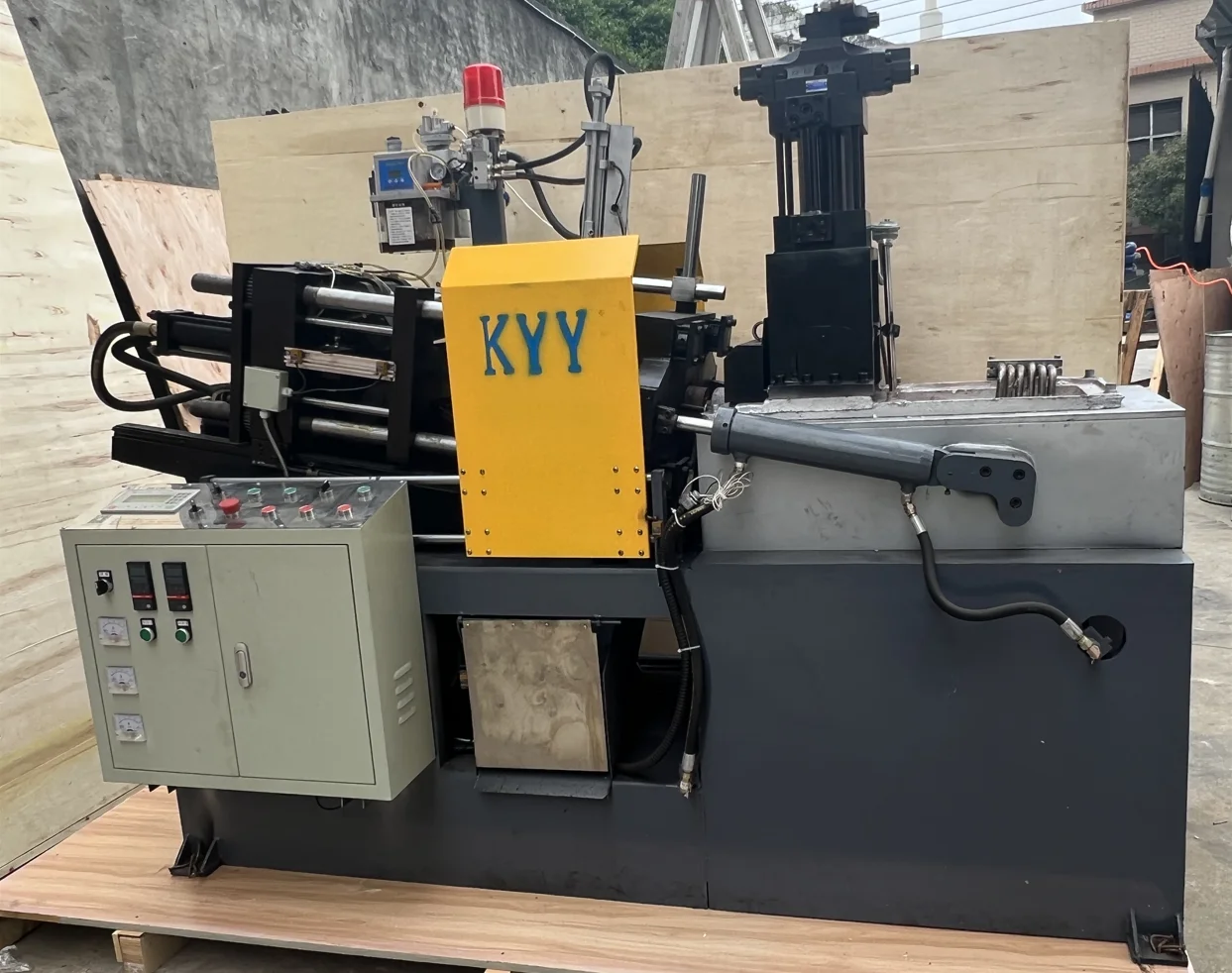

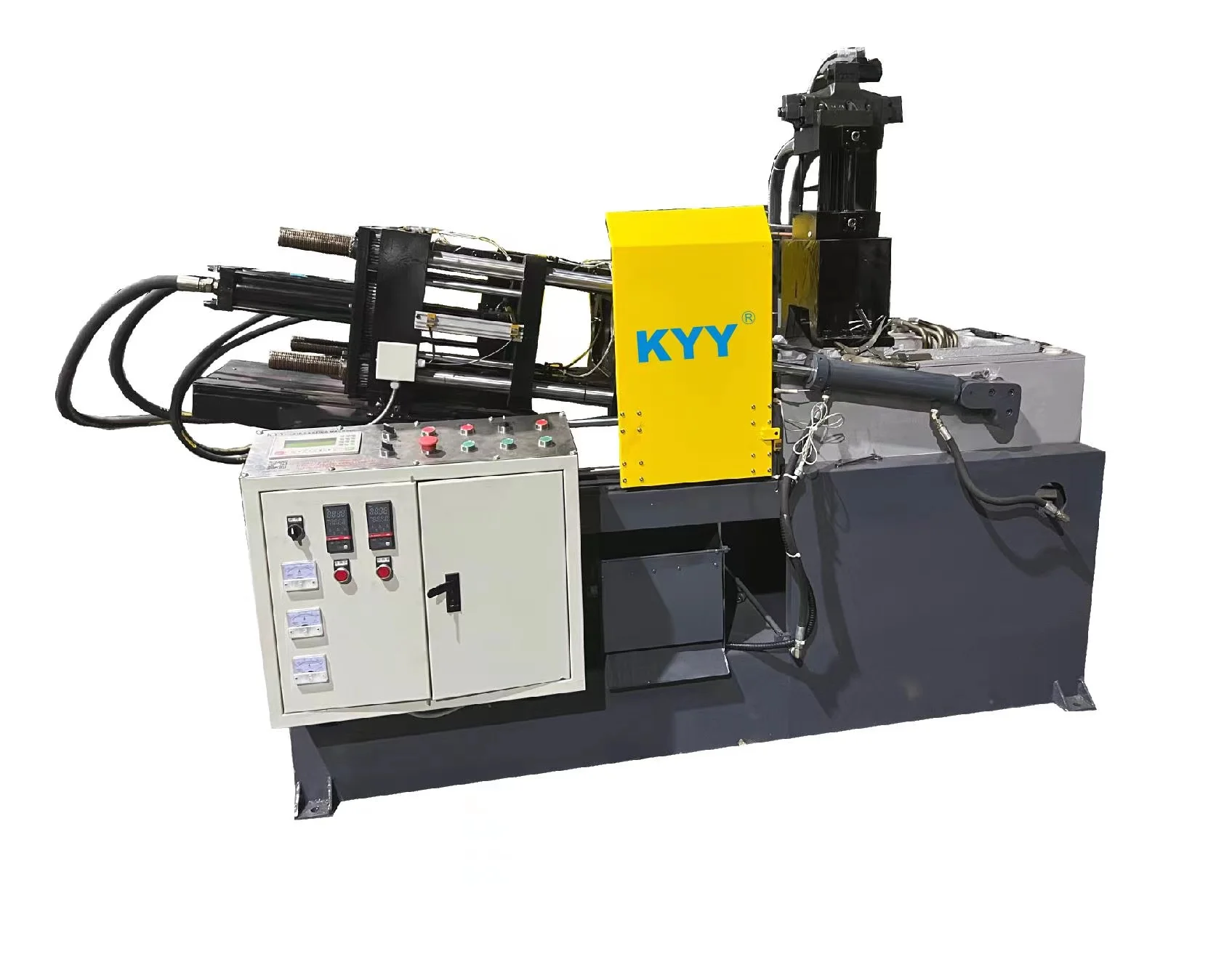

Автоматический слайдер на молнии KYY машина для изготовления небольших металлических изделий из цинкового сплава литья под давлением горячей

Описание и отзывы

Характеристики

Parameters Table of 12T/18T/25T/30T/38/T Hot Chamber Die Casting Machine



Item	Unit	HY12T	HY20T	HY25T	HY25 enhanced	HY38T
Mould clamping force	kn	120	200	250	300	400
Tiebar diameter	mm	32	40	45	45	50
Clamping stroke	mm	120	125	160	165	210
Internal diameter of Tiebar	horizontal*vertical	210*193	240*220	285*245	265*285	290*290
Mold thickness (min - Max)	mm	140*150	110-190	120-210	120-210	130-300
Ejecting force	kn	12	20	25	30	40
Injection force	kn	12	20	25	30	40
Injection stroke	mm	50	78	110	110	125
Hammer diameter	mm	35	38	42	42	45
Injection volume (theory)	g	80-150	200	550	550	600
Furnace capacity (zinc)	kg	75	140	160	160/350	350/450
Working pressure	mpa	8	8	8	8	9
Oil Pump Volume	L/min	28	33	41	41	41
Motor power	Kw(6p)	4	5.5	5.5/7.5	7.5	7.5
Injection nozzle heating	Kw	1.0	1.2	1.5	1.5	3.5
Accumulator capacity	L	6.3	10	16	16	16/6.5pair
Fuel tank volume	L	150	100	150	150	150
Machine dimension	Length*Width*high	1200*1000*1600	1500*1100*1700	2900*1300*1800	2900*1300*1800	3300*1350*1850
Machine Weight	T	1.3	1.8	2.3	2.5	3.2





Zhejiang Longqi Science and Technology Group with five subsidiaries is a collection of production, research and development, sales as one of the diversified developing enterprise. Zhejiang Longqi Science and Technology Group Wenzhou Jinghong International Trade Co., Ltd is one of the subsidiaries.



http://zippermachinery.en.alibaba.com







Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convenience ,we accept small order.



Q2: Can you send products  to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70%  before shipment.



Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.



Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
