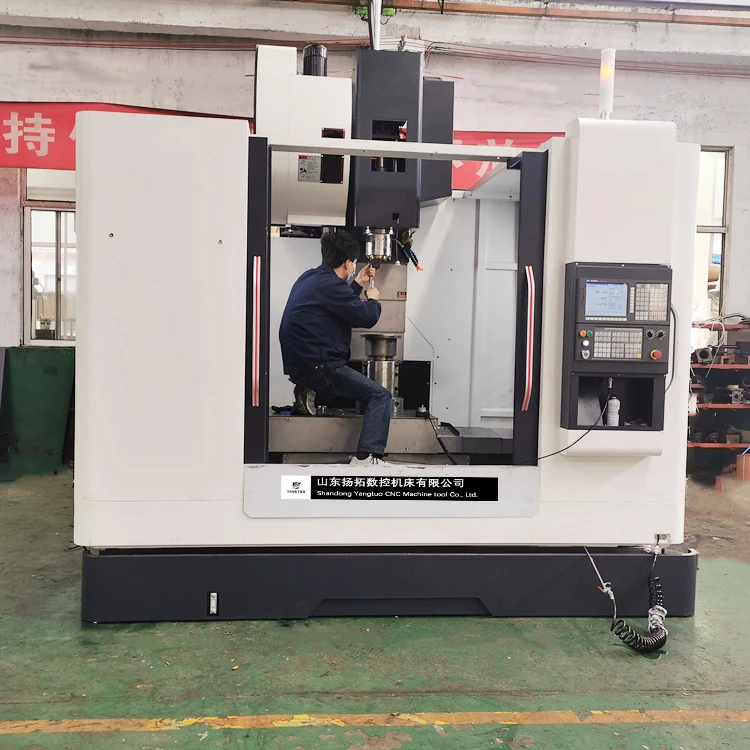

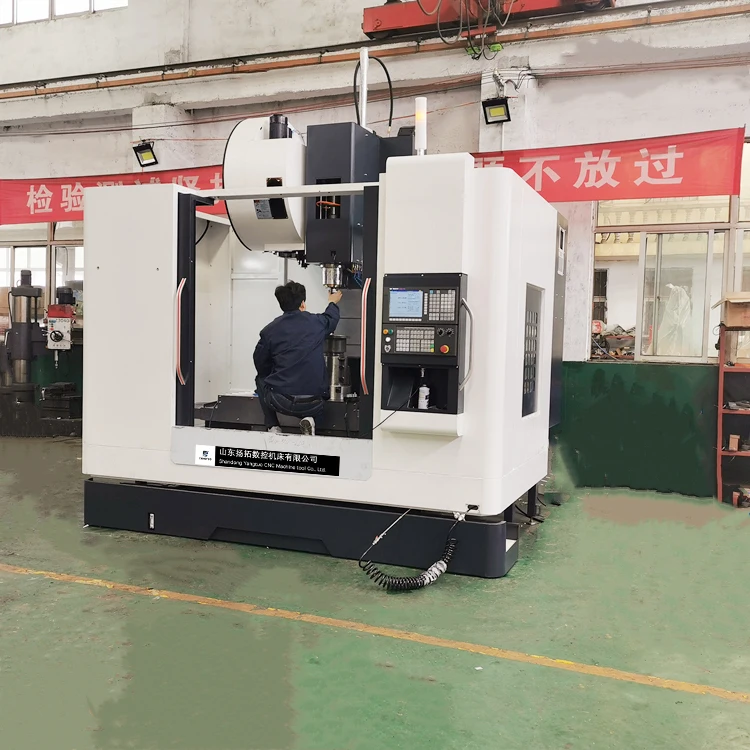

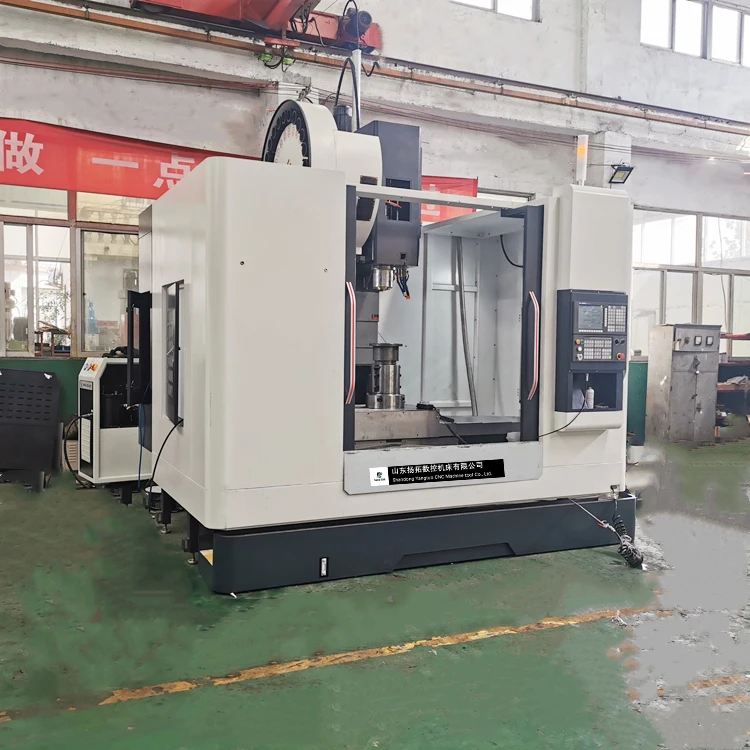

            CNC machine center VMC 1370  Vertical vertical milling machining center





Vmc1370  vertical CNC machining center is suitable for producing metal product and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on.









Main Specification:



Specifications	Units	VMC1370
Table size	mm	1400x700
X axis travel	mm	1300
Y axis travel	mm	700
Z axis travel	mm	700
Max. worktable load	kg	1000
T slot(number-width-pitch)		5-18x125
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40/BT50
Main motor power	kw	11-15
X/Y/Z rapid traverse speed	m/min	24/24/18 (Optional:48/48/36 )
Cutting feed speed	mm/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	810
Distance between spindle nose and worktable surface	mm	150-850
Positioning accuracy	mm	±0.01
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max.tool weight	kg	15
Machine weight	kg	9000

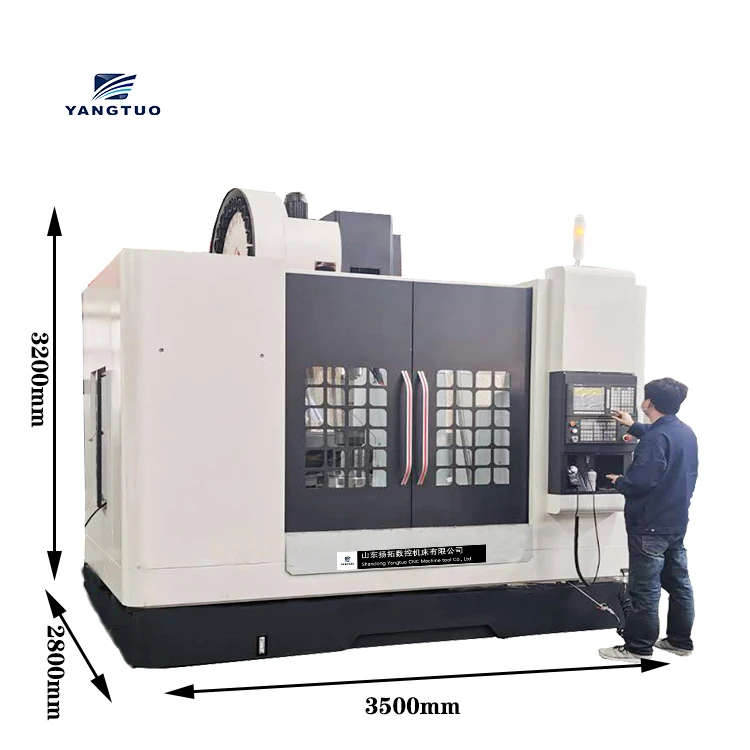

Overall dimension	mm	3500X2800X3200



Product Description:

1 .Taiwan HIWIN high precison guideway

2 .Taiwan-made spindle Unit,8000-12000rpm available

3 Taiwan OKADA ATC,24/32T ATC

4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSK.
