Лидер продаж автоматическая упаковочная машина для розлива и запечатывания кофейных капсул с шестью полосами европейская популярная китайская
- Категории: Pharmaceutical Filling Machine >>>
- Поставщик: Jiangsu,Sunyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

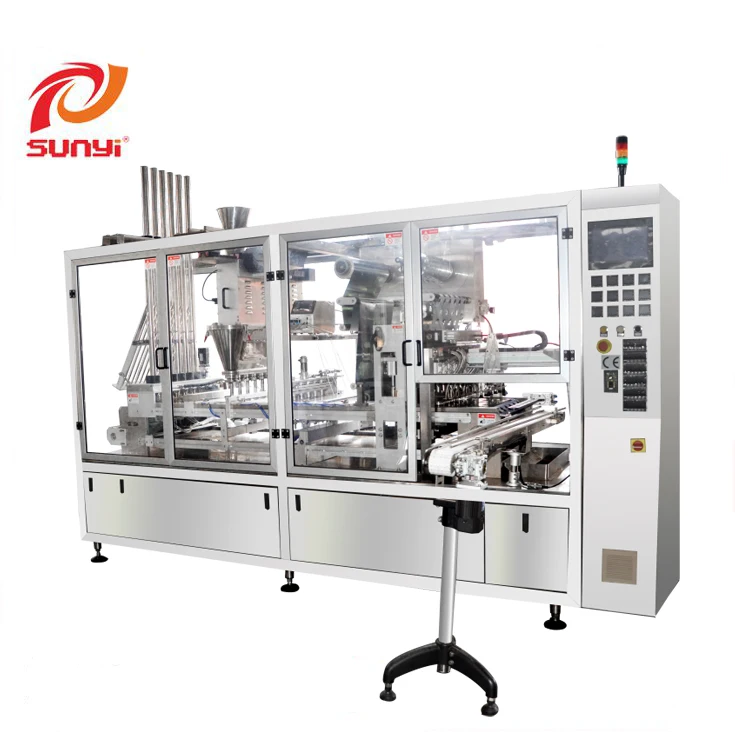

Automatic K CUP Six Lanes Coffee Capsule Filling and Sealing Machine with Discount is high-production and multi-function machine.Co mpared to ordinary coffee capsule machine,Six Lanes Coffee Capsule Filling Machine is high-speed and lower-noise with big discount,which can reach 240 capsules per minute.The type machine is operated through a user-friendly touch screen( HMI ,human-machine interface) where all the machine parameters are accessible during machine operation for maximum ease of adjustment.On the screen is also available a wide range of information on the machine efficiency as well as on the production statistics.The machine movements are protected with covers carrying safety locks,active when the machine is in operation.The machine is used to make nespresso coffee capsule,it can fill coffee powder,milk powder,tea,instant powd er and other food materials.We support you to order more than one set at a time with direct factory price.We welcome you to our company for seeing real products.
Technical Parameter | ||
Filling weight range: | 0-20g | |
Filling accuracy: | 0.1-0.3g | |
Max speed: | 240-300 Cup per minute | |
Hopper capacity: | 2.5L | |
Control system: | OMRON SCHNEIDER ROCKWELL | |
Displayer: | 10 Inch touchscreen | |
Power supply: | 220V/380V | |
Dimension: | 5470mm*1200mm*2150mm | |
Abundant coffee capsule filling and sealing machine series

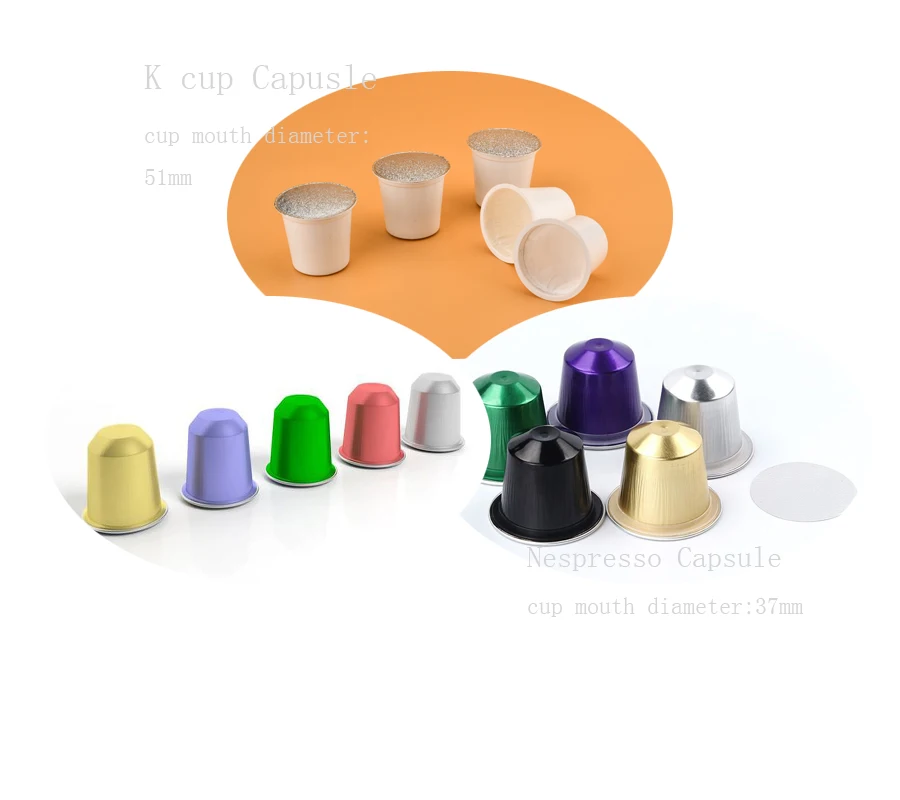

Since the establishment of company,we pour ourselves more into research and development of coffee packaging machine.We have produced SKP-1,SKP-2,SKP-4,SKP-6,SKP-8(Compatible Nespresso,Dolce Gusto,Lavazza Blue,Point,Pod,K cup,K cup,k shot,One Cup)automatic coffee capsule filling and sealing machine.With good appearance,high filling accuracy,stable performance,which has won the favor of customers at home and abroad.The product has obtainedmany technical invention patents,through CE,UL certification,ISO9001 quality management system certification,and got a number of Zhejiang science and technology project awards.
Model | SKP-1 | SKP-1N | SKP-2 | SKP-4 | SKP-6 | ||||
filling weight range | 0-20*n | 0-20*n | 0-20*n | 0-20*n | 0-20*n | ||||
filling accuracy | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ||||
Max speed | 40-50 cups/minute | 40-50 cups/minute | 80-100 cups/minute | 160-200 cups/minute | 240-300 cups/minute | ||||
Hopper capacity | 1.0(2.5L) Option | 1.0(2.5L) Option | 10-24L Option | 10-24L Option | 2.5L Option | ||||
control system | PLC(OMRON,SCHNEIDER,ROCKWELL) | ||||||||
power | AC 220V/380V 50Hz/60Hz | ||||||||
Certifications
Product Details

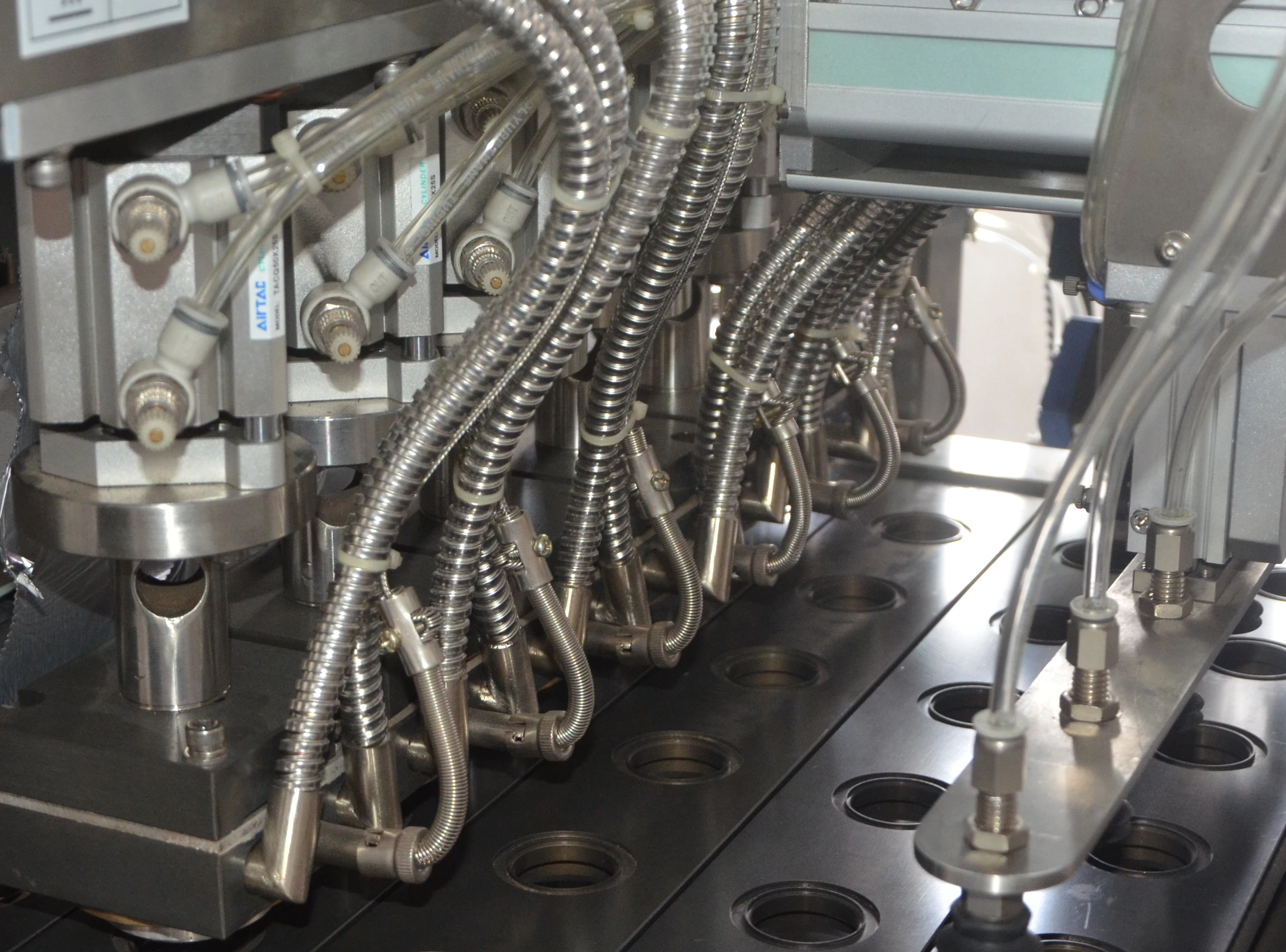

Part4:Capsule Sealing
Heat sealing or ultrasonic sealing,different sea -ling effect style,flat sealing and line sealing.Th -e sealing process will experience two times.

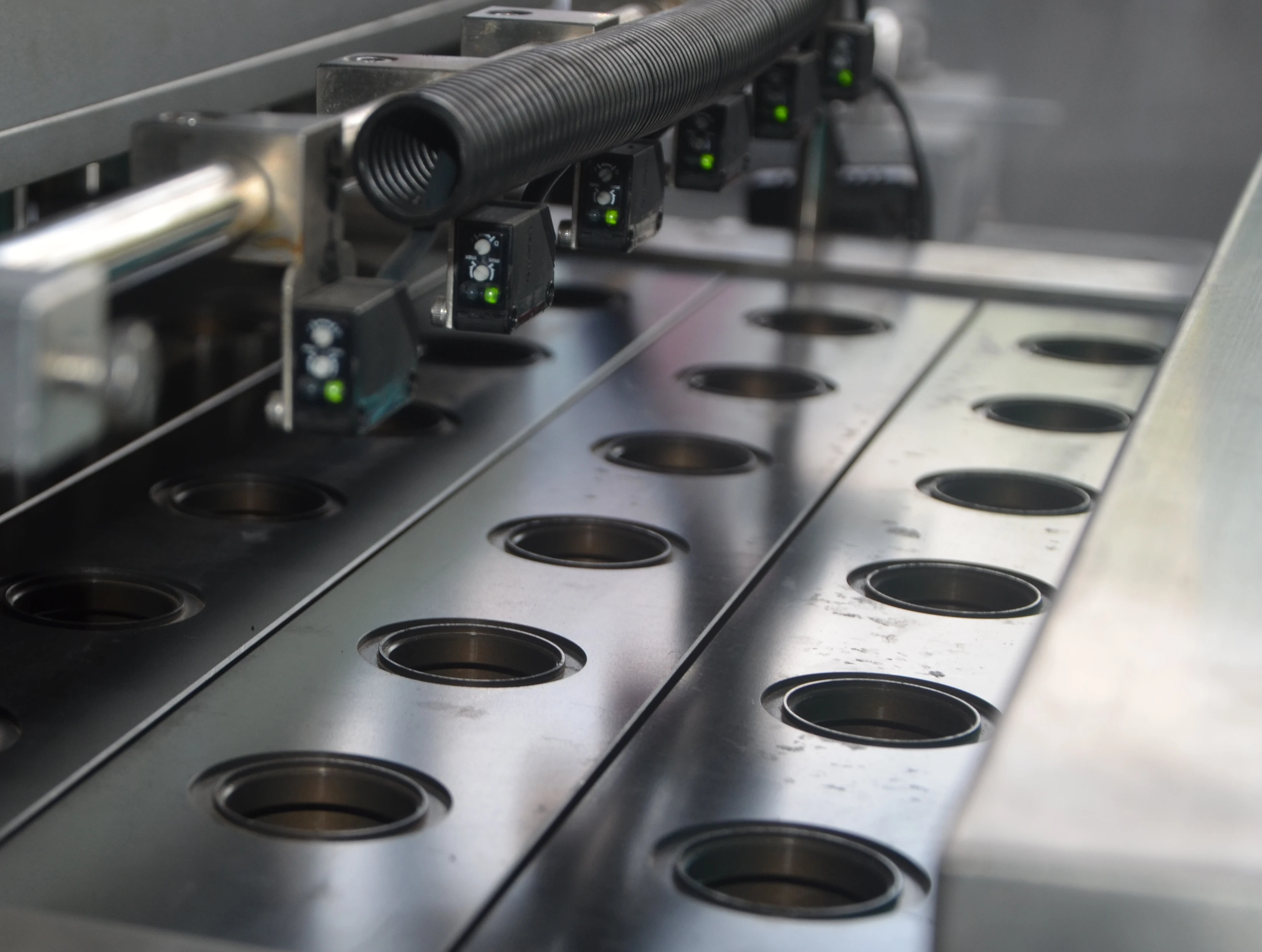

Part3:Capsule Sensor
When the cups are transfered under the capsul -e sensor.The capsules sensor will judge whet -her the cups exist or nor.If yes,the cups will tr -ansfer to the next part.

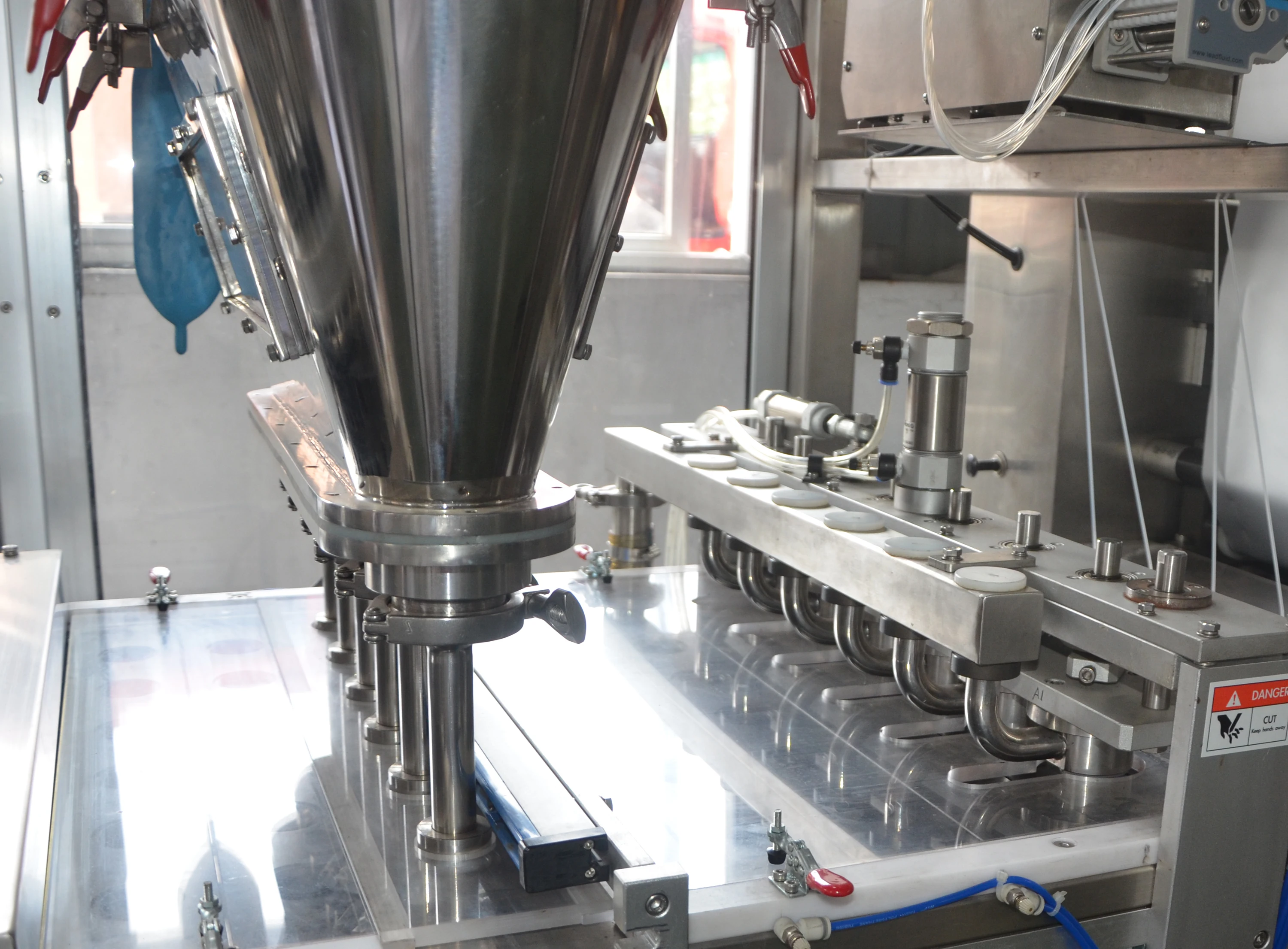

Part2:Capsule Filling
Dosing system that consist of six vertical screw feeder where the screw is controlled by a motor to ensure filling speed and accuracy.Si -x a uger is Schneider brand,high quality,filling accuracy.

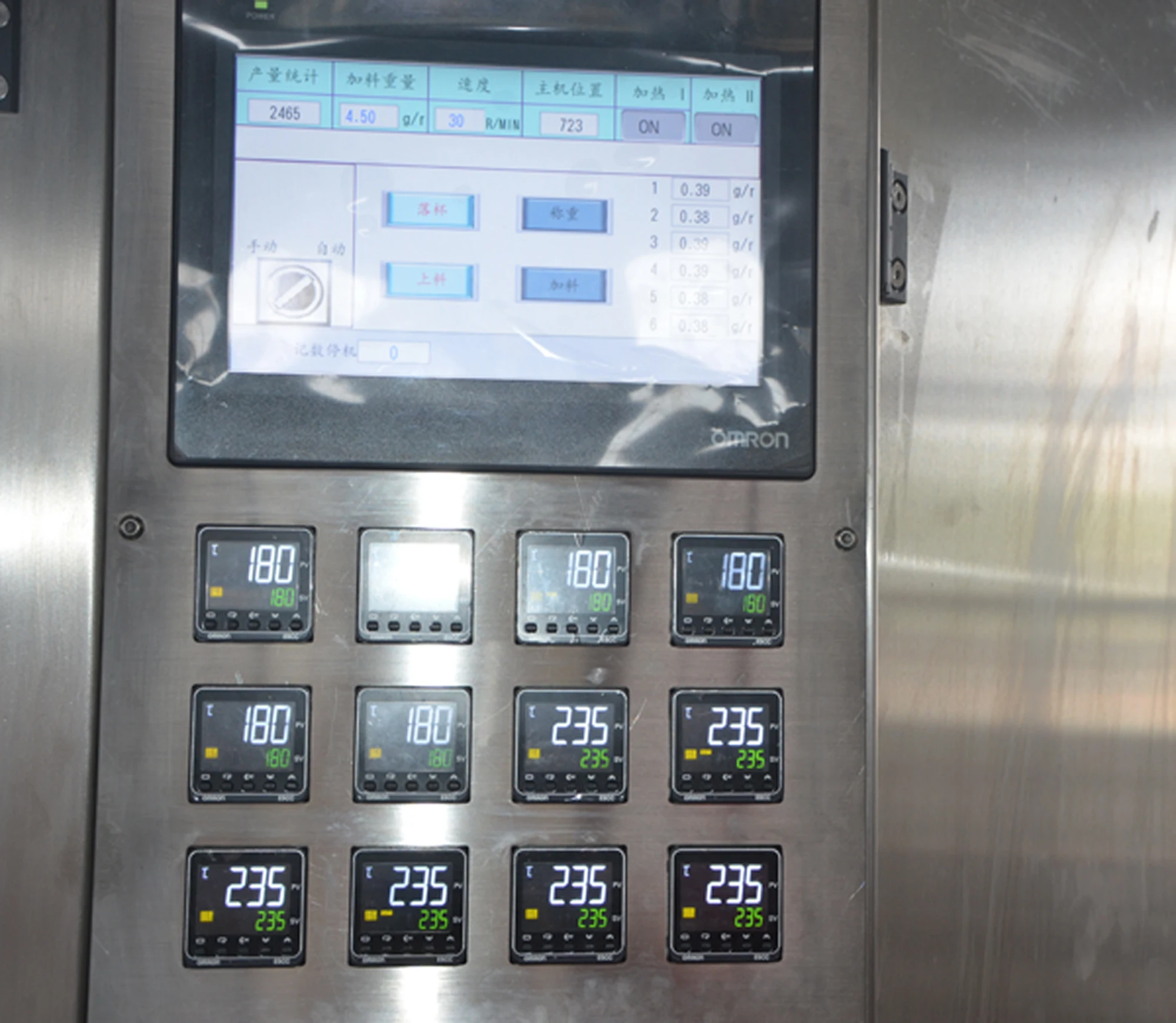

Part1:10-inch touchscreen
When the machine is started,all the machine parameters are accessible.The accurate para -meters is convenient for operator to make
ma -x adjustments,so that the machine can run normally.
ma -x adjustments,so that the machine can run normally.
Our Service
Perfect technical support and service system
We have a professional technical consulting,training and after-sales service team,12 months product warranty period,as w -ell as within 24 hours rapid after-saled service system.We are self-produced and self-sold manufacturer and we welcom -e customers to come to our workshop to see the real machine sincerely.
Packing & Delivery
Mooden Case Related
*clean machine and Vegetable oil protect machine not rust
*Stretch film packaging
*Wooden tray
*wodden case
FAQ
1. What advantages you have?
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic
adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic
adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
