Гарантия качества 600 вт 2MPPT и 4 MPPT водонепроницаемый PV

Описание и отзывы

Характеристики

Input Data(DC)	Sun600G2-US	Sun600G2-EU	Sun600G2-SAA	Sun600G2/-127V
Recommended input	600G/210-370w(2 piece)			210-300w
Max input DC voltage	60v			60v
Peak power tracking voltage	25v-55v			25v-55v
Operating range	20v-55v			20v-55v
Min/Max start voltage	20v/60v			20v/60v
Max DC short circuit current	13A			13A
Max input current	10.4*2			10.4*2
OUTPUT DATA(AC)
Peak output power	600w			500w
Max output power	600w			500w
Nominal output power	2.5A			4A
Nominal voltage /range	208V/183V-229V	a.c.184-265v @230v ac	a.c.200-270v @230v ac	a.c.95-155v @127v ac
Nominal voltage/range	60/59.3-60.5hz	50/47.5-51.5hz	50/45-55hz	60/59.3-60.5hz
Extended frequency/range	60/59.3-60.5hz	50/47.5-51.5hz	50/45-55hz	60/59.3-60.5hz
Power factor	>0.95			>0.95
Max units per branch	8/4			5
EFFICIENCY
CEC weighted efficiency	95%
Peak inverter efficiency	96.50%
Static MPPT efficiency	99%
Night time power consumption	50mW
MECHANICAL DATA
Ambient temperature range	-40℃-+65℃

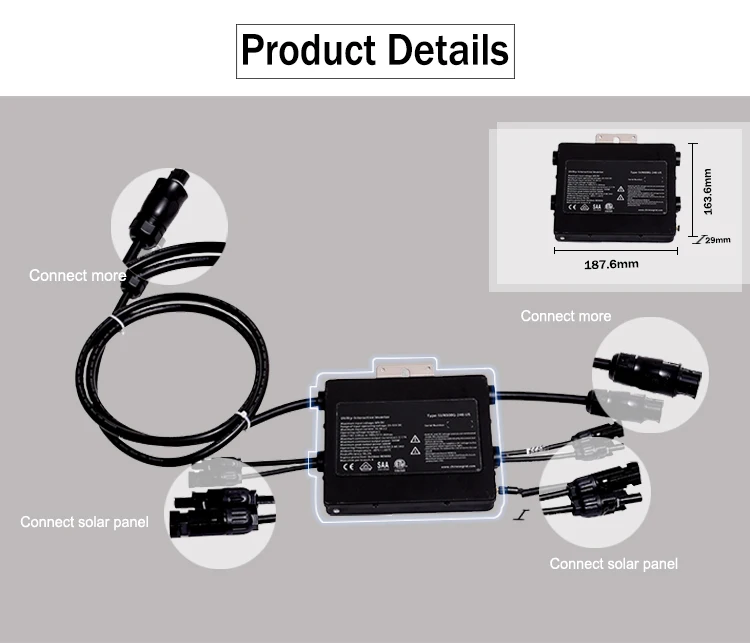

Dimensions (W*H*D)	187.6mm*163.6mm*29mm(without mourting bracket and cable)
Weight	2.2kg
Cooling	Natural convection-No fans
Enclosure environment rating	Outdoor-NEMA6/IP67
FEATURES
Compatibility	Compatible with 60-82 cell PV madules

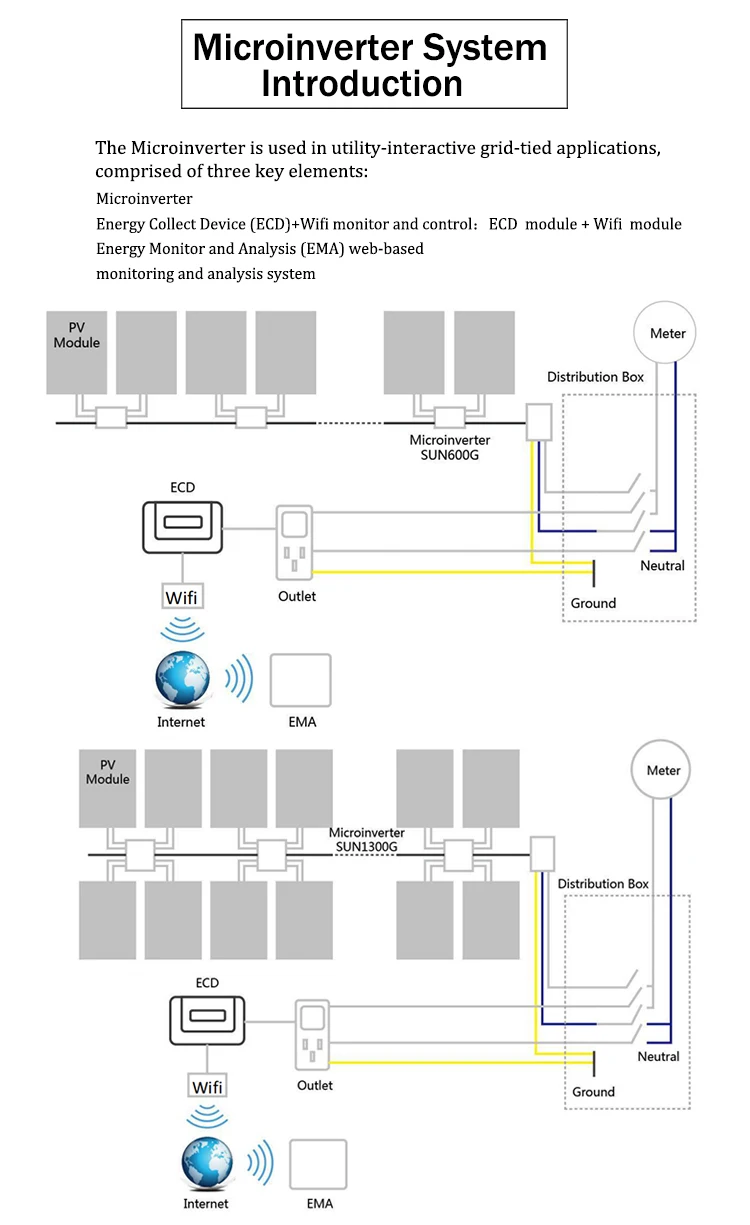

Communication	Power line/Zigbee
Compliance	UL1741,VDE0126,VDE4105,IEC62109,CE,SAA
Warranty	10 years





Q1: Can I have sample order for mirco inverter?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: What about the lead time?

A:Sample needs 10 days, mass production needs 2-3weeks for order quantity more than one container



Q3: what’s the warranty ?

A:3 years



Q4: How can i pay the mirco inverter ?

We could accept payment by T/T, Paypal, West union, Alibaba Trade Assurance order etc.



Q5: How can I contact  you?

Please contact us by Trade manager, Email, Whatsapp or wechat, surely call me when you need
