6 м ручная лебедка коленчатая телескопическая мачтовая башня крепление
- Категории: Telecommunication Towers & Accessories >>>
- Поставщик: Tianjin,Talents,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Main Specifications. | ||||||
Closed length | 1.75(Bottom base included) | |||||
extended lengh | 6m(Bottom base included) | |||||
net wieght | 35kgs( include tripod and other accessories) | |||||
Max payload | 10kgs | |||||
wind load | working rate:25m/s Max rate:35m/s | |||||
temperature | working temp:-40--+50C Storage Temp:-55--+70C | |||||
outer tube diameter | 42-98mm dark bronze color or 30-70mm /50-130mm silver white color | |||||
bottom base | Diameter:190mm Thickness: 10mm | |||||
material | Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm) | |||||
color | the whole unit will be in green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in green color.Technology: painting | |||||
main pole in sections | Section No. OD Thickness 1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm | |||||
Details
Accessories.

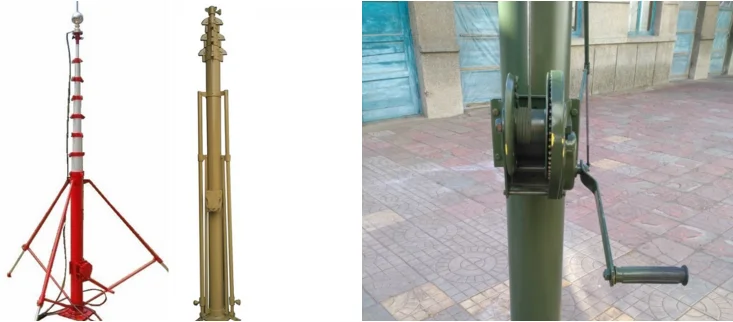

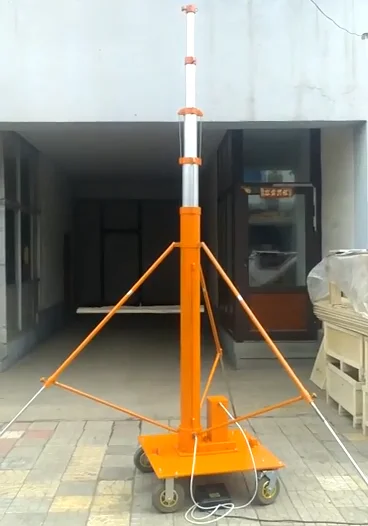

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.
If you have other accessories requirement, please contact us separately.
Surface treatment .
Painting or Anodizing
Color :
Green, yellow, white, bronze... ...any color OEM is available.
Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
