High conversion step down voltage regulator 15-72v to 12v automatic voltage regulator 60W
Model No. | XW-1572-12-60W | |
Input | Input Voltage | DC 24v 36v 48v 60v |
Input Voltage Range | DC 15-72v | |
Output | Output Voltage | DC 12v |
Output Current | 5A | |
Output Power | 60W | |
Conversion Efficiency | > 93% | |
Ripple (Full load test) | 40mV | |
No-load current | 3.5mA | |
Working Temperature | -40~85℃ | |
Waterproof Rating | IP67 | |
Cable Length | 13-14cm | |
Protection | Over-current /Over-voltage/Over-heat /Short-circuit protection | |
Case Material | Plastic | |

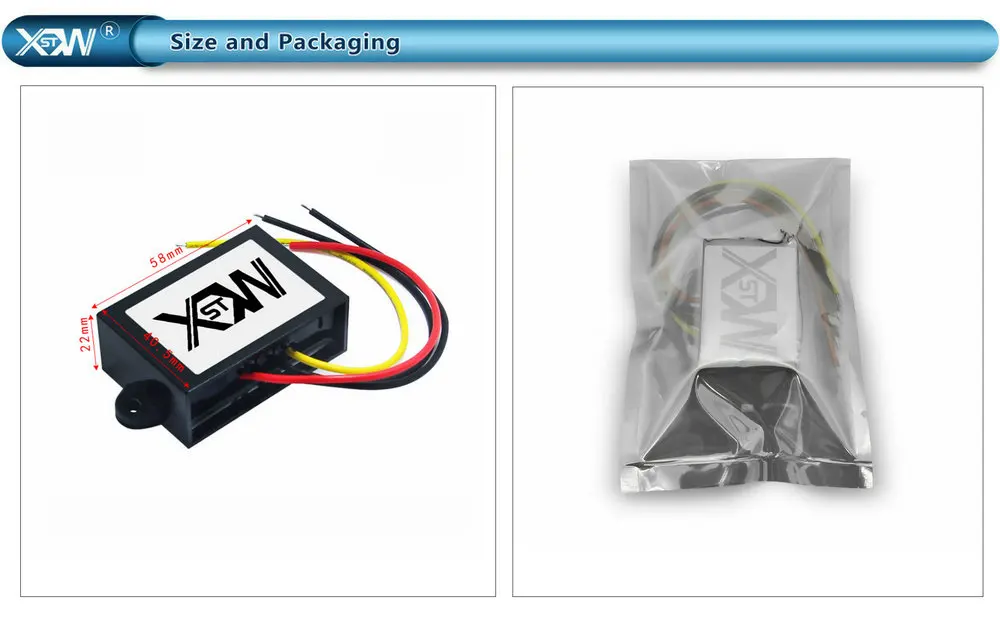

Size | 58*40.5*22mm 97g/pc | |
Packing | Anti-Static Bag, 200 pcs/Carton 48*33*32cm, GW:21KG |
Attention:

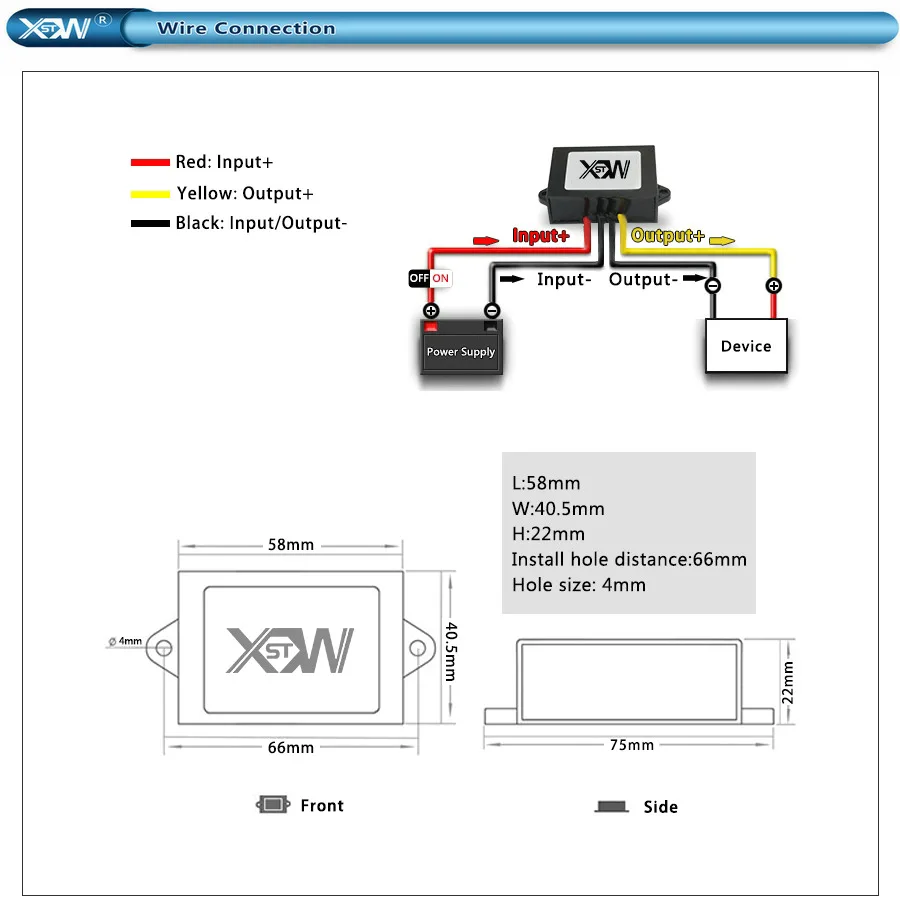

Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
