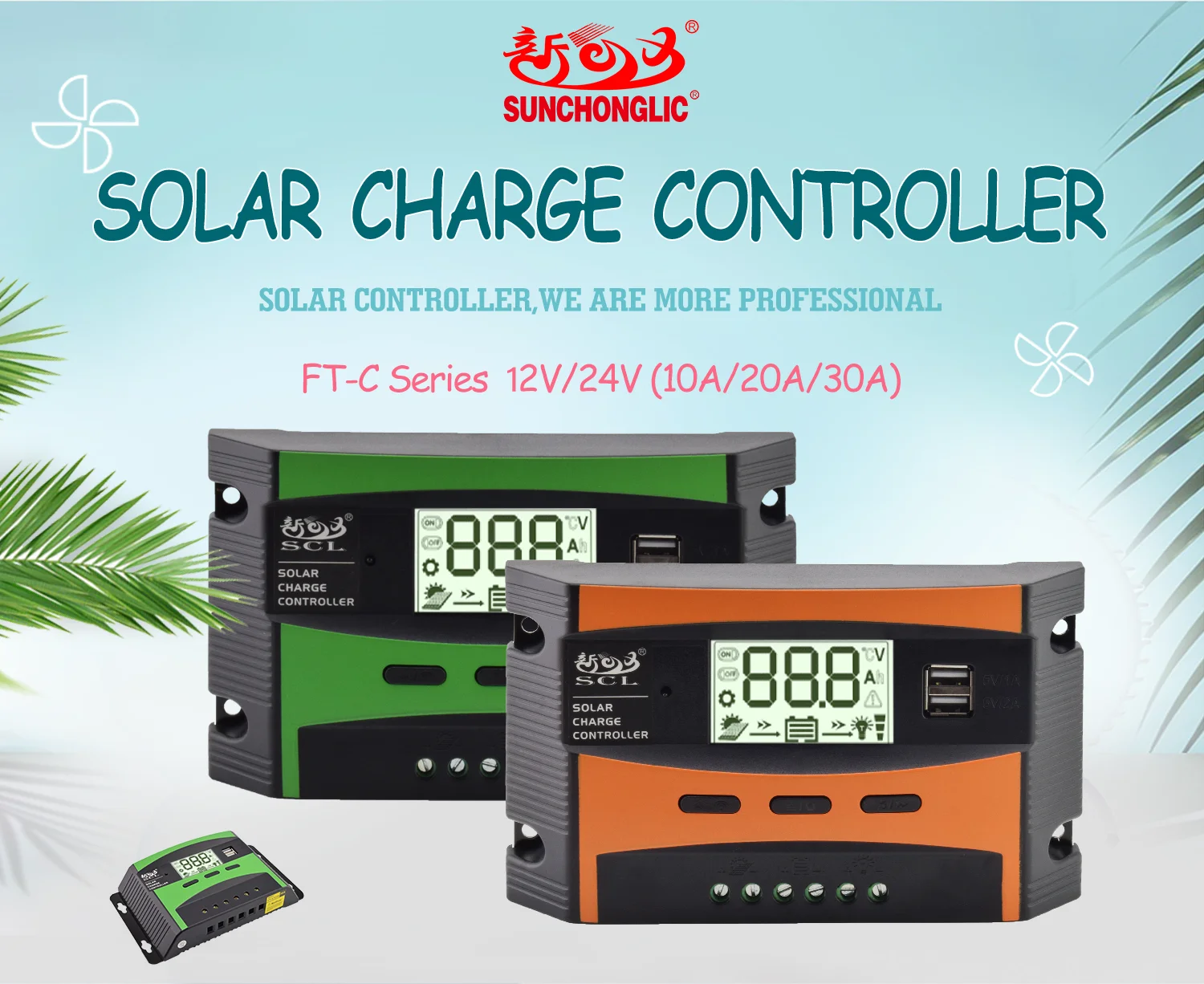

Sunchonglic 12V/24V 20A Manual PWM Solar Charge Controller for Solar System
Product Description

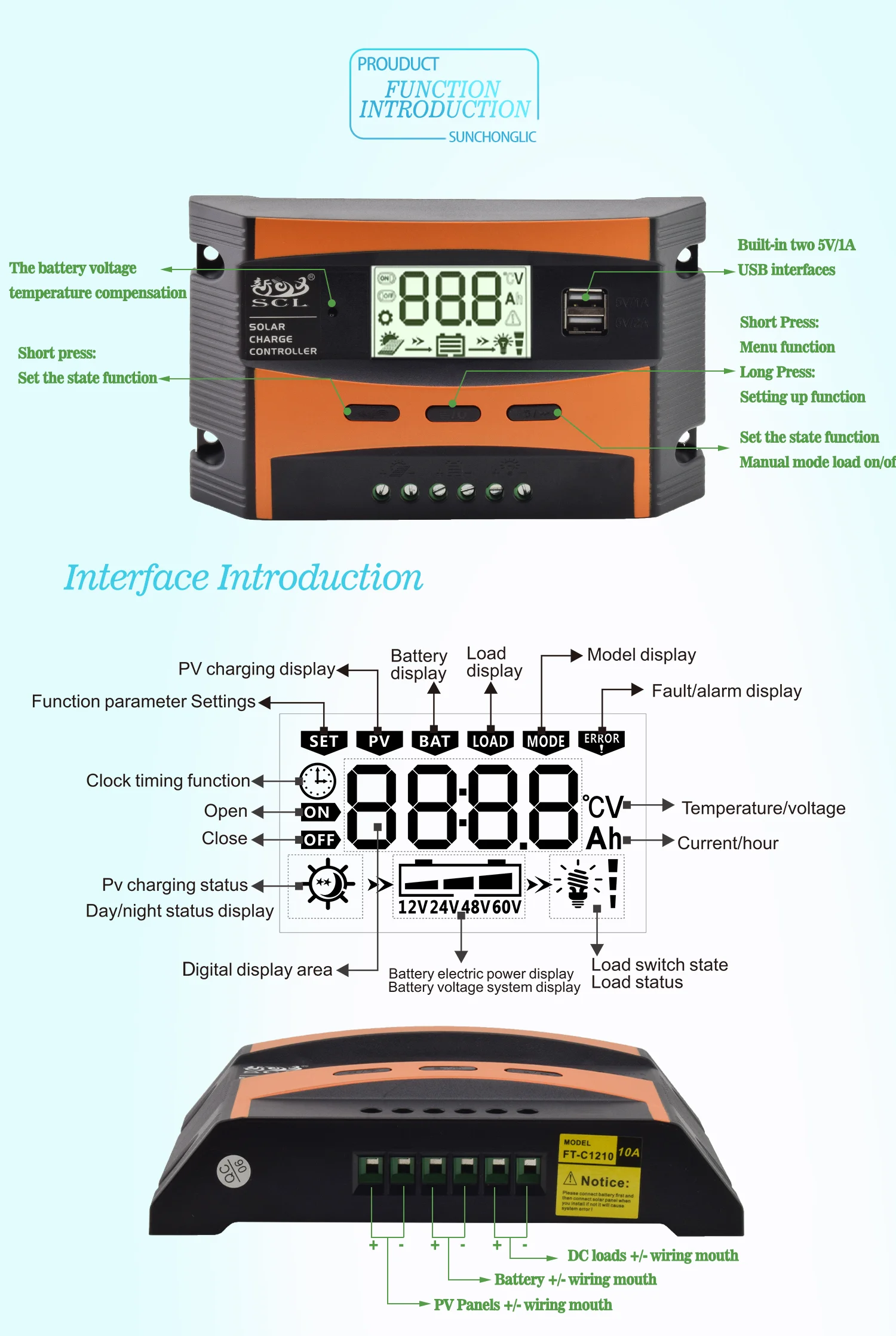

Features
- Clock timing function
- Built-in two 5V 1A USB interfaces
- Ultra Low Power Consumption
- Built-in IR self-learning infrared remote control to control the DC loads
- Direct liquid crystal display(LCD)
- Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)
- Light control mode,Time control mode
- Reverse protection,short circuit protection
- Designed for 12V/24V solar power system
- Hanging style design makes it convenient to install

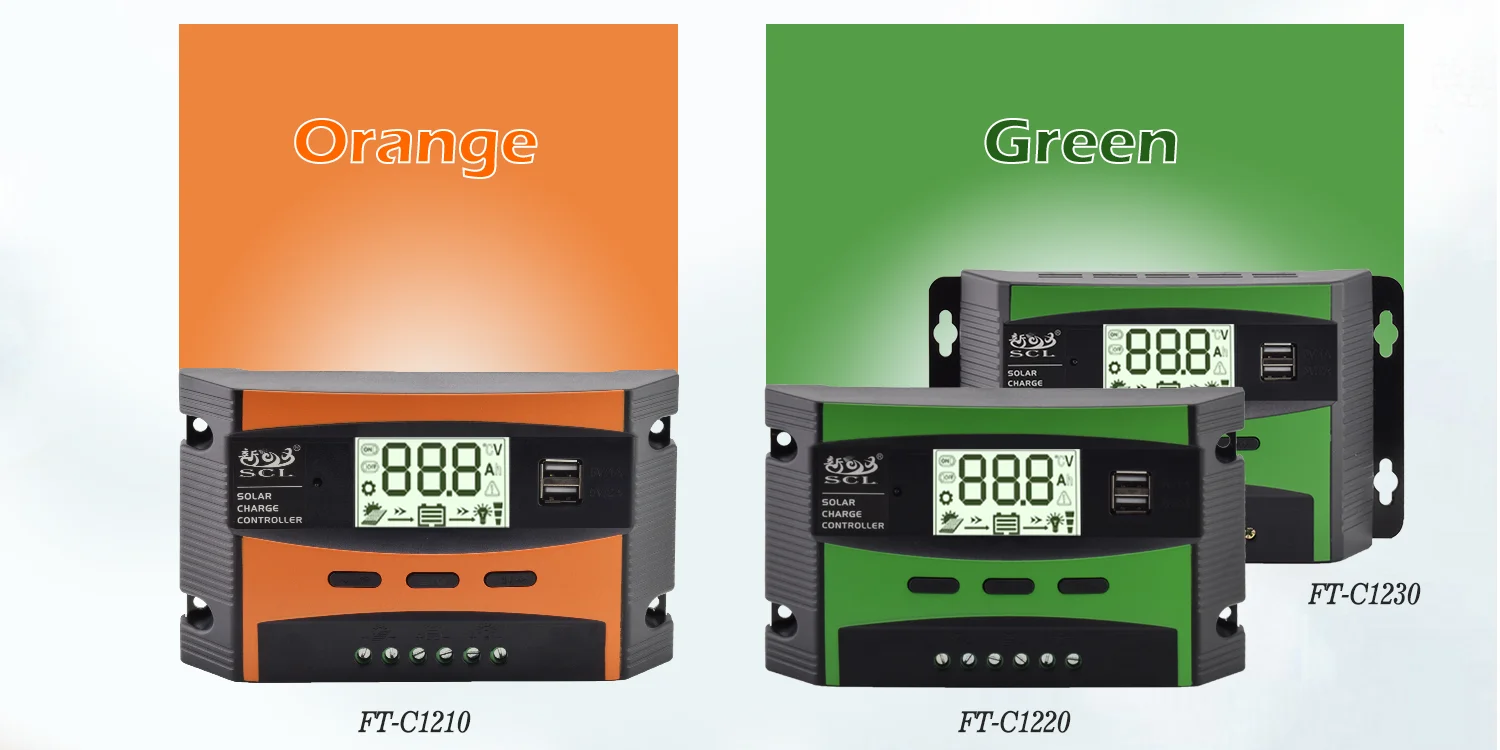

- Available in 10A/20A/30A
- Simple options,automatic memory retention of users' settings
- Convenient charging voltage switching,save complex Menu settings,automatic memory user settings
- Built-in charging current limiting protection,without having to worry about solar panels power up too much damage control and battery system.
- Five protection to ensure the safe, including charging overvoltage / charging flow / over-current / load load short circuit / under-voltageprotection.
Product application
Specifications
| pwm solar controller | FT-C1210 | FT-C1220 | FT-C1230 |
| to adapt to the battery | 12V/24V,battery<16V:12V,Battery>18V:24V | ||
| Maximum charging voltage | 12V:18-24V Standard specifications solar panels(24V battery*2) | ||
| Maximum charging current | 10A | 20A | 30A |
| Maximum charging voltage | Low:14.2V,Default:14.5V,High:15.2V | ||
| The largest output current | 12A | 24A | 35A |
| Low voltage protection voltage | 10.5V(24 battery*2) | ||
| Low pressure recovery voltage | 12.5V(24 battery*2) | ||
| Load overload automatic recovery | 30S | ||
| Double USB output | 5V 2.1A | ||
| Load relating to open time | 0-24 hours can choose | ||
| Infrared remote control distance | >5m | ||
| Pieces/CTN | 40pcs | 40pcs | 40pcs |
| Weight/CTN | 14.05kg | 14.3kg | 21kg |
| Dimensions/CTN | 52*27*40cm | 52*27*40cm | 54*27*44cm |

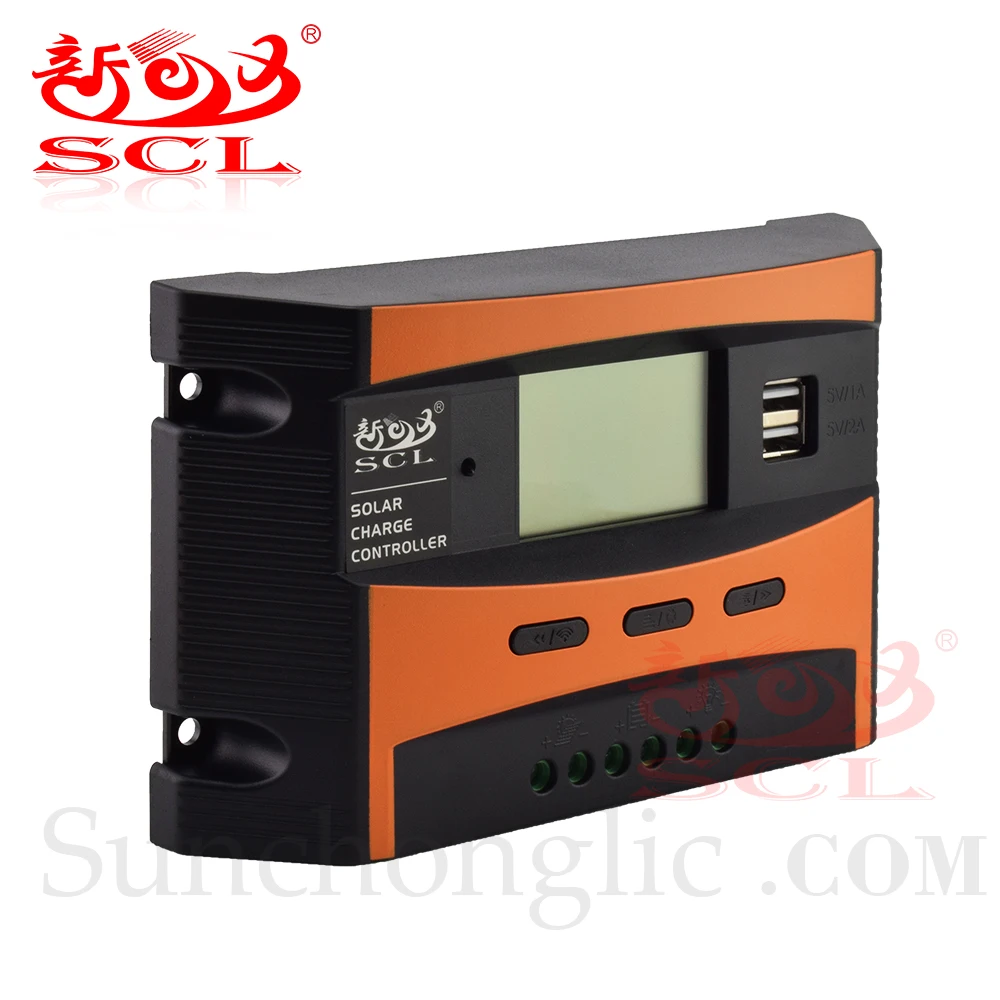

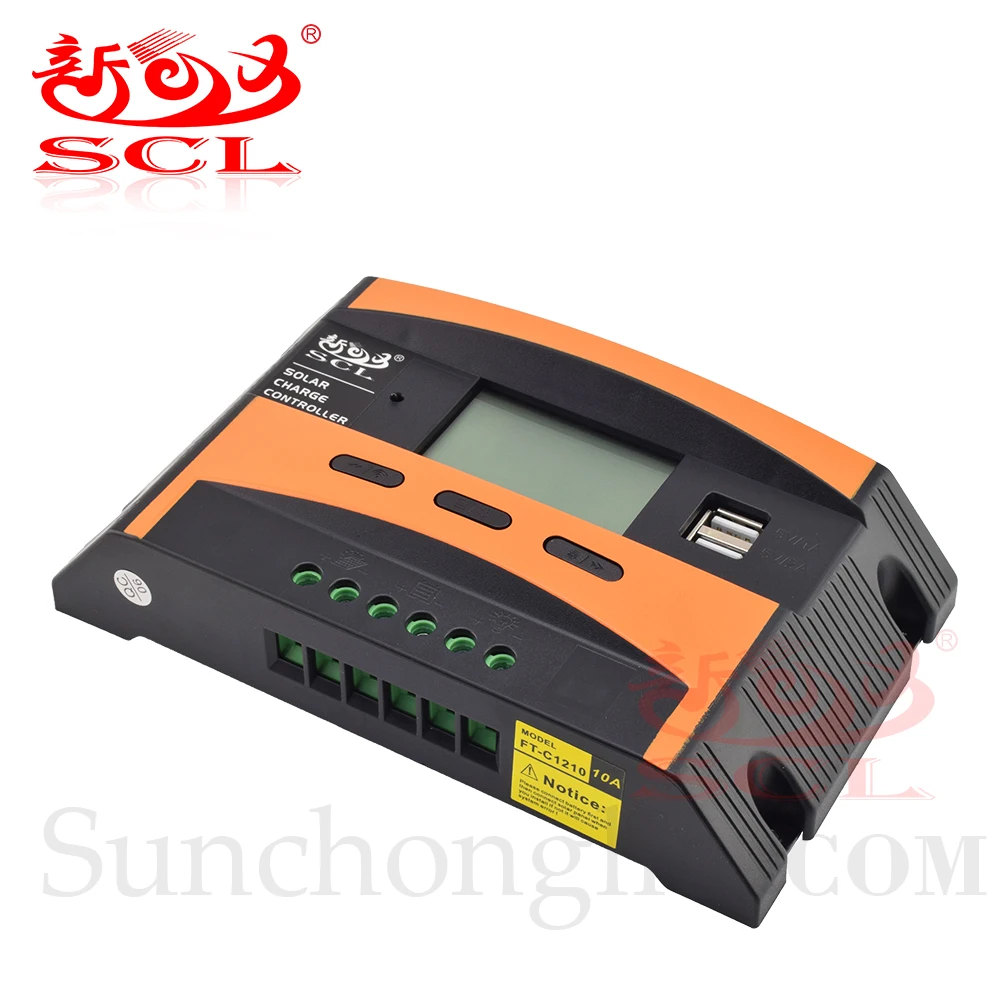

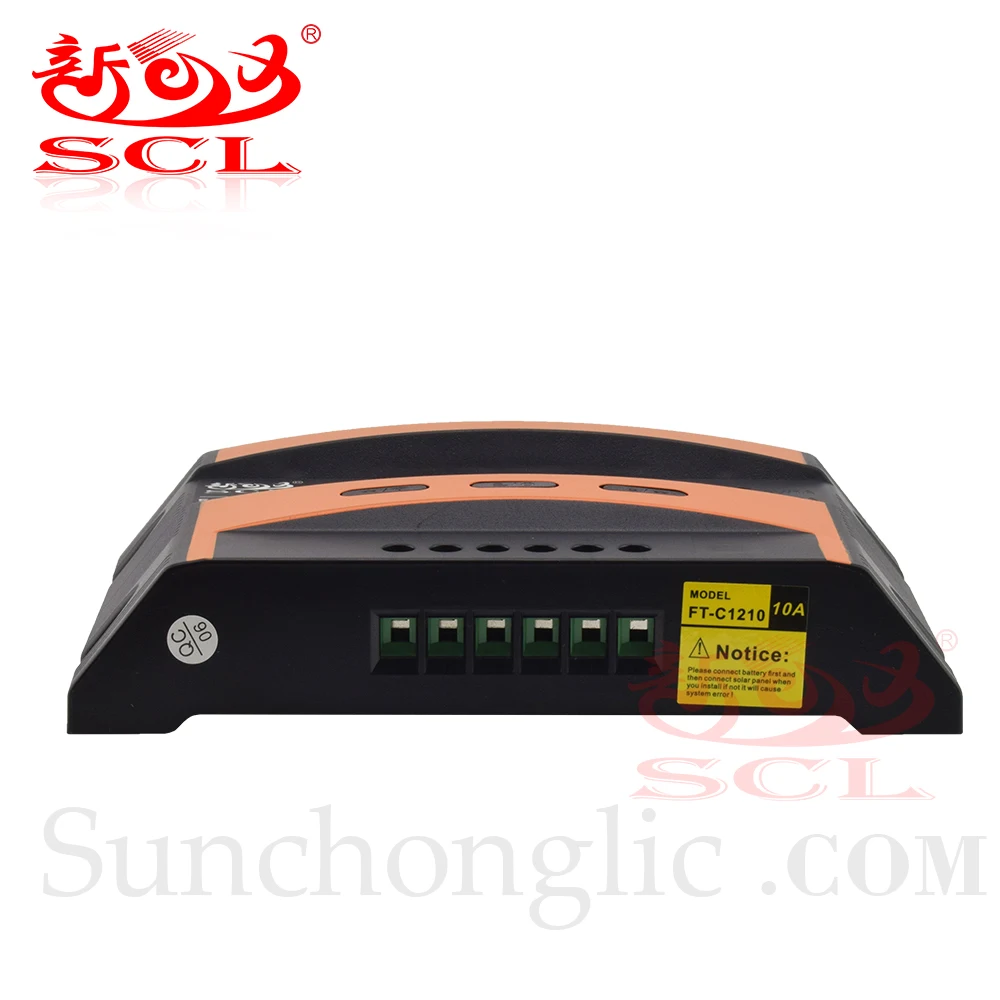

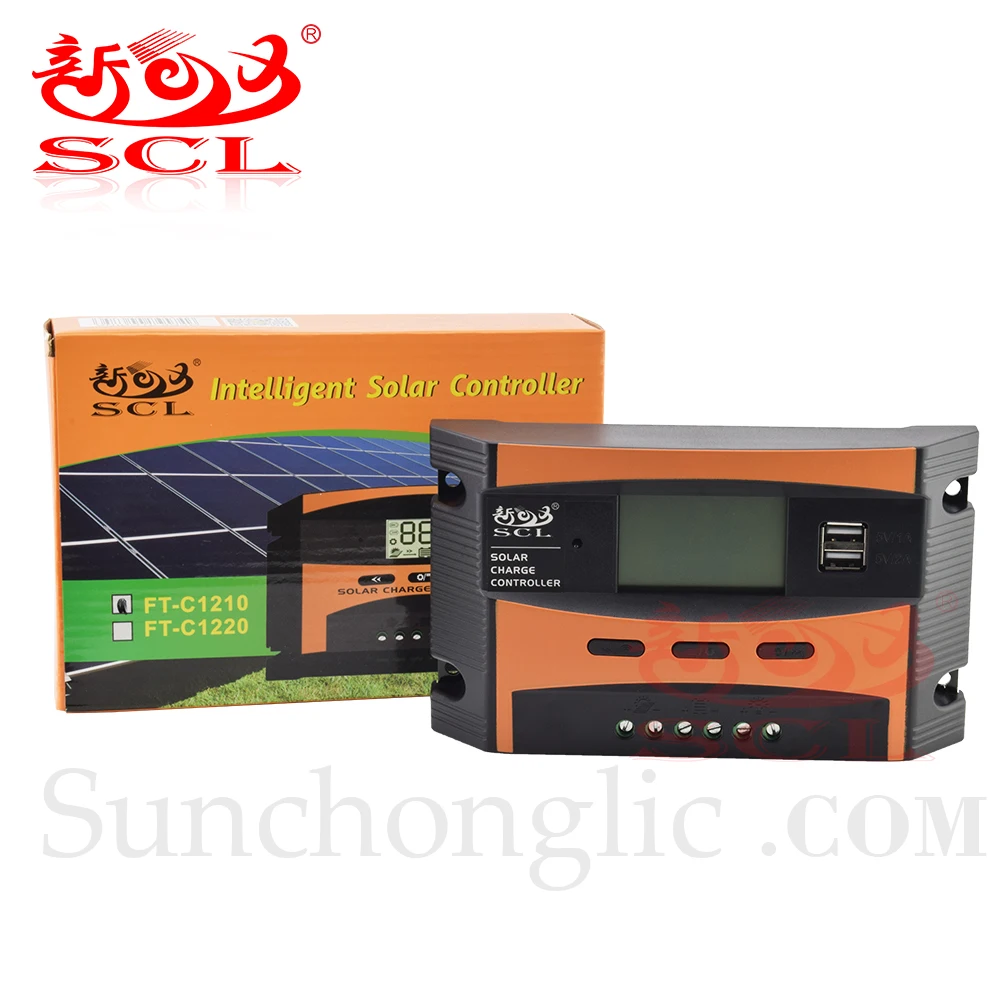

Product Display
Certificate
6More products

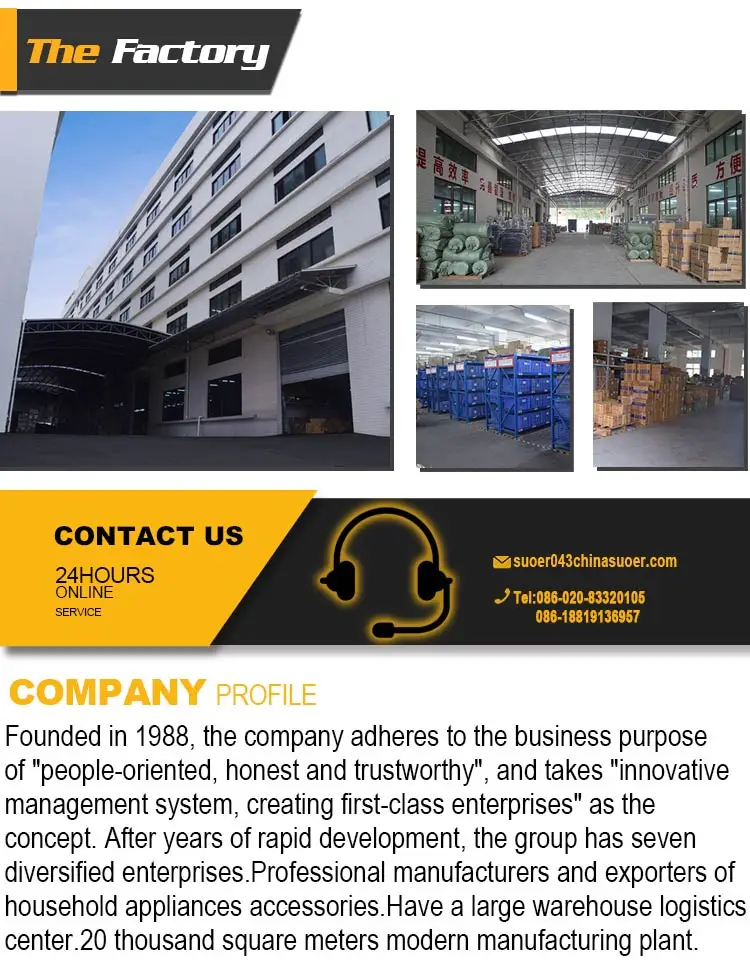

Company Information
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T.
4. What’s the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
