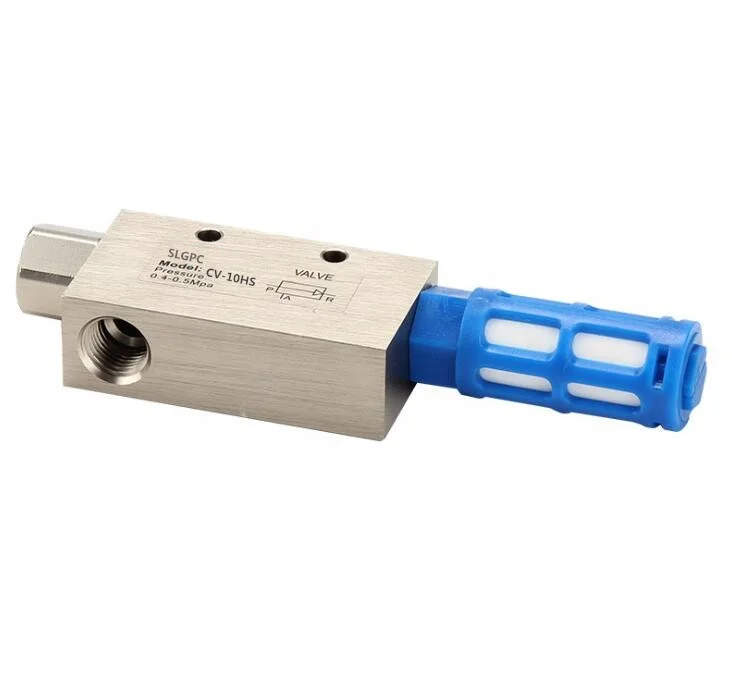

Высокое качество низкая цена CV-10 ZK-10 струйный вакуумный генератор пневматические компоненты большой поток передатчик клапан для

Описание и отзывы

Характеристики

All jet vacuum generators are driven by compressed gas, which flows into the vacuum generator injection system.The gas is dispersed into one or more holes, and during expansion and energy storage, pressure and heat are converted into mechanical energy. The jet velocity of the compressed air increases rapidly, and at the same time, the pressure and temperature of the gas will drop, resulting in more air being drawn, thus creating a vacuum at the suction end.





Vacuum Generator Pneumatic Components Large Flow Vacuum Transmitter vacuum valve Specifications :



Medium	Air (non-corrosive & non-flammable )
Working Temp.(C)	(0—+60C)No Frozen
lubricating oil	No need
Working Pressure	0.1-0.6MPa
Weight(g)	CV-10	CV-15	CV-20	CV-25	CV-30A
Basic type,CK type	80/120	140/190	350/460	730	870









Model	Nozzle diameter	Inhalation	Reaching vacuum	Air consumption	Supply air pressure
	mm	e/min(ANR)	-kpa	e/min(ANR)	Mpa
CV-10HS	1	27	85	44	0.5
CV-10LS	1	36	57.2	44	0.5
CV-15HS	1.5	63	85	100	0.5
CV-15LS	1.5	95	57.2	100	0.5
CV-20HS	2	110	85	180	0.5
CV-20LS	2	165	57.2	180	0.5
CV-25HS	2.5	160	85	265	0.5
CV-25LS	2.5	250	57.2	265	0.5
CV-30HS	3	225	85	385	0.5
CV-30LS	3	350	57.2	385	0.5



Vacuum Generator Pneumatic Components Large Flow Vacuum Transmitter vacuum valve working field :

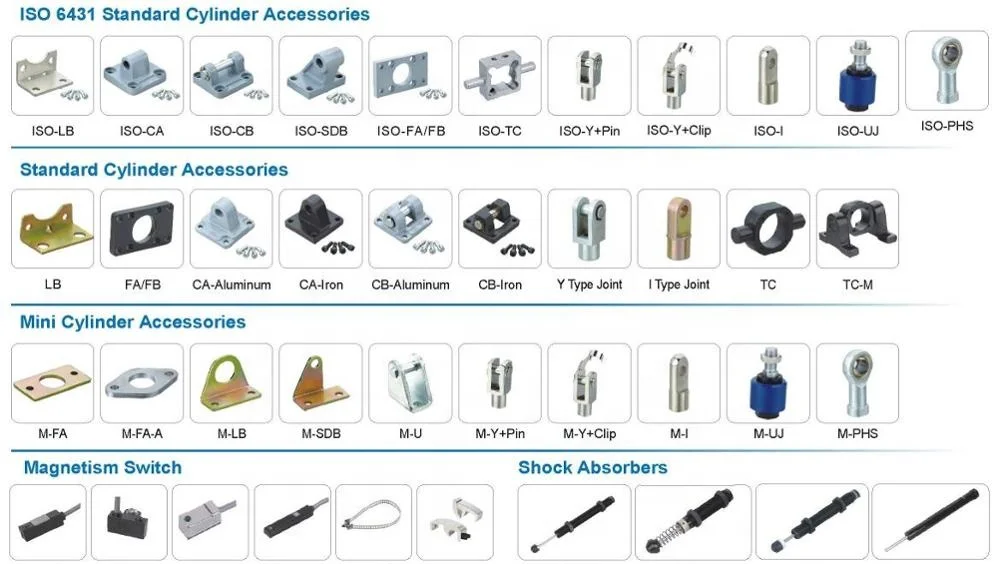

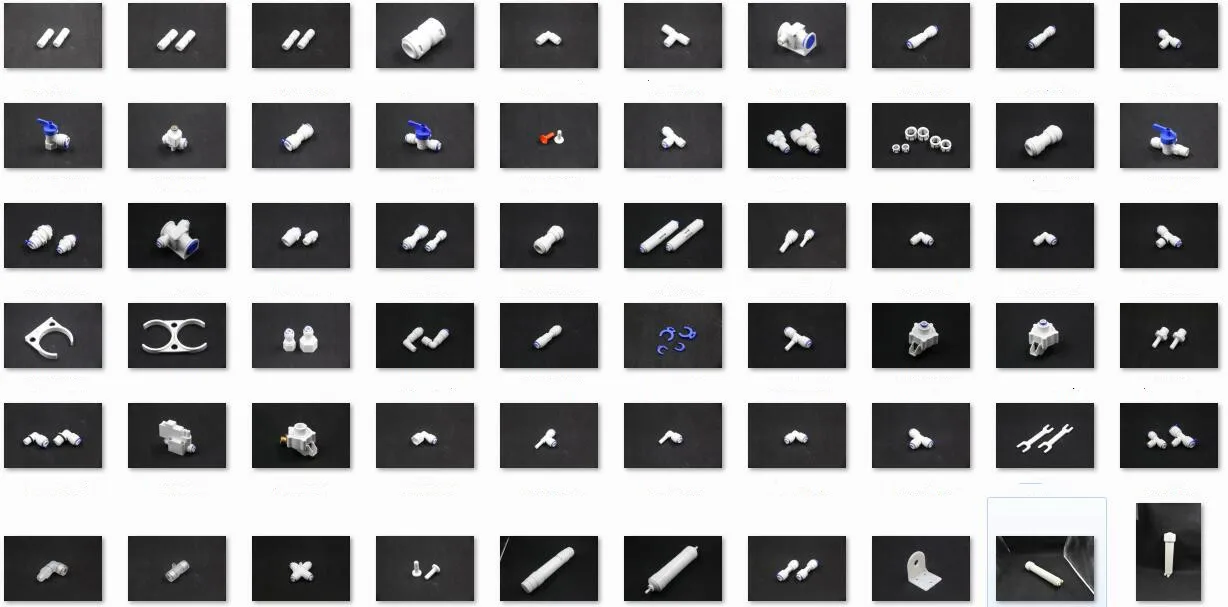

Some relative pneumatic components :

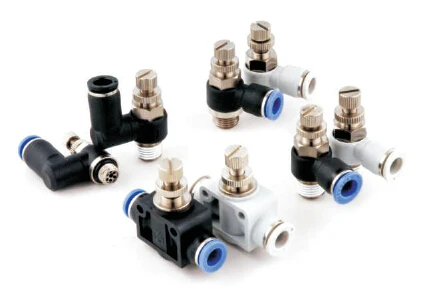

Pneumatic push-in Fittings Specification:



Medium	Air ( no other gas or liquid )
Working Pressure	0~150PSI
Negative Pressure	7.5PSI
Operatiing Temp.	0~60
Applicable Tube	PU and NYLON

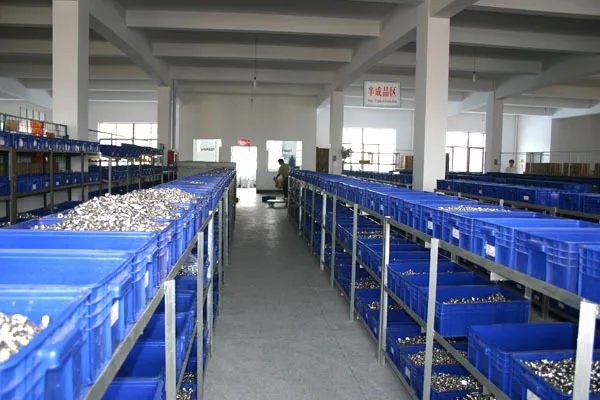

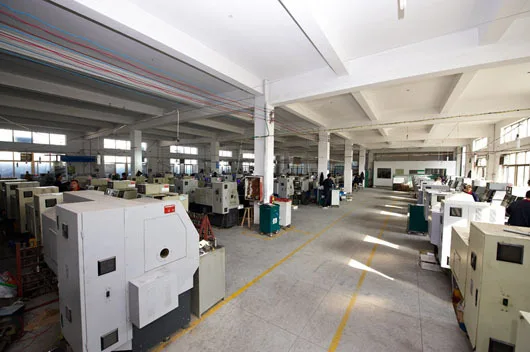

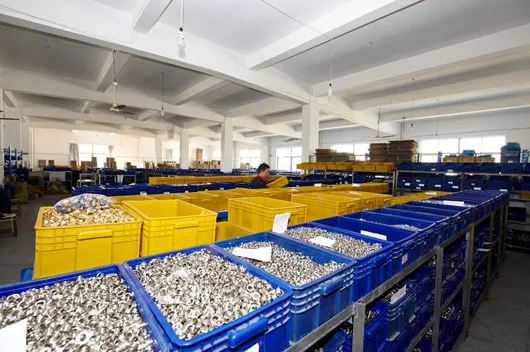

Producing and shipping:
